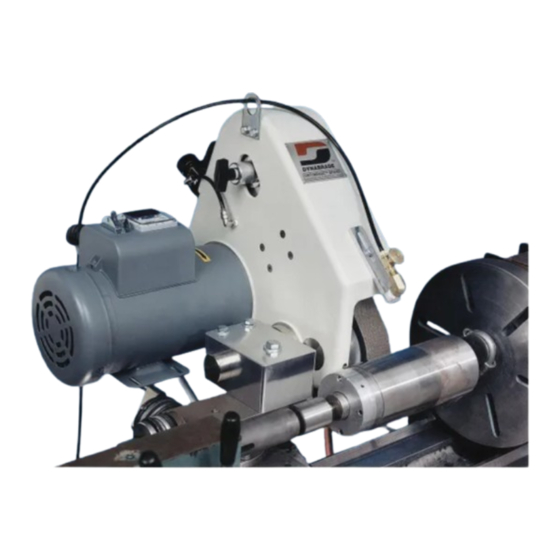

- Page 1 Parts Page Reorder No. PD98•88 Effective August, 1997 Precision Tool Post Grinder Instruction Manual Models: 65752 2" Wide x 48" Long Abrasive Belt Machine 65753 Model 65750 Shown ® DYNABRADE...
- Page 2 LECTRICAL AFETY NSTRUCTIONS Warning: When using electric tools, basic safety precautions should always be followed to reduce the risk of a fire, electric shock, and personal injury, including the following: Keep work area clean. Cluttered areas and benches invite accidents. Consider work area environment.
- Page 3 Our obligation is contingent upon proper use of Dynabrade tools in accordance with factory recommendations, instructions and safety practices. It shall not apply to equipment which has been subject to misuse, negligence, accident or tampering in any way so as to affect its normal performance.
- Page 4 Contact Wheel Centerline 2" Mounting Block P/N 65195 (Models: 65752/65753) “T”-nut MOUNTING: STEP 1. - Remove any tooling, tooling holders, etc. from the lathe compound. STEP 2. - Clear all chips and debris from the top of compound and “T”-slot.
- Page 5 65752 – 230v 10,500 SFPM Precision Tool Post Grinder – Machine Parts Breakdown – Models 65752 and 65753 65753 – 460v 3 Phase, 50/60 Hz Item Part No. Description Qty. 66605 Housing 66610 Electric Assembly ) 66609 Electric Assembly 42 43...
- Page 6 ACHINE DJUSTMENTS Belt Change/Installation: 1. Remove Belt Guard by grasping door latch (P/N 97760) and rotate 1/4 turn counter-clockwise. 2. Turn off air supply at valve (item #42). This will retract air cylinder (item #35) and thus removes tension from the belt. 3.
- Page 7 Visit Our Web Site : www.dynabrade.com E-Mail: customer.service@dynabrade.com DYNABRADE, INC., 8989 Sheridan Drive • Clarence, NY 14031-1490 • Phone: (716) 631-0100 • Fax: 716-631-2073 • International Fax: 716-631-2524 DYNABRADE EUROPE S.àr.l., Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg • Telephone: 352 76 84 94 • Fax: 352 76 84 95 ©...
