Alcoa 304-E User Manual

Heavy duty riveter
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

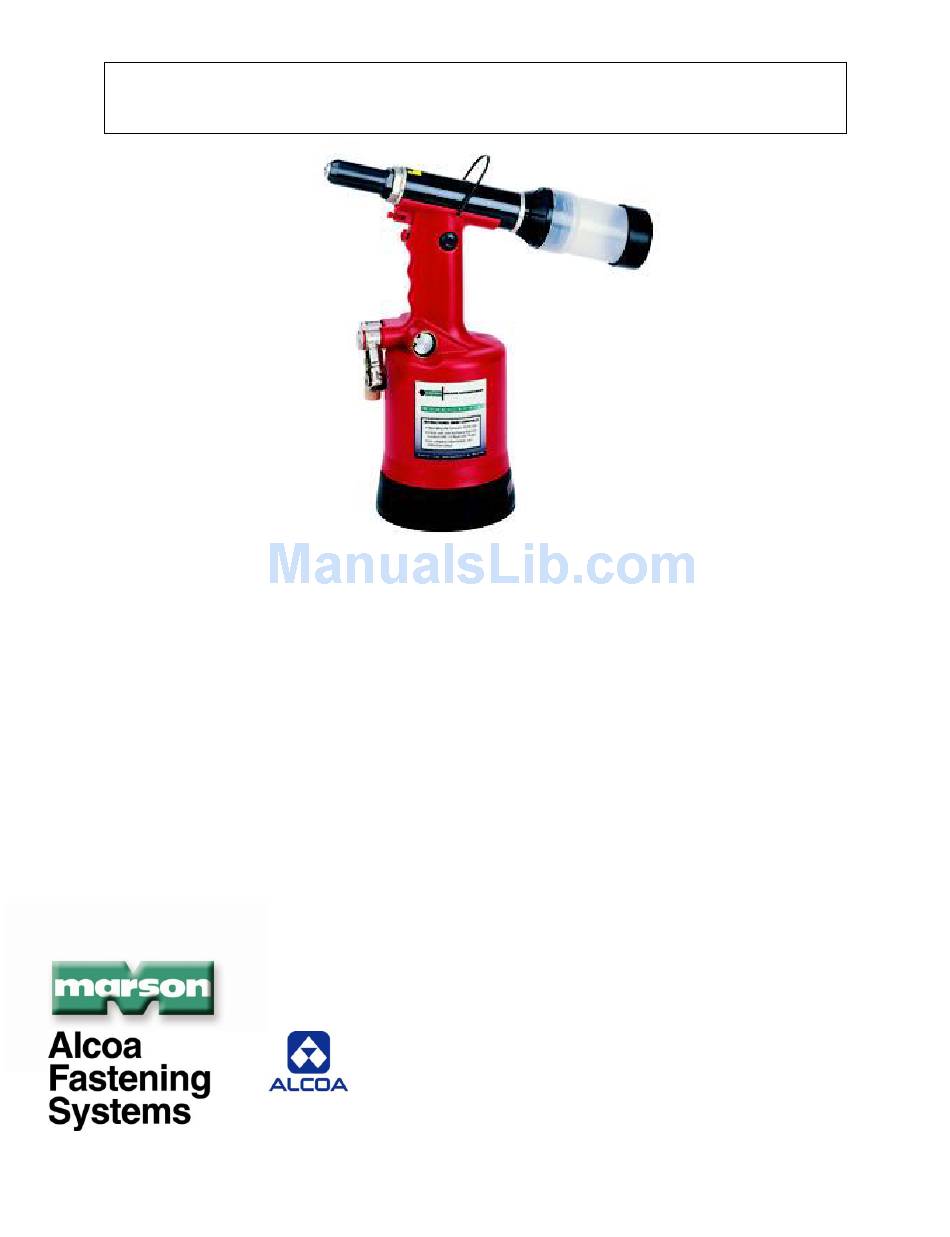

304-E Heavy Duty Riveter / 39064
This is our most powerful air/hydraulic riveter, with its fully vacuum system
that holds the rivet in the nosepiece, allowing the operator to rivet at any
angle with one hand free. The vacuum system automatically collects the
spent mandrel into a bottle, creating a cleaner, safer work environment by
preventing spent mandrels from falling to the floor. A traction pulling power
of 4200 lbs. allows this tool to easily set structural rivets such as Klik-
Lock® and other structural blind rivets. Its long 7/8" stroke enables the tool
to set most rivets in one pull. In addition to the nosepieces for structural
rivets, nosepieces to install 3/16" and 1/4" standard rivets are also included
along with a push button trigger and molded frame which provides the
operator with maximum comfort using minimal effort.
The recommended airline pressure is 85-95 PSI.
Weight: 5 1/2 lbs.
44 Campanelli Parkway
Stoughton, MA 02072
Customer Service: 800-343-3633
www.alcoafasteningsystems.com
(171)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 304-E and is the answer not in the manual?

Questions and answers

Related Manuals for Alcoa 304-E

Summary of Contents for Alcoa 304-E

  • Page 1 304-E Heavy Duty Riveter / 39064 This is our most powerful air/hydraulic riveter, with its fully vacuum system that holds the rivet in the nosepiece, allowing the operator to rivet at any angle with one hand free. The vacuum system automatically collects the spent mandrel into a bottle, creating a cleaner, safer work environment by preventing spent mandrels from falling to the floor.

  • Page 2: Normal Operation

    3/16” and ¼” standard and structural break mandrel blind rivets. It has a traction pulling power of 4200 lbs. The 304-E features 3-jaw construction and is fully self-adjusting. To change size of rivet simply change nosepiece. No other adjustments are necessary (To change nosepiece see section on changing nosepieces) NOTE: When setting Structural Rivets such as Marson Klik-Lock™, Huck Maga-Lock™...
  • Page 3 WARNING: ALWAYS WEAR SAFETY GLASSES WHEN OPERATING AND PERFORMING MAINTENANCE ON TOOL MAINTENANCE ADDITION OF HYDRAULIC FLUID Tool is shipped with oil. If it becomes necessary to add oil, follow this procedure. Put tool in a horizontal position. Remove plug (50). Screw hydraulic fluid bottle container (87) into fluid plug receptacle.
  • Page 4 LIMITED TOOL WARRANTY Alcoa Fastening Systems - Marson division warrants that this tool will be free from defects in material and workmanship under normal service and for ninety (90) days from the date of purchase. This warranty applies to the purchaser of the tool for original use only.
  • Page 5 304-E Heavy Duty Riveter / 39064 Parts Breakdown (171)
  • Page 6 Jaw Case Cono p.ta morsetti Cône porte étaux Spannbackenhalterkegel 88058 Jaw Set Morsetti Etaux Spannbacken 88220-6 Jaw Piston 304-E Apri morsetti Ouvre-étaux Spannbackenöffner 88026 Spring coil Molla ritorno morsetti Ressort retour étaux Feder zum Rücklauf der Spannbacken 88220-9 O-Ring 2-114...
  • Page 7 88021 Outr Valve Piston O'Ring OR 5-612 Parker O Ring 5-612 Parker O Ring 5-612 Parker 88020 Retainer Ring Seeger 11 I Bague seeger 11 I Seeger ring 11 I 88018 Valve plug O'Ring OR 018 Dowty O Ring 018 Dowty O Ring 018 Dowty 88019 Valve plug...
