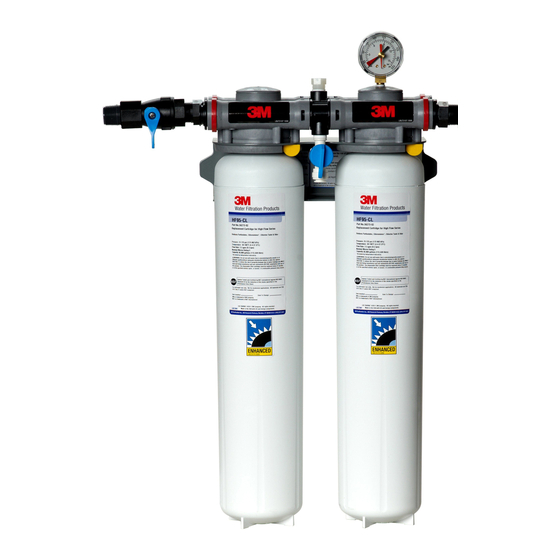

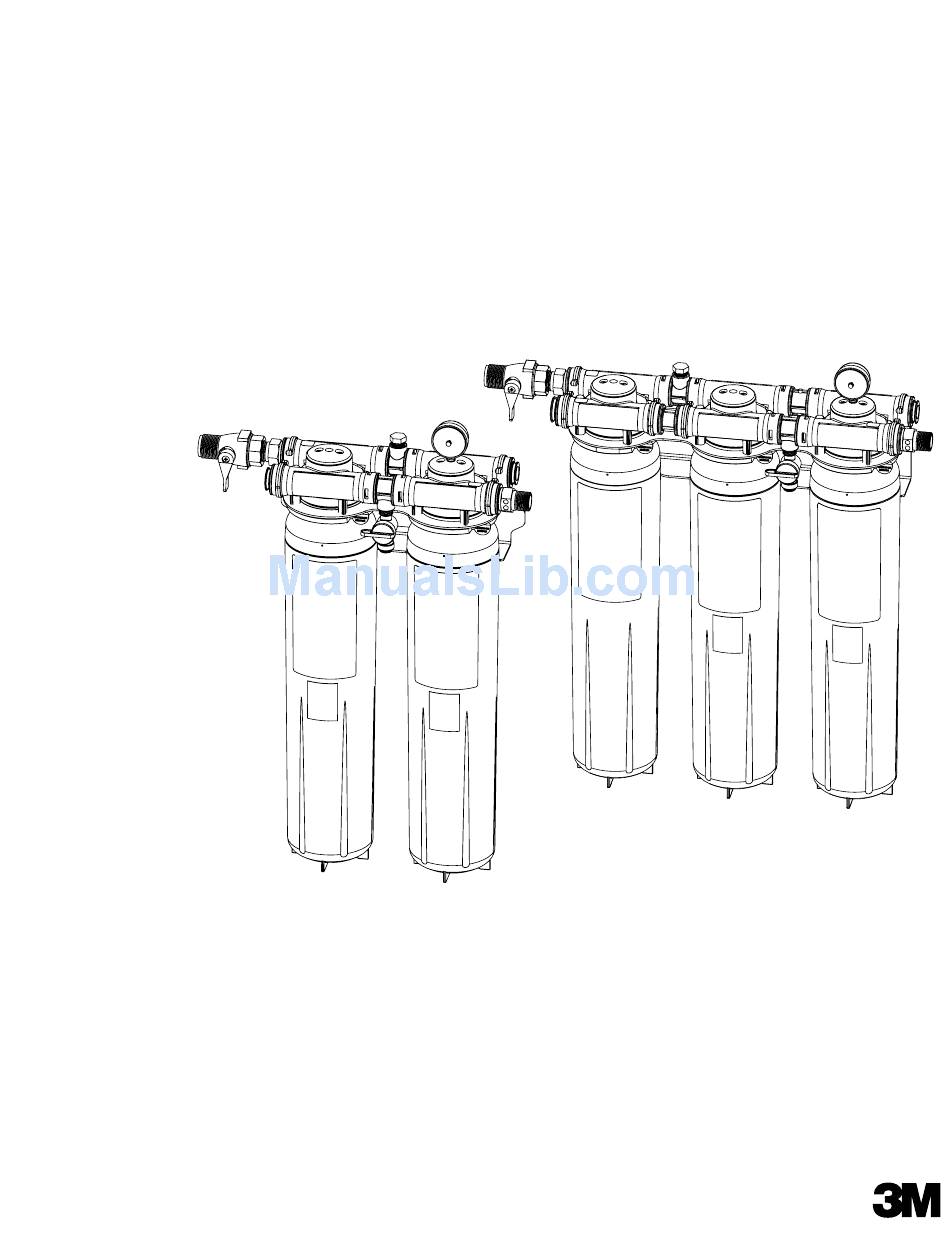

- Page 1 Water Filtration Products Dual/Triple Manifold Water Filtration Systems Instruction Manual High Flow Series Water Filtration Systems Installer: Please leave this manual with owner/operator.
-
Page 2: Table Of Contents
™ Water Filtration Products Table of Contents Safety Information ............................2 Warning Statements ............................2 Caution/Important Notes ..........................3 Inlet and Outlet Connections ........................3 Product Dimensions ............................4 How to Use “Push-in” Connectors ........................5 How to Use “Inlet/Outlet” Fitting/Retention Clip ....................5 Equipment Installation ..........................5 Equipment Start-up Procedure ........................6 Cartridge Change-out Procedure ........................7 Troubleshooting ............................7... -
Page 3: Caution/Important Notes
CAUTION To reduce the risk associated with property damage due to water leakage: Use Instructions before installation and use of this system. MUST comply with all state and local plumbing codes. Protect from freezing, remove filter cartridge when temperatures are expected to drop below 40°F (4.4°C). on hot water supply lines. -
Page 4: Product Dimensions
Dual Manifold Filtration System Product Dimensions 16 7/8in 5 3/8 in (13.5 cm) (42.9 cm) HF9X Series Cartridge 24 1/16" (63.66 cm) HF6X Series Cartridge 18 1/16" (45.9 cm) HF4X Series Cartridge 15 1/16" ((38.3 cm) 3 in (7.62 cm) Minimum To Remove Cartridge Triple Manifold Filtration System Product Dimensions... -
Page 5: How To Use "Push-In" Connectors
How to Use “Push-in” Connectors This product is outfitted with a user friendly ‘Push In’ connector at the vent valve. Proper use of the connectors is shown in the figure below. It is most important that the tubing selected for use with these connectors be of high quality, exact size and roundness, and with no surface nicks or scratches. -
Page 6: Equipment Start-Up Procedure
IMPORTANT NOTES Both manifolds may be used with metal or non-metallic piping systems. IMPORTANT NOTE: Any non-metallic fittings used in the installations must be of adequate rating for the line pressure. 1. Shut off incoming cold water supply. 2. Select the installation location. WARNING: Allow a minimum of 3 in (7.6 cm) of space below the cartridges for change-outs. -
Page 7: Cartridge Change-Out Procedure
Cartridge Change-out Procedure CAUTION To reduce the risk associated with property damage due to water leakage: Use Instructions before installation and use of this system. MUST be replaced every 12 months or at the rated capacity or if a noticeable reduction in flow rate occurs. -
Page 8: Parts Listing
Double Manifold Replacement Parts Listing Item Part no. Description Qty* Micron Rating 6228405 Dual Manifold Assembly Assembly, complete 60-2333700 Vent Valve (not shown) Release trapped air See catalog Replacement Cartridges Water filtration 85005-49 Pressure gauge Monitor outlet water pressure 85-8528 Clip Retain inlet/outlet fittings 63597320... - Page 9 Triple Manifold Replacement Parts Listing Item Part no. Description Qty* Micron Rating 6228405 Triple Manifold Assembly Assembly, complete 60-2333700 Vent Valve Release trapped air See catalog Replacement Cartridges Water filtration 85005-49 Pressure gauge Monitor outlet water pressure 85-8528 Clip Retain inlet/outlet fittings 63597320 o-ring Seal inlet/outlet fittings...
-
Page 10: Limited Warranty
(1) year from the date of purchase. This warranty does not cover failures resulting from abuse, misuse, alterations or damage not caused by 3M Purification Inc. or failure to follow installation and use instructions. No warranty is given as to the service life of any filter cartridge or membrane as it will vary with local water conditions and consumption. - Page 12 3M Purification Inc. 400 Research Parkway Meriden, CT 06450, USA Toll Free: 866.990.9785 Worldwide: 203.237.5541 3M is a trademark of 3M Company. Fax: 203.238.8701 © 2013 3M Company. All rights reserved. www.3Mfoodservice.com 34-8712-8017-7 www.3Mpurification.com Please Recycle. Printed in U.S.A.
