S1 Electric Trolley
Instruction Manual
REGISTERONLINE
www.motocaddy.com/warranty

Advertisement

Table of Contents
loading

Related Manuals for Motocaddy S1

Summary of Contents for Motocaddy S1

  • Page 1 S1 Electric Trolley Instruction Manual REGISTERONLINE www.motocaddy.com/warranty...
  • Page 2 Locating your Serial Number Locating your Serial Number The serial number for your S1 trolley is located on the underside of the battery tray. This number is required when registering your warranty online and should be kept handy for future use.
  • Page 3 Attaching the Wheels Attaching the Wheels There is a left and a right wheel and it is important that you don’t put them on the wrong way round, otherwise the trolley will not move. You will find there is an “L” and “R”...
  • Page 4 All batteries must be charged as soon as possible after each use. Leaving batteries discharged for long periods of time will affect the battery life. Please ensure that only batteries supplied by Motocaddy are charged with Motocaddy chargers. Cyclic battery chargers are designed specifically in accordance with the battery manufacturer’s requirements. The Lithium battery charger MUST NOT be used to charge any other battery and is designed for use with Motocaddy Lithium batteries only.
  • Page 5 Charging your Lead-acid Battery Charging your Lead-acid Battery Disconnect and remove the battery from the trolley Plug the charger into your mains supply Attach the battery cable to the charger matching the red and black connections Follow the charger LED indicator stages shown below: Powered Charging 90% Charged...
  • Page 6 Charging your Lithium Battery / Caring for your Lithium Battery Charging your Lithium Battery Unplug your lithium battery from your trolley. This should always be done before folding the trolley to avoid damage to the battery and/or trolley Plug the charger into your mains supply Attach the battery cable to the charger matching the black and blue connections When the charging led indicator has turned green, the battery is fully charged and ready to be used RED - Battery Charging...
  • Page 7 BMS may switch-off the battery. A full battery charge will rectify this problem. Motocaddy golf trolleys are designed to work with the BMS system installed in the Lithium batteries and the voltage meter is also synchronised to work in conjunction with the battery. If for any reason the voltage on the battery reaches that below the low battery warning on the trolley, then the BMS may disable the battery to protect it.
  • Page 8 Unfolding your Trolley / Folding your Trolley Unfolding your Trolley Pull the clip to release the locking system (fig. 1) Raise the wishbone to the vertical position (fig. 2) Hook the lower part of the frame into the clip (fig. 3) Simply unfold the upper part of the frame then pull the clip again to lock the upper frame in place (fig.
  • Page 9 Using the Lower Bag Supports Using the Lower Bag Supports This Motocaddy trolley is fitted with the new EASILOCK™ bag attachment system. If you are using an EASILOCK™ compatible cart bag please follow these simple instructions: Fig 1 Remove the two pre-fitted lower bag straps by depressing the rear button and sliding (fig 1)
  • Page 10 Using the Upper Bag Supports / Adjusting the Bag Supports Using the Upper Bag Supports The upper bag support straps can be secured using the same steps as the non-EASILOCK instructions overleaf: Stretch the elasticated strap around the bag Fig 1 Loop the rounded bar underneath the hook (fig.
  • Page 11 Safety Cut-out Your Motocaddy trolley is fitted with a safety cut out feature which will help prevent damage to your trolley in the event of it being inadvertently switched on and in a position where it is not able to move for 30 seconds.
  • Page 12 Never use a pressure washer to clean your trolley. To prevent water damage, wipe it down with a damp cloth • Avoid using high pressure air hoses near moving components Your Motocaddy trolley is designed to require very little maintenance; we do however recommend giving your trolley regular checks to ensure: •...

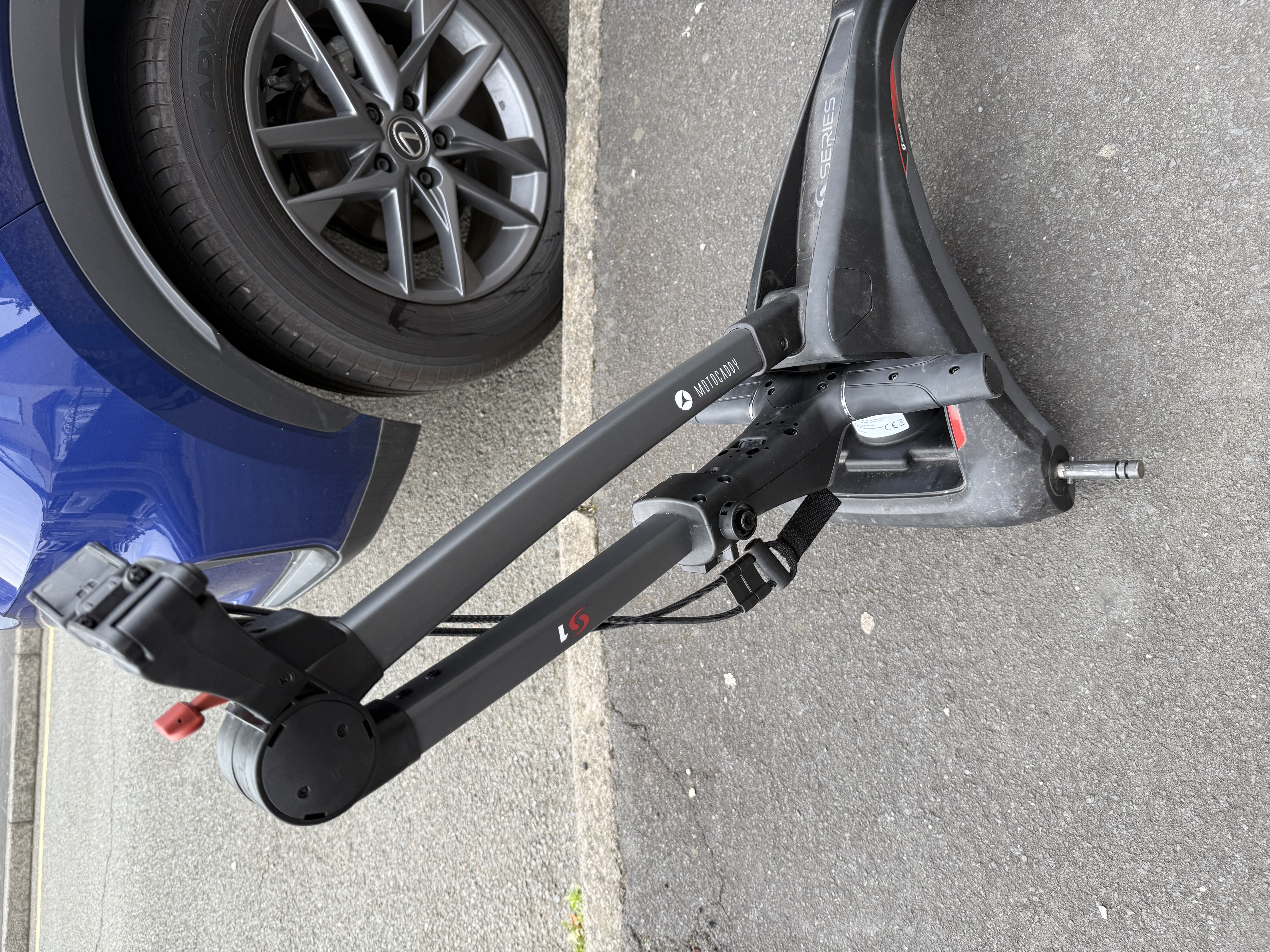

  • Page 13 S1 Equipment Overview S1 Equipment Overview Digital Control Panel Upper Bag Support Central Folding System Folding Release Clip Rear Wheels Rear Wheel quick release button Lower Bag Support Battery Battery Tray 10. Motor (Located under Battery Tray) 11. Front Wheel 12.
  • Page 14 Using your S1 The S1 is extremely simple to control. The red button is used to turn the trolley on and off, whilst also controlling the speed of the trolley. The speed can be adjusted while the trolley is stationary or in motion. The trolley has 9 speed settings (1 to 9) with 1 being the slowest setting and 9 the fastest.

  • Page 15: Troubleshooting

    Troubleshooting Troubleshooting In the unlikely event that your trolley develops a fault, you can be confident that your Motocaddy has been designed with an easy diagnosis system and incredibly simple parts to change. Should your trolley develop a fault please follow the easy to use diagnosis diagrams (pages 16 & 17).
  • Page 16 Troubleshooting 2) If your trolley will not move please run through the following: Please plug the battery into the trolley. Is the No. 2 light Is the No. 3 light Is the right LED Please press the Is the left LED on the controller on the controller on the handle lit?
  • Page 17 Troubleshooting 3) If your trolley is moving but is only going one speed, please run through the following: Please rotate the speed button on the handle Is the speed setting (1-9) changing? The ON/OFF switch is Is it running at a slow faulty.
  • Page 18 Adjusting the Front Wheel Alignment Adjusting the Front Wheel Alignment if your trolley is veering In the unlikely event that your trolley is not tracking in a straight line, the alignment of the front wheel can be adjusted to rectify the fault. This problem can be caused by a number of factors including a slightly loose bag support or an unevenly packed golf bag.
  • Page 19 Declaration of Conformity Page 19...
  • Page 20 +44 (0) 1279 712 370 e: info@motocaddy.com w: www.motocaddy.com We are dedicated to protecting the environment and encourage the recycling of Motocaddy products through a free collection and disposal service. To find out more or to locate your nearest Motocaddy recycling point, please contact us through our website.
