Page 1: User Manual

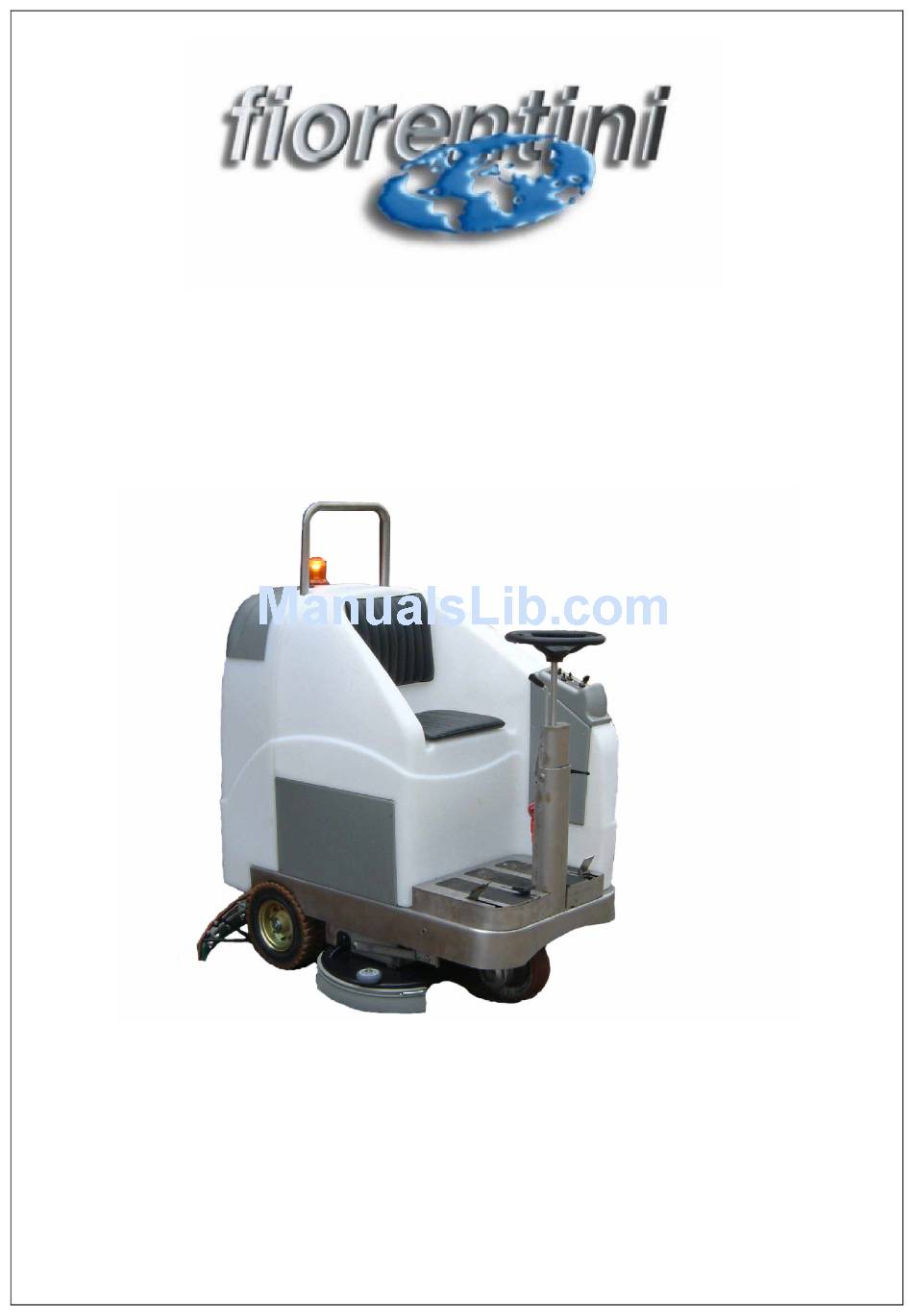

User Manual SCOIATTOLO 75 - 85 ATTENTION! PLEASE READ THIS MANUAL BEFORE USING THE MACHINE ING. O. FIORENTINI S.R.L. INDUSTRIAL CLEANING MACHINES... -
Page 2: Table Of Contents
INDEX MACHINE DELIVERY page INTRODUCTION TECHNICAL DESCRIPTION GENERAL INFORMATION MANUFACTURER RESPONSIBILITY INTERVENTION REQUEST TRANSPORT AND STOCKING PACKED MACHINE HANDLING UNPACKING THE MACHINE UNPACKED MACHINE HANDLING DESCRIPTION DASHBOARD SYMBOLS ON THE DASHBOARD USING THE MACHINE Safety Systems Brake Batteries Installation Battery Charger Installation Choosing the detergent Starting and Preparing the Machine Use of the machine... -
Page 3: Machine Delivery
MACHINE DELIVERY AS SOON AS THE MACHINE IS DELIVERED, PLEASE CHECK THAT THERE IS NOT ANY DAMAGE DUE TO TRANSPORT. IN CASE OF DAMAGE OR MISSING PARTS, PLEASE ADVISE IMMEDIATELY THE MANUFACTURER. INTRODUCTION THIS KIND OF SCRUBBER MACHINE CAN PERFECTLY WASH EVERY KIND OF FLOOR FROM EVERY KIND OF DIRT WITH AN EXCELLENT RESULT. -
Page 4: Technical Description
TECHNICAL DESCRIPTION DIMENSIONS SCOIATTOLO 75 SCOIATTOLO 85 LENGHT 1360 mm 1360 mm WIDTH 860 mm (with brushes 860 mm (with brushes protection) protection) HEIGHT 1360 mm 1360 mm WASHING BRUSHES WASHING BRUSHES DIMENSIONS 380 mm 410 mm Ø Ø CLEANED AREA WIDTH... -
Page 5: General Information
GENERAL INFORMATION MANUFACTURER RESPONSIBILITY The manufacturer NOVA is not responsible for any damage due to the no- acquaintance or no-fulfilment of the instructions of this manual. The same applies to changes, modifications, and/or the installation of accessories not authorized by NOVA. In particular, NOVA is not responsible for any damage caused by: Natural calamity Erroneous manoeuvres... -
Page 6: Transport And Stocking
TRANSPORT AND STOCKING PACKED MACHINE HANDLING The machine is delivered in a special package, which is shown in picture nr. 2. The gravity centre is indicated on the package with a black arrow. The pallet must be forked in the middle of the side with the black arrow in order to avoid overturning. The case should be handled with extreme caution. -
Page 7: Description
DESCRIPTION DASHBOARD 1 BATTERY CHARGER INDICATOR 2 KEY SWITCH 3 BRUSHES SWITCH 4 FORWARD/BACKWARD GEAR SELECTOR 5 SUCTION SWITCH 6 HORN... -
Page 8: Symbols On The Dashboard
SYMBOLS ON THE DASHBOARD Horn Main switch Forward gear Backward gear Washing brushes off Washing brushes on Suction on Suction off... -
Page 9: Using The Machine
USING THE MACHINE SAFETY SYSTEMS The machine is equipped with some safety systems. Outlet (picture 3), it is the same used for the battery charger. In casa of emergency, the operator must the plug must be taken out of the outlet by means of its handle (picture 4). -
Page 10: Brake
Picture BRAKE The machine is equipped with parking and service brake (picture 5). • The service brake is operated by the pedal placed on the right of the footboard (picture 1). • The parking brake is operated by means of the service brake pedal. The operator has to push this pedal completely down and do the opposite when he/she wants to release it. -
Page 11: Battery Charger Installation
• Always clean the surfaces that are in contact with the connections; • Thanks to handles batteries handling is easier. Picture 6 BATTERY CHARGER INSTALLATION • Install the battery charger in a ventilated and dry place, far from heat sources and corrosive substances;... -
Page 12: Detergent Quantity
wash the surface with the squeegee up and the brushes down; activate the brushes; press the solution solenoid valve switch; leave the solution on the surface to dissolve the dirt; do a second washing with brushes and squeegee down, the suction activated and the solution solenoid valve opened. -
Page 13: Squeegee Adjustment
1. recovery tank discharge pipe 2. suction squeegee pipe 3. solution tank discharge pipe SQUEEGEE ADJUSTMENT The squeegee has to be well regulated in order to have a perfect dry system. This kind of squeegee can perfectly suck water, which flows into the suction pipe, but it must be parallel to the surface. -
Page 14: Brushes Replacement
1. squeegee height screw 2. squeegee fastening screw 3. squeegee inclination screw BRUSHES REPLACEMENT The operator has to follow the instructions below to replace the brushes (picture 10): Ø Take the ignition key away from the dashboard in order to avoid a casual starting of the machine;... -
Page 15: Cleaned Area Width Regulation
Picture 10-b Picture10-a 1. Protection brush knob 2. Brush 3. Brush protection CLEANED AREA WIDTH REGULATION Thanks to this srubber machine, the cleaned area width can be regulated. The operator can choose between 70 cm. or 80 cm., but only if the brushes, their protections and the propeller shaft of the reduction gear have been bought for both versions. -
Page 16: Safety, Maintenance And Controls
machine; • Remove the brushes and the protection cases as shown in paragraph BRUSHES REPLACEMENT ; • Remove the brushes plate and at the same time the hydraulic pipes and the electric cables; • Choose between the two brushes plate version and set up the right propeller shaft of the rectucions gears;... -
Page 17: Daily Maintenance Rules
• Do not mix detergents of different kind in order to avoid the development of dangerous gases; • Do not use the machine in places with explosive substances; • Do not use the machine as a means of transport • Do not use acids which could damage the machine; •... -
Page 18: Batteries
• Check if the squeegee pipes and the suction ones are clean • Check the squeegee rubber blades state • Check the water level of the batteries EVERY MONTH • Check the filter of the solution tank EVERY SIX MONTHS •... -
Page 19: Squeegee Blades Replacement
temperature increases more than 10/12 °C compared to the outside temperature, the batteries can be overcharged. OFF DUTY OR INACTIVE BATTERIES Inactive batteries looses their automatically their charge. If batteries do not continually work, the operator has to: Ø Charge the batteries once a month with a final stream intensity until gas is spread and the batteries voltage and weight are constant for 3-4 hours. -
Page 20: Suction Motor Maintenance
2. Remove the internal and external knobs, the steel strips and the worn blades; 3. Set the new blades up, tighten the knobs and regulate the squeegee. Picture 13 1. Squeegee 2. Washer 3. Throttle 4. Rear rubber blade 5. Front steel 6. -
Page 21: Controls
1. Take the ignition key off the dashboard, disconnect the plug, remove the steel plate that fixes the suction motor and the motor itself (picture 14); 2. Remove the sponge filter under the motor, wash it and put it again in its position; 3. -
Page 22: Checking The Safety System
CHECKING THE SAFETY SYSTEM Every year a trained technician has to check the safety deviced of the machine. In particular, the machine has to be completely overhauled every 5 years by a NOVA technician. CHECKING THE ELECTRIC SYSTEM It is very important to check the electric system up every two years. Disconnected cables or burnt cables must be immediately replaced. -
Page 23: Summary
SUMMARY HOW OFTEN TECHNICIAN INSPECTION Safety devices Every 2 years Trained technician Electric system Every 2 years NOVA technician Braking system Every 3 months Trained technician Complete check up Every 5 years NOVA technician MAINTENANCE Recovery tank cleaning Every day Operator Clean water tank Every month... - Page 24 _____________________ Nr. de serie Data di spedizione Shipment Date _____________________ Date de spedition Distributed by: ING. O. FIORENTINI s.r.l. “T ” HE BEST IN FLOOR MACHINES FILIALI: 20132 MILANO – Fax. 02/2592779 Via Palmanova 211/a – Tel. 02/27207783 - 2564810 00155 ROMA –...
