  • Page 1: User Manual

    ING. O. FIORENTINI S.R.L. INDUSTRIAL CLEANING MACHINES SCRUBBER MACHINE I 42/60 GAS USER MANUAL...

  • Page 2: Table Of Contents

    Congratulations for your choice! FIORENTINI S.r.l. thanking you for the preference to our product, would like to remind you that FIORENTINI’s S.r.l production covers manufacture and marketing of industrial cleaning machines and is currently a leading company in this sector.
  • Page 3 MAINTENANCE 5.1. Periodical maintenance……………..…………....…..…..…………... 5.2. Gas engine maintenance………………………………………..……………………….. 5.3. Suction motor maintenance……………………………………………….. 5.4. Electrict equipment control………………………………………………………………. 5.5. Maintenance register…………………………………………………………………. SERVICE 6.1. Service adresses....…………....……………....6.2. Claim report……………………………..…………...………………….…....

  • Page 4: General Information

    In case of loss ask for a duplicate to FIORENTINI Co.. FIORENTINI S.r.l. is not responsible for any kind of damages caused by people or things due to the non- observance of the instructions of this manual.

  • Page 5: Conformity Declaration

    INTERVENTION DEMANDS Intervention demands must be sent to FIORENTINI Service Dpt. only after a careful analysis of the problem and its causes. Following information have to be given to FIORENTINI’s agent: •...
  • Page 6 GENERAL INFORMATION I 42/60 GAS 29/01/10 Rev.000 6/34...

  • Page 7: Features Of The Machine And Technical Data

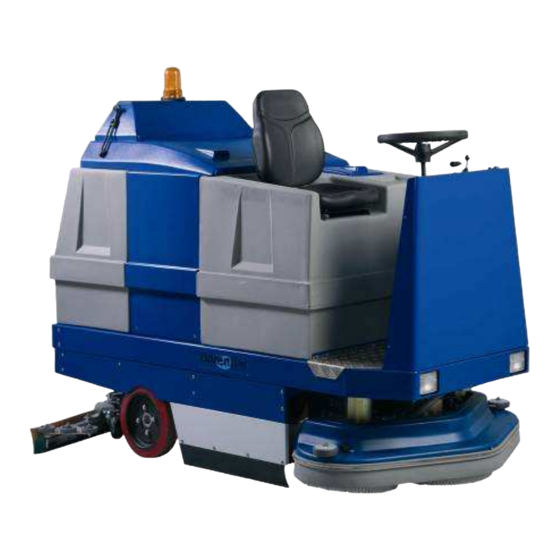

    2.2. DESCRIPTION AND COMPONENTS The autoscrubber machine – I 42/60 GAS - has been designed to clean flat surfaces by means of washing and suction of the washing water. This machine is equipped with a traction system based on two hydraulic motors. They operate the rear traction wheels and are fed by a variable delivery pump.

  • Page 8: Safety

    FIORENTINI Co., taking the new CE safety rules into consideration, manufactures the machine following the CE directives about safety and health. The materials high quality, the high technology and FIORENTINI’s experience guarantee the performance and the reliability of this machine .
  • Page 9 NOISES FOR THE OPERATOR 91 dB 91dB The above mentioned characteristics are not binding for the manufacturer; they can be changed without any notice . ING.O.FIORENTINI Co. is always at disposal for any information (par.7.1.). MEASUREMENT UNITS CONVERSION Lenght 1 inch = 1” = 25,4 mm...

  • Page 10: Right Use Of The Machine

    3.3. SUGGESTED EQUIPMENT In order to use the machine in a proper way, we suggest to use the FIORENTINI’s equipment and original spare parts. FIORENTINI S.r.l. Technical Dpt. is always at your disposal to design components or parts for a particular use of machine as requested by the customer.

  • Page 11: Operator Qualify

    Dismantling and demolition Fiorentini technician FIORENTINI S.r.l. suggest to train the operator before using the machine. The operator also must be trained about safety rules and carefully read this manual. FIORENTINI S.r.l. is not responsible for any possible damage to people and/or things caused by the non-observance of the instructions dealt within this manual.

  • Page 12: Other Dangers

    3.7. OTHER DANGERS FIORENTINI S.r.l. analyzes since the machine design all dangers that can occur while the machine is operating in order to prevent or at least low the operator’s accident. Thanks to a series of signals on the machine the operator can avoid many risks that can occur during the machine operating.

  • Page 13: Safety Signals

    SAFETY I 42/60 GAS 3.8. SAFETY SIGNALS Dangers’ signals are triangular with black DANGERS pictures on a yellow background Prohibitions’ signals are round with black PROHIBITIONS pictures and a red stripe What is it? This signal forbids to remove the protection of pieces in movement.
  • Page 14 SAFETY I 42/60 GAS This signal forbids to remove the protections of hot parts of the What is it? machine while the machine is working. Make sure that the machine has been switched off a few minutes ago What to do and that the ignition key is not in the dashboard.
  • Page 15 SAFETY I 42/60 GAS Squashing danger: it can occur while changing the coal brushes of the What is it? suction engine or while checking the recovery tank up. Make sure that the ignition key is not in the dashboard and that the What to do cylinder support is completely turned over.

  • Page 16: Instructions For Starting And Use

    Handling operations must be done without causing a loss of stability of the machine. Otherwise, the machine can be damaged or the operator can de in danger. FIORENTINI suggest to use authorized personnel (see § 2.3.) to handle the machine. 29/01/10 Rev.000...

  • Page 17: Storage

    INSTRUCTIONS FOR STARTING AND USE THE MACHINE I 42/60 GAS LOADING SYSTEM PICTURE N. 4.2 PICTURE N. 4.3 4.2. STORAGE The machine must be stored in a closed and dry place if not immediately installed in order to keep every part safe.

  • Page 18: Installation

    Wheels brake Pilot lights functioning If the result of the test is positive, the machine can be started. On the contrary, please contact immediately FIORENTINI service. The test above must be periodically done in order to keep the machine always efficient.
  • Page 19 INSTRUCTIONS FOR STARTING AND USE THE MACHINE I 42/60 GAS PICTURE N. 4.6 Blinker fuse Gas oil level indicator Light fuse Solution regulation lever Oil cooler fan fuse Horn Electro valve fuse Accessory (sweeping group) Controls alimentation fuse Blinking switch...

  • Page 20: Preparing And Starting The Machine

    INSTRUCTIONS FOR STARTING AND USE THE MACHINE I 42/60 GAS 4.7. FUNCTIONING The operator, thanks to his/her experience, has to choose the right type of brush and detergent for the surfaces that has to be washed and to decide if the floor needs a second washing.

  • Page 21: Choosing The Right Detergent

    50 cc of wine vinaigre in the recovery tank in order to avoid the suction motor damage. Make sure that the detergent is suitable for the dirty surface. FIORENTINI S.r.l. is not responsible for damages provoked by too aggressive detergents.

  • Page 22: Detergent Control

    INSTRUCTIONS FOR STARTING AND USE THE MACHINE I 42/60 GAS PICTURE N. 4.9 4.7.5 DETERGENT CONTROL During the washing the operator can control the detergent quantity by means of a cock, which is at the bottom of the machine on the left inside the protection rubber (see detail nr. 1 in picture 4.10.).

  • Page 23: Squeegee Adjustment

    INSTRUCTIONS FOR STARTING AND USE THE MACHINE I 42/60 GAS 4.7.6 SQUEEGEE ADJUSTMENT The squeegee must be perfectly adjusted to get a perfect floor drying. ICM 42 is equipped with a V-shaped squeegee, as shown in . This type of squeegee performs very well in collecting water from the floor to the suction hose, but is particularly sensitive to the parallelism to the floor.

  • Page 24: Water Discharge

    INSTRUCTIONS FOR STARTING AND USE THE MACHINE I 42/60 GAS 4.7.7 WATER DISCHARGE This scrubber machine is equipped with two pipes for water discharge (picture 4.15.): A pipe for the recovery tank discharge (see detail nr. 1 in picture nr. 4.15.);...

  • Page 25: Brushes Replacement

    INSTRUCTIONS FOR STARTING AND USE THE MACHINE I 42/60 GAS 4.7.8 BRUSHES REPLACEMENT The operator has to follow the instructions below to replace the brushes: Take the ignition key away from the dashboard in order to avoid a casual starting of the machine;...

  • Page 26: Set The Gas Cylinders Up

    INSTRUCTIONS FOR STARTING AND USE THE MACHINE I 42/60 GAS 4.7.9 SET THE GAS CYLINDER UP Please follow the instructions below to set the gas cylinder up: Place the gas cylinder on its support (see detail 1 in picture 4.18) and fix it by means of belts (see picture 4.18);...

  • Page 27: Squeegee Blades Replacement

    INSTRUCTIONS FOR STARTING AND USE THE MACHINE I 42/60 GAS 4.7.10 SQUEEGEE BLADES REPLACEMENT The squeegee blades should be replaced when the contact edge becomes worn; the perfection of the edge is essential for a perfect drying. To replace the blades, the squeegee should be removed from the machine.
  • Page 28 Trained personnel only can service the machine and especially electric and electromechanical parts by means of suitable tools and equipments. • Make reference to FIORENTINI S.r.l. only for service and spare parts (§ 7.1. and § 7.2.). 29/01/10 Rev.000 28/34...
  • Page 29 MAINTENANCE I42/60 GAS GAS ENGINE MAINTENANCE For any kind of intervention on the engine please follow the instructions of the engine logbook (Kubota 752) delivered with the machine. For the maintenance, check what follows: • Oil lever every 50 working hours, replace it every 150 hours •...
  • Page 30 MAINTENANCE I42/60 GAS ELECTRIC EQUIPMENT CONTROL It is very important to check the electric system up every two years. Disconnected cables or burnt cables must be immediately replaced. Interventions on the electric system must be carried out by a trained technician. Every kind of intervention not explained in the operator manual must be carried out by FIORENTINIs technicians.
  • Page 31 MAINTENANCE I42/60 GAS 5.5. MAINTENANCE REGISTER DATE OPERATOR INTERVENTION SIGNATURE 29/01/10 Rev.000 31/34...
  • Page 32 Most of the technical problems can be sorted out with short intervention. This is why FIORENTINI S.r.l. suggest to read carefully this manual before using the machine. On the contrary, if the customer needs a FIORENTINI’S technician, please inform us about the problem in order to sort it out with the right material. CLAIM REPORT Please, fill in the format below if the machine shows particular problems.
  • Page 33 SERVICE I42/60 GAS Operator: Company: Operator’s name: Role: Date: Signature: Machine description: Machine: Type: CUCCIOLO Purchase date: S.N.: Warranty: Work hours: Where does the machine normally work? Fault: Code of the defected Description: component: Fault: Fault short description: Mechanical component Wrong functioning Electric system Engine...
  • Page 34 Nr. de serie Data di spedizione Date of shipment _____________________ Date de spedition Distributed by: ING. O. FIORENTINI s.r.l. “T ” HE BEST IN FLOOR MACHINES FILIALI: 20132 MILANO – Fax. 02/2592779 Via Palmanova 211/a – Tel. 02/27207783 - 2564810 00155 ROMA –...
