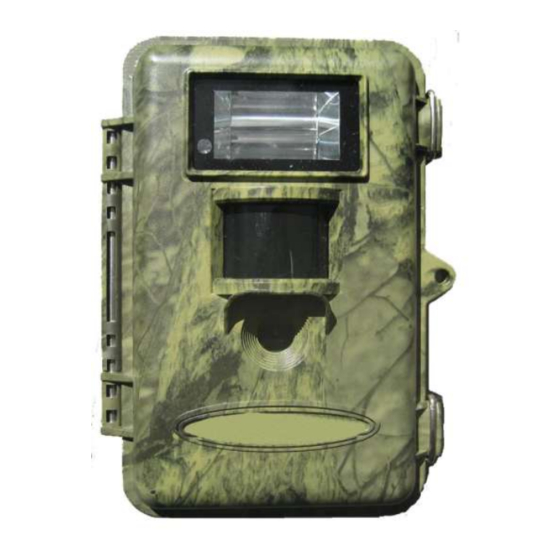

- Page 1 Xenon Flash Digital Scouting Camera User’s Manual Covert Reveal...
-
Page 2: Table Of Contents
Content Instruction ..........................1 General Description ......................1 Camera Body Interfaces ....................1 Shooting Information Display ..................2 Supported Format ......................3 Cautions ........................... 4 Quick Start Guide ..............Error! Bookmark not defined. Power Supply ........................5 Insert the SD-card ......................5 Power on and Entering into the ON Mode .............. -
Page 3: Instruction
Covert Reveal 1 Instruction 1 Instruction 1.1 General Description This camera is a digital scouting camera with Incandescent Flash. It is triggered by any movement of humans or animals monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 5M pixels) or records video clips (VGA) according to default settings or preset customer settings. -
Page 4: Shooting Information Display
Covert Reveal 1 Instruction 1.4 Shooting Information Display When the camera is turned on (the power switch is slid to ON position), the programming information will be displayed in the monitor. Page... -
Page 5: Supported Format
Covert Reveal 1 Instruction 3. Image size 4. SD card 5. Battery level 2. Image mode 6. Video mode 1. Time Stamp 7. Date (M:D:Y) 8. Time (H:M:S) 9. Available space 10. Number of images 1.5 Supported Format Item Format... -
Page 6: Cautions
Covert Reveal 2 Cautions 2 Cautions ★ The working voltage of the camera is 6V. The camera is supplied by four or eight AA batteries. ★ Please insert the SD-card when the power switch is in the OFF position before testing the camera. -
Page 7: Quick Start Guide
Covert Reveal 3 Quick Introductions 3 Quick Start Guide 3.1 Power Supply To supply power for the camera, four or eight size AA batteries are needed. Open the bottom cover. Confirm that the power switch is at the OFF position. -
Page 8: Enter Into The Test Mode
Covert Reveal 3 Quick Introductions size appropriately. In general, three to six feet is preferred. Slide the power switch to the ON position to power on the camera and enter into the ON mode. After switching on the camera, the motion indication LED (red) light will blink for about 10s. -
Page 9: Advanced Operations
Covert Reveal 4 Advanced Operations 4 Advanced Operations From the basic operations of the camera stated in the previous chapter, we know that the camera has three basic operation modes: de: Power switch is at the OFF position. 1. OFF 2. - Page 10 Covert Reveal 4 Advanced Operations Setting Items Description Choose capturing images or recording videos. While using white flash, the camera can take color images day and Camera Mode night. Video mode can only work under sufficient daylight. In video mode, it will switch to camera mode automatically at night.
-
Page 11: Default Settings
Covert Reveal 4 Advanced Operations 4.1.1 Default Settings Default settings are listed below: Setting Items Default Options Submenu Camera Mode Image Video Format Enter Yes, No Image Size 5M Pixel 3M Pixel Video Size × × Set Clock Enter Adjust Clock... -
Page 12: Set Image Size
Covert Reveal 4 Advanced Operations Press MENU to cancel setting and return to info display. 4.1.4 Set Image Size This parameter has two options: 5 mega pixels (5M Pixel or 5MP) and 3 mega pixels (3M Pixel or 3MP). The following shows how to set pixel size as 3M Pixel provided that the previous option is 5M Pixel: a) Press MENU to display the setting menu. -
Page 13: Set Video Length
Covert Reveal 4 Advanced Operations a) Press MENU to display the setting menu. b) Press UP or DOWN to select Capture Number or Photo Burst. c) Press RIGHT to select 3 Photos. d) Press OK to save the current setting and the option will be un-highlighted. -
Page 14: Set Date And Time Stamp
Covert Reveal 4 Advanced Operations use of the camera, the Normal mode is recommended and is the default setting. The following shows how to set PIR sensitivity as Low provided that the previous option is Normal. a) Press MENU to display the setting menu. -
Page 15: Delete Image Or Video
Covert Reveal 4 Advanced Operations cannot be played in LCD screen on the control. d) Press NEXT to stop playing and return to playback mode. e) Press UP to view the next picture (or video) and DOWN for the previous. - Page 16 Covert Reveal 4 Advanced Operations Adjust the belt to go through the two back holes of the camera. At the end, tie it off to secure the camera properly. Using bottom screw. Page...
-
Page 17: Appendixⅰ: Technical Specifications
Covert Reveal AppendixⅠ: Technical Specifications AppendixⅠ: Technical Specifications 5MP Color CMOS Image Sensor F/NO=3.0mm Lens FOV(Field of View)=52° Detection sensitivity 2m to 10m From 8 MB to 8 GB Memory Card 5MP = 2560 1920 × Picture Resolution 3MP = 2048 1536 ×... -
Page 18: Appendixⅱ: Parts List
Covert Reveal Appendix Ⅱ: Parts List AppendixⅡ: Parts List Part Name Quantity Digital Camera Wired control USB Cable Belt User Manual Page 16...
