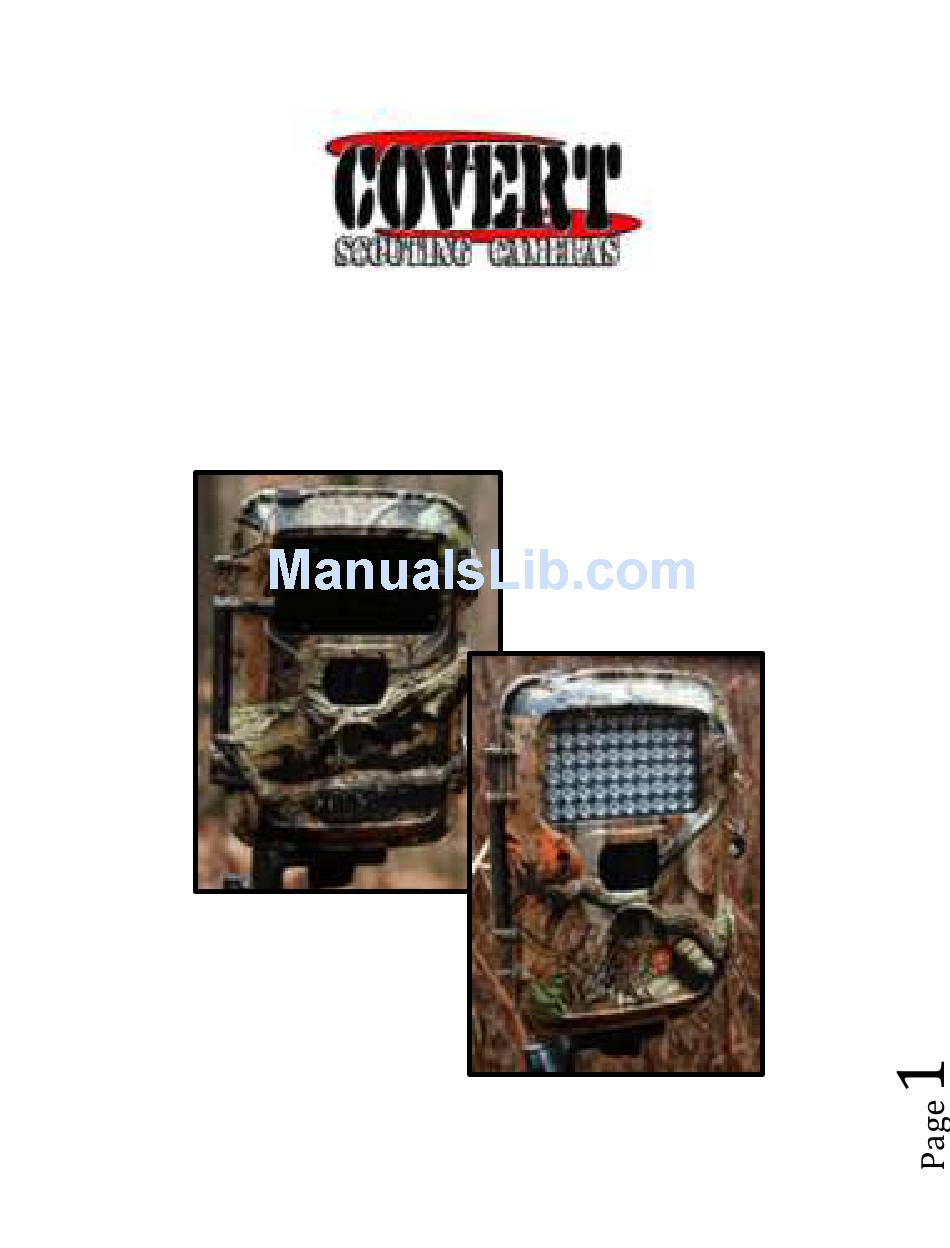

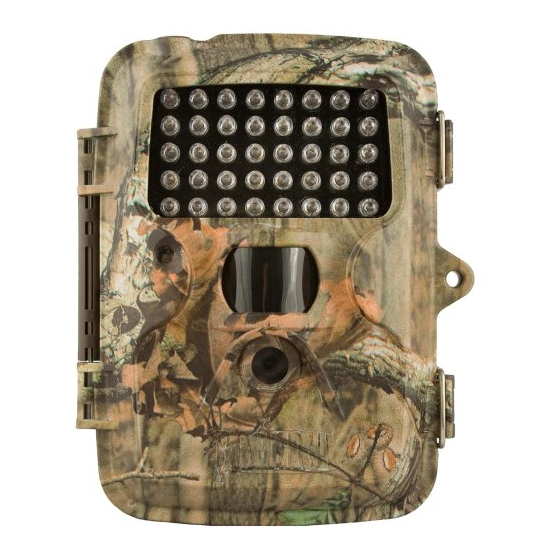

- Page 1 2014 Extreme Red 40 and 2014 Extreme Black 60 Covert Scouting Camera Instruction Manual Black 60 Red 40...
-
Page 2: Table Of Contents
Table of Contents Camera button info diagram: (Fig. 1) ...... 3 Installing the batteries…………………………………………..4 Installing the SD card………………………………………...….5 Understand the main screen info………………………….6 Customizing the camera settings: ......7 Setting the camera mode: ........8 Camera mode settings: ........... 8 Video mode settings: (Fig. -
Page 3: Camera Button Info Diagram: (Fig. 1)
Congratulations on your purchase of the 2014 Extreme Black 60/Extreme Red 40 Covert Scouting Camera! We truly value your business and will strive to provide you top quality customer service should you ever need help with any of our products. -
Page 4: Installing The Batteries
Black 60/Red 40 can function short term on 4AA batteries. Improved battery life on 8-AA, but we suggest you use 12AA batteries to maximize camera performance and battery life.Using Covert 2300mAh, NiMH rechargeable AA batteries can extend the battery life significantly. -
Page 5: Installing The Sd Card
Installing the SD card: To be able to power up the camera you will need to install a Covert SD card in the slot in the bottom of the camera. NOTE: You do not have to use a Covert SD card. See figure 3 below for card orientation. -
Page 6: Understand The Main Screen Info
Understanding main screen info: # of photos # of photos remaining on Camera/Video taken card icon Figure 4 Mega Pixels Battery life chosen indicator... -
Page 7: Customizing The Camera Settings
Customizing the camera settings: Your camera is set to function with the default settings without any further customization. However, you will likely want to at very least set the clock and date. The following information will help you customize your camera settings so you can get the most out of the trail camera experience. -
Page 8: Setting The Camera Mode
Setting the camera mode: Press the ▼ button to highlight the Camera Mode option in yellow. Either Photo or Video will show up in a white box to the right. Press the ►button to toggle between Photo or Video until the option you want shows in the white box. -
Page 9: Video Mode Settings: (Fig.6)
Press the ▲ or ▼ buttons to highlight the PHOTO BURST option: To set this function, press the ►repeatedly to show the 1 Photo, 2 Photos, or 3 Photos option. Press OK to save the desired setting. Video mode settings: (Fig.6) Figure 6 VIDEO SIZE: You can choose from WVGA(800x480), QVGA(320x240), or 720P(1280x720). - Page 10 short night videos, we recommend a trigger interval for double the amount of time of your video. Example: 10 second videos=20 second trigger interval. VIDEO SOUND: Your camera can record sound on videos. Press the ▼ button to highlight the Video Sound option.
-
Page 11: Pir Tab
PIR tab: Press the ▲ or ▼ buttons repeatedly until only the top tab PIRmenu is highlighted in yellow. Press the ► or ◄ button to highlight the PIR tab in yellow. Screen should appear like Fig. 7. Figure 7 SENSITIVITY: There may be situations where you might feel the camera is not catching animals that are nearby or maybe the camera is triggering too... - Page 12 lapse function, you would choose OFF to turn off the PIR. Press the ▼button to highlight the Sensitivity option. Press the ► button repeatedly to toggle between the options in the white box. Once the desired option is chosen, press the OK button to save the setting.
- Page 13 TIME LAPSE: Press the ▼▲ arrow to highlight the Time-Lapse option. This option allows your camera to automatically take a photo without being triggered by the PIR. If you already set the Sensitivity to OFF, then the camera will only take photos when the Time-Lapse option is on.
- Page 14 buttons to highlight the Start-Stop option. The default setting is OFF. Press the ► button to toggle the setting to ON and press OK. See Fig 8&9 below Figure 8 Figure 9 Once you press OK you will see the screen in Fig. 9. Use the ▲▼...
-
Page 15: Sys Tab
SYS tab: The SYS tab controls all the internal system information such as Setting the clock, Time stamp, Flash range, Password, Over Write, and Format. (Fig.10) Figure 10 SETTING THE CLOCK: Scroll over to the SYS tab using the ►◄ buttons and then press the ▼ button to highlight the Set Clock option. - Page 16 Press the ▲▼ button to set the MONTH, the press the ► button to navigate to the DATE and use the ▼▲ buttons to set the date. Press the ► button to navigate to the year and set that using the ▲▼ buttons.
- Page 17 the Flash Range option. Use the ► button to navigate between the two different settings. Press OK to save the settings. PASSWORD: Press the ▼ button to highlight the Password option. You can password protect your camera with this setting. The default setting is OFF. Make sure you write down your password or store it in your phone so you don’t lose it.
- Page 18 If you forget your password, please email us at support@dlccovert.com or call us at 877-462-1799 to request RA #. We require warranty registration to verify your camera. OVER WRITE: The Over Write function will save new photos over the old photos on your SD card if it becomes full.
-
Page 19: Viewing Photos On The Color Display
You will see a screen that has YES and No on it, use the ► button to navigate to YES and press OK. DEFAULT SET: The Default Set option is the last option in the SYS tab. If you want to start clean and re-set all the settings to the original factory default settings you will choose this option. - Page 20 You will see the screen below. Use the ► button to navigate to YES and press OK. If you do not want to delete, press the DEL button again to exit. (Fig. 13) Figure 13 ZOOMING IN ON COLOR VIEWER: Press the Play Button one time, then the ▲button.
-
Page 21: Tricks And Tips On Field Setup
MINI USB: Your camera comes with a mini USB cable to hook up to your computer or TV to look at the photos. Plug the small jack of the cable into the bottom of the camera. Plug the USB end into the USB port on your home computer or USB capable television. - Page 22 Use the Covert Tree60 mounting system to mount the camera up higher pointing dow n on them for a better look. Works great when you don’t have a straight tree to attach to.
- Page 23 Black 60/Extreme Red 40 contact customer service at 877-462-1799 or e-mail us at support@dlccovert.com Extreme Red 40/Black 60 videos take 1 minute videos and need time for the battery to recuperate. Make sure that your trigger interval is set on double the amount of time you set to record a video.
-
Page 24: Warranty
Ni-MH rechargeable batteries. Covert Scouting Cameras Warranty: Covert Scouting Cameras warranties this product for a period of 1 year from the date of purchase. This warranty only covers manufacturer’s defects and does not cover damage caused by misuse or abuse of the product. -
Page 25: Warranty Policy And Procedure
10 days is available on our website at www.covertscoutingcameras.com Covert Warranty Policy and Procedure: To receive repair or replacement by Covert Scouting Cameras one year warranty, we ask you to do the following: -All returns must have a Return Authorization (RA#) prior to sending in the camera. - Page 26 Covert Scouting Cameras. In return, Covert will provide fast and exceptional service as well as incur the cost of shipping back to you. (Only within the Continental United States.) 3. Please include the following information when sending in your camera.
- Page 27 1. Outside the US, service is the available through the distributor/reseller of purchase. 2. All returns must have an RA# provided by Covert. Copy of Proof of Purchase is required for all returns. 3. Covert is not responsible for lost or damaged products incurred during the shipping process.
- Page 28 To repair damage, malfunction, or degradation of performance caused by the use of non-Covert supplies or consumables or the use of Covert supplies not specified for use with this product. d. To repair an item that has been modified or...
- Page 29 10 days of purchase. To replace items that have been refilled, are used up, abused, misused, or tampered with in any way. To install replacement items that are not considered customer replaceable. k. To support software not supplied by Covert...
- Page 30 To provide software or firmware updates or upgrades. Any service identified in the above list and provided by Covert at the Customer’s request shall be invoiced to the customer, at Covert’s then current rates for parts, labor and shipping. THE ABOVE WARRANTIES ARE GIVEN BY COVERT...
- Page 31 TO THE EXTENT ALLOWED BY LOCAL LAW, EXCEPT FOR THE OBLIGATIONS SPECIFICALLY SET FORTH IN THIS WARRANTY STATEMENT, IN NO EVENT SHALL COVERT AND ITS VENDORS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LOSS OF PROFITS) WHETHER BASED ON CONTRACT, TORT,...
