Summary of Contents for Covert Interceptor Solar

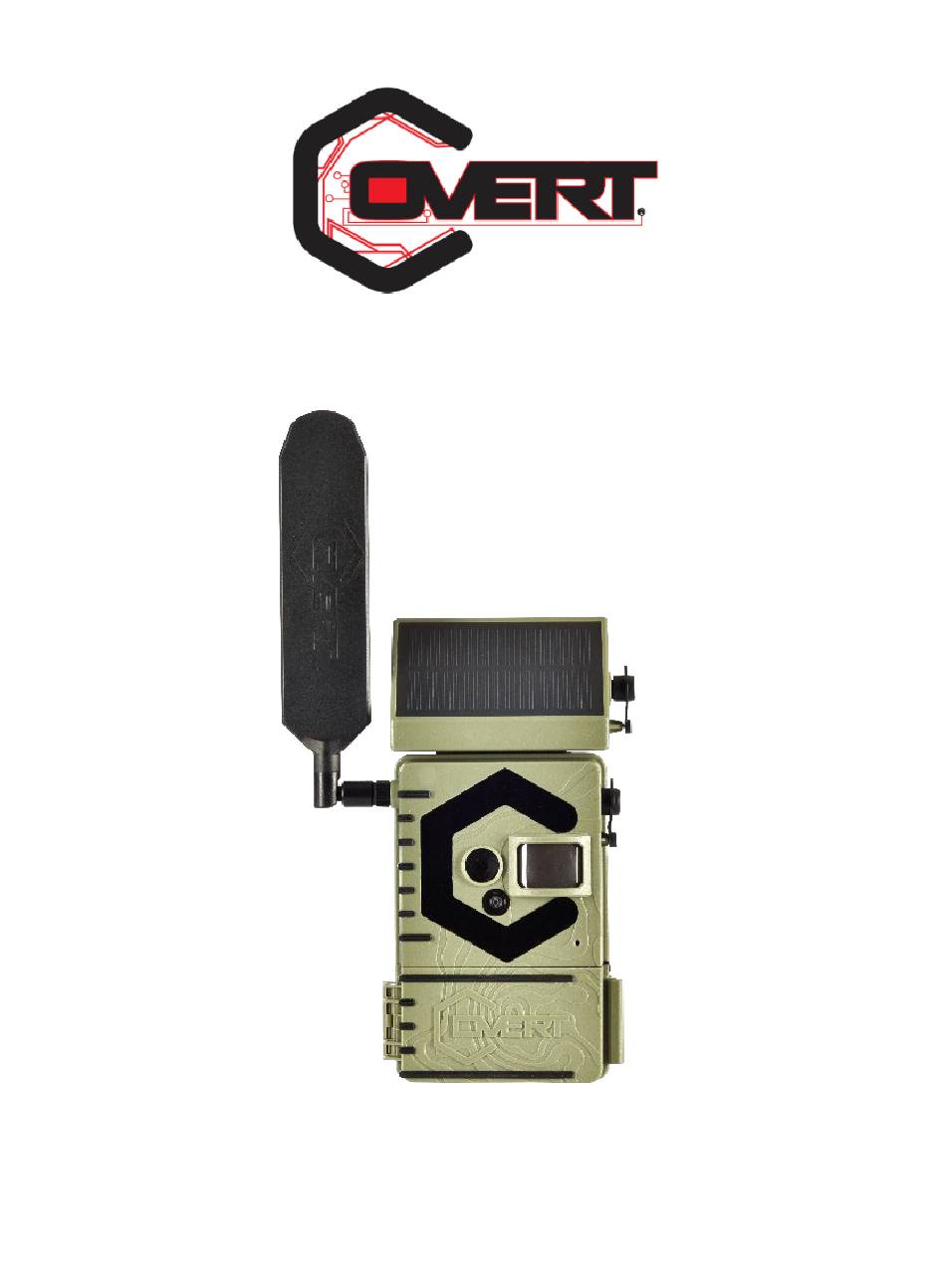

  • Page 1 Interceptor Solar Covert Scouting Camera Instruction Manual...
  • Page 2: Table Of Contents

    What You Will Need to Setup the Camera ..6 Button and Front Case Diagram ......8 Button and Switch Function…………………….……….8 Understanding the Main Screen Info ..... 12 Menu Screens..………………………………….……………13 Solar Function…………………………………………………19 Tricks and Tips/Troubleshooting ...... 20 Covert Scouting Cameras Warranty ....22...
  • Page 3 Congratulations on your purchase of The Interceptor Solar Covert Scouting Camera! We truly value your business and will continue to provide you with top quality customer service should you ever need help with any of our products. Check out our other products on our website at: www.covertscoutingcameras.com...
  • Page 4 Downloading the Mobile App Search “Covert Wireless” in your Google Play Store or Apple App Store. Accessing the Web Portal: Open your web browser to: www.covert-wireless.com Accessing the Billing Site: Open your web browser to: https://secure.covert- wireless.com...
  • Page 5: Quick Start Guide

    Battery Tray and up to a 64GB SD card. Find the QR code by clicking the menu button then selecting registration on the first page. In your covert app hit the “+” button on the main covert. Scan the QR code and follow the prompts to add the camera to your account.
  • Page 6: What You Will Need To Setup The Camera

    8 AA Batteries/Covert Lithium Battery Tray 1 SD Card (Up to 64GB) Installing the Batteries The Interceptor Solar functions on 8 AA batteries or the Interceptor Lithium Battery Tray. To install, click the eject button, slide the battery tray out of the bottom of the unit, and slide each battery into its appropriate slot.
  • Page 7 Quick Set Up 1. Install batteries and SD card 2. Add the camera to your Covert Wireless Plan. (See Quick Start Guide) 3. Switch the camera to ON 4. Press Menu, and select your desired settings 5. Mount the camera in your desired location.
  • Page 8: Button And Front Case Diagram

    Button and Front Case Diagram SD Card Slot Arrow and OK Buttons Sim Card Slot ON/OFF Switch Menu Button Set-Up Screen Battery Tray Eject Button...
  • Page 9 Button and Switch Function ON/OFF Two Position Switch OFF Position – The unit will remain OFF as • long as the switch is in this position. • ON Position – When the switch is in this position, you will be able to set up your preferred settings in the camera menu.
  • Page 10 Button Functions Arrow Keys – You will use these keys to scroll • through the menu, change the settings for your camera, and take a photo or video. Take Image – to take an image using the arrow keys, simply press the down arrow key and your camera will take a picture.
  • Page 11 Menu Button – • The menu button, located above the arrow keys, is used to access your camera settings, and delete images stored on your SD card. o To Delete – a fter clicking OK to view your images, click Menu, and it will give you the option to delete that image.
  • Page 12: Understanding The Main Screen Info

    Understanding the Main Screen Info When you go to set up your camera you will come to the main screen (pictured below) before you head into your settings. Megapixel & SD Card Storage Video Setting Connection Status Cell Reception Connection Battery Life Date &...
  • Page 13: Menu Screens

    Screen 1: Camera Registration Here is where you find the QR code used to add your camera to your covert wireless plan. In the app click “+” in the bottom right corner of the screen and scan the QR code shown on your camera screen.
  • Page 14 Video Length Select how long of a video you would like your camera to take each time it is triggered. Options of 5-60 seconds. Screen 2: Home Camera Mode Photo – Camera will take still images when triggered Video – Camera will take videos when triggered Dual –...
  • Page 15 Interval This controls how often a picture is taken if continuous motion is detected. You have options of 5-59 seconds & 1-60 minutes PIR Sensitivity Set the sensitivity of your PIR sensor. Options are Auto, Low, Normal, & High. Work Period You can set the range of time during the day in which you would like your camera to function.
  • Page 16 Trigger Switch If you turn this feature off, your camera will NOT take pictures when movement is detected. The only time we recommend this being turned on is if there is brush or grass that is causing your camera to take unnecessary images.
  • Page 17 when you send a command to the camera it will go through at the next connection time. Send Mode This controls how often your camera sends images to the app. Immediately – sends as soon as the image is taken Daily –...
  • Page 18 Format - Formatting your SD card clears everything off the card. (It will delete any pictures that are stored on the card!) We recommend formatting your SD card every time before using your camera. Even if you have a new SD card, you should always format the card before you use it in the camera.
  • Page 19: Solar Function

    Default – When you default the camera, it will take the unit back to its factory settings. Firmware Version – here is where you will find the current firmware version that is on your camera. On Camera Solar Function • Your included solar panel has a built-in lithium battery that will power your camera when charged.
  • Page 20: Tricks And Tips/Troubleshooting

    Use one of the Covert mounting systems to mount the camera up higher pointing down on them for a better look. You can find our line of mounting systems at: www.covertscoutingcameras.com.
  • Page 21 IMPORTANT NOTE: Visit www.feradyne.com/contact for troubleshooting prior to contacting the retail store from which you purchased the product. We will be happy to take care of you!
  • Page 22: Covert Scouting Cameras Warranty

    (2) years from date of purchase. If the product proves defective during the warranty period, Covert, at its option, will: 1. Repair the product by means of telephone support, E-mail or depot service at no...
  • Page 23 Covert. (US only) Return shipping to be billed to customer and must be paid prior to return shipping, if camera is found not to be defective in materials or workmanship.
  • Page 24 • through the distributor/reseller of purchase. All returns must have an RMA number • provided by Covert. Copy of Proof of Purchase required for all returns. Covert is not responsible for lost or • damaged merchandise incurred during the shipping process.
  • Page 25 Covert reserves the right to charge for service in exception cases. A description of the depot process may be obtained from the authorized Covert reseller/distributor. Depot service is at Covert’s or its authorized dealer’s sole discretion and is considered an option of last resort. In the...
  • Page 26 To repair damage, malfunction, or degradation of performance caused by the use of non-Covert supplies or consumables or the use of Covert supplies not specified for use with this product. d. To repair an item that has been modified or...
  • Page 27 To install replacement items that are not considered customer replaceable. k. To support software not supplied by Covert l. To provide software or firmware updates or upgrades. Any service identified in the above list...
  • Page 28 Covert at the Customer’s request shall be invoiced to the customer, at Covert’s then current rates for parts, labor and shipping. THE ABOVE WARRANTIES ARE GIVEN BY COVERT WITH RESPECT TO THIS PRODUCT AND ITS RELATED ITEMS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED.
  • Page 29 TO THE EXTENT ALLOWED BY LOCAL LAW, EXCEPT FOR THE OBLIGATIONS SPECIFICALLY SET FORTH IN THIS WARRANTY STATEMENT, IN NO EVENT SHALL COVERT AND ITS VENDORS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LOSS OF PROFITS) WHETHER BASED...
  • Page 30 interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 31 —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance.
  • Page 32 To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation...
