Summary of Contents for Motion F5
-
Page 1: User Guide
Motion Tablet F5, F5V, User Guide Version 5 Effective: 31/3/2014 © Copyright 2003 – 2014 Master Business Systems Ltd PO Box 467 Feilding 4740 New Zealand Tel +64 6 323 9483 Email enquiries@master.co.nz... - Page 2 Motion Tablet F5, F5V, F5T Version 5 Disclaimer Statement Purpose of this document This document describes the functionality and intended usage of Motion Tablet F5, F5V, F5T. Legal Notice The GoGet System and its components are produced and licensed by Master Business Systems Ltd.
-
Page 3: Table Of Contents
Motion Tablet F5, F5V, F5T Version 5 User Guide Contents Introduction to your Tablet PC ....................1 Tablet features.............................1 Front view ............................1 Right side.............................2 Back..............................3 Pen ..............................5 Power up the Tablet ..........................5 Charge the battery..........................5 Introduction to the docking station..................7 Docking Station ...........................7... - Page 4 User Guide Motion Tablet F5, F5V, F5T Version 5 Power plan........................... 22 Change what happens when you press the power button ............23 Notes............................24 2 | Contents Page Effective: 31/3/2014...
-
Page 5: Introduction To Your Tablet Pc

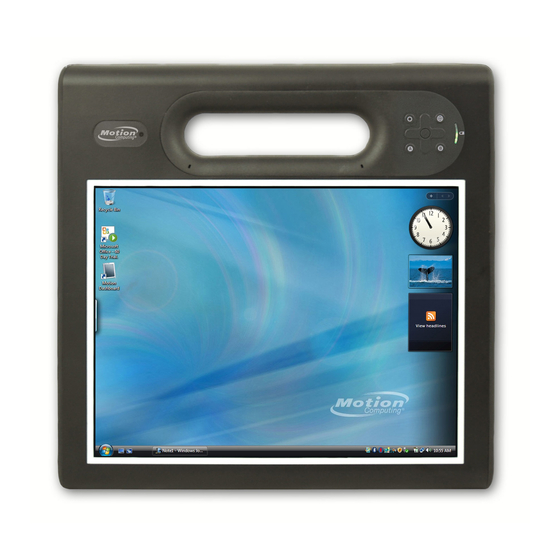

Motion Tablet F5, F5V, F5T Version 5 User Guide Introduction to your Tablet PC Tablet features Front view Activate secondary functions for other Function button buttons Dashboard button Open Motion Dashboard Directional pad Use for basic navigation This is the same as arrow keys on a... -
Page 6: Right Side
User Guide Motion Tablet F5, F5V, F5T Version 5 The centre button is the same as an Enter key A button Set up a custom action B button Set up a custom action Battery gauge Shows battery status Record sounds and use for speech... -
Page 7: Back
Motion Tablet F5, F5V, F5T Version 5 User Guide Use to log on to or lock the tablet Windows® Security button Same as Ctrl Alt Del on a keyboard Scan your fingerprints for added security Fingerprint reader You can also use it as a navigation... - Page 8 User Guide Motion Tablet F5, F5V, F5T Version 5 Pen tether Attach the pen tether Pen holder Use to store the pen when not in use Fan cover Protects the fan assembly Camera (optional) Capture images to the hard drive...
-
Page 9: Pen
Motion Tablet F5, F5V, F5T Version 5 User Guide The F5T Tablet PC supports touch with a pen as well as your finger. Use the pen to write notes. The pen contains no batteries and requires no external power. Power up the Tablet... - Page 10 User Guide Motion Tablet F5, F5V, F5T Version 5 Plug the power cord into a power outlet The battery gauge turns amber to indicate the battery is charging. Keep the tablet on AC power until the battery is fully charged.
-
Page 11: Introduction To The Docking Station
Motion Tablet F5, F5V, F5T Version 5 User Guide Introduction to the docking station Docking Station The docking station adds more functions to your Tablet PC. It will allow you to: Connect to a network Connect a monitor ... -
Page 12: Dock And Remove The Tablet
User Guide Motion Tablet F5, F5V, F5T Version 5 Connect any other device, eg keyboard, printer Dock and remove the tablet Dock the tablet Place the tablet on the docking station tray and press backwards until it locks into place... -
Page 13: Motion Dashboard
Motion Tablet F5, F5V, F5T Version 5 User Guide Motion Dashboard Use the Motion Dashboard to customise settings, eg brightness of the screen. Visit it regularly to calibrate the pen or touch. Open the Motion Dashboard Press the Dashboard button on the front of the tablet Tap the Motion Dashboard button on the taskbar You can perform a number of tasks. -
Page 14: Calibrate Touch
User Guide Motion Tablet F5, F5V, F5T Version 5 Set tablet to double tab mode Change settings for left-handed use Rotate the screen Adjust the brightness Calibrate touch The digitizer detects the position of your finger or the pen. You need to calibrate it the first time you use it and then again whenever the pointer does not align with your finger or the pen. -
Page 15: Adjust Brightness
Motion Tablet F5, F5V, F5T Version 5 User Guide Tap the Rotate Screen button Adjust brightness Tap Display Move the Brightness slider Effective: 31/3/2014 Page | 11... -
Page 16: Use The Pen And Touch
User Guide Motion Tablet F5, F5V, F5T Version 5 Use the Pen and Touch You can enter text by tapping characters on an on-screen keyboard. Or, you can write on a writing pad. When you write, your handwriting converts to ‘digital ink’. ‘Digital inking’ is the process of converting handwriting to text. - Page 17 Motion Tablet F5, F5V, F5T Version 5 User Guide You can resize the keyboard by dragging the handle at the bottom right of the keyboard. If you want to show an expanded keyboard: Tap on Tools Tap on Show expanded keyboard...
-
Page 18: Use The Pen
User Guide Motion Tablet F5, F5V, F5T Version 5 Use the pen Tap on the Writing Pad icon if necessary Start writing and as you write each word it is converted to digital ink When you have finished a sentence, tap on Insert (at the bottom right) to insert the text into your document Use the videos on writing tips to see how to edit written text. - Page 19 Motion Tablet F5, F5V, F5T Version 5 User Guide Remove the pen and the short-cut menu will appear Tap on whatever you want from the short-cut menu Effective: 31/3/2014 Page | 15...
-
Page 20: Use The Fingerprint Reader
User Guide Motion Tablet F5, F5V, F5T Version 5 Use the Fingerprint Reader If the fingerprint reader has been set up, you will be able to log on to the tablet by scanning your fingerprint instead of using a password. -
Page 21: Use The Documentation Camera
Motion Tablet F5, F5V, F5T Version 5 User Guide Use the Documentation Camera Take a photo Press the Camera button to activate the camera Hold the camera steady and allow it to focus Press the Camera button again to take a picture Pictures window Use the pictures window to save, delete, copy, etc. - Page 22 User Guide Motion Tablet F5, F5V, F5T Version 5 Use the slider bar at the bottom of the pictures window to switch among pictures. 18 | Page Effective: 31/3/2014...
-
Page 23: Wireless Connections
Wireless cards consume battery power. To reduce power consumption and if you are not using Wi-Fi, you may opt to disable Wi-Fi in the Motion Dashboard. Enable or disable Wi-Fi Press the Dashboard button on the front of the tablet... - Page 24 User Guide Motion Tablet F5, F5V, F5T Version 5 After you enable Bluetooth, the Bluetooth adapter will try to discover other Bluetooth devices within range. 20 | Page Effective: 31/3/2014...
-
Page 25: Power Options
Motion Tablet F5, F5V, F5T Version 5 User Guide Power Options The battery on the tablet should run under normal conditions for up to 6 hours. You may have a spare battery. You can check your battery power in a number of ways: ... -
Page 26: Hot-Swap A Battery
User Guide Motion Tablet F5, F5V, F5T Version 5 Remove the battery from the battery compartment Place the tabbed end of the new battery into the battery compartment Press the battery down until it locks into place Hot-swap a battery You can change a tablet battery while the tablet is in use and running on battery power if you have a second charged battery as a replacement. -
Page 27: Change What Happens When You Press The Power Button
Motion Tablet F5, F5V, F5T Version 5 User Guide Tap the Motion Dashboard button on the taskbar Tap Power Tap Power Options Select a power plan from the available list Setting the power plan to Power Saver will reduce the tablet’s performance. -
Page 28: Notes
User Guide Motion Tablet F5, F5V, F5T Version 5 Notes 24 | Page Effective: 31/3/2014...
