Getting Started with the Motion
Locking and unlocking
Sleep
Place your tablet PC in Sleep mode when you go away for a
short period of time to conserve battery power. When you re-
turn, the tablet PC quickly resumes activity and your desktop
is the same as you left it.
To put the tablet PC in Sleep mode, press and release the
power button
. To wake up the tablet PC from Sleep
mode, press the power button again.
T
The power button blinks when in Sleep mode.
ip
Power on and off
Shut down your tablet PC from Windows
right side of the screen to open the Charms menu, tap
Settings, tap Power, then tap Shut down. If Windows doesn't
respond, force the tablet PC to shut down by pressing the
power button for about five seconds.
Using the fingerprint reader
The C5te/F5te comes with a fingerprint reader so that you
can log on to your tablet PC by scanning your fingerprint
instead of entering a password. This provides an added level
of security and is a fast and convenient way to log on.
1
To lock and unlock your tablet,
press the Security button
on the right side of the
tablet PC. It's equivalent to
pressing Ctrl+Alt+Delete.
T
For information about
ip
using the front buttons, see
page 2.
. Swipe from the
®
®
Using the pen
An important difference between traditional PCs and tablet
PCs is that you frequently use a digitizer pen instead of a
mouse and keyboard. A pen can feel more natural in your
hand than a mouse and you can use the pen while standing
or walking. The C5te/F5te pen has a pressure-sensitive tip,
eraser, and a function button. Pressing the function button
is equivalent to right-clicking a mouse.
function button
(right-click)
pen tip
Using touch
Your tablet PC also supports touch, which means you can use
your fingers to select items and open files, zoom in and out,
scroll through browser windows and documents, and more.
Touch works like a mouse. Tap to select an item and double-
tap to open it.
T
To open a right-click menu using touch, press your
ip
finger on the display until a square appears, then lift
your finger and the shortcut menu appears.
Calibrate the pen and your finger so that they can be detect-
ed more accurately on the touchscreen display. You should
do so when you first start using the tablet PC and when the
pointer doesn't align with your pen or finger. To start the
application, tap the Motion Tablet Center tile, then tap
Tablet, and then tap Pen and Touch.
Model CFT-003

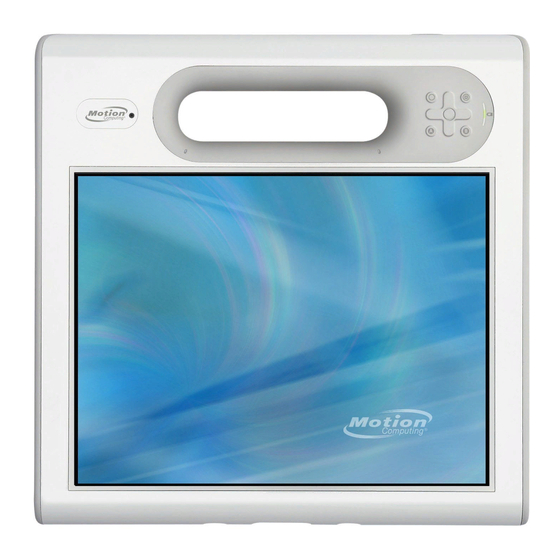

C5te/F5te Tablet PC
eraser
C5te/F5te Getting Started
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Motion C5te
Summary of Contents for Motion C5te
- Page 1 Calibrate the pen and your finger so that they can be detect- ed more accurately on the touchscreen display. You should The C5te/F5te comes with a fingerprint reader so that you do so when you first start using the tablet PC and when the can log on to your tablet PC by scanning your fingerprint pointer doesn’t align with your pen or finger.
- Page 2 Using the buttons on the front of the C5te/F5te You can use the buttons on the front of the tablet PC to perform many functions without having to use the pen. Press a button to perform certain actions. To perform a different set of actions, press the function button and another button simultaneously (as listed in the table below).
-
Page 3: Using The Barcode Scanner (Optional)
Follow the instructions of the software you’re using. To remove the smart card: 1. If required, shut down the smart card software. 2. Pull the card straight out of the reader. Model CFT-003 C5te/F5te Getting Started... -
Page 4: Motion Tablet Center
Motion Dashboard Motion Tablet Center Tap the Dashboard icon to open the Motion Dash The Motion Tablet Center provides a central location for board application. Use the Motion Dashboard to change accessing and configuring the most commonly used common tablet settings. -
Page 5: Set Up Wireless
Set up wireless The C5te/F5te comes with built-in Wi-Fi® and Bluetooth®. Your To set up mobile broadband: tablet PC may also be equipped with mobile broadband for 1. From the Settings menu, tap the wireless network icon accessing the Internet. To set up available wireless networks, 2. - Page 6 You can use different methods to enter text with your The more you write, the more accurately Windows® 8 C5te/F5te to fit your needs. You can use an on-screen touch detects your personal style. To learn more about using keyboard or the handwriting panel. When you write on the handwriting, in the Search field, type handwriting and handwriting panel, your handwriting converts to digital ink.
-
Page 7: Learn More
PC. Motion Computing and Motion are registered trademarks of Motion Computing, Inc. in the United States and other countries. All other trademarks are properties of their respective owners. Microsoft, Windows, and Windows Journal are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
