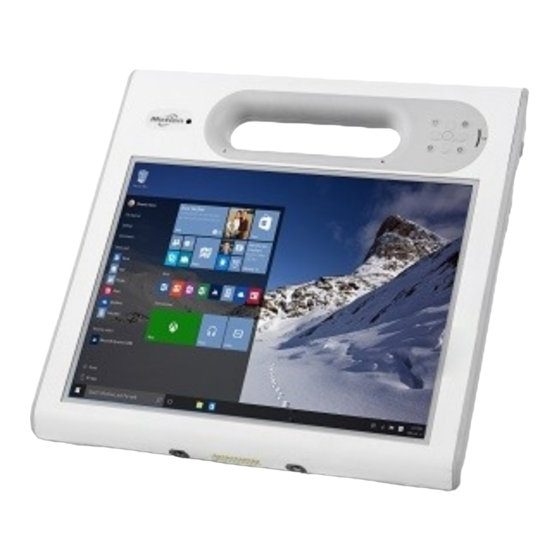

C5te/F5te Tablet PC
Model CFT-003
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFT-003 and is the answer not in the manual?

Questions and answers

Related Manuals for Motion CFT-003

Summary of Contents for Motion CFT-003

  • Page 1 C5te/F5te Tablet PC Model CFT-003 User’s Guide...
  • Page 2 Motion. respective companies. The information in this document is provided “as is” The warranties for Motion products are set forth in the and is subject to change without notice. Motion is not express limited warranty statements accompanying liable for errors or omissions in this document.

  • Page 3: Table Of Contents

    Motion Computing applications ........
  • Page 4 Using dictation and voice commands ........32 Using the cameras.
  • Page 5 Chapter 4 Troubleshooting and FAQs....63 Troubleshooting ............. . . 63 Power issues .

  • Page 6: Chapter 1 Getting Started

    Getting Started ® The Motion C5te/F5te Tablet PCs are rugged, powerful, and provide robust computing power and a variety of integrated features to enable any mobile workflow. The C5te/F5te Tablet PCs include these features: • Intel® Core™ i3, i5, or i7 vPro™ Processors (i7 Processor includes Intel vPro™ technology) ®...

  • Page 7: Optional Features

    Optional features This section describes the optional features available when you purchase your C5te/F5te. Mobile broadband with GPS You can purchase a C5te/F5te Tablet PC with an optional embedded mobile broadband with GPS module that enables you to connect to a variety of mobile broadband networks for sending and receiving data wirelessly.

  • Page 8: View Anywhere Display

    With the built-in TPM and Infineon Security Platform Tools, you can create and manage digital certificates, user and device authentication, full disk data encryption, and restricted network access. These features are most commonly used by enterprises and enabled by the system administrator.

  • Page 9: Overview Of The C5Te/F5Te

    Overview of the C5te/F5te The following illustrations show the buttons, slots, and ports on the C5te/F5te Tablet PC. Top side RFID button RFID status Barcode Fan cover light scanner button RFID (optional) Shows the status of the RFID reader. status light RFID reader Use to trigger the RFID reader.

  • Page 10: Front

    Docking connector Function button Activates secondary functions for other buttons. Motion Tablet Opens Motion Tablet Center. Center button Directional pad Use for basic navigation. Equivalent to the arrow keys on a keyboard. The center button is equivalent to the Enter key.

  • Page 11: Right Side

    Microphones Records sounds and used for speech recognition. Web camera Use for web-based video communication. (optional) Touchscreen Use your finger or pen to navigate the tablet. display Docking Connects to a C5te/F5te docking station. connector Right side ® Power Windows security button button...

  • Page 12: Back

    Back Fan cover Pen tether Pen holder Camera ligh Speaker Camera lens Battery Battery gauge Battery latch Regulatory label Smart card reader Docking guide Pen tether Attach the pen tether. Pen holder Use to store the pen when not in use. Fan cover Protects the fan assembly.

  • Page 13: Pen

    The pen includes a pressure-sensitive tip, a function button, and an eraser. The pen contains no batteries and requires no external power. Eraser Function button C5te/F5te pen You can purchase additional pens from the Motion Computing Accessories page. For more information on using the pen, see Pen and Touch on page 18. Chapter 1...

  • Page 14: Where To Begin With Your C5Te/F5Te

    Where to begin with your C5te/F5te This section includes some information to help you power up and get familiar with your C5te/F5te Tablet PC. Powering up the tablet 1. Plug the power cord into an outlet. Power up the C5te/F5te 2.

  • Page 15: Connecting To Mobile Broadband

    Connecting to mobile broadband Set up mobile broadband with GPS If you purchased your C5te/F5te with the optional mobile broadband module, you can connect to high-speed cellular networks worldwide. With the mobile broadband module and a data plan from one of several cellular network providers, you have full Internet access. Before you can connect to a mobile broadband network, you must have an active account with a cellular network provider.

  • Page 16: Getting Familiar With Your C5Te/F5Te Tablet Pc

    Pen and Touch on page 18. • Use Motion Computing tools to configure basic Windows 8 settings, customize your tablet according to your work style, and to access C5te/F5te documentation and the Motion Support and Tablet PC accessories websites. See...

  • Page 17: Sleep Mode

    Lock and unlock the Tablet PC To lock the Tablet PC, either: • Press the security button on the right side of the tablet and select the Lock option on the following screen. • If a keyboard is attached, press Ctrl+Alt+Delete. To unlock the tablet: •...

  • Page 18: Optional Setup Tasks

    2. Slip the other end of the tether through the attach point on the C5te/F5te, then pull the pen through the loop until it’s tight. You can purchase additional pens from the Motion Computing Accessories page. Connect the tablet to a docking station...

  • Page 19: Connect The Tablet To A Display Monitor

    Using your C5te/F5te on page 15—Provides instructions for basic C5te/F5te tasks including how to customize your tablet to fit the way you work using Motion Tablet Center, how to use the cameras, how to set up speech recognition, and more.

  • Page 20: Chapter 2 Using Your C5Te/F5Te

    Using pen and touch on page 16 • Accessing Motion Tablet Center on page 17 • Accessing Know Your Motion Tablet on page 25 • Entering text and using the handwriting panel on page 26 • Using the front panel buttons on page 29 •...

  • Page 21: Using Pen And Touch

    Using pen and touch With the C5te/F5te Tablet PC, you can use either your finger, a digitizer pen, or both to interact with the touchscreen display. You use your digitizer pen or your finger as you would use a mouse. For example, tapping twice is the same as double-clicking a mouse. Tapping and holding is the same as right-clicking a mouse to open context-sensitive menus.

  • Page 22: Motion Computing Applications

    You may have to swipe to the left if you don’t see the tile initially. 2. Tap the Motion Tablet Center tile to open the application. Motion Tablet Center is organized into categories, which are listed in the left pane. The main screen displays system information about your Tablet PC. Chapter 2...

  • Page 23: Tablet Settings

    Tablet settings The following configuration options are available in Motion Tablet Center’s Tablet settings: • Pen and Touch—Provides access to Windows Pen and Touch configuration options. • Touch Settings—Enables you to calibrate touch settings. • Tablet PC Settings—Use these settings to configure your display and button actions and set handedness options.
  • Page 24 3. To display the touch pointer on the screen, select Show the touch pointer. 4. Select Optimize visual feedback for projection to an external monitor if you want the touch pointer to be visible on an external display such as a projector. Chapter 2 Using your C5te/F5te Motion Tablet Center 19...
  • Page 25 Touch settings You can use Motion Tablet Center’s Touch Settings to enable or disable touch, select right- click options when using touch, and to calibrate the digitizer for touch. The digitizer detects the position of your finger on the touchscreen display. You should calibrate the digitizer the first time you start your Tablet PC.

  • Page 26: Wireless Settings

    You can customize the buttons on the front panel to start your favorite program, run a command, or enter a key combination. 8. To configure the front panel buttons, tap Tablet PC Settings in Motion Tablet Center then tap the Buttons tab.
  • Page 27 Failure to disable the wireless connection on the system while traveling by air can cause communications problems with aircraft instruments. You can disable all wireless communication on the Tablet PC by enabling Airplane mode. Chapter 2 Using your C5te/F5te Motion Tablet Center 22...

  • Page 28: Power Settings

    Advanced settings You can use Motion Tablet Center’s Advanced settings to view all system information for your Tablet PC. System Information lists categories in the left pane and details about each category in the right pane. The categories include: •...
  • Page 29 To enable these devices, tap the switch to turn them on. By default, the C5te/F5te uses the Motion Optimized power plan that is designed specifically for Motion Computing tablets. It balances the need to save power while maximizing tablet performance.

  • Page 30: Know Your Motion Tablet

    Tablet PC is on battery power. Advanced settings The Advanced settings in Motion Tablet Center’s Power screen provide you with access to Windows Power Options, where you can create your own power plan, customize your Tablet PC’s power plan, adjust the screen brightness, set a password on wakeup, choose when to...

  • Page 31: Entering Text And Using The Handwriting Panel

    Motion Computing Tablet PC. To use Know Your Motion Tablet: 1. Locate the Know Your Motion Tablet tile on the Windows 8 Start screen. You may have to swipe to the left if you don’t see the tile initially.

  • Page 32: Using The Windows 8 Handwriting Panel

    In addition to the default on-screen keyboard, Windows 8 provides other keyboard layouts for entering text. You can use an expanded keyboard, which provides additional keys or a keyboard that includes a numbers keypad. To switch to the keyboard that includes the numbers keypad, tap the &123 key in the lower left-hand corner of the default keyboard.
  • Page 33 To minimize the on-screen keyboard or handwriting panel, tap the minimize icon in the upper right-hand corner. You can find other handwriting applications at the Motion Computing Store. Chapter 2 Using your C5te/F5te Entering text and using the handwriting panel 28...

  • Page 34: Using The Front Panel Buttons

    Secondary Button Primary (Function+button) Function Activates secondary function for other buttons Motion Starts Motion Tablet Center Opens Windows® Journal™ Tablet Center Directional Moves the pointer or navigates Left = Shift+Tab through documents. Equivalent to Right = Tab arrow keys on a keyboard.

  • Page 35: Connect An External Monitor

    This does not apply to the Power or Security buttons and is known Windows 8 behavior. To configure the front panel buttons: 1. Open Motion Tablet Center. 2. Tap Tablet PC Settings. 3. In the Tablet PC Settings window, tap the Buttons tab.

  • Page 36: Using Speech Recognition

    Using speech recognition You can use speech recognition to interact with your tablet by voice. You can dictate documents and emails or use voice commands to control programs. • Dictation mode—With Dictation mode, your tablet listens to everything you say and converts your words to text.

  • Page 37: Using Dictation And Voice Commands

    Taking the speech tutorial You can use the speech tutorial to learn basic commands and dictation. The tutorial takes about 30 minutes to complete. To take the speech tutorial: 1. Swipe in from the right side of the screen and tap Search. 2.

  • Page 38: Using The Web Camera

    Using the web camera The web camera is a 1.3MP camera that supports color images and streaming video. It’s located on the front of your tablet. You can use the web camera for web-based video communication. The web camera has a maximum resolution of 1280 x 1024 pixels. Use the software of your choice to operate the web camera.
  • Page 39 SnapWorks™ by Motion® The C5te/F5te includes an application called SnapWorks™ that enables you to shoot, save, edit, email, print, and copy your photos. Taking a photo with SnapWorks 1. Press the Camera button to activate the camera and open the viewfinder.
  • Page 40 After you take your photo, you can tap the Flip icon again to return to the documentation camera viewfinder. Configuring SnapWorks settings 1. Tap the Settings icon in the upper left-hand corner of the screen. The SnapWorks configuration screen is displayed. Setting Description Camera Resolution...
  • Page 41 SnapWorks help Tap the Help icon to open the Key screen where you can view all SnapWorks™ icon descriptions. Editing a photo in SnapWorks 1. Tap the Gallery icon in the upper left-hand corner of the screen to open the directory where your photos are stored.
  • Page 42 Sending, printing, and copying your photos 1. To send your photo via email, tap the Gallery icon in the upper left-hand corner of the screen to open the directory where your photos are stored. 2. Tap your photo once to select it, then tap the Send icon You’ll see a pop-up window that tells you to choose a method to send your image.

  • Page 43: Using The Barcode Scanner

    • RSS Limited Other barcode types can be enabled by using EasySet® by Intermec. This application can be installed by running setup, which is located here: C:\Motion\Software\EasySet To use the barcode scanner: 1. Open the application that you want to receive the barcode data and place the insertion point in the appropriate field.

  • Page 44: Barcode Scanner Tips

    4. Press and release the barcode scanner button on the top of the unit or press and release the B button on the front of the Tablet PC. Ensure that the scan beam covers the entire barcode. If the scan was successful, the data will appear in the application and you will hear a chime sound as confirmation.
  • Page 45 2. Aim the right edge of the unit at the RFID tag and align the RFID antenna/logo with the tag. Ensure that the tag is 1–1.5 inches (25–40 mm) from the RFID antenna scan area. RFID tag 1 – 1.5 inches 3.

  • Page 46: Using The Battery

    Under normal conditions, you can run the tablet on battery power for up to six hours. Battery life varies by configuration, applications in use, utilized features, and operating conditions. Maximum battery capacity decreases with time and use. Motion battery life estimates are based on MobileMark® 2007 performance testing.
  • Page 47 To check the remaining battery power while running on the battery: 1. Locate the battery gauge on the front of the tablet. 2. Count the number of battery gauge lights. When the tablet is on battery power, the lights indicate: •...

  • Page 48: Removing And Replacing The Battery

    Removing and replacing the battery Before you remove the battery, ensure that the tablet is plugged in, turned off, or in Hibernate (page 12) or Sleep mode (page 12). If you’re hot-swapping the battery (page 44), you can do so while the tablet is on and running on battery power. To remove the battery: 1.

  • Page 49: Hot-Swapping The Battery

    (page 43). Important: Use only Motion Computing C5/F5-Series batteries with the tablet. Long-term battery storage Don’t store any batteries with a full charge; this can cause a permanent loss of charging capacity. For long-term storage, ensure that the charge level is between 20% and 40% (two contiguous LEDs illuminated), and remove the battery from the tablet.

  • Page 50: Battery And Power Management Tips

    • When running on battery power, adjust the display to a dimmer setting. • Turn off wireless devices when they aren’t being used. Open Motion Tablet Center, tap Wireless Settings, and enable Airplane mode. Using Mobile Broadband with GPS Use the information in this section to enable Mobile Broadband and the Mobile Broadband GPS receiver.

  • Page 51: Using The Discrete Gps Receiver With Waas, Egnos, And Msas

    Using the discrete GPS receiver with WAAS, EGNOS, and MSAS The discrete GPS receiver uses satellites to provide the current location, altitude, heading, and horizontal velocity of the tablet through Windows' Sensor Framework and a virtual communications port. There is no user interface for the discrete GPS receiver. The discrete GPS receiver is always on whenever the tablet is powered on.

  • Page 52: Starting Omnipass

    You may have to swipe to the left if you don’t see the tile initially. 2. Tap the OmniPass Control Center tile to open the application. When you start the application for the first time, the Motion OmniPass application looks like this: Motion OmniPass Initial Start Up...

  • Page 53: Create An Omnipass User Account

    After you’ve enrolled as an OmniPass user, the application opens the OmniPass Control Center. Create an OmniPass user account You can enroll as a new OmniPass user to register your fingerprint. Before you begin, read the following tips. Fingerprint reader tips •...

  • Page 54: Replace Your Passwords

    3. Follow the instructions in the setup program. When prompted: 1. Supply your Windows® login user name and password. 2. Select Authentec Fingerprint Device. 3. Choose which finger you want to use as your fingerprint password and swipe your finger as instructed. 4.
  • Page 55 Depending on the smart card software you’re using: • You may receive an acknowledgement when the smart card is fully engaged in the reader. • You may receive a prompt or be required to shut down the software before removing the smart card.

  • Page 56: Using The Sim Card Slot

    Using the SIM card slot The SIM card slot holds one SIM card. You need to use a SIM card only if you’re using mobile broadband on a GSM/UMTS/HSPA network. Contact your service provider for additional information. To insert a SIM card: 1.

  • Page 57: Using Windows Action Center

    Using Windows Action Center Windows Action Center provides a central location for you to manage your Tablet PC’s security settings and learn more about improving security. If a problem is detected (such as an out-of-date antivirus application), the Action Center sends you an alert and provides recommendations for how to remedy the situation.

  • Page 58: Locating Your Serial Number

    “S/N. ” To remove the battery, see Removing and replacing the battery on page 43. • Motion Tablet Center main screen • BIOS setup utility Backing up your system To protect against loss or accidental deletion, schedule backups to occur automatically on a regular basis.

  • Page 59: Restoring Your System

    6. To restore files, tap Restore Personal Files in the File History window and follow the instructions. Restoring your system Windows 8 includes specialized tools for restoring your system in case of issues or system failure. This section covers: • Creating a recovery image to use to restore your computer if necessary •...

  • Page 60: Microsoft's Website Provides Additional Information About Creating A Windows 8 Usb

    Microsoft’s website provides additional information about creating a Windows 8 USB recovery drive: http://windows.microsoft.com/en-us/windows-8/create-usb-recovery-drive. Using the Windows 8 recovery drive If you have issues with your Windows 8 installation, you can boot from the recovery drive you created to access recovery and troubleshooting tools. A Recovery Drive is bit specific—if you create a Recovery Drive in a 64-bit version of Windows 8, you can't use that drive to boot up and repair a 32-bit version of Windows 8.

  • Page 61: Using System Restore

    configuration settings. If it detects any of these problems, it automatically attempts to fix them so that your system can boot normally. • Command Prompt—use this tool to access the command line tools. Note: This option is for advanced users only. 6.

  • Page 62: Finding Other Software

    For information about other software for your tablet, go to Motion Computing Accessories and the Motion Computing Store. You will find links to software solutions for purchase as well as free downloads from Motion Computing and its service partners. Chapter 2 Using your C5te/F5te Finding other software 57...

  • Page 63: Chapter 3 Caring For Your C5Te/F5Te

    Caring for your C5te/F5te Proper care and maintenance will keep your C5te/F5te Tablet PC working and in good condition. For general information about care of the tablet and its components and accessories, see the Safety and Regulatory Guide included with your Tablet PC. WARNING: Follow the guidelines listed below when caring for your C5te/F5te Tablet PC and its components.

  • Page 64: Caring For The Display

    Clean fingerprints and smudges from the display surface by wiping it with the cloth provided. • If needed, use a cleaning solution recommended by Motion Computing to clean the display. Spray the solution on a cloth then wipe the display. Never spray directly onto the display surface and never use an abrasive cleaner.

  • Page 65: Replacing Pen Tips

    Disinfecting procedures You should periodically disinfect the tablet according to the institutional polices of surface and equipment safety and cleanliness. Motion Computing has tested a variety of antimicrobial solvents and information about specific products is available upon request. According to the Centers for Disease Control and Prevention, “items that do not ordinarily touch the patient or touch only intact skin aren’t involved in disease transmission, and...

  • Page 66: Training And Documentation Considerations

    Visibly soiled areas should first be cleaned and then disinfected, or a detergent disinfectant can be used. For disinfection, the cleaned areas should be moistened with the appropriate germicide and allowed to air-dry. If the tablet is used with patients who are infected or colonized with vancomycin-resistant enterococci or other drug-resistant microorganisms judged by the infection control program (based on current state, regional, or national recommendations, to be of special or clinical or epidemiologic significance or with highly virulent microorganisms such as Ebola...

  • Page 67: Caring For The Tablet Battery

    Use the following tips when you travel with your C5te/F5te Tablet PC: • Put the Tablet PC in a case to protect the display. Motion Computing sells a variety of cases for the C5te/F5te. You can purchase one at the Motion Computing Accessories page.

  • Page 68: Chapter 4 Troubleshooting And Faqs

    Troubleshooting and FAQs Motion Computing Tablet PCs are thoroughly tested for performance and quality, but occasionally issues can still occur. If you don’t find the information you’re looking for in this section, go to Motion Computing Support. Enterprise users should contact their support organization for assistance with resolving tablet, application, or connectivity issues.
  • Page 69 3. Press the camera, Windows® Security, and Motion Tablet Center buttons simultaneously. For the locations of these buttons, see below. Motion Tablet Center button Windows® Security button Camera button The tablet won’t enter Hibernation mode • Hibernation might not be enabled. Enable hibernation by adjusting the power button behavior from Motion Tablet Center’s Power settings.

  • Page 70: Battery Issues

    The display is too dim • The display brightness may be set too low. Use Motion Tablet Center’s Power settings to brighten the display. Open Motion Tablet Center, tap Power, then tap Advanced. Adjust the display brightness slider to the desired level.

  • Page 71: Ports And Connectors Issues

    The eraser doesn’t work • The eraser may not be enabled. To enable it, open Motion Tablet Center and tap Pen and Touch. Tap the Pen Options tab, and select the checkbox beside Use the top of the pen to erase ink (where available). The eraser works on digital ink only, not text.

  • Page 72: Network Issues

    • Your C5te/F5te may not have located a Wi-Fi network. Open Motion Tablet Center, Tap Wireless Settings in the Tablet screen. The Windows The list of available wireless networks is displayed in the Wi-Fi section.

  • Page 73: Bluetooth Wireless Tips

    Bluetooth issues I can’t connect to a Bluetooth network • Ensure that Bluetooth is enabled. Open Motion Tablet Center, and tap Power. Ensure that the switch beside Bluetooth is set to On. • Swipe in from the right side of the screen and tap Search. Type bluetooth in the search field and then tap Settings.Tap Add Bluetooth device in the search results.

  • Page 74: Audio Issues

    SIM card contains your account information. • Ensure that Mobile Broadband is enabled. Open Motion Tablet Center, and tap Power. Ensure that the switch beside Mobile Broadband is set to On. I changed my SIM card and now I can’t connect to my mobile broadband network •...

  • Page 75: System Issues

    I want to make my tablet run faster • Change the Power plan to High Performance by using the Power settings in the Motion Tablet Center (see Power Settings on page 23).
  • Page 76 What do I need to use the Tablet PC in another country? • You will need a travel plug adapter, which you can find in airports and travel stores. You don’t need to buy a voltage converter; the Motion AC adapter will automatically adjust to different voltages. Chapter 4...
  • Page 77 Can I recycle my old computer? • Yes. Motion Computing has a recycling program that allows free return of all Motion- branded products and non-Motion-branded electronics with the purchase of a similar Motion tablet for processing and disposal in an environmentally safe manner. For details,...

  • Page 78: Index

    Index camera button 6 AC power 9 documentation 6, 7 accessories 14, 57 help 36 Airplane mode 21, 22 settings 35 amber light 70 web 6 amber lights 41 cameras 32 antenna, GPS 69 care and maintenance audio display 59 drivers 70 fingerprint reader 61 general care 58...
  • Page 79 57 keyboard Windows 8 on-screen 26 Know Your Motion Tablet 17, 25 eraser Accessories 26 use top of pen as 19 Getting Started 26 external monitor 30 Support 26 User’s Guide 26 Knowledge Base 14, 72 FAA wireless air travel requirement 62...
  • Page 80 52 power plan Shift+Tab 29 change 24 shut down 64 create 25 SIM card slot 51 customize 25 sleep 12 Motion Optimized 24 sleep mode 12 Power Saver 70 smart card reader 49 power settings 23 Index...
  • Page 81 SnapWorks™ by Motion® 34 troubleshooting configuring settings 35 audio issues 69 copying a photo 37 battery 65 editing a photo 36 battery issues 65 help 36 bluetooth issues 68 printing a photo 37 input 65 sending a photo 37 mobile broadband with GPS 69...
