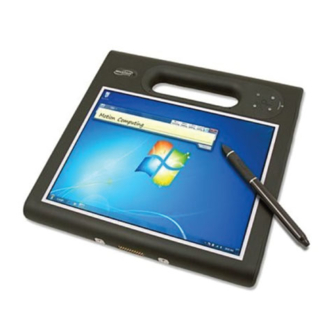

Motion CFT-003 User Manual

C5t/f5t tablet pc
Hide thumbs Also See for CFT-003:
Table of Contents

Advertisement

Quick Links

Download this manual
C5t/F5t Tablet PC
Model CFT-003
User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Motion CFT-003

Summary of Contents for Motion CFT-003

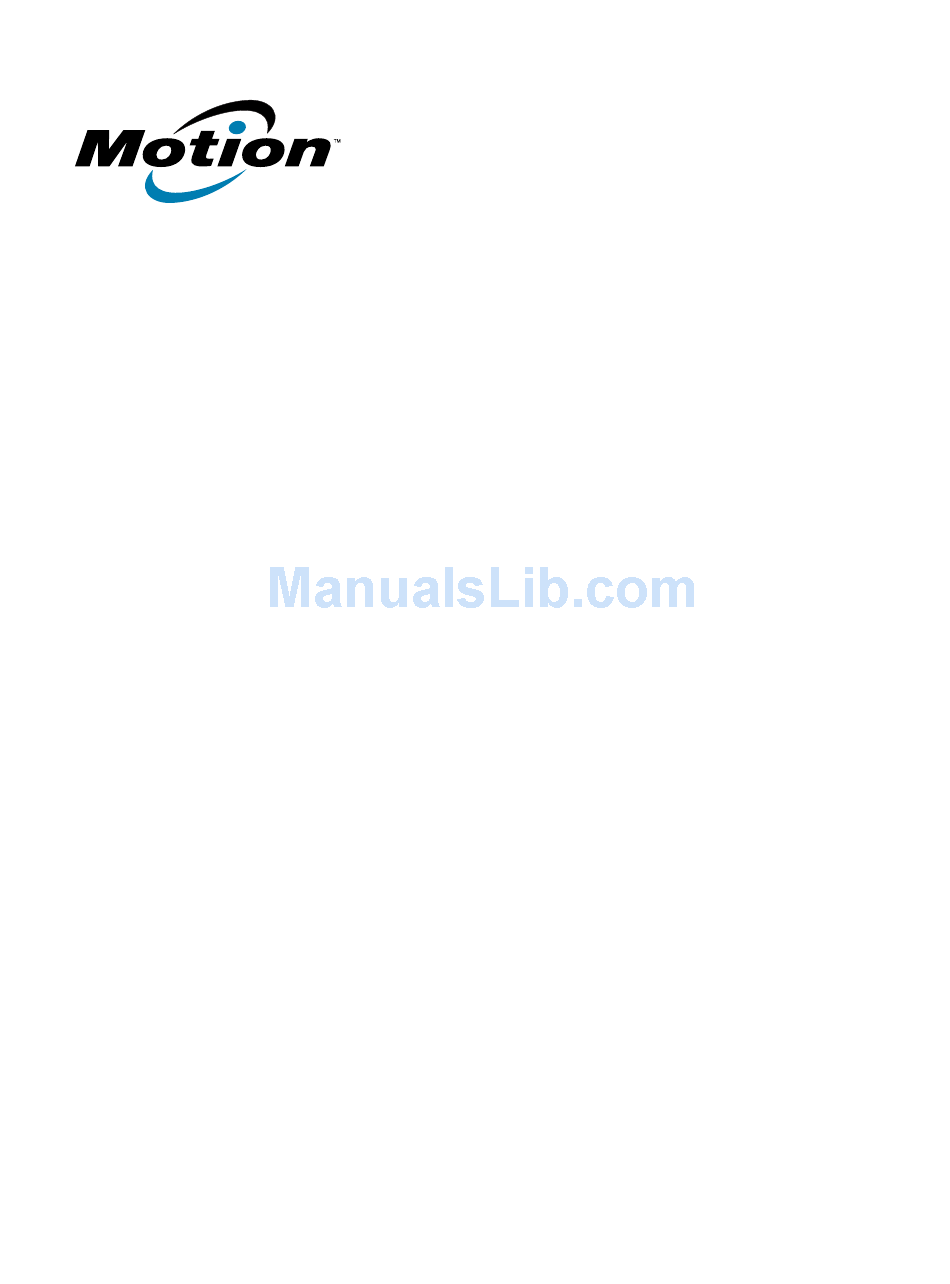

  • Page 1 C5t/F5t Tablet PC Model CFT-003 User’s Guide...
  • Page 2 Motion. respective companies. The information in this document is provided “as is” The warranties for Motion products are set forth in the and is subject to change without notice. Motion is not express limited warranty statements accompanying liable for errors or omissions in this document.

  • Page 3: Table Of Contents

    Using the Motion Dashboard ........... 18 Accessing Motion tools from the Windows® notification area ....19 Using touch .
  • Page 4 Entering special keys with the extended keyboard......27 Using handwriting recognition ..........27 Using the front panel buttons.
  • Page 5 Restoring your system ............58 Creating a system image.

  • Page 6: Chapter 1 Getting Started

    Getting Started ® The Motion C5t/F5t Tablet PCs are rugged, powerful, and mobile, providing real-time access to information in the field. The C5t/F5t Tablet PCs includes these features: • Intel® Core™ i3, i5, or i7 vPro™ Processors (i7 Processor includes Intel vPro™ technology) ®...

  • Page 7: Optional Features

    GPS receiver. You can use it with your preferred mapping applications to find your current and desired locations. Motion Connection Manager is an application that you can use to manage your mobile broadband and GPS network connections. For information on setting up mobile...

  • Page 8: View Anywhere Display

    www.motioncomputing.com/support/driver_download.asp, select the link to the operating system for your Tablet PC, and then scroll down to (TPM) Trusted Platform Module Software. Computrace® Complete The C5t/F5t Tablet PC can be purchased with the optional Computrace® Complete, which offers enhanced data protection, improved IT asset management, and managed computer theft recovery.

  • Page 9: Overview Of The C5T/F5T

    Overview of the C5t/F5t The following illustrations show the buttons, slots, and ports on the C5t/F5t Tablet PC. Top side RFID button RFID status Barcode Fan cover light scanner button RFID (optional) Shows the status of the RFID reader. status light RFID reader Use to trigger the RFID reader.

  • Page 10: Front

    Docking connector Function button Activate secondary functions for other buttons. Dashboard button Open Motion Dashboard. Directional pad Use for basic navigation. Equivalent to the arrow keys on a keyboard. The center button is equivalent to the Enter key. A button Set up a custom action.

  • Page 11: Right Side

    Microphones Record sounds and use for speech recognition. Web camera Interact over the web. (optional) Touchscreen Use your finger or pen to navigate the tablet. display Docking Connect to a C5t/F5t docking station. connector Right side Power Windows® security button button Power adapter RFID antenna...

  • Page 12: Back

    Back Fan cover Pen tether Pen holder Camera ligh Speaker Camera lens Battery Battery gauge Battery latch Docking guide Smart card reader Regulatory label Pen tether Attach the pen tether. Pen holder Use to store the pen when not in use. Fan cover Protects the fan assembly.

  • Page 13: Pen

    The pen includes a pressure-sensitive tip, a function button, and an eraser. The pen contains no batteries and requires no external power. Eraser Function button C5t/F5t pen You can purchase additional pens from the Motion Computing Accessories page. For more information on using the pen, see Using touch on page 20. Chapter 1...

  • Page 14: Where To Begin With Your C5T/F5T

    Where to begin with your C5t/F5t This section includes some steps you can follow to power up and get familiar with your C5t/ F5t Tablet PC. Step 1: Power up the tablet 1. Pull out the port door located at the bottom of the right side of the C5t/F5t to expose the AC adapter port and plug in the AC adapter.

  • Page 15: Step 2: Connect To A Wireless Network

    • Set up Bluetooth Enable wireless from the Motion Dashboard To set up wireless, you must first enable the wireless network adapters from the Motion Dashboard. The Dashboard is a Motion Computing application for configuring your C5t/F5t Tablet PC. To enable wireless adapters: 1.
  • Page 16 GPS. To set up mobile broadband: 1. Enable mobile broadband from the Motion Dashboard. 2. Start the Motion Connection Manager. From the Start menu, select All Programs > Motion Computing > Motion CM. 3. Tap the help icon and select the help topic, Setting up mobile broadband.

  • Page 17: Step 3: Get Familiar With Your C5T/F5T Tablet Pc

    For details, see Calibrate touch on page 21. • Use Motion Computing tools to customize your tablet according to your work style. See Using the Motion Dashboard on page 18. • Open the writing pad and provide handwriting samples to improve handwriting recognition.

  • Page 18: Sleep Mode

    Lock and unlock the Tablet PC To lock the Tablet PC, either: • Press the security button on the right side of the tablet. • If a keyboard is attached, press Ctrl+Alt+Delete. To unlock the tablet: • Press the security button or Ctrl+Alt+Delete again.

  • Page 19: Optional Setup Tasks

    2. Slip the other end of the tether through the attach point on the C5t/F5t, then pull the pen through the loop until it is tight. You can purchase additional pens from the Motion Computing Accessories page. Connect the tablet to a docking station...

  • Page 20: For More Information

    • Using your C5t/F5t—Provides instructions for basic C5t/F5t tasks including how to customize your tablet to fit the way you work using Motion Dashboard, how to use the cameras, how to set up speech recognition, and more. • Caring for your C5t/F5t—Provides suggestions for the care and maintenance of your...

  • Page 21: Chapter 2 Using Your C5T/F5T

    Using your C5t/F5t This chapter provides information about performing the following tasks: • Using the Motion Dashboard on page 18 • Using touch on page 20 • Entering text and handwriting recognition on page 24 • Using the front panel buttons on page 28 •...

  • Page 22: Introducing The C5T/F5T Desktop And Applications

    Introducing the C5t/F5t desktop and applications When you start up your C5t/F5t for the first time, the desktop may look like the following illustration. Motion Computing applications appear in the taskbar and Windows® notification area. Getting Started document ® Taskbar...

  • Page 23: Using The Motion Dashboard

    Dashboard is open to Display settings. Motion Dashboard The following table lists some of the tasks you can perform using the Motion Dashboard. This is a partial list of tasks that you can perform with Motion Dashboard. Some of these tasks are described in this chapter; all tasks are described in...

  • Page 24: Accessing Motion Tools From The Windows® Notification Area

    For convenience, you can access common Motion tools from the Windows® notification area. Initially, the Motion icons don’t appear in the Windows® notification area. Tap the arrow to view more icons. Tap Customize to have the icons appear in the Windows® notification area.

  • Page 25: Using Touch

    Motion Dashboard—Opens the Motion Dashboard. • Options—Lists options you can set: – Show Hard Drive Activity—When selected, the Motion icon blinks when there is hard drive activity. – Automatic Display Rotation—When selected, the C5t/F5t automatically changes the viewing orientation (landscape to portrait or vice versa) when the tablet is physically rotated.

  • Page 26: Calibrate Touch

    Tablet PC. Then, you can recalibrate the digitizer whenever the pointer doesn’t align with the pen tip or finger. To calibrate the digitizer: 1. Open Motion Dashboard. 2. Tap Pen & Tablet. 3. Under Pen & Tablet, tap Calibrate Digitizer.

  • Page 27: Customizing Touch Input Mode

    Switch between touch and pen input, in which case you double-tap to switch to touch input. This is useful to avoid the tablet from responding to unintentional touch input. To configure touch settings: 1. Open Motion Dashboard. 2. Tap Pen & Tablet. 3. Tap Touch Settings.

  • Page 28: Adjusting Pen Settings

    10.To change what the touch pointer looks like or where it’s positioned, tap Advanced Options. To change the location of menus for left-handed users: 1. Open Motion Dashboard. 2. Tap Pen & Tablet. 3. Tap Tablet PC Settings. 4. Tap the Other tab and tap Left-Handed.

  • Page 29: Entering Text And Handwriting Recognition

    When you write on the writing pad, your handwriting converts to digital ink. “Digital inking” refers to the process of converting your handwriting to text. In the following picture of the writing pad, someone started writing Motion Computing and “Motion” has already been converted into digital ink.

  • Page 30: Opening And Closing The Input Panel

    Tap the icons at the top of the input panel to view videos on making editing gestures. To hide the video tips, tap the icon on the right. By tapping the keyboard icon at the top of the pad, the input panel opens to the on-screen keyboard.

  • Page 31: Docking Or Floating The Input Panel

    Docking or floating the input panel By default, the input panel is floating and you can move it anywhere on the screen by placing your finger or pen on the title bar and dragging it. If you prefer, you can dock the input panel so that, when it is open, it always appears at the same location, either at the top or bottom of the screen.

  • Page 32: Entering Special Keys With The Extended Keyboard

    Entering special keys with the extended keyboard You can enter special keys using the on-screen expanded keyboard. Special keys include Home, End, Insert, PgUp, PgDn, PrtScn, Pause, and ScrLk. To open the expanded keyboard: • Tap the Tools key at the top of the input panel and choose Show Expanded Keyboard. Special keys Tools Expanded keyboard...

  • Page 33: Using The Front Panel Buttons

    Function Dashboard Directional pad Enter B button A button Secondary Button Primary (Function+button) Function Activates secondary function for other buttons Dashboard Starts Motion Dashboard Opens Windows® Journal™ Chapter 2 Using your C5t/F5t Using the front panel buttons 28...

  • Page 34: Configuring Front Panel Buttons

    You can configure the buttons to start your favorite program, run a command, or enter a key combination. To configure the front panel buttons: 1. Open Motion Dashboard. 2. Tap Pen & Tablet. 3. Tap the Tablet PC Settings button.

  • Page 35: Setting Display Options

    Adjusting the display brightness Changing the brightness of the display is useful when you want to conserve battery power. To adjust the display brightness: 1. Open Motion Dashboard. 2. Tap Display. 3. Move the Brightness slider to the desired level.

  • Page 36: Setting Up An External Display

    Setting up an external display You can use your tablet with an external monitor or projector. Display settings When connecting to an external display, specify whether to: • Duplicate (mirror) the displays • Extend the tablet’s display to span across the external monitor •...

  • Page 37: Connect An External Monitor

    2. Plug in the external monitor and turn it on. 3. If necessary, install software and drivers for the monitor. See the manufacturer’s documentation for more information. 4. Open Motion Dashboard. 5. Tap Display. 6. Select a Display Scheme. 7. If your Tablet PC doesn’t respond to touch, follow the steps below to...

  • Page 38: Using The Built-In Microphones

    After setting up an external monitor, touch might be disabled on your tablet because Windows® 7 assumes that the external display is for touch input. You can enable touch on the correct display from the Motion Dashboard by following the procedure below. You’ll need a keyboard.

  • Page 39: Using Speech Recognition

    4. Follow the instructions in the setup program. 5. If the microphones are set to an appropriate level, the meter will stay in the green zone while you read the sentences. If the level is too low or too high, use Motion Dashboard to adjust the level (page 18).

  • Page 40: Using Dictation And Voice Commands

    Train your tablet to recognize your speech Use this procedure to improve your tablet’s ability to understand your voice. To train your tablet to recognize your speech: 1. In Control Panel, tap Speech Recognition. 2. Tap Train your computer to better understand you. 3.

  • Page 41: Using The Web Camera

    Using the web camera The web camera is a 1.3MP camera that supports color images and streaming video. It is located on the front of your tablet. You can use the web camera for interacting with people online. Use the software of your choice to operate the web camera. Using the documentation camera You can use the built-in documentation camera to take pictures and save them to your hard drive.

  • Page 42: Using The Barcode Scanner

    Documentation camera tips • Hold the camera steady and allow it to focus. • If your pen is tethered, ensure that the tether is not in front of the camera lens. • Ensure you have adequate lighting. • You can use the Pictures window to take and review multiple pictures. Use the slider bar at the bottom of the Pictures window to switch among active pictures.

  • Page 43: Barcode Scanner Tips

    3. Aim the scanner lens at the barcode. 4. Press and release the barcode scanner button on the top of the unit. Ensure that the scan beam covers the entire barcode. If the scan was successful, the data will appear in the application and you will hear a chime sound as confirmation.

  • Page 44: Using The Rfid Reader

    Using the RFID reader Your Tablet PC may include an integrated 13.56 MHz RFID reader that you can use to retrieve information from RFID tags. RFID tags use radio frequency (RF) transmissions to identify a product, animal, or person. RFID doesn’t require direct contact or line-of-sight scanning, and can be scanned through many materials, including clothing.

  • Page 45: Using The Battery

    Under normal conditions, you can run the tablet on battery power for up to six hours. Battery life varies by configuration, applications in use, utilized features, and operating conditions. Maximum battery capacity decreases with time and use. Motion battery life estimates based on MobileMark® 2007 performance testing.
  • Page 46 The battery gauge is located on the front of the C5t/F5t Tablet PC as shown: You can use the battery gauge on the front of the unit to monitor the status of the battery. To check the remaining battery power while running on the battery: 1.

  • Page 47: Removing And Replacing The Battery

    The indicator lights show the remaining charge. Each light represents about 20% of the total charge. Press To check the remaining battery power from the Motion Dashboard: 1. Open Motion Dashboard. 2. Tap Power, which displays the percentage of remaining battery charge.
  • Page 48 To remove the battery: 1. With the back of the unit facing you, slide and hold the battery latch. 2. Insert your finger under the finger grip and remove the battery from the battery compartment. To replace the battery: 1. Place the tabbed end of the battery into the battery compartment. 2.

  • Page 49: Hot-Swapping The Battery

    (page 42). Important: Use only Motion Computing C5/F5-Series batteries with the tablet. Long-term battery storage Don’t store any batteries with a full charge; this can cause a permanent loss of charging capacity. For long-term storage, ensure that the charge level is between 20% and 40% (two contiguous LEDs illuminated), and remove the battery from the tablet.

  • Page 50: Battery And Power Management Tips

    Wireless tab, and clear the checkbox next to the wireless device you want to disable. Changing the power plan By default, the C5t/F5t uses the Motion Optimized power plan that is designed specifically for Motion Computing tablets. It balances the need to save power while maximizing tablet performance.

  • Page 51: Changing How The Power Button Functions

    Enabling or disabling Wi-Fi Before you can establish a Wi-Fi connection, you must enable the Wi-Fi adapter. You can enable the Wi-Fi adapter using Motion Dashboard. Chapter 2 Using your C5t/F5t Using Wi-Fi (802.11a/g/n) 46...

  • Page 52: Setting Up A Wi-Fi Connection

    Wireless cards consume battery power. To reduce power consumption when running on battery power and when Wi-Fi is not being used, disable Wi-Fi in the Motion Dashboard. To enable or disable Wi-Fi: 1. Open the Motion Dashboard to the Wireless panel (page 18).

  • Page 53: Using The Gps Receiver

    The Connection Manager also lets you start, stop, and manage the Mobile Broadband GPS receiver. To start the Connection Manager: • Tap Start > All Programs > Motion Computing > MotionCM. For more information, see the Connection Manager Help. Using the discrete GPS receiver with WAAS, EGNOS, and MSAS The discrete GPS receiver uses satellites to provide the current location, altitude, heading, and horizontal velocity of the tablet through a virtual communications port.

  • Page 54: Using Bluetooth

    To reduce power consumption when running on battery power and when Bluetooth is not being used, disable Bluetooth in the Motion Dashboard. To enable or disable Bluetooth: 1. Open Motion Dashboard to and tap Wireless panel (see Using the Motion Dashboard page 18).

  • Page 55: Using The Fingerprint Reader

    The steps to set up a fingerprint password include: 1. Start the Motion OmniPass™ application that you use to define and manage your fingerprint. 2. Create an Omnipass user account (called enrolling the user). See page 3.

  • Page 56: Starting The Omnipass Application

    To start Motion OmniPass: • In the Windows® notification area, double-tap the Motion OmniPass icon ( ). When you start the application for the first time, the Motion OmniPass application looks like this: Motion OmniPass Initial Start Up After you’ve enrolled as an OmniPass user, the application opens the OmniPass Control...

  • Page 57: Create An Omnipass User Account

    Create an OmniPass user account You create (enroll as) a new OmniPass user to register your fingerprint. Before you begin, read the following tips. Fingerprint reader tips • For best results, use the Practice option to familiarize yourself with the fingerprint reader before enrolling the first time.

  • Page 58: Replace Your Passwords

    After strong logon security is enabled, if the fingerprint reader or smart card reader fails, you may not be able to log on to the computer. To enable strong logon security: 1. Start Motion OmniPass (page 50). 2. Tap Change Your OmniPass Settings.

  • Page 59: Using The Smart Card Reader

    After you restart the computer, you should configure the authentication rules for strong logon security. To configure authentication rules: 1. Start Motion OmniPass (page 50). 2. Tap Change Your OmniPass Settings. 3. Tap Set user authentication rules and policies. 4. Select the appropriate authentication rules.

  • Page 60: Using The Sim Card Slot

    Smart card reader Smart card Using the SIM card slot The SIM card slot holds one SIM card. You need to use a SIM card only if you’re using mobile broadband on a GSM/UMTS/HSPA network. Contact your service provider for additional information.
  • Page 61 3. Place the SIM card label-side down on the battery tray. Ensure that the notch on the SIM card is in the upper-right corner. 4. Slide the SIM card into the SIM card slot until it clicks into place. You may need to use a paper clip to push the SIM card all the way in.

  • Page 62: Using Windows® Action Center

    If a problem is detected (such as an out- of-date antivirus application), the Action Center sends you an alert and provides recommendations for how to remedy the situation. To learn more, open Motion Dashboard to the Security panel, then tap Windows® Action Center. Setting up user accounts If you share the tablet with other users, you can set up a user account for each user.

  • Page 63: Locating Your Serial Number

    Locating your serial number You can locate the serial number for your C5t/F5t from the: • White label underneath the battery, which is located on the back of the tablet. The number begins with “S/N. ” To remove the battery, see Removing and replacing the battery on page 42.

  • Page 64: Creating A System Image

    System images are designed for restoring your entire system at once when you have a serious problem with Windows® 7. If you want to install particular files, folders or other data, use Windows® Backup. Creating a system image You can use a system image to restore the contents of your tablet if it ever stops working. A system image is an exact copy of a drive and includes Windows®...

  • Page 65: Restoring Your System Image If You Can't Start Windows® 7

    Restoring your system image if you can’t start Windows® 7 If you need to restore your system and cannot access Windows® 7, you can access the recovery tool in the Windows® Advanced Boot Options screen. Before starting, locate the external drive that contains the system image you created previously (page 59) and ensure that a keyboard is attached to your tablet.

  • Page 66: Finding Other Software

    For information about other software for your tablet, go to Motion Computing Accessories and the Motion Computing Store. You will find links to software solutions for purchase as well as free downloads from Motion Computing and its service partners. Chapter 2 Using your C5t/F5t Finding other software 61...

  • Page 67: General Care

    Caring for your C5t/F5t Proper care and maintenance will keep your C5t/F5t Tablet PC working and in good condition. For general information about care of the tablet and its components and accessories, see the Safety and Regulatory Guide included with your Tablet PC. WARNING: Follow the guidelines listed below when caring for your C5t/F5t Tablet PC and its components.

  • Page 68: Cleaning Solutions

    Clean fingerprints and smudges from the display surface by wiping it with the cloth provided. • If needed, use a cleaning solution recommended by Motion Computing to clean the display. Spray the solution on a cloth then wipe the display. Never spray directly onto the display surface and never use an abrasive cleaner.

  • Page 69: Cleaning In A Healthcare Environment

    Disinfecting procedures You should periodically disinfect the tablet according to the institutional polices of surface and equipment safety and cleanliness. Motion Computing has tested a variety of antimicrobial solvents and information about specific products is available upon request. According to the Centers for Disease Control and Prevention, “items that do not ordinarily touch the patient or touch only intact skin aren’t involved in disease transmission, and...

  • Page 70: Training And Documentation Considerations

    Visibly soiled areas should first be cleaned and then disinfected, or a detergent disinfectant can be used. For disinfection, the cleaned areas should be moistened with the appropriate germicide and allowed to air-dry. If the tablet is used with patients who are infected or colonized with vancomycin-resistant enterococci or other drug-resistant microorganisms judged by the infection control program (based on current state, regional, or national recommendations, to be of special or clinical or epidemiologic significance or with highly virulent microorganisms such as Ebola...
  • Page 71 Use the following tips when you travel with your C5t/F5t Tablet PC: • Put the Tablet PC in a case to protect the display. Motion Computing sells a variety of cases for the C5t/F5t. You can purchase one at the Motion Computing Accessories page.

  • Page 72: Chapter 4 Troubleshooting And Faqs

    Troubleshooting and FAQs Motion Computing Tablet PCs are thoroughly tested for performance and quality, but occasionally issues can still occur. If you don’t find the information you’re looking for in this section, go to Motion Computing Support. Enterprise users should contact their support organization for assistance with resolving tablet, application, or connectivity issues.
  • Page 73 The tablet won’t enter Hibernation mode • Hibernation might not be enabled. Enable hibernation by adjusting the power button behavior from Motion Dashboard. See Changing how the power button functions page 46. The tablet doesn’t return from Hibernation mode while on battery power •...

  • Page 74: Battery Issues

    Make sure a keyboard is attached to your tablet and then open Motion Dashboard. Tap Pen & Tablet, then tap Tablet PC Settings. Tap the Display tab, then tap Setup next to “Configure your pen and touch displays. ” Tap Touch Input, then press the Enter key until you see the instructions appear on the display that you want to use for touch input.
  • Page 75 Run touch set up on the desired display. Make sure a keyboard is attached to your tablet and then open Motion Dashboard. Tap Pen & Tablet, then tap Tablet PC Settings. Tap the Display tab, then tap Setup next to “Configure your pen and touch displays. ” Tap Touch Input, then press the Enter key until you see the instructions appear on the display that you want to use for touch input.

  • Page 76: Ports And Connectors Issues

    The pointer on the screen doesn’t align with the pen • The pen may need to be calibrated. Open Motion Dashboard, then tap Pen & Tablet, and tap Calibrate digitizer. The calibration program begins. Don’t touch the display until the program has finished.

  • Page 77: Network Issues

    Panel then Network and Internet. View your active networks. If no network is connected, tap Connect to a network and select a network from the list. • Wi-Fi must be enabled from the Motion Dashboard. Open Motion Dashboard, tap Wireless, and tap the checkbox next to Enable 802.11 Internal Wireless. •...

  • Page 78: Bluetooth Wireless Tips

    Some issues arise when using Bluetooth devices as listed below. Bluetooth wireless tips Motion Computing and its Bluetooth partners have worked to ensure a positive experience with this technology and to ensure Bluetooth interoperability. In doing so, we have found the following issues: •...
  • Page 79 Windows® Start menu, select All Programs > Motion Computing > MotionCM. • Mobile broadband must be set up through the Motion Connection Manager. To set it up, from the Windows® Start menu, select All Programs > Motion Computing > MotionCM. Tap the Help icon and select the help topic, “Setting up mobile broadband. ”...

  • Page 80: Audio Issues

    • The volume may be set too low or muted. You can use Motion Dashboard to increase the volume or turn mute off. Open Motion Dashboard, then tap Audio, and move the slider to the desired volume.

  • Page 81: Frequently Asked Questions

    By default, the power plan for the C5t/F5t is a balance between optimal performance and a long battery charge. If you want the tablet to run longer between charges, use the Power saver power plan. Open Motion Dashboard, tap Power. Tap Power Options and select Power saver.
  • Page 82 • You will need a travel plug adapter, which you can find in airports and travel stores. You don’t need to buy a voltage converter; the Motion AC adapter will automatically adjust to different voltages. Where can I learn more about my C5t/F5t? •...

  • Page 83: Index

    Index Numerics Bluetooth discovery 72 802.11 Wi-Fi 10 enabling 49 802.11a/b/g setting up 11, 49, 72 enabling 46 tips 72 setting up 47 troubleshooting 71 using 46 using 49 boot options 60 buttons AC power 9 about 28 accessories 15, 61 configuring 29 amber light 75 functions 28...
  • Page 84 34 Esc button digital ink 24 configuring 29 digitizer extended display 32 Motion Dashboard options 22 external display, using 31 digitizer pen calibrating 21 directional pad 5, 29 FAA wireless air travel requirement 65 Discrete GPS receiver with WAAS, EGNOS,...
  • Page 85 13, 67 Motion Dashboard 17, 18, 20 about 46 opening 10, 18 Home key 27 using 18–28 hot swapping battery 44 Motion Dashboard button 28 Motion Optimized power plan 45 Motion utilities 19 moving taskbar location 18 indicator light 41...
  • Page 86 PC removing the battery 42 accessories 15 repairing Windows 60 desktop 17 replacing pen tips 63 managing with Motion Dashboard replacing the battery 42 right-click 20, 23 optional features 2 rotating the display 30, 76 shutting down 46 software 61...
  • Page 87 Windows Security Center external display 31 about 57 external monitors 31 using 57 microphones 33 wireless Motion Dashboard 18–28 setting up 802.11 Wi-Fi 10 power plans 45 setting up Bluetooth 11 sleep mode 46 setting up mobile broadband 10 speech recognition 34...
