Pizza Kit
for Kettle Grills
IMPORTANT: This instruction manual contains important information necessary for the proper
assembly and safe use of the appliance.
Read and follow all warnings and instructions carefully before assembling and using the appliance. Keep this
manual for future reference.
OWNER'S MANUAL
Makes great tasting,
traditional Italian pizza –
with bubbly cheese, crispy
crust & toasty toppings.
PizzaQue
Pizzacraft
PC7001
CS040215
©The Companion Group 2014
1250 9th Street, Berkeley, CA 94710
800-521-0505
info@companion-group.com
®
®
Advertisement
Table of Contents
Related Manuals for Pizzacraft PizzaQue PC7001
Summary of Contents for Pizzacraft PizzaQue PC7001

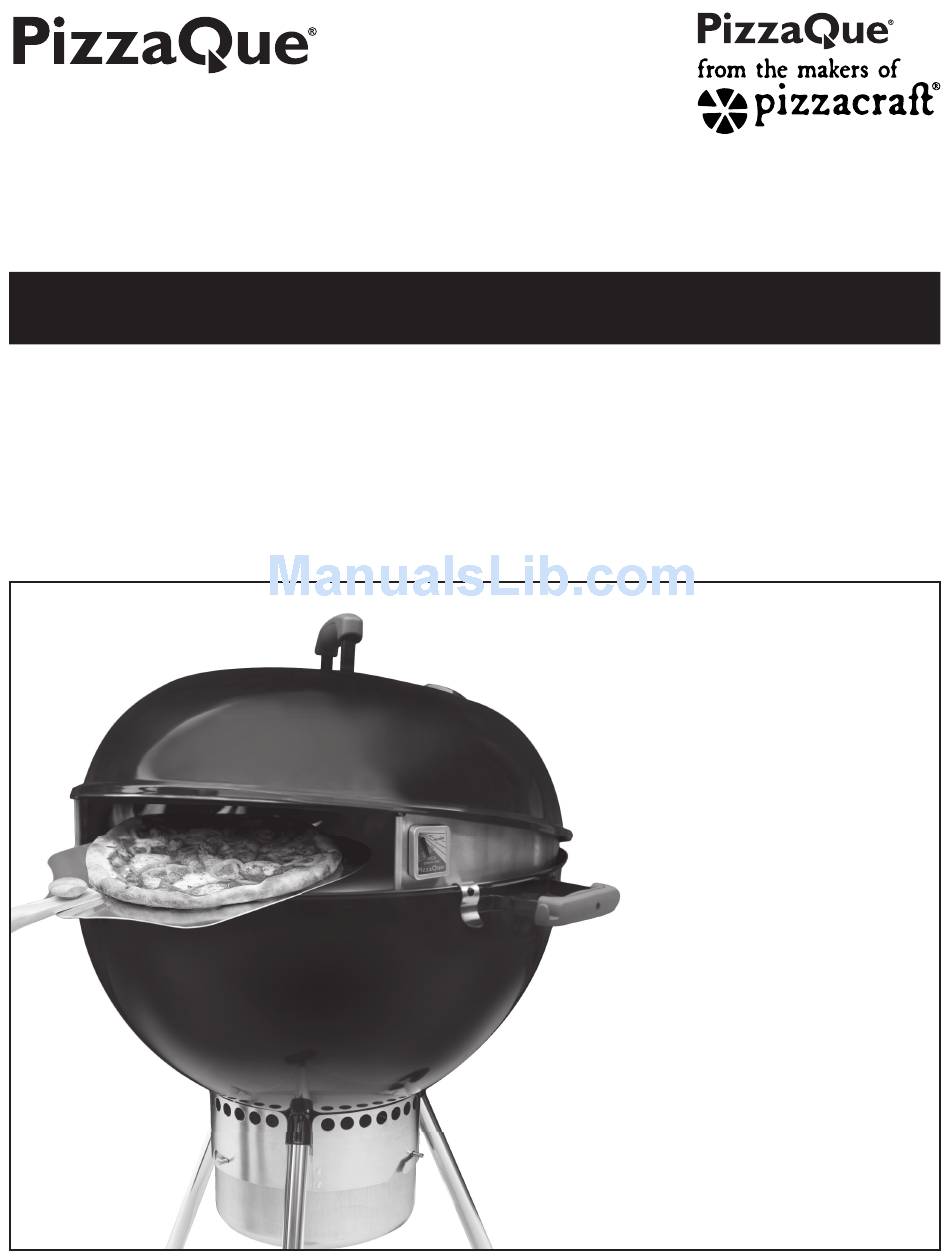

- Page 1 Read and follow all warnings and instructions carefully before assembling and using the appliance. Keep this manual for future reference. PizzaQue ® Pizzacraft ® PC7001 CS040215 ©The Companion Group 2014 1250 9th Street, Berkeley, CA 94710 800-521-0505 info@companion-group.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ......3 Assembly Instructions ....... 4 Fitting Instructions ......13 Lighting Instructions ......16 Cooking Instructions ......17 Care and Maintenance ....... 18 Troubleshooting ......... 19 Replacement Parts ......20 Accessories ........21 Warranty and Registration ....22... -
Page 3: Safety Information
SAFETY INFORMATION IMPORTANT: Before you begin... AS WITH ALL CHARCOAL GRILLS, THERE CAN BE SOME RISKS INVOLVED AND WE WANT YOU TO STAY SAFE WHILE USING OUR PRODUCT. 1. Please read the following instructions and safety warnings completely before use. Keep this booklet for future reference and feel free to contact us with any questions at 800-521-0505. -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before beginning assembly of product, make sure all parts are present. Compare parts with package contents and hardware contents list. Do not discard packing materials before assembly is complete. If any part is missing or damaged, do not attempt to assemble the product. Call customer service at 800-521-0505. To watch assembly video go to: www.pizzaque.com Estimated assembly time: 30 minutes Tools required - #2 Phillips screw driver and Crescent wrench (not included) - Page 5 Insert short edges of wire door frame into channels on the front edge of the side panels (bottom edges of the wire door frame and side panels should line up flat -- shown in the SIDE VIEW below). Secure wire door frame to side panels by inserting M5x15 phillips head screw through hole in side panel and side panel tab then tighten with M5 nut.
- Page 6 *ASSEMBLY INSTRUCTIONS FOR 18.5 IN KETTLE GRILL --> SKIP TO PAGE 10 ASSEMBLY INSTRUCTIONS FOR 22.5 IN KETTLE GRILL Attach rear panel to side panels. Make sure bottom edges of rear panel and side panels line up flat and top edges align at an angle.
- Page 7 Attach stone supports as shown (make sure that the tabs closer to the center of the pizza stone supports are face up). Secure supports using M5x8 screws and M5 nuts. Note the direction of the pizza stone support tabs Make sure inner tabs are face up for 22.5”...
- Page 8 MASTERBUILT PRO 22.5” CLIP CONFIGURATION: Attach clip, with opening facing upward, to hole in center of rear panel. Then, attach 2 clips to side panels (1 on each side panel) so the opening of the clip is facing upward as shown below. Secure all 3 clips with M5x8 screws and M5 nuts.
- Page 9 Construct charcoal fence. (1) Bend edge tab outward to expose u-channel and (2) slot flat edge into u-channel then (3) bend tab back over u-channel into original position to lock panels together. Repeat with all 4 panels of the charcoal fence until you’ve create a completely enclosed shape. CAUTION: Wearing protective gloves is strongly recommended when assembling the charcoal fence, as the edges may be sharp.
- Page 10 ASSEMBLY INSTRUCTIONS FOR 18.5 IN KETTLE GRILL Rotate side panels toward each other until the holes on the back edge of both side panels line up (some force will be needed). Use M5x8 screws and M5 nuts to secure the side panels together at back edge. NOTE: Rear panel will not be needed for 18.5 in grill kit FRONT Align top and bottom holes...
- Page 11 Attach thermometer by aligning probe and pins with designated holes in the (right) side panel. Secure with thermometer probe nut. Loosen M5x15 screws, slide the front support tabs over the exposed threaded area, inside the nut and press all the way down (orient them as shown below). Adjustments may be necessary as tolerances of the front support tabs can vary slightly.
- Page 12 Construct the charcoal fence. (1) Bend edge tab outward to expose u-channel and (2) slot flat edge into u-channel then (3) bend tab back over u-channel into original position to lock panels together. Repeat with only 3 of the 4 panels of the charcoal fence until you’ve create a completely enclosed triangle.
-
Page 13: Fitting Instructions
FITTING INSTRUCTIONS Once kit is assembled, remove hood and existing grill grate. Insert constructed Pizza Kit to verify all the com- ponents fit properly and to familiarize yourself with your new Pizza Kit. Proceed to step 8 for examples of how your specific grill hood should fit. - Page 14 Depending on the brand and size of the kettle grill you are using, follow the appropriate instructions below to properly fit your grill hood onto your Pizza Kit safely and securely. 22.5” MASTERBUILT PRO: Set the hood onto your Pizza Kit so that the back edge of the hood channel gets pinched between the right angle face of the rear clip and rear panel (FIG.1).
- Page 15 18.5” MASTERBUILT PRO: Set the hood onto your Pizza Kit so that the back edge of the grill hood channel seats into the clips opening upward (as shown in FIG.3) and the hood rim rests comfortably on the front support tabs. Then loosen the rear clip and set it so the right angled surface captures the rim of the grill bowl and re-tighten (as shown in FIG.
-
Page 16: Lighting Instructions
LIGHTING INSTRUCTIONS *DIAGRAMS SHOWN HERE ARE FOR 22.5IN KETTLE GRILL MODEL. IF USING 18.5IN MODEL, SOME PARTS WILL VARY. Remove the hood and pizza stone from the kettle grill FIG. 1 (FIG. 1). Measure out approximately 10lbs of charcoal (amount may vary depending on type and density of charcoal and desired grilling conditions). -
Page 17: Cooking Instructions
® DOUGH RECIPE Ingredients mately one hour. After the second rise, the dough is ready to be shaped into a pizza and topped with • 3 cups pizzacraft “00” pizza flour ® your favorite ingredients. • ½ teaspoon active yeast •... -
Page 18: Care And Maintenance
COOKING FRESH PIZZA Expect the pizza to cook in 4-8 minutes depending on the heat and toppings. The pizza should be turned 180 degrees halfway through the cooking process for even heat distribution. Once cheese is melted and the outer crust and underside has browned your pizza is done and the oven is ready for the next pizza. -
Page 19: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Dough will be much easier to work Dough won’t stretch with if it’s at room temperature. Dough is too cold Let it sit at few hours at room temperature before cooking. Dust the pizza peel with plenty of flour, or corn meal to prevent Not hot enough flour/cornmeal sticking. -
Page 20: Replacement Parts
REPLACEMENT PARTS PARTS 1. 15” Pizza Stone 7. Lid lift tab 2. Rear panel 8. Front wire frame 3. Right side panel 9. Pizza stone support arms 4. Left side panel 10. Folding pizza peel (aluminum) 5. Thermometer 11. Charcoal fence 6. -
Page 21: Accessories
ACCESSORIES Available at pizzacraft.com DESCRIPTION ITEM NUMBER ACCESSORY 15” Stone Replacement: Designed PM6015 specifically for the Pizza Kit to ensure even heat and a crisp crust. (identical to original stone) Pizza Screen: Aluminum screen helps even PM0306 cooking for frozen pizzas. -
Page 22: Warranty And Registration
DESCRIPTION ACCESSORY ITEM NUMBER Organic ‘00’ Pizza Flour: A premium blend of organic domestic wheat, milled to the PM0503 finest grind for perfect pizza crust. Made in the USA. Pizza Herb Blends: Made from premium dried herbs to provide maximum flavor on PM0500-0502 pizzas made at home.
