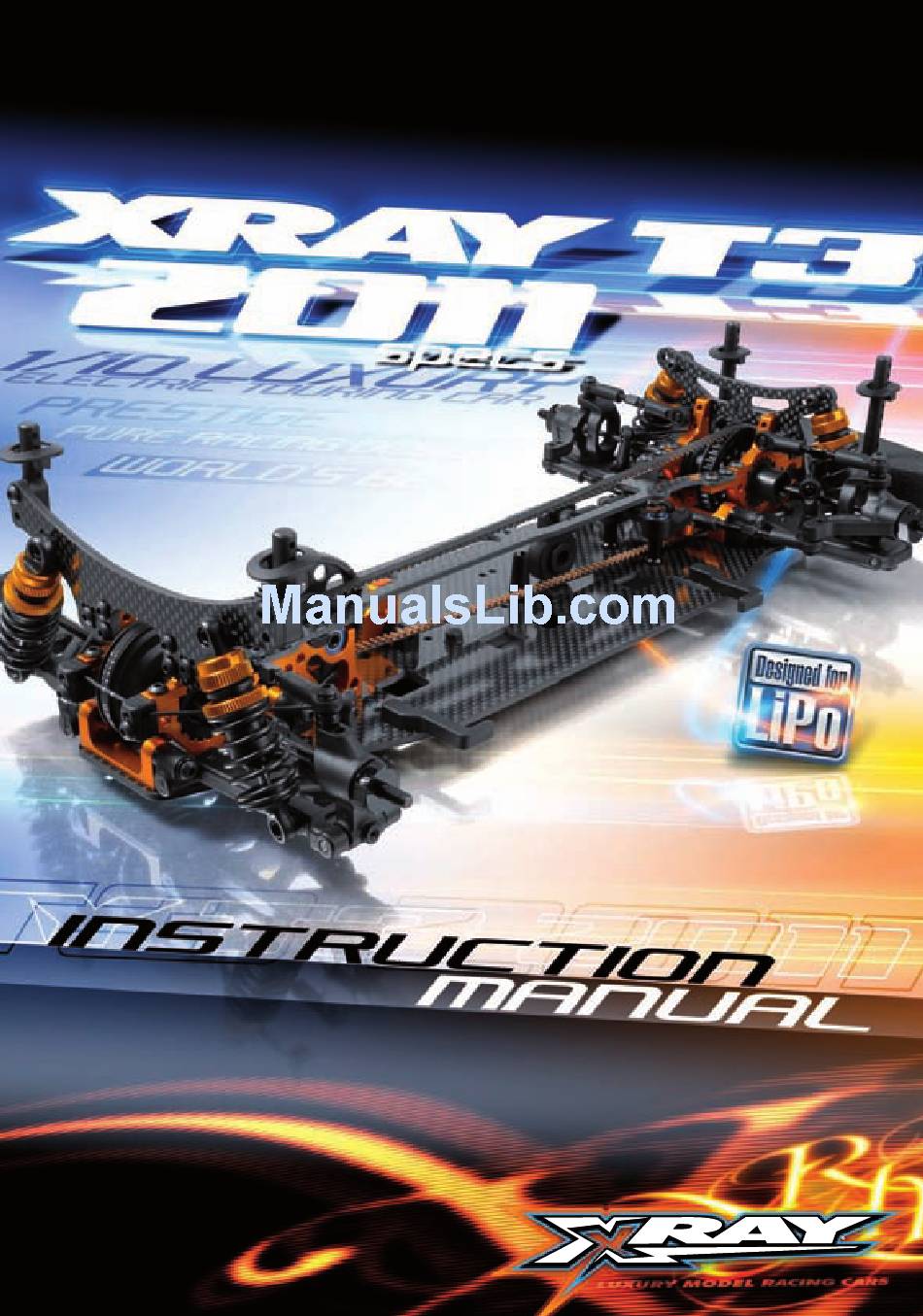

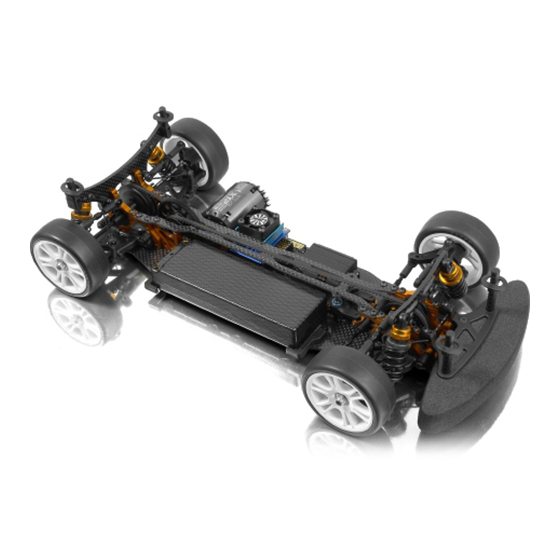

Xray T3 2011 Instruction Manual
  1. Manuals
  2. Brands
  3. Xray Manuals
  4. Motorized Toy Car
  5. T3 2011
  6. Instruction manual

Xray T3 2011 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T3 2011 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xray T3 2011

Summary of Contents for Xray T3 2011

  • Page 2: Safety Precautions

    Phone: (800) 519-7221 * (214) 744-2400 many other goodies. We pride ourselves on taking excellent care of our customers. Fax: 421-32-7401109 Fax: (214) 744-2401 You can join thousands of XRAY fans and enthusiasts in our online community at: E-mail: info@teamxray.com E-mail: xray@rcamerica.com www.teamxray.com Failure to follow these instructions will be considered as abuse and/or neglect.
  • Page 3 Therefore we ask you, if at all possible, to purchase • For the best performance, it is very important that great care is taken to ensure XRAY products at your hobby dealer and give them your support like we do. If the free movement of all parts.
  • Page 4 (HUDY #189010) (HUDY #181030, (HUDY #107600) HUDY #181040) Scissors Snap Ring Pliers (HUDY #188990) (HUDY #189040) EQUIPMENT INCLUDED XRAY Premium Silicone Diff. Grease Graphite Grease Oil 350cSt (#359235) (HUDY #106211) (HUDY #106210) EQUIPMENT REQUIRED Electric Motor & Bearing Oil Transmitter...
  • Page 5 T3 ALU REAR LOWER SUSP . ADJUST. BULKHEAD - ORANGE The XRAY T3 comes partially pre-assembled. Before starting assembly, disassemble the chassis parts, noting the position and orientation of the parts, particularly the bulkheads. Keep the parts, including the screw hardware, close at hand. In the assembly steps that follow, each section begins with a parts list. Parts indicated with are from the previously disassembled chassis parts in section 0.
  • Page 6 30 5082 DIFF WASHER 17 x 23 x 1 (2) 93 0508 BALL-BEARING MR85ZZ 5x8x2.5 (2) 30 5105 XRAY MULTI-DIFF™ T3 LiPo (OPTION) 94 1015 HIGH-SPEED BALL-BEARING 10x15x4 RUBBER SEALED (2) 30 5135 COMPOSITE SOLID AXLE DRIVESHAFT ADAPTERS (2) 96 3030 CONE WASHER ST 3x8x0.5 (10)
  • Page 7 (HUDY #106230) BEARING OIL (HUDY #106230) 38T Pulley 902310 SH M3x10 941015 BB 10x15x4 FRONT & REAR AxlES #305003 AlU DIFF 34T + 38T PUllEY #305105 xRAY AlU MUlTI-DIFF™ #305188 COMPOSITE SOlID AxlE 38T PUllEY CUTAWAY VIEW FRONT & REAR AxlES...
  • Page 8 2. CENTRAL TRANSMISSION 940510 305784 902306 981212 965050 305577 302087 305577 940510 303089 902304 305521-K 965050 302078 902306 305446 305188 302024-O 302078 902306 305003 302078 902306 302024-O 903306 303052-O 302027-O 302069 303014-O 903306 303022-O 302046-O 301131 903306 305432 903306 903306 30 2024-O T3 ALU UPPER CLAMP FOR BULKHEADS - ORANGE 30 5882 OFFSET SPUR GEAR 112T / 64 (OPTION)
  • Page 9 P 2x12 NOTE ORIENTATION #305866 OFFSET SPUR gEAR 96T / 64P #305781 OFFSET SPUR gEAR 81T / 48P Only when using XRAY #305784 SPUR gEAR 84T / 48P #305870 OFFSET SPUR gEAR 100T / 64P OFFSET spur gears #305787 SPUR gEAR 87T / 48P...
  • Page 10 2. CENTRAL TRANSMISSION REAR bELT TENSION ADJUSTMENT FRONT bELT TENSION ADJUSTMENT Front diff upper position is recommended for tight and technical Front diff lower position is recommended for large open Rear diff upper position is recommended for tight and technical carpet Rear diff lower position is recommended for large open asphalt tracks carpet tracks.
  • Page 11 3. FRONT & REAR SUSPENSION 303134-K 302044 303129 302045-O 303059-K 307314 901408 302033-K 902316 303129 901308 302044 303163 302033-K 902314 903306 903306 903306 302044 303134-K 302045-O 302047-O 302033-K 903306 901408 303129 902316 303134-K 303129 307215 302044 302033-K 901308 302163 902316 30 2033-K ALU NUT FOR SUSPENSION HOLDER - BLACK (2) 90 1308...
  • Page 12 3. FRONT & REAR SUSPENSION OPTIONAL FINE ROLL-CENTER ADJUSTMENT OPTIONAL FINE ROLL-CENTER ADJUSTMENT Optional shims may be used for raising roll center. Use 3x7 Optional shims may be used for raising roll center. Use 3x7 903306 shims with thicknesses between 0.1–0.5mm shims with thicknesses between 0.1–0.5mm SFH M3x6 REAR ARMS...
  • Page 13 3. FRONT & REAR SUSPENSION It is extremely important that the arms move freely DETAIL THICK ALU SHIM on the pivot pins. If they do not, use the #107633 3 x 7.5 x 1.5mm HUDY Arm Reamer to slightly resize the holes in 303129 the arms.
  • Page 14 T3’11 UPPER DECK 2.0MM GRAPHITE 30 2663 COMPOSITE BALL JOINT 5 MM - OPEN - V2 (8) 30 2506 XRAY DUAL SERVO SAVER SET 30 3129 COMPOSITE SET OF SHIMS (3x1MM; 1x2MM) (2) 30 2516 COMPOSITE DUAL SERVO SAVER ARM (L+R)
  • Page 15 4. STEERING Use the shim so the servo saver does not touch the top deck. Shim thickness depends on servo type 3x6x1 303129 SHIM 3x6x1 Shim 3x6x1 NOTE: Servo position is also affected by these shims (between servo and stands). play play Shim...
  • Page 16 52mm shafts are recommended for carpet and big asphalt tracks The new #305241 3.5mm plastic caps DO NOT are for use ONLY with ALU ball diffs or 50mm shafts are recommended for small-medium tight asphalt tracks GRAPHITE GREASE the XRAY Multi-Diff™. OVERTIGhTEN (HUDY #106210)
  • Page 17 5. FRONT & REAR TRANSMISSION 0° OUTBOARD TOE-IN UPRIGHTS 902205 UPRIgHTS SH M2x5 LEFT UPRIGHT = RIGHT UPRIGHT #303351 1° - R - MEDIUM - 2-HOlE #303352 0° - R/l - MEDIUM - 2-HOlE BEARING OIL (HUDY #106230) #303353 1° - R - HARD - 2-HOlE #303354 0°...
  • Page 18 5. FRONT & REAR TRANSMISSION 303123-K SHIM 3x6x2 LEFT UPRIGHT = RIGHT UPRIGHT POSITION 0° OUTBOARD TOE-IN UPRIGHTS (54 mm) 307455 Quick Roll Center™ positions PB 5mm guideline for use in the T3 SET-UP bOOK 901304 Quick Roll Center can be used only with optional SB M3x4 qucik roll-center holders #303032 3x14mm...
  • Page 19 5. FRONT & REAR TRANSMISSION INITIAL POSITION 303129 FREE MOVEMENT SHIM 3x6x2 FREE MOVEMENT 307455 PB 5mm The number of shims changes the angle 902310 of the steering linkage. When is no SH M3x10 shim used, car is easy to drive into the corner.
  • Page 20 5. FRONT & REAR TRANSMISSION REAR ANTI-ROLL bAR 901303 SB M3x3 3x3mm 3x3mm 901304 SB M3x4 902310 SH M3x10 INITIAL POSITION 3x4mm 3x4mm 3x10mm 3x10mm Initial position = MIDDLE ball ASSEMBLY VIEW Wire should be flush Use the INNER ball on low-traction tracks (mainly low-traction carpet tracks). The car will have more traction &...
  • Page 21 30 8091 SHOCK FOAM INSERTS - LOW (4) 96 1032 WASHER S 3.2 (10) 30 8302-O XRAY SHOCK ABSORBER-SET 4-STEP - ORANGE - SHORT (2) 96 5019 E-CLIP 1.9 (10) 30 8306-O XRAY ALU SHOCK ABSORBER-SET - ORANGE (2) (OPTION) 96 5023 E-CLIP 2.3 (10)
  • Page 22 When installing the shock cap assembly on the shock SHOCK OIlS #359245 450cSt body, some oil will leak out... this is normal. #359210 100cSt (xRAY 20w) #359250 500cSt Tighten the cap gently and clean off any excess oil. If the #359215 150cSt #359260 600cSt (xRAY 35w) cap it tightened too much, rebound is difficult to adjust.
  • Page 23 6. SHOCK ABSORBERS REbOUND ADJUSTMENT REbOUND ChECK TIGHTEN RELEASE ➌ ➋ ➊ REBOUND 100% After the shock is assembled you have to set the Shock Rebound. 1. Release the shock composite lower cap. 3. After you have set the Rebound Adjustment, re-install the shock lower composite cap. 2.
  • Page 24 FOAM BUMPER 90 2306 HEX SCREW SH M3x6 (10) 90 3308 HEX SCREW SFH M3x8 (10) 30 8302 XRAY SHOCK ABSORBER-SET 4-STEP - SHORT (2) 90 3310 HEX SCREW SFH M3x10 (10) 30 8306 XRAY ALU SHOCK ABSORBER-SET (2) (OPTION) 903308...
  • Page 25 7. FRONT & REAR ASSEMBLY 903308 SFH M3x8 981212 P 2x12 INITIAL POSITION INITIAL POSITION 902306 SH M3x6 308019 Set of Shock Shims & Nuts TECh TIP: To make the car more stable and easier to drive, move the front shocks forward. Stability increases mainly in chicanes.
  • Page 26 308302 98 1212 PIN 2x12 (10) 30 1334 REAR BODY MOUNT SET +2MM HEIGHT 30 8302 XRAY SHOCK ABSORBER-SET 4-STEP - SHORT (2) 90 2306 HEX SCREW SH M3x6 (10) 90 2308 HEX SCREW SH M3x8 (10) 30 8306 XRAY ALU SHOCK ABSORBER-SET (2) (OPTION)

  • Page 27: Final Assembly

    7. FINAL ASSEMBLY NOT INCLUDED NOT INCLUDED NOT INCLUDED 902306 306310 NOT INCLUDED NOT INCLUDED 306200-K 306301 306219 903306 902308 NOT INCLUDED 902308 309402 FROM SERVO 960140 306184 903306 306184 903306 NOT INCLUDED 90 2306 HEX SCREW SH M3x6 (10) 305912~306000 NARROW PINION GEAR ALU HARD COATED (OPTION) 90 2308 HEX SCREW SH M3x8 (10)
  • Page 28 7. FINAL ASSEMBLY When installing the motor on the bulkhead, rotate the spur gear so the motor screw can be installed through a hole in the spur gear. See the detail image below. 902306 SH M3x6 Adjust the motor so the pinion meshes with the spur gear Recommended: properly.
  • Page 29 #306163-K XRAY Graphite Battery Holder - Black The XRAY Graphite Battery Holder can be used for LiPo as well. However, depending on the height of the LiPo batteries additional shims may have to be mounted below the stands.
  • Page 30 TECH TIPS Tech tip for page 27. step 2. Tech tip for page 15. step 3. If there is not enough space for electronics due to a large receiver or ESC, you When driving in high-grip conditions (carpet races), we recommend using the can cut one servo holder to create more space.
  • Page 31 Multi-Flex Technology™ SOFT SETTING screw not used screw used SOFT-MEDIUM SETTING screw not used screw used MEDIUM-STIFF SETTING screw not used screw used STIFF SETTING screw not used screw used...
  • Page 32 RC AMERICA, 2970 BLYSTONE LANE, SUITE 109, DALLAS, 75220 TEXAS, USA PHONE: 214-744-2400, FAX: 214-744-2401, xray@rcamerica.com 5 8 1 7 0 3 9 1 0 1 4 5...
