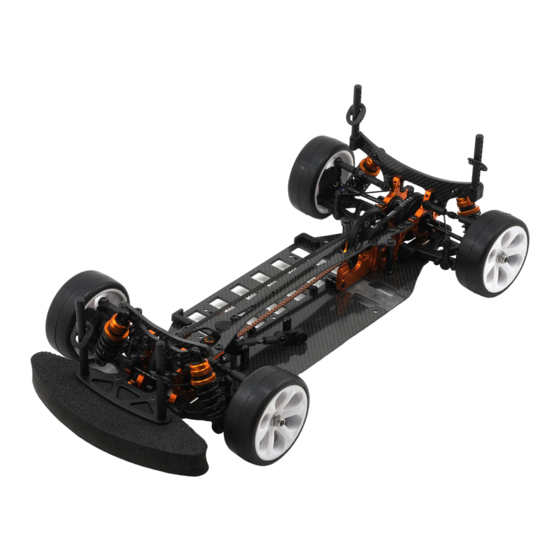

Summary of Contents for Xray T3

  • Page 1 dočasná titulka...

  • Page 2: Customer Support

    If for some reason you decide The T3 is not what you wanted If you do not fulfi ll these requirements, please return the kit in unused and or expected, do not continue any further.

  • Page 3: Warranty

    Therefore we ask you, if at all possible, to purchase • For the best performance, it is very important that great care is taken to ensure XRAY products at your hobby dealer and give them your support like we do. If the free movement of all parts.

  • Page 4: Symbols Used

    (HUDY #189010) (HUDY #181030, (HUDY #107600) HUDY #181040) Scissors Snap Ring Pliers (HUDY #188990) (HUDY #189040) EQUIPMENT INCLUDED XRAY Premium Silicone Diff. Grease Graphite Grease Oil 350cSt (#359235) (HUDY #106211) (HUDY #106210) EQUIPMENT REQUIRED Electric Motor & Bearing Oil Transmitter...
  • Page 5 HEX SCREW SFH M3x6 (10) The XRAY T3 comes partially pre-assembled. Before starting assembly, disassemble the chassis parts, noting the position and orientation of the parts, particularly the bulkheads. Keep the parts, including the screw hardware, close at hand. In the assembly steps that follow, each section begins with a parts list. Parts indicated with are from the previously disassembled chassis parts in section 0.
  • Page 6 DIFF PULLEY 38T WITH LABYRINTH DUST COVERS 30 5082 DIFF WASHER 17 x 23 x 1 (2) 93 0508 BALL-BEARING MR85ZZ 5x8x2.5 (2) 30 5104 XRAY MULTI-DIFF™ (OPTION) 94 1015 HIGH-SPEED BALL-BEARING 10x15x4 RUBBER SEALED (2) 30 5135 COMPOSITE SOLID AXLE DRIVESHAFT ADAPTERS (2) 96 3030 CONE WASHER ST 3x8x0.5 (10)
  • Page 7 BEARING OIL (HUDY #106230) EU RUBBER-SPEC 902310 38T Pulley SH M3x10 941015 BB 10x15x4 FRONT & REAR AXLES #305003 ALU DIFF 34T + 38T PULLEY #305104 XRAY ALU MULTI-DIFF™ #305188 COMPOSITE SOLID AXLE 38T PULLEY CUTAWAY VIEW FRONT & REAR AXLES...

  • Page 8: Front & Rear Suspension

    T3 CHASSIS 3.0MM GRAPHITE - 6-CELL - FOAM-SPEC 30 3132 STEEL SHIM FOR LOWER SUSP . HOLDER 3x7.5x0.75 (10) 30 2027-O T3 ALU FRONT LOWER SUSP . ADJUST. BULKHEAD - ORANGE 30 3134-K ALU SHIM FOR LOWER SUSP . HOLDER 3x7.5x1.5 - BLACK (10) 30 3014-O...
  • Page 9 2. FRONT & REAR SUSPENSION OPTIONAL FINE ROLL-CENTER ADJUSTMENT Optional shims may be used for raising roll center. Use 3x7 shims with thicknesses between 0.1–0.5mm 903306 SFH M3x6 When tightening the screws, push the alu holders gently against screw tightening direction. DETAIL Follow these steps when assembling the motor mount bulkhead: Mount the screws on the motor bulkhead but do NOT...
  • Page 10 2. FRONT & REAR SUSPENSION THIN BLACK STEEL SHIM It is extremely important that the arms move freely DETAIL THICK ALU SHIM 3 x 7.5 x 0.75mm on the pivot pins. If they do not, use the #107633 303129 3 x 7.5 x 1.5mm use only for US FOAM-SPEC HUDY Arm Reamer to slightly resize the holes in SHIM 3x6x1...
  • Page 11 305003 302078 903306 305446 302069 305432 30 2024-O T3 ALU UPPER CLAMP FOR BULKHEADS - ORANGE 30 5882 OFFSET SPUR GEAR 112T / 64 (OPTION) 30 2069 T3 COMPOSITE LAYSHAFT BEARING SUPPORT SHIM (2) 30 5884 OFFSET SPUR GEAR 114T / 64 (OPTION)
  • Page 12 BB 5x10x4 short belt long belt BEARING OIL WARNING! (HUDY #106230) #305104 XRAY Multi-Diff™ can not be used with LiPo Battery Pack alternative. BEARING OIL (HUDY #106230) See page 31 for more information about balancing the car. IMPORTANT! ALTERNATIVE for LiPo battery pack.
  • Page 13 3. CENTRAL TRANSMISSION REAR BELT TENSION ADJUSTMENT FRONT BELT TENSION ADJUSTMENT Front diff upper position is recommended for tight and technical Front diff lower position is recommended for large open Rear diff upper position is recommended for tight and technical carpet Rear diff lower position is recommended for large open asphalt tracks carpet tracks.
  • Page 14 COMPOSITE BALL JOINT 5 MM - OPEN - V2 (8) 30 1191 T3 FOAM-SPEC UPPER DECK GRAPHITE 30 6515-K T3 ALU LOW TOP DECK MOUNT - BLACK (2) 30 2505-K XRAY QUICK-SAVER™ - ADJUSTABLE SERVO SAVER SET - BLACK 30 7455 PIVOT BALL 5.0 MM DOUBLE BEVEL SHOULDERS (10)
  • Page 15 4. STEERING EU RUBBER-SPEC EU RUBBER-SPEC BASIC SET-UP FOR EU RUBBER-SPEC Install this stand when using the EU Edition 902306 car on carpet; the stand will decrease SH M3x6 front traction so that the front tires do not overheat too quickly, thus preventing the INITIAL POSITION car from stopping quickly in corners.
  • Page 16 DO NOT are for use ONLY with ALU ball diffs or Both left & right shafts should ALWAYS be the same length at one end of GRAPHITE GREASE the XRAY Multi-Diff™. OVERTIGHTEN the car (front or rear). (HUDY #106210)
  • Page 17 5. FRONT & REAR TRANSMISSION EU RUBBER-SPEC 0° OUTBOARD TOE-IN UPRIGHTS 902205 UPRIGHTS SH M2x5 LEFT UPRIGHT = RIGHT UPRIGHT #303351 1° - R - MEDIUM - RUBBER-SPEC - 2-HOLE #303352 0° - R/L - MEDIUM - RUBBER-SPEC - 2-HOLE BEARING OIL #303353 1°...
  • Page 18 307455 PB 5mm Quick Roll Center™ positions guideline Quick Roll Center™ positions guideline for use in the T3 SET-UP SHEET. 901304 3x14mm SB M3x4 EU RUBBER-SPEC Use 2x alu shim 3x6x2mm on each side (total thickness = 4mm).
  • Page 19 5. FRONT & REAR TRANSMISSION EU RUBBER-SPEC EU RUBBER-SPEC EU RUBBER-SPEC 307455 PB 5mm EU RUBBER-SPEC (54 mm) "4R" 901304 SB M3x4 INITIAL POSITION Quick Roll Center tabs in upper inner holes 3x14mm 902306 SH M3x6 ALU SHIM 3x6x1mm 3x6mm 902314 SH M3x14 "4L"...
  • Page 20 5. FRONT & REAR TRANSMISSION FREE MOVEMENT INITIAL POSITION 307455 PB 5mm FREE MOVEMENT 902310 SH M3x10 ACKERMANN ADJUSTMENT 901308 SB M3x8 1.5mm US FOAM-SPEC EU RUBBER-SPEC 28mm 27mm 3x3mm 3x3mm 901303 3x10mm SB M3x3 3x10mm 901304 3x4mm SB M3x4 3x4mm 902310 SH M3x10...
  • Page 21 5. FRONT & REAR TRANSMISSION REAR ANTI-ROLL BAR (EU RUBBER-SPEC ONLY) 901303 SB M3x3 3x3mm 3x3mm 901304 SB M3x4 902310 SH M3x10 INITIAL POSITION 3x4mm 3x4mm 3x10mm 3x10mm Initial position = MIDDLE ball Use the INNER ball on low-traction tracks (mainly low-traction carpet tracks). ASSEMBLY VIEW Wire should be flush with end of pivot ball.

  • Page 22: Shock Absorbers

    XRAY SPRING-SET D=1.8 (30 LB) LIGHT-PURPLE (4) 30 8090 SHOCK FOAM INSERTS (4) 30 8394 XRAY SPRING-SET D=1.5 (17.5 LB) WHITE - SOFT (4) 30 8302 XRAY SHOCK ABSORBER-SET 4-STEP - SHORT (2) 30 8306-O XRAY ALU SHOCK ABSORBER-SET - ORANGE (2) (OPTION) 96 1032 WASHER S 3.2 (10)
  • Page 23 When installing the shock cap assembly on the shock body, some oil will leak out... SHOCK OILS #359245 450cSt this is normal. #359210 100cSt (XRAY 20W) #359250 500cSt Fully tighten the cap and clean off any #359215 150cSt #359260 600cSt (XRAY 35W) excess oil.
  • Page 24 6. SHOCK ABSORBERS REBOUND ADJUSTMENT REBOUND CHECK TIGHTEN RELEASE ➌ ➋ ➊ REBOUND 100% After the shock is assembled you have to set the Shock Rebound. 1. Release the shock composite lower cap. 3. After you have set the Rebound Adjustment, re-install the shock lower composite cap. 2.

  • Page 25: Front & Rear Assembly

    T2 FOAM BUMPER 90 2306 HEX SCREW SH M3x6 (10) 90 3308 HEX SCREW SFH M3x8 (10) 30 8302 T2‘008 XRAY SHOCK ABSORBER-SET 4-STEP - SHORT (2) 90 3310 HEX SCREW SFH M3x10 (10) 903308 SFH M3x8 903310 SFH M3x10...
  • Page 26 7. FRONT & REAR ASSEMBLY 903308 SFH M3x8 981212 P 2x12 INITIAL POSITION EU RUBBER-SPEC = US FOAM-SPEC 902306 INITIAL POSITION SH M3x6 308019 Set of Shock Shims & Nuts TECH TIP: To make the car more stable and easier to drive, move the front shocks forward. Stability increases mainly in chicanes.
  • Page 27 REAR BODY MOUNT SET 6MM 98 1212 PIN 2x12 (10) 90 2306 HEX SCREW SH M3x6 (10) 30 8301 T2 XRAY SHOCK ABSORBER-SET 4-STEP - SHORT (2) 30 8306 XRAY T2’008 ALU SHOCK ABSORBER-SET (2) (OPTION) 90 2308 HEX SCREW SH M3x8 (10) 902308...

  • Page 28: Final Assembly

    8. FINAL ASSEMBLY NOT INCLUDED 306310 NOT INCLUDED 902306 INCLUDED 306301 903308 902308 FROM SERVO 306219 NOT INCLUDED 306200-K NOT INCLUDED 903306 306131 for 6-cell or 5-cell battery configuration 903306 903308 309402 903306 306182 for LiPo battery configuration 960140 NOT INCLUDED 903306 30 9402 BODY CLIP FOR 6MM BODY POST (4)
  • Page 29 8. FINAL ASSEMBLY When installing the motor on the bulkhead, rotate the spur gear so the motor screw can be installed through a hole in the spur gear. See the detail image below. 902306 SH M3x6 Adjust the motor so the pinion meshes with the spur gear properly.
  • Page 30 960140 N M4 #306163-K XRAY Graphite Battery Holder (for 6-cell chassis) - Black The XRAY Graphite Battery Holder can be used for LiPo as well. However, depending on the height of the LiPo batteries additional shims may have to be mounted below the stands.
  • Page 31 8. FINAL ASSEMBLY BALANCING CONFIGURATION ALTERNATIVE 5-cell or 6-cell Battery Pack When using NiMH batteries, put the differentials and belts in the directions shown below. To balance the car, push the batteries inward towards the car centerline, and push the electronics outward toward the chassis edge. You can check the balance on HUDY balancing tools #107880.
  • Page 32 5 8 1 7 0 3 9 1 0 1 3 8...
