We Make Things Easy

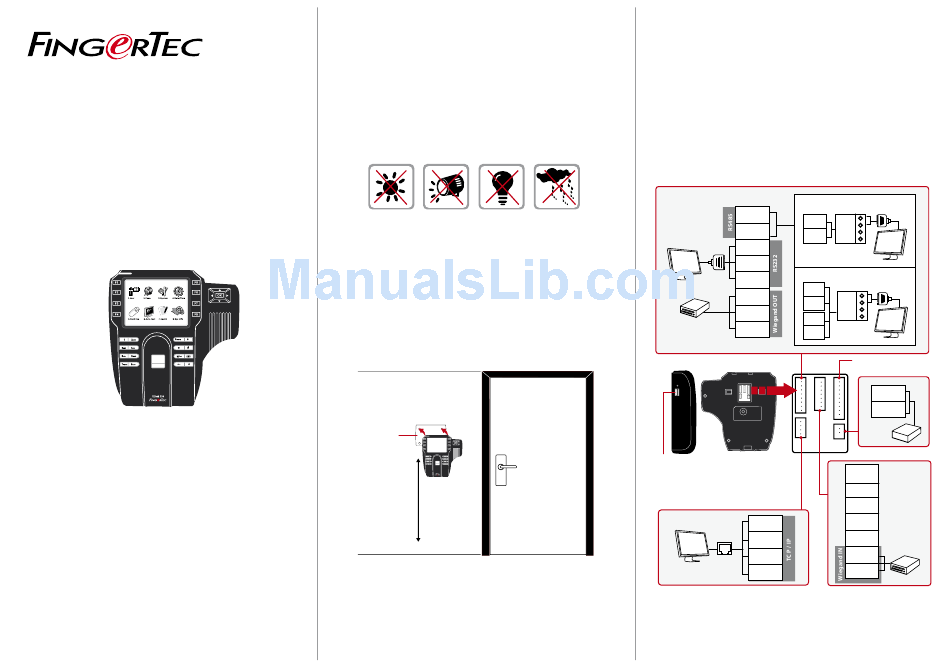

Installation Guide
i-Kiosk 100
Fingerprint Color Multimedia for Time Attendance &
Door Access Control System
w w w . f i n g e r t e c . c o m
Step 1
Determine the Location and Positioning
of the Installation
•
Avoid installing the terminals in locations that has contact with
a strong light source (e.g direct sunlight, spotlight, fluorescent
light, etc)
•
Avoid installing the terminals in locations with high moisture or
condensation levels in the air
•
The recommended installation height of the terminal from the
ground is 1.2 meter.
Step 2
Mounting of Terminals on a Wall
Back Plate
4 feet / 1.2 meter
(recommended)
•
After determining the height of the terminal from the ground
level and have made the relevant marks on the wall, drill the
screws into the wall to hang the back plate.
Refer to Appendix II for dimensions and measurements of instal-
lation.
Step 3
Wiring for Power Supply
There are two ways to connect to the power.
1. Use the power adapter provided in the package and insert the
power adapter to the port marked A in the diagram.
2. Use power cables (black and red) to connect to a linear power
supply with specifications of 12VDC 3A.
1. RS485 Single Connection
485B
485B
485A
485A
GND
RS232/RS485
Data Converter
TXD
RS232
2. RS485 Network Connection
RXD
cable
485B
GND
485A
WD1
485B
3rd party controller
RS232/RS485
with 26 bits wiegand
WD2
485A
input
USB Port
RJ-6
RJ-3
RJ-2
TCP/IP
RJ-1
RX+
RX-
RX+
RX-
Data
Converter
Door Lock connector.
Refer to Appendix I
GND
+12V
DC12V 3A
Power
Supply
* Use either power input
BEL+
BEL-
BEEP
GLED
3rd party
controller with
RLED
26 bit swiegand
output
INWD0
INWD1
