Installation Guide
i-Kiosk 100 Plus
Fingerprint Color Multimedia for Time Attendance &
Door Access Control System
© 2015 Timetec Computing Sdn Bhd. All rights reserved.• 022015

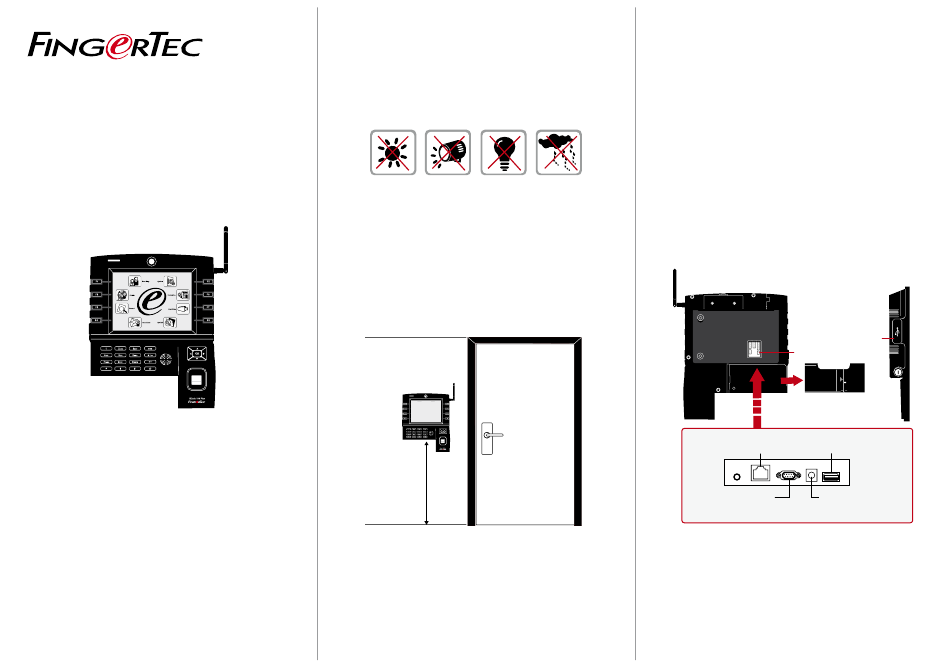

Step 1
Determine the Location and Positioning
of the Installation
Avoid installing the terminals in locations that has contact with
a strong light source (e.g direct sunlight, spotlight, fluorescent
light, etc)
Avoid installing the terminals in locations prone to high moisture
or condensation levels in the air
The recommended installation height of the terminal from the
ground is 1.2 meter.
Step 2
Mounting Terminals
4 feet / 1.2 meter
(recommended)
After measuring the height accordingly and make relevant marking
on the wall, drill the screws into the wall to secure the back plate.
Attach the terminal to the back plate and tighten the screws. Refer to
Appendix II for dimensions and measurements of installation.
Step 3
Wiring for Power Supply
i-Kiosk 100 Plus comes with a special key to unlock ports to power
and door access as shown in the diagram marked B. There are two
ways to connect the power to i-Kiosk 100 Plus.
1. Use the power adapter provided in the package and in-
sert the power adapter to the port marked A in the diagram.
2. Use power cables (black and red) to connect to a linear
power supply with specifications of 12VDC 3A. (Marked B)
POWER CABLE PORT (B)
TCP/IP PORT (LAN)
USB PORT
POWER ADAPTER PORT (A)
RS232/RS485 SERIAL
CABLE PORT
USB Port
