FingerTec i-Kiosk 100 Plus Installation Manual

We Make Things Easy

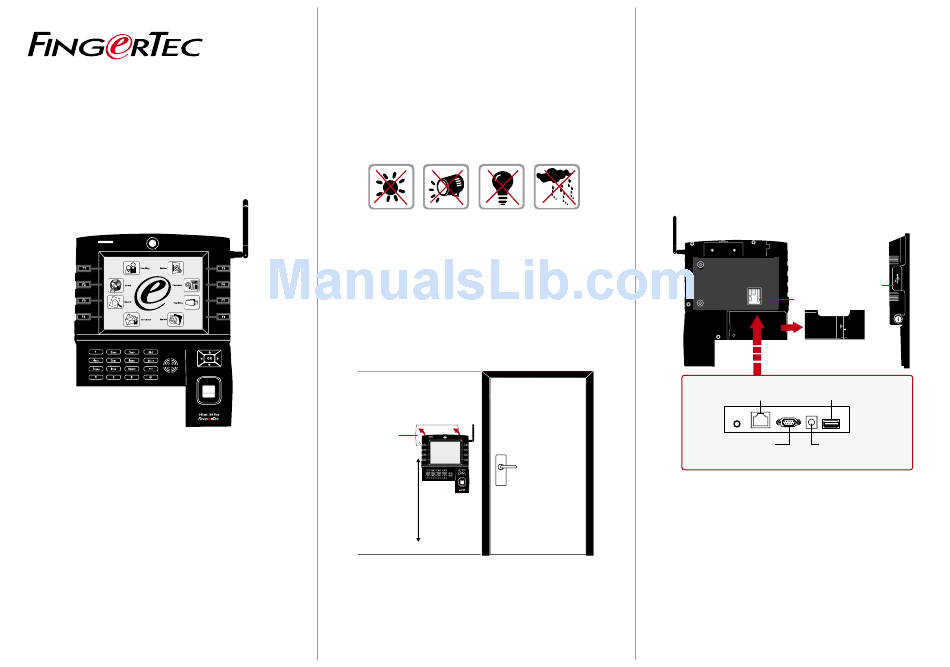

Installation Guide

i-Kiosk 100 Plus
Fingerprint Color Multimedia for Time Attendance &
Door Access Control System
w w w . f i n g e r t e c . c o m
Step 1
Determine the Location and Positioning
of the Installation
•
Avoid installing the terminals in locations that has contact with
a strong light source (e.g direct sunlight, spotlight, fluorescent
light, etc)
•
Avoid installing the terminals in locations with high moisture or
condensation levels in the air
•
The recommended installation height of the terminal from the
ground is 1.2 meter.
Step 2
Mounting of Terminals on a Wall
Back Plate
4 feet / 1.2 meter
(recommended)
•
After determining the height of the terminal from the ground
level and have made the relevant marks on the wall, drill the
screws into the wall to hang the back plate.
Refer to Appendix II for dimensions and measurements of instal-
lation.
Step 3
Wiring for Power Supply
i-Kiosk 100 Plus comes with a special key to unlock ports to power
and door access as shown in the diagram marked B. There are two
ways to connect the power to i-Kiosk 100 Plus.
1. Use the power adapter provided in the package and in-
sert the power adapter to the port marked A in the diagram.
2. Use power cables (black and red) to connect to a linear
power supply with specifications of 12VDC 3A. (Marked B)
POWER CABLE PORT (B)
TCP/IP PORT (LAN) USB PORT
POWER ADAPTER PORT (A)
RS232/RS485 SERIAL
CABLE PORT
USB Port
