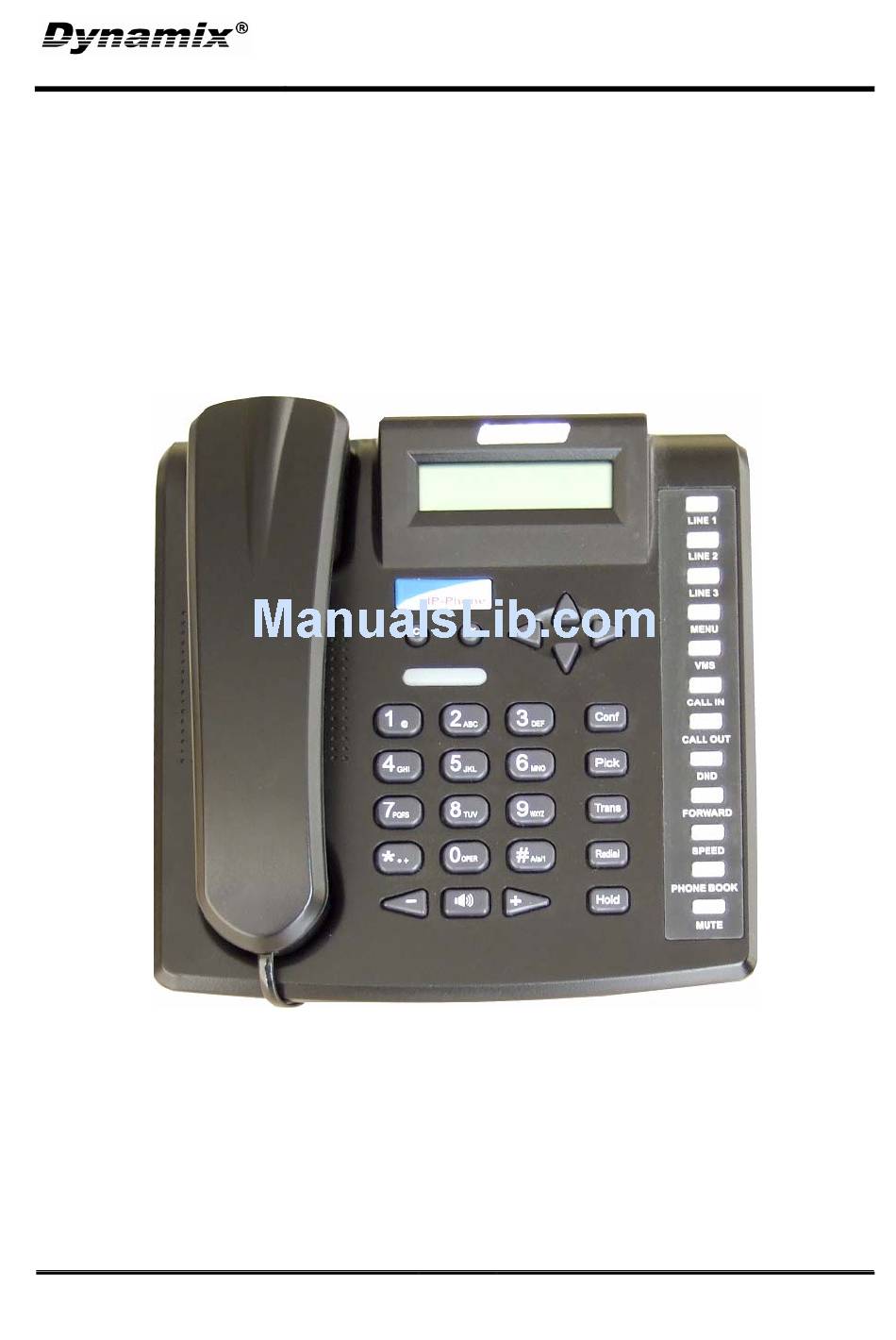

IP Phone
User Manual
DYNAMIX IP Phone
User Manual
V.08
Aug-23-2007
1/54
Dynamix IP Phone User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP Phone and is the answer not in the manual?

Questions and answers

Related Manuals for Dynamix IP Phone

Summary of Contents for Dynamix IP Phone

  • Page 1: Dw Ip Phone User Manual

    IP Phone User Manual DYNAMIX IP Phone User Manual V.08 Aug-23-2007 1/54 Dynamix IP Phone User Manual...

  • Page 2: Copyright And Trademarks

    User Manual Copyright and Trademarks Specifications are subject to change without notice. DYNAMIX is a registered trademark and/or its affiliates in United Kingdom and certain other countries. Copyright © 2007 Dynamix Pro., Ltd. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.
  • Page 3 Firmware & It’s due to the continuous evolution of Dynamix Pro. Co., Ltd., this model will Documents be regularly upgraded. Please consult the DYNAMIX web site for more Updates information on latest firmware, tools and documents.

  • Page 4: Table Of Contents

    DW IP Phone User Manual........................1 V.07 Introduction............................5 Hardware Overview....................... 5 Software Overview ........................ 5 Keypad interface for IP Phone demo system ................... 6 Keypad description........................ 6 Keypad Function and Setting List..................8 Setup the DW IP Phone by Web Browser..................12 Login............................12 System Information for the DW IP Phone .

  • Page 5: Introduction

    User Manual Introduction This user manual is tailored for the DW IP Phone, which will explain the keypad instructions, web configurations, and Telnet command line configurations. Before using the DW IP Phone, some setup processes are required to make the DW IP Phone work properly. Please refer to the Setup Menu for further information.

  • Page 6: Keypad Interface For Ip Phone Demo System

    • Registrar Server (three SIP account) TFTP • • Outbound Proxy HTTP • Keypad interface for IP Phone demo system Keypad description Key Name Description Note ٫ “1”, “-“, “ ”, “!”, “?” “2”, “a”, “b”, “c”, “A”, “B”, “C”...
  • Page 7 IP Phone User Manual Volume -/+ Volume buttons used to increase/decrease the volume that is heard from the phone and speaker phone. 7/54 Dynamix IP Phone User Manual...

  • Page 8: Keypad Function And Setting List

    2. Alarm time: Specify the alarm time. 2.2.3.4 Date/Time setting: Date and Time Setting. 2.2.3.4.1 Date & Time: Set the IP Phone Date and Time. 2.2.3.4.2 SNTP setting 2.2.3.4.2.1 SNTP : Enabled / Disable SNTP. Primary SNTP: Set Primary SNTP server IP address.
  • Page 9 2.2.5.1 Service domain 2.2.5.1.1 First realm 2.2.5.1.1.1 Activation: SIP 2.2.5.1.1.2 User name: SIP 2.2.5.1.1.3 Display name: SIP Register name: SIP Register password: SIP Proxy server: SIP Proxy Domain server: Domain Outbound proxy: Outbound Proxy 9/54 Dynamix IP Phone User Manual...
  • Page 10 Status: Show the SIP Proxy register status. You can use UP/Down key to check each Realm’s status. SIP Proxy 1. First Realm: SIP 2. Second Realm: SIP 3. Third Realm: SIP 2.2.6 NAT Transversal 2.2.6.1 STUN setting 2.2.6.1.1 STUN: STUN 2.2.6.1.2 STUN server: STUN 10/54 Dynamix IP Phone User Manual...
  • Page 11 Version: This will show the system’s firmware version. 2.2.7.6 Watch Dog: You can use this to enable Watch Dog function to do the debugging. 2.2.7.7 Restart: You can use this function to restart your IP Phone. 11/54 Dynamix IP Phone User Manual...

  • Page 12: Setup The Dw Ip Phone By Web Browser

    Setup the DW IP Phone by Web Browser The DW IP Phone provides a built-in web server. You can use Web browser to configure the DW IP Phone. First please input the IP address in the Web page. In the end of IP address, please add the port number “:9999”. Ex: http://192.168.123.1:9999...

  • Page 13: Phone Book

    If you want to delete a phone number, you can select the phone number you want to delete then click “Delete Selected” button. 3.3.3.3 If you want to delete all phone numbers, you can click “Delete All” button. 13/54 Dynamix IP Phone User Manual...
  • Page 14 IP Phone User Manual 14/54 Dynamix IP Phone User Manual...

  • Page 15: Phone Setting

    Also you have to set the Time Out time for system to start to forward the call to the number you choosed. 3.4.2.4 When you finished the setting, please click the Submit button. 15/54 Dynamix IP Phone User Manual...
  • Page 16 SNTP Setting function: you can setup the primary and second SNTP Server IP Address, to get the date/time information. Also you can base on your location to set the Time Zone, and how long need to synchronize again. When you finished the setting, please click the Submit button. 16/54 Dynamix IP Phone User Manual...
  • Page 17 Ringer Volume is to set the ringer volume. 3.4.4.4 Handset Gain is to set the volume send out from from the handset. 3.4.4.5 Speaker Gain is to set the volume send out from from the micro phone. 17/54 Dynamix IP Phone User Manual...
  • Page 18 DND function: In this section, you can choose two types of options for DND, these are DND Always and DND Period. DND Always will block all incoming calls, while DND Period allows users to specify the period of time when incoming calls should be blocked. 18/54 Dynamix IP Phone User Manual...
  • Page 19 Explanation： If you dial a number that has a prefix matching 12, the device will automatically append the number 009 in front of the dialed number, therefore the number that will be dialed out is [009+12+xxx]. 19/54 Dynamix IP Phone User Manual...
  • Page 20 110 regardless of the remaining digits. Hence the name Dial Now. Explanation 4: If it detects the number dialed is 8 digits, then it will automatically send out the number dialed, e.g. 12345678. 20/54 Dynamix IP Phone User Manual...
  • Page 21 Save Change Item in the left side, then click the Save button. The change you made will save into the system and the system will Reboot automatically. 3.4.9 Soft-key Setting: Special function code for Pick up and Voice Mail function. 21/54 Dynamix IP Phone User Manual...
  • Page 22 3.4.11 Alarm Setting: Setting telephone ring time, When you setting time with current time are match device should produce a ring ,this time format is 24 hours. 22/54 Dynamix IP Phone User Manual...

  • Page 23: Network

    In Network you can check the Network status, configure the WAN Settings, LAN Settings, DDNS settings, VLAN Settings, DMZ Setting, Virtual Server and PPTP Settings. 3.5.2 Network Status: You can check the current Network setting in this page. 23/54 Dynamix IP Phone User Manual...
  • Page 24 WAN Settings: You can configure the DW IP Phone Network setting in this page. 3.5.3.1 The Bridge Item is to setup the DW IP Phone Bridge mode Enable/Disable. If you set the Bridge On, then the two Fast Ethernet ports will be transparent.
  • Page 25 Start IP and End IP fields provides users the option to specify the range of IP addresses that the hosts will be assigned to. While the Lease Time field specifies how long the IP addresses assigned by the virtual DHCP is valid for. The format is dd:hh (days/hours). 25/54 Dynamix IP Phone User Manual...
  • Page 26 IP address then others can call you via the DDNS account. But now most of the VoIP applications are work with a SIP Proxy Server. When you finished the setting, please click the Submit button. 26/54 Dynamix IP Phone User Manual...
  • Page 27 If there is nothing need to change, please click the Save Change Item in the left side, then click the Save button. The change you made will save into the system and the system will Reboot automatically. 27/54 Dynamix IP Phone User Manual...
  • Page 28 (excluding SIP related packets) will be sent to the designated IP address DMZ Host IP Input the special IP address of the DMZ host. Submit [Button] Saves the configuration Reset [Button] Erases the configuration 28/54 Dynamix IP Phone User Manual...
  • Page 29 Delete the selected server. Delete Selected [Button] Delete All [Button] Delete all data. Reset [Button] Clean all data. Num [Button] Specify which record to insert the server on the table. The allowable range is 0-23. 29/54 Dynamix IP Phone User Manual...
  • Page 30 PPTP Server Input the IP address of the PPTP server’s location. PPTP Username Input the username (login details). PPTP Password Input the password (login details). Submit [Button] Saves the configuration Reset [Button] Erases the configuration 30/54 Dynamix IP Phone User Manual...

  • Page 31: Sip Settings

    ISP provider. You can register three SIP account in the DW IP Phone. You can dial the DW IP Phone to your friends via first enable SIP account and receive the phone from these three SIP accounts.
  • Page 32 IP Phone User Manual 32/54 Dynamix IP Phone User Manual...
  • Page 33 Codec Settings: You can setup the Codec priority, RTP packet length, and VAD function in this page. You need to follow the ISP suggestion to setup these items. When you finished the setting, please click the Submit button. 33/54 Dynamix IP Phone User Manual...
  • Page 34 IP Phone User Manual 3.6.5 Codec ID Settings: You can set the Codec ID to meet the other device’s requirement. When you finished the setting, please click the Submit button. 34/54 Dynamix IP Phone User Manual...
  • Page 35 When you finished the setting, please click the Submit button. 3.6.7 RPort Function: You can setup the RPort Enable/Disable in this page. To change this setting, please following your ISP information. When you finished the setting, please click the Submit button. 35/54 Dynamix IP Phone User Manual...
  • Page 36 If you set the value higher than 0, then the voice packets will get the higher priority to the Internet. But the QoS function still need to cooperate with the others Internet devices. 36/54 Dynamix IP Phone User Manual...

  • Page 37: Nat Trans

    User Manual NAT Trans 3.7.1 In NAT Trans. you can setup STUN function. These functions can help your DW IP Phone working properly behind NAT. 3.7.2 STUN Setting: you can setup the STUN Enable/Disable and STUN Server IP address in this page.
  • Page 38 IP Phone User Manual Auto Configuration Default setting is Off (not executed). Specify the methods on how auto configuration will be performed, the options are TFTP, FTP or HTTP. TFTP Server Set the TFTP Server’s location, you can input IP address or Domain Name information in this text box.
  • Page 39 Explanation 2：open the [StandardCFG.dat] file (use Windows notepad program to open the file)，then change the configurations parameters accordingly, once finished, please save the file。 Explanation 3 ： open the [MakeMACF.exe] file ， download [MAC File: MACList.txt, Standard File: StandardCFG.dat]，select [Start]，then encrypt the file。 39/54 Dynamix IP Phone User Manual...
  • Page 40 When you finished the setting, please click the Submit button. ICMP Not Echo Default setting is No (do not activate). Once activated all ping messages 40/54 Dynamix IP Phone User Manual...

  • Page 41: System Auth

    3.10.1 In Save Change you can save the changes you have done. If you want to use new setting in the DW IP Phone, You have to click the Save button. After you click the Save button, the DW IP Phone will automatically restart and the new setting will effect.

  • Page 42: Update Rom Firmware

    User Manual 3.11 Update Rom firmware: 3.11.1 In Update you can update the DW IP Phone’s firmware to the new one or do the factory reset to let the DW IP Phone back to default setting. 3.11.2 In New Firmware function you can update new firmware via HTTP in this page. You can ugrade the firmware by the following steps: 3.11.2.1...

  • Page 43: Reboot

    IP Phone User Manual 3.12 Reboot 3.12.1 Reboot function you can restart the DW IP Phone. If you want to restart the DW IP Phone, you can just click the Reboot button, then the DW IP Phone will automatically. 43/54...

  • Page 44: Engineering Webpage

    Engineer usage webpage list 4.1.1 You have to login the system first then change the webpage manually. In this webpage you will see the list about engineer webpage. You can change the webpage to what you want. 44/54 Dynamix IP Phone User Manual...

  • Page 45: Toneset.htm

    In this page you can setup the Speaker function. Default we set the speaker is in half-duplex mode. If you want to set to full-duplex mode, it need to check if your housing is suitable for this function. Or you have to set it as half-duplex mode. 45/54 Dynamix IP Phone User Manual...

  • Page 46: Busytoneptset.htm

    IP Phone User Manual BusyTonePTset.htm 4.4.1 You have to login the system first then change the webpage to BusyTonePTset.htm manually (http://ip address:9999/BusyTonePTset.htm) 4.4.2 In this page you can set the busy tone setting 46/54 Dynamix IP Phone User Manual...

  • Page 47: Factory.htm

    IP Phone User Manual factory.htm 4.5.1 You have to login the system first then change the webpage to factory.htm manually (http://ip address:9999/factory.htm). 4.5.2 In this page you save your current settings to a file. 47/54 Dynamix IP Phone User Manual...

  • Page 48: Using Cli Command To Configure The Dw Ip Phone

    IP Phone User Manual Using CLI command to configure the DW IP Phone 4.6.1 CLI command list as below: Itno Command Description Show CLI Command ARP Configuration ipconfig Interface Configuration save Save to flash reboot Reboot exit Exit debugmode Enter Debug Mode...
  • Page 49 IP is the TFTP server’s IP address, and the filename is the image you want to download into the system. 4.6.1.9 auth function Itno Command Description Show ‘auth’ Option -admin Change Administrator user name/password -sys0 Change System user0 user name/password 49/54 Dynamix IP Phone User Manual...
  • Page 50 4.6.1.11 dns function Itno Command Description Show ‘dns’ Option DNS query. dns -q domain-name (null) Show DNS Table 4.6.1.12 ping function Itno Command Description Show ‘ping’ Option ping [-l N] [IP-addr|host-name] (null) ping [IP-addr|host-name] 50/54 Dynamix IP Phone User Manual...
  • Page 51 -off Disable SNTP Client -ip1 Set SNTP Server1 IP -ip2 Set SNTP Server2 IP -mode Set SNTP Client Mode -zone Set GMT Time Zone: [+|-][hour]:[min] -adjust Set Adjustment Time: [second] (null) Show SNTP Setting 51/54 Dynamix IP Phone User Manual...
  • Page 52 Itno Command Description Show ‘phone’ Option -autoanswer phone auto answer -vol Volume setting -block Block Incoming call -ring Set Melody Ringer -forward Auto-forward Incall to Phone[0-9] in Book (null) Show Phone Setting 52/54 Dynamix IP Phone User Manual...
  • Page 53 Itno Command Description Show ‘slic’ Option -ring Issue Ring signal read slic addr write slic addr read all slic reg (null) Show slic register 4.6.1.29 ver function is to show Firmware Version. 53/54 Dynamix IP Phone User Manual...

  • Page 54: Phone Function List

    Phone function list When your DW IP Phone is configured properly, you can make a phone call to your friend located in the same service provider. If you want to make a phone call, you can dial the phone number then press “#” button to start to dial the phone number or wait for a while then system will dial the number automatically.
