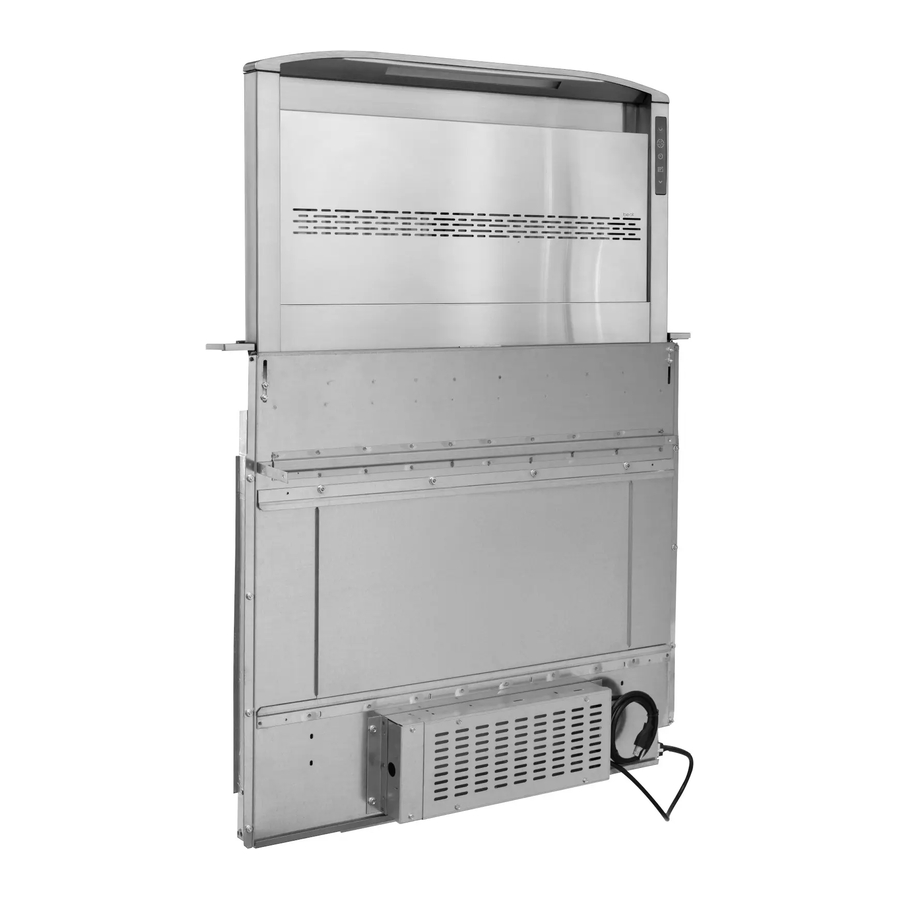

Downdraft ventilator
Hide thumbs Also See for D49M30SB:

Advertisement

Available languages

Available languages

DOWNDRAFT
VENTILATOR
Register your product online at: www.BestRangeHoods.com
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR IN-
JURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equip-
ment to prevent backdrafting. Follow the heating equipment
manufacturer's guideline and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authori-
ties.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. To reduce the risk of fire, use only metal ductwork.
8. Do not install this product with the activating switch directly
behind a burner or element. Minimum distance between the
switch and the edge of the burner should be 4 inches.
9. Loose-fitting or hanging clothing should never be worn when
operating this appliance. They may be ignited by burners/
elements on cooktop.
10. Children should not be left alone or unattended in the area
where this appliance is in use.
11. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may
ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when
cooking flaming foods.
c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate
for the size of the surface element.
Models D49M30SB • D49M36SB • D49M48SB
For use with these blowers
(purchase blowers separately):
Model PF6 - Interior Flex
Models EB6, EB9, EB12, or EB15 - Exterior
Models ILB3, ILB6, ILB9 or ILB11 - In-Line
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
a
FOLLOWING
:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out immedi-
ately, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher, and you
already know how to operate it.
B. The fire is small and contained in the area where it
started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
a
Based on "Kitchen Firesafety Tips" published by NFPA.
CAUTION
1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust hazard-
ous or explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
4. Clean filters and grease-laden surfaces frequently.
5. Do not repair or replace any part of this appliance unless
specifically recommended in this manual. All other servicing
should be done by a qualified technician.
6. Please read specification label on product for further informa-
tion and requirements.
7. To reduce the risk of fire and electric shock, install this downdraft
only with blower models shown below. Other blower models
cannot be substituted. (Blowers sold separately).
Flex Blower Model PF6
Exterior Blower Models EB6, EB9, EB12, or EB15
In-Line Blower Models ILB3, ILB6, ILB9 or ILB11
Save this manual for Electrical
Inspector and Homeowner to use.
!
INSTALLER:
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D49M30SB and is the answer not in the manual?

Questions and answers

Heather Ackermann
June 7, 2025

how do i clean the filter?

Summary of Contents for Best D49M30SB

  • Page 1 Models D49M30SB • D49M36SB • D49M48SB Page 1 DOWNDRAFT For use with these blowers (purchase blowers separately): VENTILATOR Model PF6 - Interior Flex Models EB6, EB9, EB12, or EB15 - Exterior Models ILB3, ILB6, ILB9 or ILB11 - In-Line Register your product online at: www.BestRangeHoods.com...
  • Page 2 Use 1-7/8" x 19" to 8" round transition, 1-7/8" x 19" to 10" round transition, or 1-7/8" x 19" ductwork as appropriate. 2. For best performance: Choose the ducting option which allows the shortest length of ductwork and a minimum number of elbows and transitions. Check location of floor joists, wall...
  • Page 3 Models D49M30SB • D49M36SB • D49M48SB Page 3 PLAN CABINET CUTOUTS PREPARE THE DOWNDRAFT CAUTION: FRONT PANEL COVER BEFORE CUTTING HOLE IN CABINET FOR DUCTWORK, check for interference with floor joists, wall studs, electrical wiring, or plumbing. CLAMP CHANNEL INSTALLATION...
  • Page 4 Models D49M30SB • D49M36SB • D49M48SB Page 4 8" OR 10" ROUND REMOTE DISCHARGE SLIDE PLATE (Purchase Separatly) CHANNEL COVER PLATE COVER UPPER PLATES SUPPORT BRACKET LOWER FRONT CHANNEL PANEL Flex Blower shown installed. Installations using FLEX BLOWER (in remote location) or REMOTE BLOWER only: 4.
  • Page 5 Models D49M30SB • D49M36SB • D49M48SB Page 5 #8-32 HEX RECTANGULAR NUTS DISCHARGE COVERS This Front Panel remains in place. Installations where ELECTRICAL PANEL needs to be Installations ducting through left, right or rear only: mounted in a remote location only: (Requires purchase of 1-7/8"...
  • Page 6 Models D49M30SB • D49M36SB • D49M48SB Page 6 CUT COUNTERTOP OPENING 1. Lay out and cut the cooktop cut-out far enough FORWARD so downdraft will fit behind it. SCREW 2. Set cooktop in place and slide it as far forward as possible without exposing any gaps.
  • Page 7: Install Ductwork

    Models D49M30SB • D49M36SB • D49M48SB Page 7 INSTALL DUCTWORK Installations using REMOTE BLOWER only: CAUTION: All electrical wiring should be done CAUTION: BEFORE CUTTING HOLE IN CABI- by a qualified person(s) in accordance with all NET FOR DUCTWORK, check for interference applicable codes and standards.
  • Page 8 Models D49M30SB • D49M36SB • D49M48SB Page 8 INSTALL FINISH TRIM INSTALL TOP COVER RIGHT TRIM (with UP button WIRE CONNECTOR and cable) COVER HOLE 1. Push wires from RIGHT TRIM down through hole at top/right of chimney. Pull WIRE CONNECTOR all the way to bottom right side of downdraft housing.
  • Page 9: Use And Care

    Models D49M30SB • D49M36SB • D49M48SB Page 9 REMOTE UP/DOWN CONTROL USE AND CARE INSTALLATION (OPTIONAL) WARNING: Always disconnect electric power supply before cleaning and/or servicing unit. When to use the Remote UP/DOWN Control Always turn the downdraft blower on before you begin cooking The Remote UP/DOWN Control can be used when you cannot to establish an air flow in the kitchen.
  • Page 10 Models D49M30SB • D49M36SB • D49M48SB Page 10 OPERATION 2-Level Task Light Press once for LOW setting. Top of icon will illuminate. Press 2x for HIGH setting. Top and bottom of icon will illuminate. 2-Level Task Light Press 3x to turn task light OFF.
  • Page 11 Models D49M30SB • D49M36SB • D49M48SB Page 11 WARRANTY SERVICE PARTS ONE YEAR LIMITED WARRANTY ® FOR BEST PRODUCTS WIDTH WIDTH WIDTH DESCRIPTION Broan-NuTone LLC (Broan-NuTone) warrants to the 97019624 97019625 97019626 Top Cap Assy. ® original consumer purchaser of BEST...
  • Page 12 Models D49M30SB • D49M36SB • D49M48SB Page 12 SERVICE PARTS 99045242D...
  • Page 13 Modèles D49M30SB • D49M36SB • D49M48SB Page 13 VENTILATEUR À utiliser avec les ventilateurs suivants (ventilateurs vendus séparément) : ENCASTRÉ Modèle PF6 - intérieur Flex Modèles EB6, EB9, EB12 ou EB15 - extérieur Modèles intermédiaires ILB3, ILB6, ILB9 ou ILB11 Enregistrez votre produit en ligne à...
  • Page 14 Modèles D49M30SB • D49M36SB • D49M48SB CONTENU Page 14 PLANIFICATION DE LA Ces pièces sont incluses avec le boîtier de hotte encastrée : 1 - Sac de pièces contenant : POSE DES CONDUITS 2 - Pieds de support de 5 cm (2 po) 2 - Pieds de support de 10 cm (4 po) 2 - Vis à...
  • Page 15 Modèles D49M30SB • D49M36SB • D49M48SB Page 15 PLANIFICATION DE LA PRÉPARATION DE LA HOTTE DÉCOUPE DU COMPTOIR ENCASTRÉE ATTENTION : AVANT DE DÉCOUPER COUVERCLE DU L’OUVERTURE DES CONDUITS DANS L’ A RMOIRE, PANNEAU AVANT vérifiez que les solives du plancher, les montants des murs, les fils électrique et la plomberie ne...
  • Page 16 Modèles D49M30SB • D49M36SB • D49M48SB Page 16 PLAQUE DE SORTIE POUR CONDUITS RONDS DE 20,3 CM (8 PO) OU DE PLAQUE DE 25,4 CM (10 PO) (vendue séparément) COULISSE COUVERCLE PLAQUES DE COUVERCLE SUPPORT SUPÉRIEUR PROFILÉ PANNEAU INFÉRIEUR AVANT Ventilateur Flex installé.
  • Page 17 Modèles D49M30SB • D49M36SB • D49M48SB Page 17 ÉCROUS HEXAGONAUX COUVERCLES 8-32 RECTANGULAIRES DE SORTIE Le panneau avant demeure en place. Installations dans lesquelles le PANNEAU ÉLECTRIQUE Installations avec conduit à gauche, à droite ou doit être monté à distance seulement : à...
  • Page 18 Modèles D49M30SB • D49M36SB • D49M48SB Page 18 DÉCOUPER L’OUVERTURE DU COMPTOIR 1. Tracer et découper l’ouverture de la surface de cuisson suf- fisamment vers l’ A VANT de sorte que la hotte puisse s’encastrer derrière. 2. Disposez la surface de cuisson en place et glissez-la le plus HEXAGONALE possible vers l’avant sans qu’aucun écart ne soit visible.
  • Page 19 Modèles D49M30SB • D49M36SB • D49M48SB Page 19 POSE DES CONDUITS Installations avec VENTILATEUR À DISTANCE seulement : ATTENTION : Les travaux d'électricité doivent ATTENTION : AVANT DE DÉCOUPER être effectués par des personnes qualifiées en L’OUVERTURE DES CONDUITS DANS L’ARMOIRE, respectant les codes et les normes en vigueur.
  • Page 20 Modèles D49M30SB • D49M36SB • D49M48SB Page 20 INSTALLATION DE LE INSTALLATION DU CAPOT BORDURE DE FINITION SUPÉRIEUR BORDURE DE CONNECTEUR DROITE (avec bouton DE FIL UP/HAUT et câble) TIGE CAPOT SUPÉRIEUR TROU 1. Repoussez les fils de la BORDURE DE DROITE dans l’ouverture en haut à...
  • Page 21 Modèles D49M30SB • D49M36SB • D49M48SB Page 21 INSTALLATION DE LA UTILISATION ET ENTRETIEN TÉLÉCOMMANDE HAUT/BAS AVERTISSEMENT : Débranchez toujours (FACULTATIF) l'alimentation électrique avant de nettoyer ou de réparer l'appareil. Quand utiliser la télécommande HAUT/BAS Mettez toujours la hotte en marche avant de commencer à...
  • Page 22 Modèles D49M30SB • D49M36SB • D49M48SB Page 22 FONCTIONNEMENT Éclairage à 2 niveaux Appuyez une fois pour l’éclairage à FAIBLE intensité. L’icône du haut s’illumine. Éclairage à 2 niveaux Appuyez 2x pour l’éclairage à HAUTE intensité. L’icône du haut et du bas s’illuminent.
  • Page 23 Modèles D49M30SB • D49M36SB • D49M48SB Page 23 GARANTIE PIÈCES DE RECHANGE LARGEUR LARGEUR LARGEUR GARANTIE LIMITÉE D'UN ® AN DES PRODUITS BEST REPÈRE DESCRIPTION Broan-NuTone LLC (Broan-NuTone) garantit à l'acheteur 97019624 97019625 97019626 Ens. de capot supérieur ® original que les produits BEST...
  • Page 24 Modèles D49M30SB • D49M36SB • D49M48SB Page 24 PIÈCES DE RECHANGE 99045242D...
  • Page 25 Modelos D49M30SB • D49M36SB • D49M48SB Página 25 VENTILADOR DE Para usarse con los siguientes ventiladores (se compran por separado): TIRO DESCENDENTE Modelo PF6 - Flexible interior Modelos EB6, EB9, EB12 o EB15 - Exterior Modelos ILB3, ILB6, ILB9 o ILB11 - En línea Registre su producto en el sitio web: www.BestRangeHoods.com...
  • Page 26 Modelos D49M30SB • D49M36SB • D49M48SB Página 26 CONTENIDO PLANEE LOS CONDUCTOS Se incluyen estas piezas con la cubierta de tiro descendente: Una bolsa de piezas que contiene: 2 patas de apoyo de 2 pulg. (5 cm) 2 patas de apoyo de 4 pulg. (10 cm) CUBIERTA 2 tornillos de cabeza hexagonal, 1/4-20 x 0.50...
  • Page 27 Modelos D49M30SB • D49M36SB • D49M48SB PLANEE LOS CORTES DEL Página 27 PREPARE EL TIRO DESCENDENTE GABINETE CUBIERTA DEL PANEL FRONTAL PRECAUCIÓN: ANTES DE HACER LA ABERTURA EN EL GABINETE PARA EL SISTEMA DE CONDUCTOS, revise que no exista interferencia...
  • Page 28 Modelos D49M30SB • D49M36SB • D49M48SB Página 28 PLACA DE DESCARGA REMOTA REDONDA DE 8 PULG. CANAL DE (20.3 CM) O DE 10 PULG. (25.4 CM) PLACA DE DESLIZAMIENTO (se compra por separado) CUBIERTA PLACAS DE CUBIERTA SOPORTE DE APOYO...
  • Page 29 Modelos D49M30SB • D49M36SB • D49M48SB Página 29 TUERCAS HEXAGONALES CUBIERTAS DE DESCARGA #8-32 RECTANGULAR Este panel frontal permanece en su lugar. Instalaciones en las que el PANEL ELÉCTRICO debe Instalaciones con conductos hacia la izquierda, la montarse en una ubicación remota solamente: derecha o la parte trasera solamente: 6.
  • Page 30 Modelos D49M30SB • D49M36SB • D49M48SB Página 30 HAGA LA ABERTURA DE LA SUPERFICIE DEL GABINETE 1. Trace y haga el corte para la estufa lo suficientemente HACIA DELANTE como para que el tiro descendente quepa detrás de TORNILLO la estufa.
  • Page 31 Modelos D49M30SB • D49M36SB • D49M48SB Página 31 INSTALE EL SISTEMA DE Instalaciones con el VENTILADOR REMOTO solamente: CONDUCTOS PRECAUCIÓN: Una o más personas calificadas deben realizar el trabajo de cableado eléctrico, de acuerdo con todos los códigos y las normas PRECAUCIÓN: ANTES DE HACER LA ABERTURA...
  • Page 32 Modelos D49M30SB • D49M36SB • D49M48SB Página 32 INSTALE LA MOLDURA DE INSTALE LA CUBIERTA ACABADO SUPERIOR MOLDURA DERECHA (con botón CONECTOR de ASCENSO y cable) DE CABLE CLAVIJA CUBIERTA SUPERIOR ORIFICIO 1. Empuje los cables de la MOLDURA DERECHA hacia abajo por el orificio superior/derecho de la chimenea.
  • Page 33: Uso Y Cuidado

    Modelos D49M30SB • D49M36SB • D49M48SB Página 33 INSTALACIÓN DEL CONTROL REMOTO DE JUEGO DE MOLDURA PARA ASCENSO/DESCENSO ESTUFA (OPCIONAL) (OPCIONAL) Está disponible para una aplicación con estufa independiente en donde haya una abertura entre la parte posterior de la estufa y Cuándo usar el control remoto de ASCENSO/DESCENSO...
  • Page 34 Modelos D49M30SB • D49M36SB • D49M48SB Página 34 FUNCIONAMIENTO Luz de tarea de 2 niveles Presione una vez para el ajuste BAJO. La parte superior del icono se iluminará. Luz de tarea de 2 niveles Presione dos veces para el ajuste ALTO. Se iluminarán la parte superior e inferior del icono.
  • Page 35 Modelos D49M30SB • D49M36SB • D49M48SB Página 35 GARANTÍA PIEZAS DE SERVICIO CLAVE ANCHO ANCHO ANCHO GARANTÍA LIMITADA DE UN AÑO PARA LOS ® PRODUCTOS BEST N.º DESCRIPCIÓN Broan-NuTone (Broan-NuTone) garantiza 97019624 97019625 97019626 Conjunto de tapa superior ® consumidor comprador original de los productos BEST...
  • Page 36 Modelos D49M30SB • D49M36SB • D49M48SB Página 36 PIEZAS DE SERVICIO 99045242D...
