Best DPF Series Quick Start Manual

DPF SERIES
Dear clients, thanks for choosing IBEST DPF Series frequency-tacho-linespeed meter! Before installing and operating the products, please read
this instruction manual carefully. For any questions, please contact our sales people immediately.
! SAFETY CAUTIONS:
● Make sure the power is at "OFF" status before connecting the wires to avoid electric shock and strictly follow the connection diagram
given out by the factory.
● Make sure the power OFF when cleaning the product.
● Working beyond the stated power supply (90-250V AC) is prohibited so as to avoid damage to the product or cause fire.
● Make sure the OUTPUT RELAY is used at the rated load and electrical life, if the contact of the output reply works against the electrical
life, it may melt or burned or even cause fire.
● Install power switches and circuit breaker for power safety.
! STOCK AND MAINTAINENCE NOTICE:
● Try to avoid interfere headstream, input signals cable should not be too long, better to use twisted-pair shielded cable, shielded layer
connected with singals low end.
● Prevent from violent vibration, shock and incursion of heavy dust.
● Stock long terms at 0~50
● When instrument power supply has noises, paticularly when inductive voltage caused by relay or contact devices switch ONand OFF
result in serious interference, must configure filter or rheostat or noises absorber.

1.FEATURES

● Measuring object: frequency and tacho or linespeed.
● Red LED display, 14.2 mm high.
● Soft buttons, easily operate.
● Measuring range: max.9999(4 digit), 999999(6 digit).
● Measuring frequency is selectable: 1KHz / 10KHz.
● Decimal point and modulus can be set freely;
● Refresh time and zero-return time can be set within 0~9s.
● Power fail holing function, up to 10 years.
● With or without analog output:0~20mA or 4~20mA
● Relay and transistor output at the same time ( to drive solid state relay)

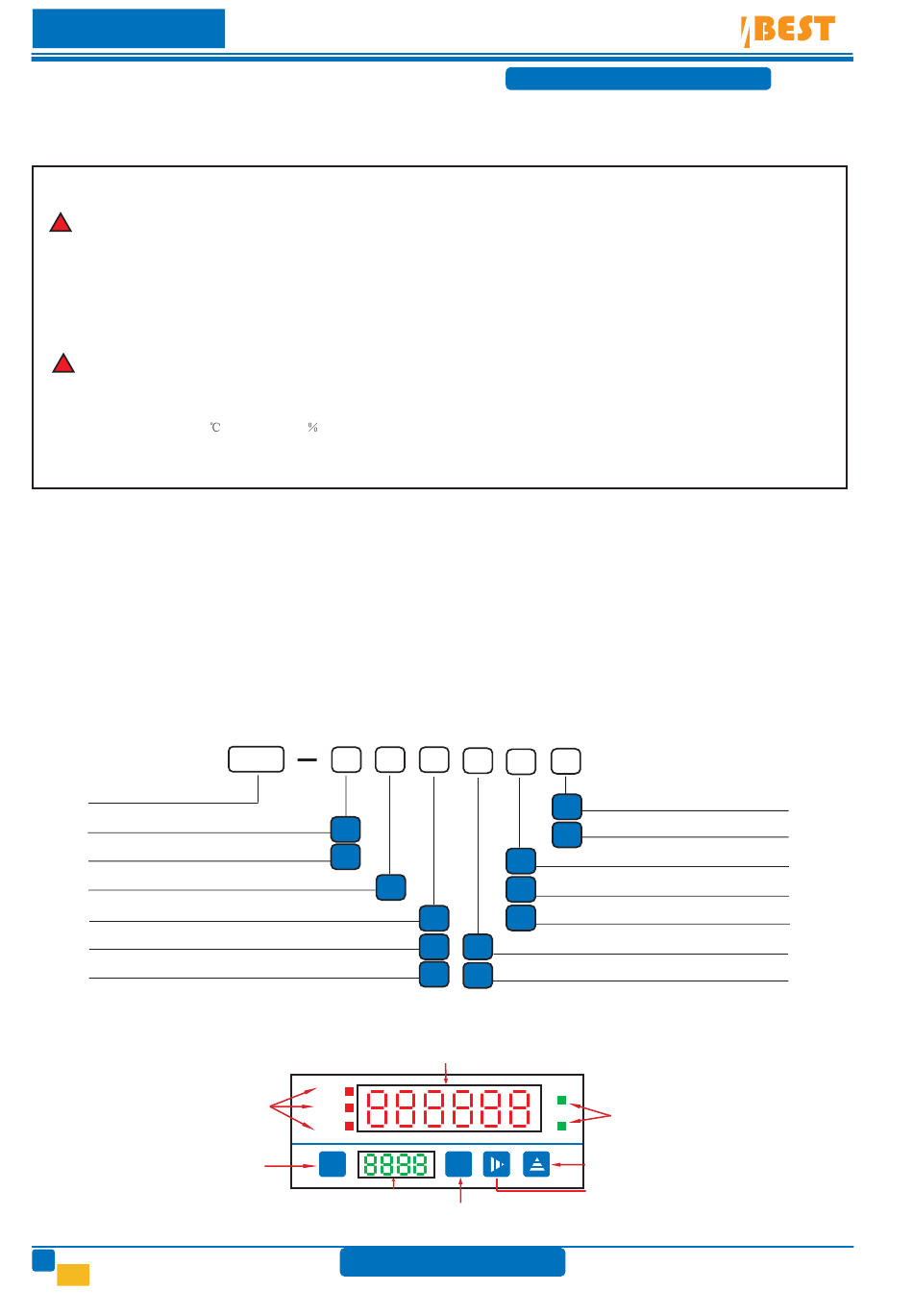

2.ORDERING CODE

Digital frequency/tacho/
linespeed meter
A: analog output 4~20mA
Blank: No analog output
Output: relay and transistor
Alarm output: Blank: no alarm output
1: 1 alarm output
2: 2 alarm output

3.PANEL INSTRUCTIONS

a. 48×96mm panel instructions
Output indicate lamp
Set value modify key
P
1
Digital Frequency-Tacho-Linespeed Meter
PREREAD INSTRUCTIONS
, under 35~85 RH environment.
A R
DPF
A
R
Display measuring value
OUT2
OUTG
OUT1
RST RST RST
Display the set value
Operation mode key, press 3s to enter
www.ibestchina.com
IBEST ELECTRICAL CO.,LTD
1
4 A
4
A
B
4
7
8
4
1
2
6
SET2
SET1
MODE
RST RST RST RST RST RST
into operation mode menu
Electrical & Automation
Frequency/Tacho meter
Linespeed meter
Dimension: 48×48 mm
Dimension: 72×72 mm
Dimension: 48×96 mm
4 digit display
6 digit display
Current set value
indicate lamp
Value increase key or
parameters convert key
Digit shift key
