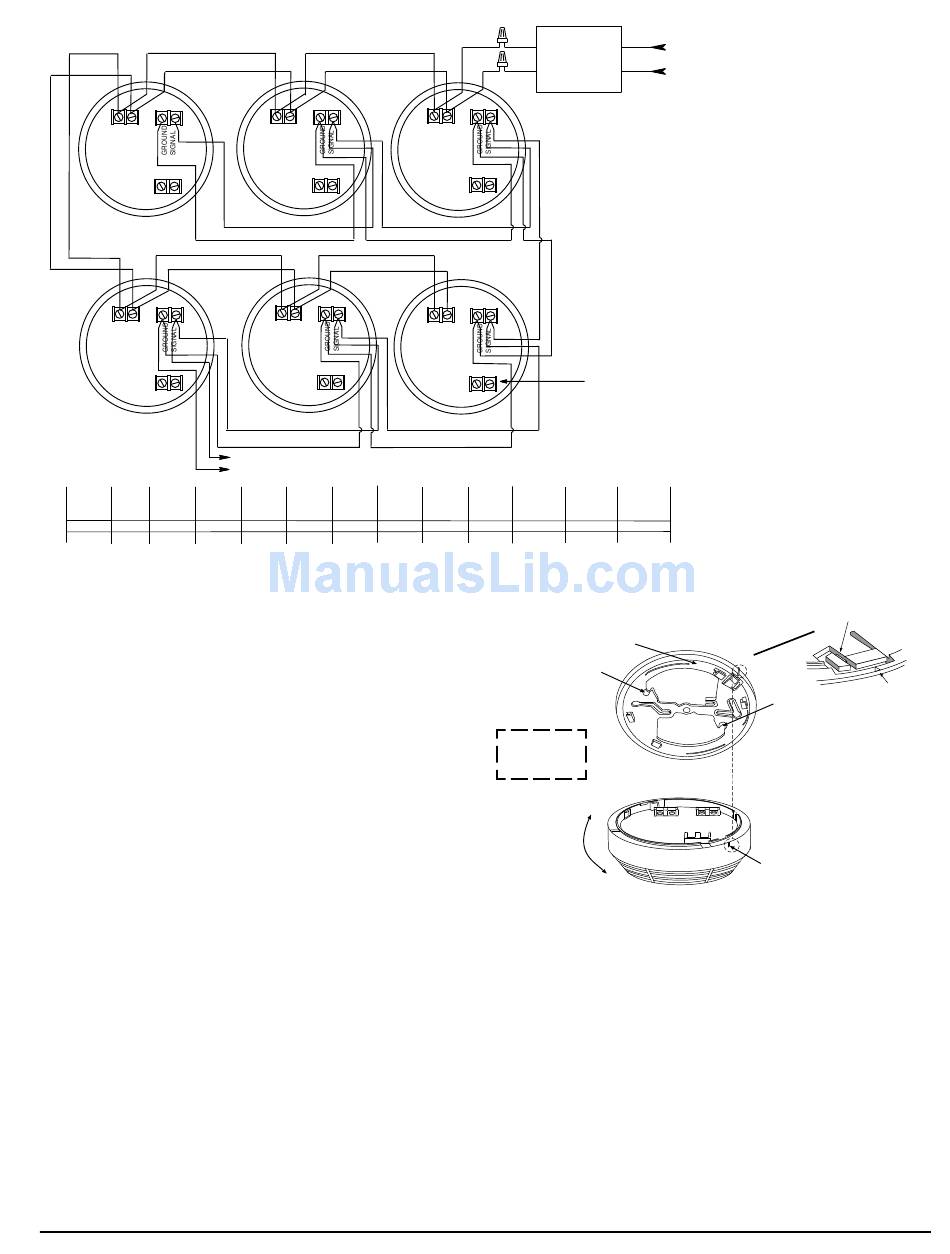

Figure 7:
(+) (–)
POWER INPUT
AUXILIARY
(+) (–)
POWER INPUT
AUXILIARY
WIRE
GAUGE
1 UNIT 2 UNITS 3 UNITS
14AWG
5000 2970 1980
16AWG
3735 1867 1245
18AWG
2349 1174 783
Maximum power bus length in feet, given number of units (maximum per bus) and wire size.
Maximum interconnect bus length: 5,000 FT., No. 18AWG or larger dual conductor cable.
All wiring must conform to local electrical codes.
Relay contacts rating: 0.5A 30VDC; 0.5A 30VAC
Volt D.C. power supply to a 4" square junction box 2-1/8" deep only.
(If necessary, add an extension ring if the selected box does not have
adequate volume.) The power supply may be mounted remotely from
the detector.
• All wiring must be performed by a licensed electrician and installed in
compliance with the National Electrical Code, applicable local codes,
and any special requirements of the local authority having jurisdiction.
• Use only the specified wire gauge. Maximum interconnect bus length
is 5,000 feet, #18 AWG or larger two-conductor stranded cable.
• The detector includes a tamper-resist feature that, when activated, re-
quires a tool for detector removal. The following detector installation
instructions include how to activate this feature.
Installation Instructions
1. Turn off power at main service panel.
2. Using wire connectors, attach either black wire from power supply to
black AC power wire. Attach other black wire from power supply to
white AC neutral wire.
3. Using wire connectors, connect red and gray power supply output
wires to the bus line wires supplying power to the remote detectors.
(See Figure 7.) Use color-coded bus wires.
4. Mount power supply to junction box and cover junction box with a 4"
square box cover, using box mounting screws.
5. Install a junction box where you plan to install the detector. (See type
and size for junction box above.)
6. Install bus line wires from power supply output to junction box. Use
#14-18 AWG wire only. See Figure 7 to determine maximum power bus
length for wire size and number of interconnected detectors.
7. Connect color-coded DC power bus wires to power input screw termi-
nals, located on detector back. If detectors will be interconnected or the
relay used, see following sections for specific installation instructions.
8. Remove detector from mounting bracket by turning the detector
counter-clockwise and pulling the detector away from the bracket.
9. Remove small tab on mounting bracket to activate tamper-resist fea-
ture, if desired. (To release a detector with this feature, push up on
D100-55-00
(+) (–)
POWER INPUT POWER INPUT
AUXILIARY
(+) (–)
POWER INPUT
POWER INPUT
AUXILIARY
INTERCONNECT UP TO
12 DETECTORS
4 UNITS 5 UNITS 6 UNITS 7 UNITS
1485 1188 990 848
622 533
933 747
391 335
587 469
A77-727-O1
RED
(+)
12VDC POWER
GRAY
SUPPLY
(–)
POWERS UP TO
16 DETECTORS
(+) (–)
AUXILIARY
(+) (–)
AUXILIARY
ALARM RELAY
AUXILIARY
8 UNITS 9 UNITS 10 UNITS 11 UNITS
742 660 594 540
466 415 373 339
293 261 234 213
Figure 8:
MOUNTING
BRACKET
MOUNTING
SCREW
Dimensions
1-3/4" high
5-1/2" base dia.
REMOVE
INSTALL
locking tab with screwdriver while turning detector counterclockwise.)
10. Install mounting bracket to junction box.
11. Connect power wires to detector(s) as shown in Figure 8. Be sure to
tighten each terminal screw to secure wire in place. Tug wire to be sure
it is connected properly.
12. Attach smoke detector to mounting bracket by aligning arrows on side
of mounting bracket 1-inch to the right of the nib on the detector. Ro-
tate until the arrow and nib line up. (See Figure 8).
13. After installing all detectors, turn on power at the main service panel.
14. Check for the green LED to flash about once every 30 to 40 seconds.
This means the detector is receiving power. Check all detectors.
Note: If the LED does not flash, power is not getting to the smoke detec-
tor. Check wiring. If LED still does not flash, return the smoke de-
tector to the manufacturer for repair.
15.Test each detector in the system. (See "Testing" below for more de-
tailed instructions.)
3
BLACK
12OVAC
BLACK
12 UNITS
A78-2187-01
495
311
195
MOUNTING
SCREW
WHEN INSTALLING:
ALIGN ARROWS ON MTG.
BRACKET 1" TO THE
RIGHT OF THE NIB ON
THE DETECTOR. ROTATE
UNTIL ARROW AND NIB
LINE UP.
FOR TAMPER RESIST
BREAK OFF TAB HERE
ALIGNMENT
ARROW
A78-2012-00
I56-733-10
