Summary of Contents for Pride VOGUE

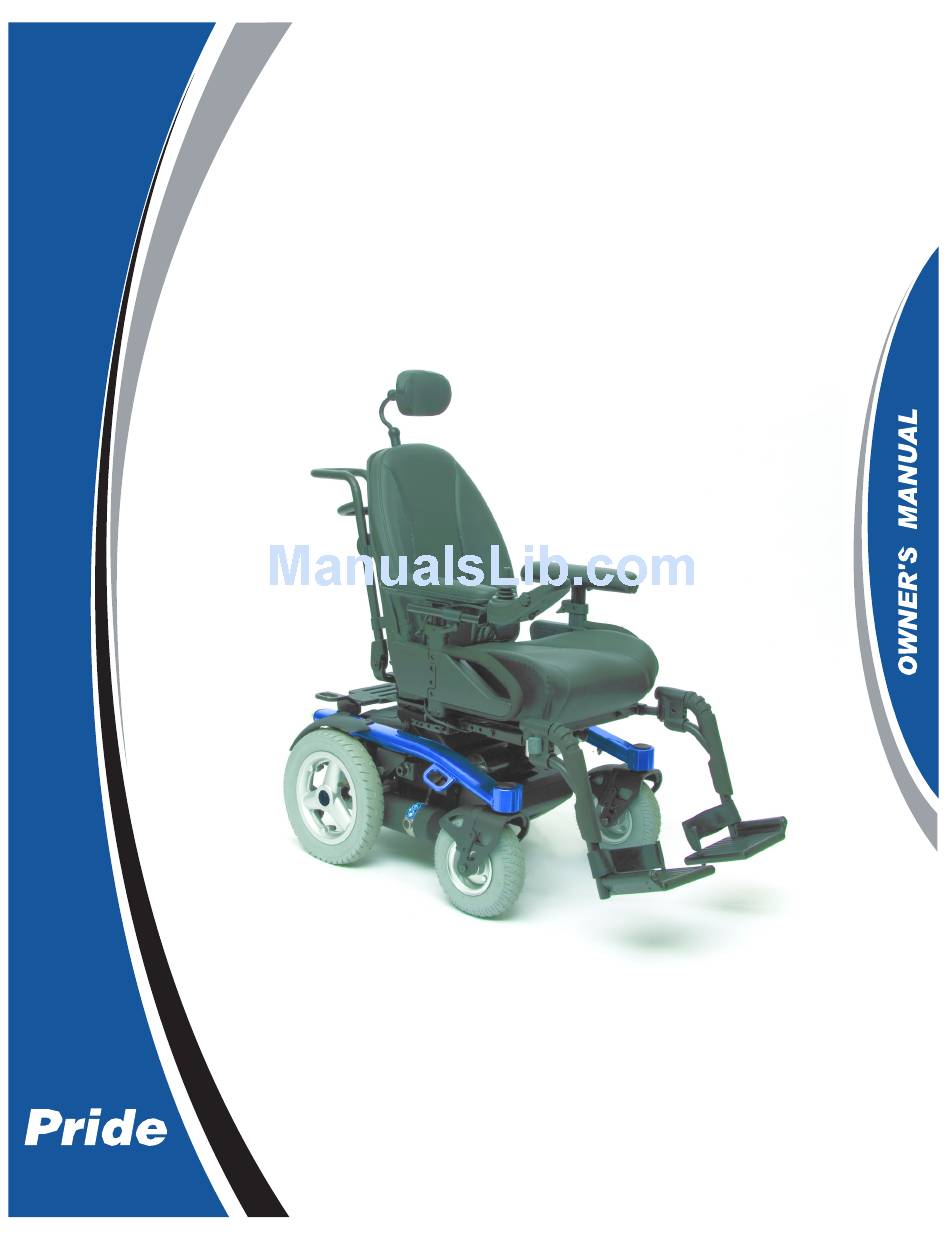

- Page 1 VOGUE Mobility Products Australia Pty. Ltd. www.pridemobility.com 21 Healey Road Dandenong, 3175 Victoria, Australia...
- Page 2 SAFETY GUIDELINES WARNING! An authorised Pride Provider or a qualified technician must perform the initial setup of this power chair and must perform all of the procedures in this manual. The symbols below are used throughout this owner's manual and on the power chair to identify warnings and important information.
-
Page 3: Table Of Contents
INTRODUCTION ........................... 4 SAFETY ..............................5 III. YOUR POWER CHAIR ........................18 IV. COMFORT ADJUSTMENTS ......................22 BATTERIES AND CHARGING ...................... 29 VI. CARE AND MAINTENANCE ......................33 VII. WARRANTY ............................39 APPENDIX I - SPECIFICATIONS ......................40 Vogue www.pridemobility.com... -
Page 4: Introduction
Pride to enhance or preserve the safe use of this product. - Page 5 Use correct tie-down points for controller harness to prevent the harness from getting caught in the drive tyres, pinched in the seat frame, or damaged when passing through doorways. Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain and store in a clean and dry condition. Vogue www.pridemobility.com...
- Page 6 Removal of grounding prong can create electrical hazard. If necessary, properly install an approved 3-pronged adapter to an electrical outlet having 2-pronged plug access. Wear safety goggles. Corrosive chemicals contained in battery. Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while operating. www.pridemobility.com Vogue...
- Page 7 Connect Black wire to Black Negative (–) Terminal Post Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new batteries. Always replace both batteries at the same time. Pinch/Crush points created during assembly. Vogue www.pridemobility.com...
- Page 8 I I . S A F E T Y Battery charger for indoor use only. Disposal and recycling - Contact your authorised Pride Provider for information on proper disposal and recycling of your Pride product and its packaging. Unlocked and in freewheel mode.
- Page 9 I I . S A F E T Y Contains Lead. No step. No standing. Keep off! Do not remove anti-tip wheels. Motor rating information label Power chair information label Vogue www.pridemobility.com...
-
Page 10: General Guidelines
Pride products. Pre-Ride Safety Check Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check before each use to make sure your power chair operates smoothly and safely. -
Page 11: Weight Limitations
Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the weight capacity voids your warranty. Pride will not be held responsible for injuries and/or property damage resulting from failure to observe weight limitations. -
Page 12: Your Power Chair
Doing so could cause instability in your power chair. Pride recommends that the maximum slope of an incline you attempt to safely ascend or descend on your power chair does not exceed 10.5% (6°). See figure 1. - Page 13 Your power chair is designed to provide optimum stability under normal driving conditions—dry, level surfaces composed of concrete, blacktop, or tarmac. However, Pride recognises that there will be times when you will encounter other surface types. For this reason, your power chair is designed to perform admirably on packed soil, grass, and gravel.
-
Page 14: Stairs And Escalators
Motor Vehicle Transport Pride recommends that you do not remain seated in your power chair while traveling in a motor vehicle. The power chair should be stowed in the boot of a car or in the back of a truck or van with batteries removed and properly secured. -
Page 15: Positioning Belts
Pride recommends that the power chair user determine his/her personal limitations and practice bending and reaching in the presence of a qualified healthcare professional. - Page 16 Always have an attendant or healthcare professional present while learning to properly transfer yourself. To eliminate the possibility of injury, Pride recom- mends that you or a trained attendant perform the fol- lowing tasks before attempting a transfer: Turn off the power to the controller.
- Page 17 WARNING! Pride strongly recommends that you do not smoke cigarettes while seated in your power chair, although the power chair has passed the necessary testing requirements for cigarette smoking.
- Page 18 SEATBACK ARMREST SEAT ASSEMBLY JOYSTICK CONTROLLER (VR2 SHOWN) SEAT BASE POWER BASE ASSEMBLY DRIVE WHEEL FRONT RIGGINGS CASTER WHEEL Figure 5. The Vogue www.pridemobility.com Vogue...
- Page 19 Next, push in the circuit breaker button, turn on the controller, and continue normal operation. If the main circuit breaker continues to trip repeatedly, contact your authorised Pride Provider. The main circuit breaker may be located on either the left or right side of your power chair. See figure 6.
- Page 20 CLIMBER position and will not drag or scrape the ground. Figure 7. Vogue with Kerb Climber NOTE: For more information regarding the kerb climber feature, please contact your authorised Pride Provider.
- Page 21 NOTE: If the lever is difficult to move in either direction, rock your power chair back and forth slightly. The lever should then move to the desired position. WARNING! Do not use the freewheel lever handles as tie-down points to secure this product. Figure 8. Drive Mode (Drive Engaged) Figure 9. Freewheel Mode (Drive Disengaged) Vogue www.pridemobility.com...
-
Page 22: Comfort Adjustments
WARNING! The centre of gravity of your power chair was factory set to a position that meets the needs of the demographic majority of users. Your authorised Pride Provider has evaluated your power chair and made any necessary adjustments to suit your specific requirements. Do not change your seating configuration without first contacting Pride Mobility Products or your authorised Pride Provider. - Page 23 WARNING! Do not allow the motor to run more than a few seconds after the mechanism reaches the top or bottom limit. NOTE: For more information on operating the power positioning systems, contact your authorised Pride Provider. WARNING! The power positioning systems are intended for use on a level surface only. Never operate your power chair while tilted or reclined on an inclined surface.
- Page 24 3. Reposition the legrest receiver to the desired seat width. 4. Tighten the leg rest receiver hardware. 5. Adjust the width of the other leg rest if necessary. 6. Replace the seat cushion. Figure 13. Seat Width Adjustment Figure 14. Leg Rest Width Adjustment www.pridemobility.com Vogue...
-
Page 25: Armrest Height Adjustment
3. Line up the holes in the armrest. 4. Reinstall the two button head screws into the detent bar. 5. Repeat for the other armrest if necessary. DETENT BAR BUTTON HEAD SCREWS ARMREST LOCK ARMREST LOCK LEVER Figure 17. Armrest Bottom Height Adjustment Vogue www.pridemobility.com... -
Page 26: Controller Position
11. Use wire ties to secure the controller cable and the manual recline lever cable to the armrests. 12. Route the controller cable to the front of the power base Figure 20. Cable Routing and reconnect the controller. See figure 20. www.pridemobility.com Vogue... - Page 27 When accelerating, your power chair tips rearward excessively. The anti-tip wheels constantly rub the ground. WARNING! Consult your authorised Pride Provider before attempting to change the anti-tip wheel height! Changing the anti-tip wheel height affects handling under deceleration! WARNING! The higher you raise the anti-tip wheels, the more you increase your power chair’s tendency to tilt rearward when accelerating.
-
Page 28: Positioning Belt
4. Repeat steps 1-3 for the other side. NOTE: If your power chair is equipped with an optional seating system, please refer to the user manual provided with the seat for instruction on positioning belt installation or contact your authorised Pride Provider. To adjust the positioning belt: 1. -
Page 29: Batteries And Charging
V . B A T T E R I E S A N D C H A R G I N G BATTERIES AND CHARGING The Vogue uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free. Since they are sealed, there is no need to check the electrolyte (fluid) level. Deep-cycle batteries are designed to handle a longer and deeper discharge. - Page 30 See figure 23. 4. Plug the off-board charger into the electrical outlet. NOTE: If it is a Pride off-board charger, then there are two lights in it. The red light indicates that power to the off-board charger is on.
- Page 31 We work closely with our battery manufacturer to provide a battery that best suits your power chair’s specific demands. Fresh batteries arrive regularly at Pride and are promptly shipped with a full charge. During shipping, the batteries encounter temperature extremes that may influence initial performance. Heat robs the charge from the battery, and cold slows the power available and extends the time needed to recharge the battery (just as with a car battery).
- Page 32 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container, and ship the batteries in separate boxes. www.pridemobility.com Vogue...
-
Page 33: Care And Maintenance
3. Check the joystick operation and the brakes before using your power chair again. 4. If any inconsistencies are found, take your power chair to your authorised Pride Provider. Power chairs that are frequently exposed to sources of water, such as incontinence, should be inspected often for corrosion and electronic components may need to be replaced frequently. -
Page 34: Daily Checks
Check the rubber boot around the base of the joystick for damage. Visu- ally inspect the boot. Do not handle or try to repair it. See your authorised Pride Provider if there is a problem. -
Page 35: Cleaning And Disinfection
Your power chair must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorised Pride Provider for information on proper disposal of power chair packaging, metal frame components, plastic components, electronics, and batteries. -
Page 36: Battery Replacement
WARNING! Do not replace battery when seat is occupied. WARNING! The batteries on your power chair should only be serviced or replaced by an authorised Pride Provider or a qualified technician. WARNING! Power chair batteries are heavy. See specifications table. If you are unable to lift that much weight, be sure to get help. - Page 37 9. Place the batteries back into the power base. 10. Connect the battery quick disconnects according to the battery wiring diagram label located on the frame. See figure 26. 11. Replace the battery door and reconnect the battery door latches. Figure 26. Battery Replacement Vogue www.pridemobility.com...
-
Page 38: Corrective Maintenance
When to See Your Authorised Pride Provider for Service The following symptoms could indicate a serious problem with your power chair. If necessary, contact your authorised Pride Provider. When calling, have the model number, serial number, nature of the problem, and the trouble code if available. -
Page 39: Warranty
ONE-YEAR LIMITED WARRANTY Your Pride Power Chair is fully guaranteed for twelve (12) months from the date of purchase against faults arising due to defects in manufacture or materials. This warranty does not detract from, but is in addition to your legal rights. -
Page 40: Appendix I - Specifications
(+ or – ) 3%. AGM or Gel-Cell type required. See V. “Batteries and Charging.” NOTE: This product conforms to all applicable ANSI-RESNA testing requirements and ISO EN12184 standards. All specifications subject to change without notice. www.pridemobility.com Vogue... - Page 41 A P P E N D I X I - S P E C I F I C A T I O N S LENGTH (WITHOUT FRONT RIGGINGS) 85.09 cm (33.5 in.) TURNING RADIUS WIDTH (WITHOUT 64.38 cm (25.3 in.) FRONT RIGGINGS) 57.17 cm (22.5 in.) GROUND CLEARANCE 7.3 cm (2.8 in.) Figure 27. Vogue Dimensions and Ground Clearance Vogue www.pridemobility.com...
- Page 42 NOTES www.pridemobility.com Vogue...
- Page 44 Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected Inspector *INFMANU3799* Product Serial Number...
