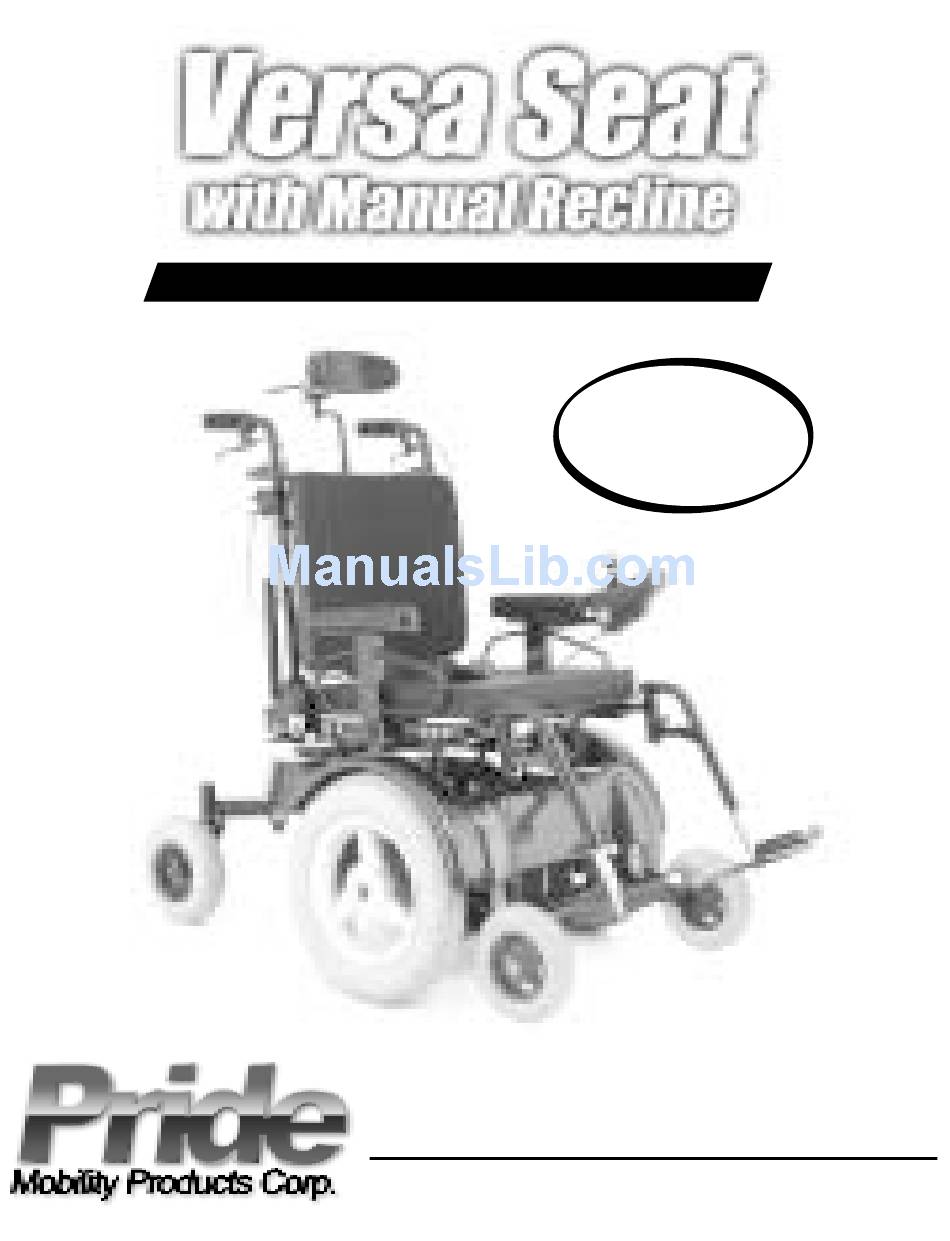

- Page 1 Owner’s Manual ATTENTION: Read everything in this manual before operating your Versa Seat with Manual Recline Exeter, PA St. Catharines, ON 1-800-800-8586 www.pridemobility.com...
- Page 2 G U I D E L I N E S Read and follow all of the instructions in this manual before you attempt to operate your Versa Seat with Manual Recline for the first time. If you are unable to understand any of this information or require additional assistance for set-up, contact your local authorized Pride Provider or call the Pride Technical Service Department at 1-800-800- 8586.
-
Page 3: Table Of Contents
T A B L E C O N T E N T S INTRODUCTION ..................4 MAIN COMPONENTS ................6 III. INSTALLATION ..................7 IV. ADJUSTMENT ..................8 MANUAL RECLINE ..................19 VI. WARRANTY ....................21 Versa Seat with Manual Recline... -
Page 4: Introduction
Versa Seat with Manual Recline. Pride is not liable for damage to property or personal injury arising out of unsafe use of a Versa Seat with Manual Recline. Pride is also not liable for any property damage or personal injury arising out of the failure of any person... - Page 5 Pride Owners Club As a Pride product owner, you are invited to register your product’s warranty and enroll in the Pride Owners Club. You may do so by filling out and returning your enclosed registration card or by visiting Pride’s web site at www.pridemobility.com.
-
Page 6: Main Components
I I . M A I N C O M P O N E N T S FIGURE 1. Versa Seat with Manual Recline - Main Components Versa Seat with Manual Recline... -
Page 7: Installation
1. Position the Versa Seat with Manual Recline over the Power Chair base. This is best accomplished by having a person on either side of the Power Chair base, holding the Versa Seat with Manual Recline by its tie-down mounts. See figure 2. -
Page 8: Adjustment
6. Retighten the width adjustment bracket side bolts on all four brackets. TOOLS REQUIRED: • 1/2-inch wrench LOOSEN WIDTH ADJUSTMENT BRACKET SIDE BOLT RAISE OR LOWER SEAT TOWER IN 1-INCH TIE-DOWN INCREMENTS MOUNT SEAT TOWER (BALL DETENT) FIGURE 6. Seat Height Adjustment Versa Seat with Manual Recline... - Page 9 9. Make sure that the seat is centered. 10. Reinstall the width adjustment bracket side bolts. 11. Tighten all bolts and screws as necessary. TOOLS REQUIRED: • 1/2-inch wrench • 7/16-inch wrench • 5/32-inch hex key Versa Seat with Manual Recline...
- Page 10 WIDTH ADJUST successfully change the width. WIDTH ADJUST WIDTH ADJUSTMENT BRACKET WIDTH ADJUSTMENT BRACKET SIDE BOLT SIDE BOLT WIDTH ADJUSTMENT BRACKET WIDTH ADJUSTMENT BRACKET WIDTH ADJUSTMENT BRACKET SIDE BOLTS FIGURE 7. Width Adjustment Versa Seat with Manual Recline...
-
Page 11: Seat Depth Adjustment
A D J U S T M E N T SEAT DEPTH ADJUSTMENT The Versa Seat with Manual Recline seat depth is adjustable up to 24 inches, in one-inch increments. NOTE: You must use Elevated Leg Rests (ELRs) or a standard extension to get beyond 19 inches. - Page 12 4. Repeat for the other ELR. You may have to remove the front center tube and the width adjustment bracket (using a 1/2- inch wrench) to insert the ELR . ELR SETSCREW ELR SETSCREW FIGURE 9. ELR Depth Adjustment Versa Seat with Manual Recline...
-
Page 13: Armrest Height Adjustment
Remove these two button head screws (using a 5/16-inch hex key) to adjust armrest height. ARMREST LOCKED = TOWARD RECEIVER FRONT OF CHAIR LOCK MECHANISM UNLOCKED = TOWARD BACK OF CHAIR FIGURE 10. Armrest Height Adjustment Versa Seat with Manual Recline... - Page 14 • 1/2-inch wrench Using a 1/2-inch wrench, remove the anchor nuts on the backside of the rail. UNLOCKED = TOWARD BACK LOCKED = TOWARD ARMREST OF CHAIR FRONT OF CHAIR RECEIVER LOCK MECHANISM FIGURE 11. Armrest Positioning Versa Seat with Manual Recline...
- Page 15 WARNING! Your Power Chair’s center of gravity is affected by the seat position/angle. If your Power Chair was configured at your Pride provider or service center, consult your health care professional before changing the seat position/angle. Some adjustments may degrade your Power Chair’s performance and safety by changing its center of gravity.
- Page 16 • 1/2-inch wrench WARNING! Your Power Chair’s center of gravity is affected by the seat position. If your Power Chair was configured at your Pride provider or service center, consult your health care professional before changing the seat position. Some adjustments may degrade your Power Chair’s performance and safety by changing its center of gravity.
-
Page 17: Adjusting The Headrest
Adjust the lock collar using a 3/32-inch hex key. TOOLS REQUIRED: • 3/16-inch hex key • 5/32-inch hex key • 3/32-inch hex key LOOSEN 3 HEX SCREWS TO ADJUST HEADREST EXTENSION TUBE FIGURE 14A. Headrest Extension Tube Angle Versa Seat with Manual Recline... - Page 18 A D J U S T M E N T LOOSEN 3 HEX SCREWS TO ADJUST FIGURE 14B. Headrest Angle LOCK COLLAR HEIGHT ADJUSTMENT LEVER COUNTERCLOCKWISE = LOOSEN CLOCKWISE = TIGHTEN FIGURE 14C. Headrest Height Versa Seat with Manual Recline...
-
Page 19: Manual Recline
WARNING! Your Power Chair’s center of gravity is affected by the seatback angle. If your Power Chair was configured at your Pride provider or service center, consult your health care professional before changing the seatback angle. Some adjustments may degrade your Power Chair’s performance and safety by changing its center of gravity. - Page 20 M A N U A L R E C L I N E RECLINE RELEASE HANDLE RECLINE RELEASE HANDLE FIGURE 16. Operating the Manual Recline Release Handles FIGURE 17. Operating the Manual Recline Versa Seat with Manual Recline...
-
Page 21: Warranty
THREE-YEAR LIMITED WARRANTY For three (3) years from the date of purchase, Pride Mobility Products Corporation will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized... - Page 22 N O T E S Versa Seat with Manual Recline...
