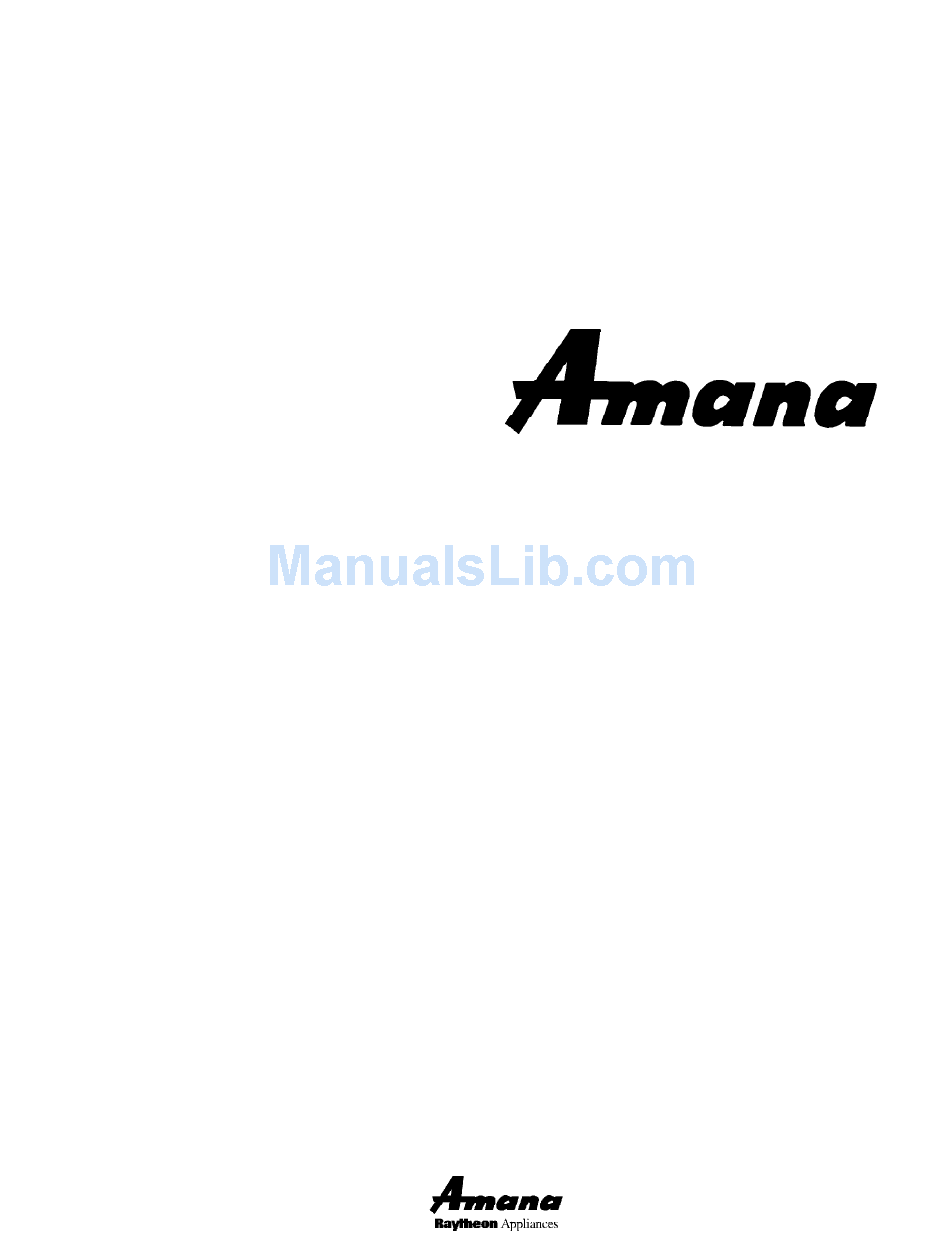

- Page 1 ® Korean Side-by-Side Refrigerator Use and Care Manual Part No. 10488010 ©1996 Raytheon Appliances Printed in U.S.A Amana, Iowa 52203...
-
Page 2: Table Of Contents
Contents Electrical Requirements ........... 2 Automatic Ice Maker ..........8 Model Identification ..........2 ™ Ice 'N Water Dispenser........... 9 Model Diagram............3 Care and Cleaning Features General ..............10 Spillsaver ™ Shelves ..........4 Adhesives ............. 10 Chiller Fresh System ..........4 Door Gaskets ............ -
Page 3: Model Diagram
Model Diagram ® Deepfreeze Section (Freezer) Fresh Food Section (Refrigerator) ® 13. Deepfreeze Shelf (Dispenser models) 1. Fresh Food and Deepfreeze ® Controls 14. Automatic Ice Maker (Dispenser models) (Nonelectronic Models) 15. Stor-Mor ™ System ™ 2. Spillsaver Shelves 16. Door Shelves 3. -
Page 4: Features
Features ™ Spillsaver Shelves Garden Fresh Crispers Locate control on front trim to adjust to either high or low Caution settings. To avoid personal injury or property damage, handle tempered glass shelves carefully. low humidity Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. -
Page 5: Temperature Controlled Beverage Chiller
™ Temperature Controlled Beverage Chiller Door Shelves • Remove slide-style door shelves by lifting and pulling (Some models) out. Locate control dial on left front wall of Fresh Food • Replace slide-style door shelves by reversing step. section to adjust amount of air. •... -
Page 6: Setting Controls
Setting Controls This refrigerator operates most efficiently in normal ™ Touchmatic Electronic Controls household temperatures of 12° to 43°C. (electronic models) Confirm power switch is on before programming. Remove ® Fresh Food and Deepfreeze Controls toe grille and locate black box in center of cabinet. Power switch is on right side of box. - Page 7 Locate Touchmatic ™ electronic control panel on refrigerator between handles. Press * pad to activate control panel. All other pads, except for Alarm Off pad, remain inactive until * pad is pressed. Once activated, pads remain programmable for at least 10 minutes. Fresh Food and Deepfreeze ®...
-
Page 8: Automatic Ice Maker
Automatic Ice Maker 1. Confirm ice storage bucket is in place and ice maker Door Open Alarm arm is down. Door open alarm sounds and glowing indicator light blinks if either door is open for three minutes. Deactivate door open alarm by pressing Alarm Off pad or by closing either door. -
Page 9: Ice 'N Water Dispenser
™ Ice 'N Water Dispenser Crushed ice Cubed ice Water If dispensing ice continuously, dispenser motor shuts off Caution after approximately two minutes. Motor resets after To avoid personal injury or property damage, three minutes and dispensing can continue. observe following instructions: •... -
Page 10: Care And Cleaning
Care and Cleaning Condenser Coil WARNING Clean condenser coil every three months. Accumulated To avoid electrical shock which can cause dust and lint may cause the following: severe personal injury or death, disconnect • reduced cooling performance power to refrigerator before cleaning. After •... -
Page 11: Vacation Tips
Vacation Tips Before Calling For Service For short vacations, remove perishable foods. If an ice Refrigerator does not operate. maker is installed, move ice maker arm to off position. • Confirm Deepfreeze ® control is on. • Confirm electrical power cord is plugged in. For long vacations, do the following: •... - Page 12 Crisper drawers or chiller fresh system do not close freely. • Check for a package which may prevent drawers from closing properly. • Confirm drawers are in proper position. • Clean drawer channels with warm, soapy water. Rinse and dry thoroughly. •...
