Summary of Contents for Allview Q2 CLOUD
- Page 5 ℃. Do not use damaged battery. Do not expose your mobile phone to direct sunlight or in hot areas. High temperatures can shorten the life of electronic devices. Do not expose the battery into fire or throw it away. Return the wear-out battery to the provider or put it in the appointed recycle place.
- Page 6 English keep the products out of children's reach Keep your product dry. Do not expose it to liquid or moisture. Do not short-circuit the battery, as this can cause excessive heat to bring about fire. Do not expose your mobile phone to direct sunlight or in hot areas. High temperatures can shorten the life of electronic devices.
-

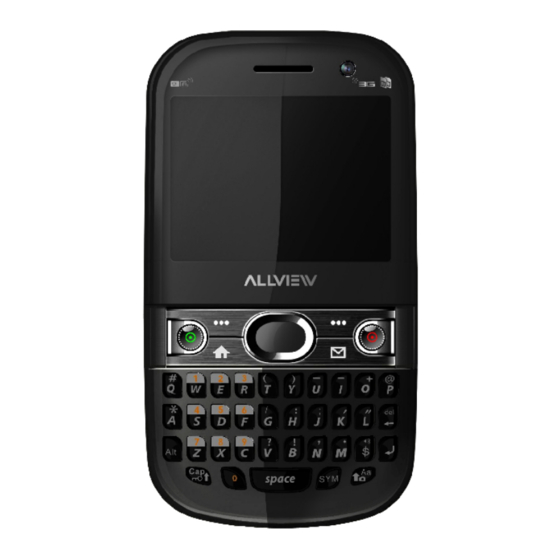

Page 7: Phone Overview
English Phone Overview Charger jack OK key&Navigation key Left soft key/Phonebook Right soft key Dial key End key Menu key Messages key Qwerty Volume key Key functions Keys Description [Dial key] Press to perform one of the following: Open recent call log Call a contact when a contact... - Page 8 English name/number is highlighted [Menu key] Press to open a list of actions available on the current screen. [End key] When on a call,press to hang up. When not on a call: Press and hold to power on/off the phone. Press to back to idle screen.
- Page 9 English The battery at its initial condition is charged to 50% full, and can be used after unwrapping. For removing: Push the battery back cover; Lift the battery up as indicated by the arrow; Take the battery out. Warning: Make sure to power off the phone before taking out SIM card, battery, otherwise your SIM card might be damaged.
- Page 10 English Charging Battery While charging, the power supply indicator at phone’s screen icon zone will flash in a rotation manner, if the phone is off while charging, a charging screen will still appear, indicating that the phone is recharging. If the phone is still being overused while the power supply is insufficient, the recharging indicator will appear on the screen after the recharging has started for a while.
- Page 11 English the info in the SIM card, it is necessary to avoid touching metal contact surface, and keep SIM card far from electricity current and magnet. Power off the phone; remove battery and other external power connection, as shown in the image. Insert SIM card into SIM card socket.
- Page 12 English per the setting done by user. Once the appropriate password is entered, the phone will search for network connection and latch accordingly to the appropriate network. To power off, please press and hold the End key. To prevent illegal usage, PIN (Personal Identification Number) code is adopted to encrypt for protection of your SIM card.
- Page 13 English After SIM card is successfully unlocked, the phone will automatically search available network (with searching showing on the screen). Once the connection is made, the name of the service provider will be displayed on the screen. At this time your phone has been connected to the service network. Note: If the screen prompts "Emergency ", this means you have moved out of the normal network coverage (service range) or your card has not passed authentication, but you can still transmit emergency calls based on signal...
- Page 14 English When the logo of service provider appears on the display screen, you can dial or receive calls. The info bar at the upper left corner of the display screen shows network signal strength (when there are 5 info bars the signal is at its strongest). The call quality is very likely to be affected by obstructions.
- Page 15 English Every phone number you have dialed or received will be stored in the list of phone call records. The latest dialed, received and missed numbers will be listed, according to their types, in the respective menu of dialed calls, received calls and missed calls.
- Page 16 English condition, press OK key “H-held" to power off speaker. Operation methods of call options are the same with that of Function menu. This call options can only be viewed during call process, moreover, the functions of call waiting, call holding, and conference calls need service support, please contact your service provider for details.
- Page 17 English The phone offers a range of functions that allow you to tailor it to your needs. These functions are arranged in menus and submenus which can be accessed by scrolling or using the appropriate shortcut. 1. Press Menu key in standby mode. 2.
-
Page 18: Allview Store
7-1 Alarm 7-2 World clock 11 WEATHER 7-3 Tasks 7-4 Calculator 12 EBUDDY 7-5 Currency converter 7-6 Stopwatch 13 SNAPTU 7-7 Ebook reader 14 STUN 8 Settings 8-1 Dual SIM switch 15 ALLVIEW STORE 8-2 Dual SIM settings 8-3 Phone settings... - Page 19 English 1. Press Phonebook key,select “Phonebook>Options > Add new contact”. 2. Press left soft key ( ) to select,caller groups,phonebook settings. 3. Edit contact. 4. Finish editing, press left soft key ( ), then select Save or Cancel. 1. Press Phonebook key,and enter phonebook. 2.
- Page 20 English Create a new short message. Enter text Press the left soft key ( ) and select the required items, including Send to, Input method, Input method options,Edit options,Add picture,Add soud,Add video,Add subject,Slide options,Switch to MMS,Advanced,Save,and so on. Press the left soft key ( ) and select send to，then add number or select for phonebook.
- Page 21 English Text message The phone is pre-set with 10 common phrases, which can be either edited or deleted. You can also define some templates. Multimedia message The phone is pre-set with 5 common MMS. You can set SMS, MMS and Service message.
- Page 22 English 1. Select Menu >Camera 2. Press left soft key ( ), and then select to view the photo album or set relevant parameters. 3. Press OK key to take a photo. 4. After taking photos, press Right soft key to take another photo,the previous photo will be saved automatically.
- Page 23 English 1. Select Menu > Multimedia > Video player. 2. The keypad operations during video playback are as follows: Press OK key to play/pause the current video. Press up/down key to adjust the volume. Long press right/ left key to fast forward or rewind. Press Left/Right to choose the previous/next audio file;...
- Page 24 English 3. On the FM Radio screen, you can do as follows: Press side key to adjust the volume. Press left/right key to tune by 0.1 MHz. Press Menu key ( ) and select Channel list, Manual input,Auto search, Settings and so on.
- Page 25 English 1. Select Menu > Music 2. Press Left soft key ( ) and select refresh list ,settings. Access the Music Player interface and adjust the Play and Pause of the music by the OK key. Press Left/Right key to choose the previous/next audio file; Press up/down key to adjust the volume.
- Page 26 English Select Menu > Settings>Java. Installing applications Press Menu key, and then select File manager,select installation files have the extension .jar or .jad Press Menu key ( ) and then select Install and follow the instructions in the phone. Select Phone or Memery card to install The application will be installed in Java folder.
- Page 27 English Select Menu > Connectivity > Bluetooth. : on/off Bluetooth function :set this device is visibile . : show the devices which had matched with my device. show the devices which is hands-free. :Show host device name, you can change device name. Include the following: Audio path: set up voice to transfer path for Bluetooth headset or remain in the machine.
- Page 28 English The indicator of the current text input mode is displayed in the upper left corner of the screen. You can press to change the text input mode. Indicator Text Input Mode Traditional input mode Number input mode Note:Press Back key (Clear) once to delete the last entered character. Press and hold Back key (Clear) for about 3s to clear all the entered characters at a time.
- Page 29 English Can NOT power Must long press the key at least 3 seconds. Check the battery is installed correctly. Whether the battery runs out, charge it and wait a few minutes Can NOT connect The strength of signal is weak, please move to other place where the the network signal is stronger.
- Page 30 English SIM card error SIM card connect point is dirty, please clean it with soft and dry cloth or something. SIM card is NOT inserted correctly. SIM card is broken, please contact with your network operator. Can NOT make a Make sure you press after dialing numbers.
