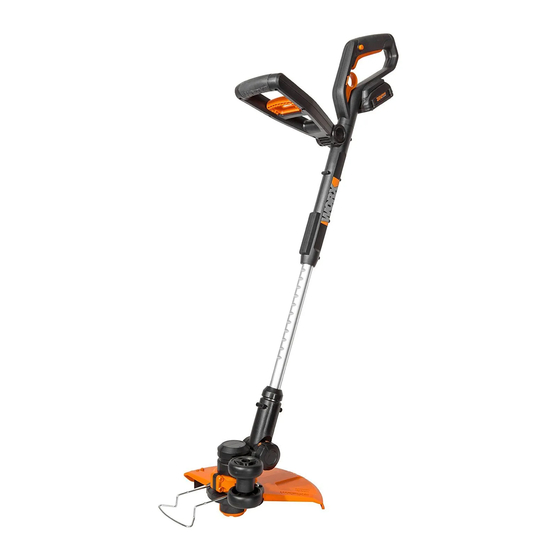

Worx WG169E.5 Operation Manual
3in1grass trimmer/edger
Hide thumbs
Also See for WG169E.5:
- Original instructions manual (149 pages) ,
- Manual (136 pages) ,
- Safety and operating manual (21 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for Worx WG169E.5
Summary of Contents for Worx WG169E.5
- Page 1 SAFETY AND OPERATING MANUAL WG169E WG169E.5 3 in 1 Grass Trimmer/Edger WG169E.9...
-
Page 2: General Power Tool Safety Warnings
(RcD) protected c) Disconnect the plug from the power supply. Use of an RCD reduces the risk of source and/or the battery pack from electric shock. WG169E WG169E.5 3 in 1 Grass Trimmer/Edger WG169E.9... - Page 3 Keep in mind that the operator or user contacts eyes, additionally seek is responsible for accidents or hazards medical help. Liquid ejected from the occurring to other people or their property. battery may cause irritation or burns. WG169E WG169E.5 3 in 1 Grass Trimmer/Edger WG169E.9...
-
Page 4: Battery Pack
Recharge only with the charger by an authorized repairer. specified by WoRX. Do not use any d) When not in use, store the machine out of charger other than that specifically the reach of children. - Page 5 Limited is 14 101 682 357 Do not burn Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. WG169E WG169E.5 3 in 1 Grass Trimmer/Edger WG169E.9...
- Page 6 9 10 WG169E WG169E.5 3 in 1 Grass Trimmer/Edger WG169E.9...
- Page 7 19. cAP ReleASe lAtcH (See fig. k2) 20. SPool (See fig. k2) 21. cUttING HeAD (See fig. k2) 22. eyelet (See fig. k2) Not all the accessories illustrated or described are included in standard delivery. WG169E WG169E.5 3 in 1 Grass Trimmer/Edger WG169E.9...
-
Page 8: Technical Data
TEcHNIcAL DATA Type WG169e WG169e.5 WG169e.9 (1-designation of machinery, representative of Grass trimmer) WG169e WG169e.5 WG169e.9 Voltage Max* No load speed 7600/min Cutting diameter 30cm Line diameter 1.65mm Charging time 3hr approx. 1hr approx. Machine weight 2.6kg 2.6kg 2.2kg *Voltage measured without workload. initial battery voltage reaches Maximum of 20volts. - Page 9 When the battery is empty, the trimmer will switch off by means of a protective circuit: The trimmer head will stop rotating. Note: in a warm environment or after heavy use, the WG169E WG169E.5 3 in 1 Grass Trimmer/Edger WG169E.9...
- Page 10 Upper Shaft (15). Then rotate the Upper Shaft clockwise 90 degrees (See Fig. F1) and release; the Shaft will be locked in position automatically (See Fig. F2). WG169E WG169E.5 3 in 1 Grass Trimmer/Edger WG169E.9...
-
Page 11: Operation
Do not use other material such as wire, string, rope, etc. WG169E WG169E.5 3 in 1 Grass Trimmer/Edger WG169E.9... - Page 12 Do not force the line. The edging wheels help protect the unit and keep the unit from contacting the ground. Take extra caution while edging, as objects can be thrown from the trimmer line. WG169E WG169E.5 3 in 1 Grass Trimmer/Edger WG169E.9...
- Page 13 Remove Spool Cap Cover. Remove the old Spool from Spool holder. Clear any broken line or cutting debris from the spool area. Pull the line from the new replacement Spool through the WG169E WG169E.5 3 in 1 Grass Trimmer/Edger WG169E.9...
-
Page 14: Maintenance
Wipe clean with a dry cloth. Always store your power tool in a dry room temperature location. Keep the motor ventilation slots clean. Keep all working controls free of dust. WRONG RIGHT WG169E WG169E.5 3 in 1 Grass Trimmer/Edger WG169E.9... -
Page 15: Troubleshooting
Manually feed the line, if still can work The line is tangled. not feed out, remove the Spool out and rewind the line. Line is used up. Replace with a new spool of line. WG169E WG169E.5 3 in 1 Grass Trimmer/Edger WG169E.9... - Page 16 Copyright © 2014, Positec. All Rights Reserved. 2CGT09FPK11005A0...
