ASSEMBLY MANUAL
Stepping the mast : connecting the shrouds
Illustration
Place the mast on the trampoline, the mast base facing its support on the front cross bar, and unroll the wires on either
side of the mast on the trampoline.
Copyright HCE 2010 - www.hobie-cat.net
Issued by : AR
CAUTION DANGER - ALUMINIUM MAST
Keep away from electric cables
Date : 05/2010 Up-date : 0
Steps Description

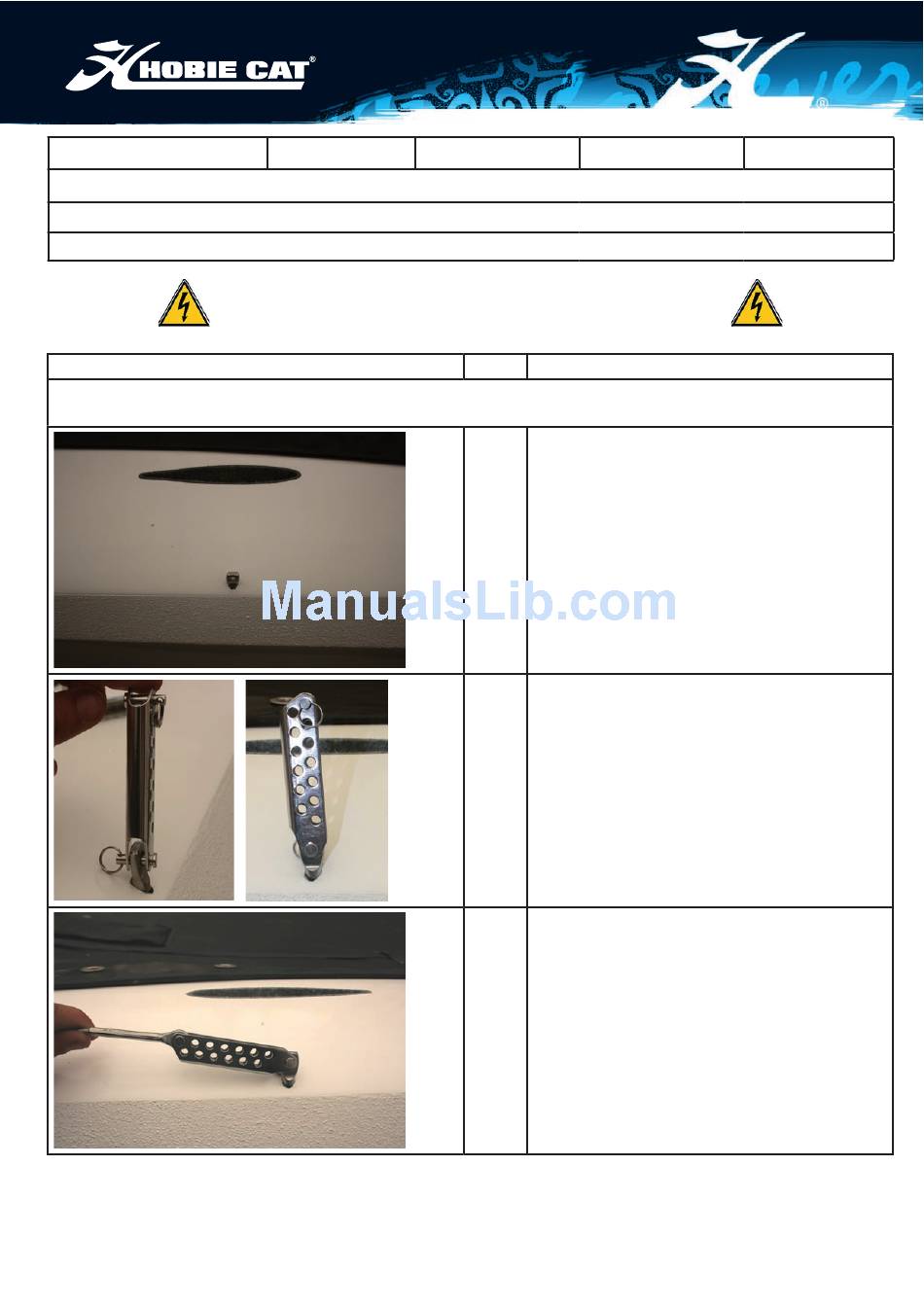

1 Find the eye-bolt on each hull.
Take the two stay adjusters from the wire and rope
2 bag and fix to the eye-bolts using the clevis pins
and split rings.
Then, join each shroud to the top of each stay

adjuster using the clevis pins and split rings.
