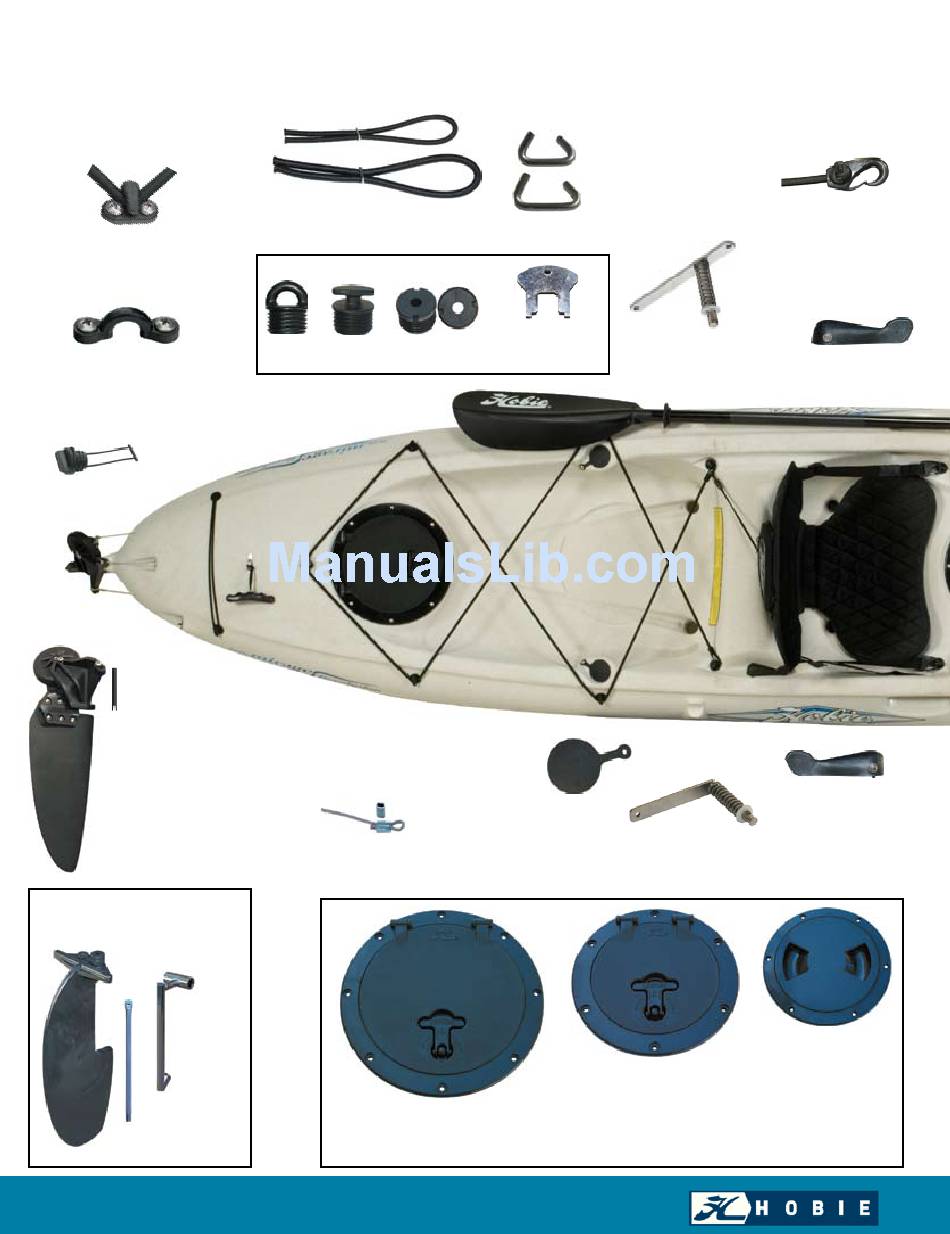

HOBIe PaDDLe aND mIraGe COmmON PartS
See model-guide pages for model-specific parts
71120001 LASHING HOOK
80110 SCREW
71110001 PADEYE
80110 SCREW
10091000 DRAIN PLUG
TWIST-N-STOW RUDDER
819001 RUDDER PIN
8195001 RUDDER ASSY. W/ SM. BLADE
8196001 RUDDER ASSY. W/ LG. BLADE
8195201 SMALL RUDDER BLADE
8197001 LARGE RUDDER BLADE
EARLY MIRAGE RUDDER
800171 SCREW
808051 WASHER
8150001 RUDDER
MOUNT
8160001 S.S.
RUDDER PIN
8190001 RUDDER BLADE
26
COMMON PARTS GUIDE
RS16BLK /16" SHOCKCORD
RS01BLK 1/" SHOCKCORD
SCREw-In FITTIngS
71116001
71117001
71115001
PADEYE
CLEAT
SHOCKCORD END
8102001 SPECTRA
CONTROL LINE
806001 SWEDGE
71702 HATCH 8" TWIST-N-SEAL
71702001 HATCH 8" TWIST-N-SEAL RETRO KIT
711 GASKET
80110 SCREW
5180011 /8" HOG RING
21180000 1/2" HOG RING
71115101
TOOL
SCREW IN FITTINGS
7120001 ROD HOLDER COVER
80110 SCREW
71701 HATCH 6" TWIST-N-SEAL
71701001 HATCH 6" TWIST-N-SEAL RETRO KIT
7121 GASKET
80110 SCREW
2101 -SHOCKCORD
FASTENER, 1/"
8170001 - STEERING CRANK
8175001 SPRING
81015 - STEERING HANDLE
8080691 NYLON WASHER
8105 UP / DOWN HANDLE
W/ SET-SCREW
8192001 TWIST-N-STOW CONTROL ARM UP/DOWN
8180001 OLDER - CONTROL ARM UP/DOWN
8175001 SPRING
8080691 NYLON WASHER
V1100 HATCH 5" SCREW-IN
80110 SCREW
HATCHES
W/ SET-SCREW
