HOBIE ICAT
ASSEMBLY MANUAL

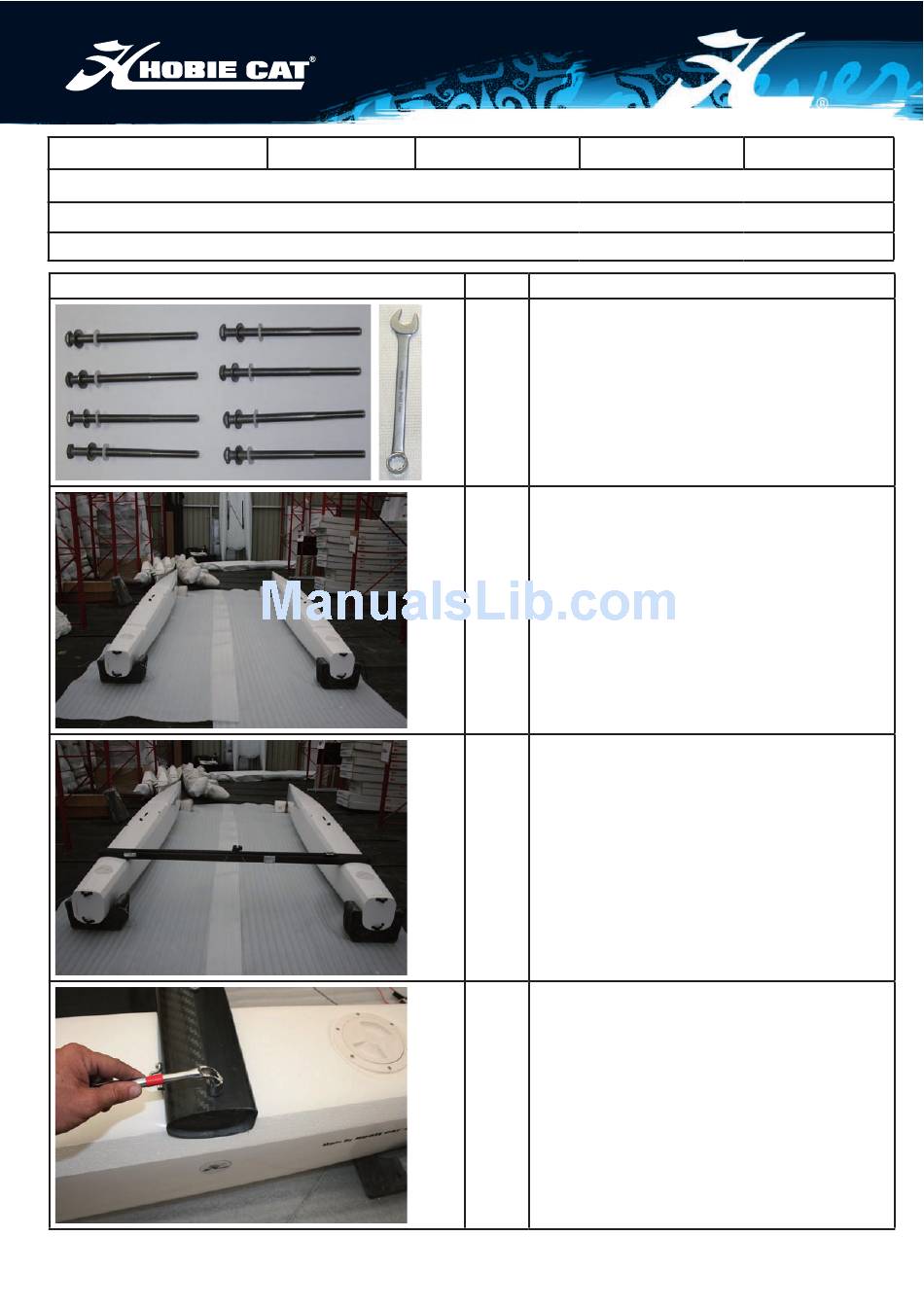

Hull and crossbar assembly
Illustration
Copyright HCE 2010 - www.hobie-cat.net Copyright HCE 2010 - www.hobie-cat.net
Issued by : AR Date : 05/2010 Up-date : 0
Steps Description
Take the 8 screws + 8 stainless steel washers + 8
nylon washer from the Rigging bag
1
Use the n° 14 spanner.
2 Lay the hulls parallel to each other.
Position the back crossbar so that the pad-eyes are
 towards the front and the lacing buttons towards
the back.
4 Tighten the screws.
