HOBIE ICAT
ASSEMBLY MANUAL

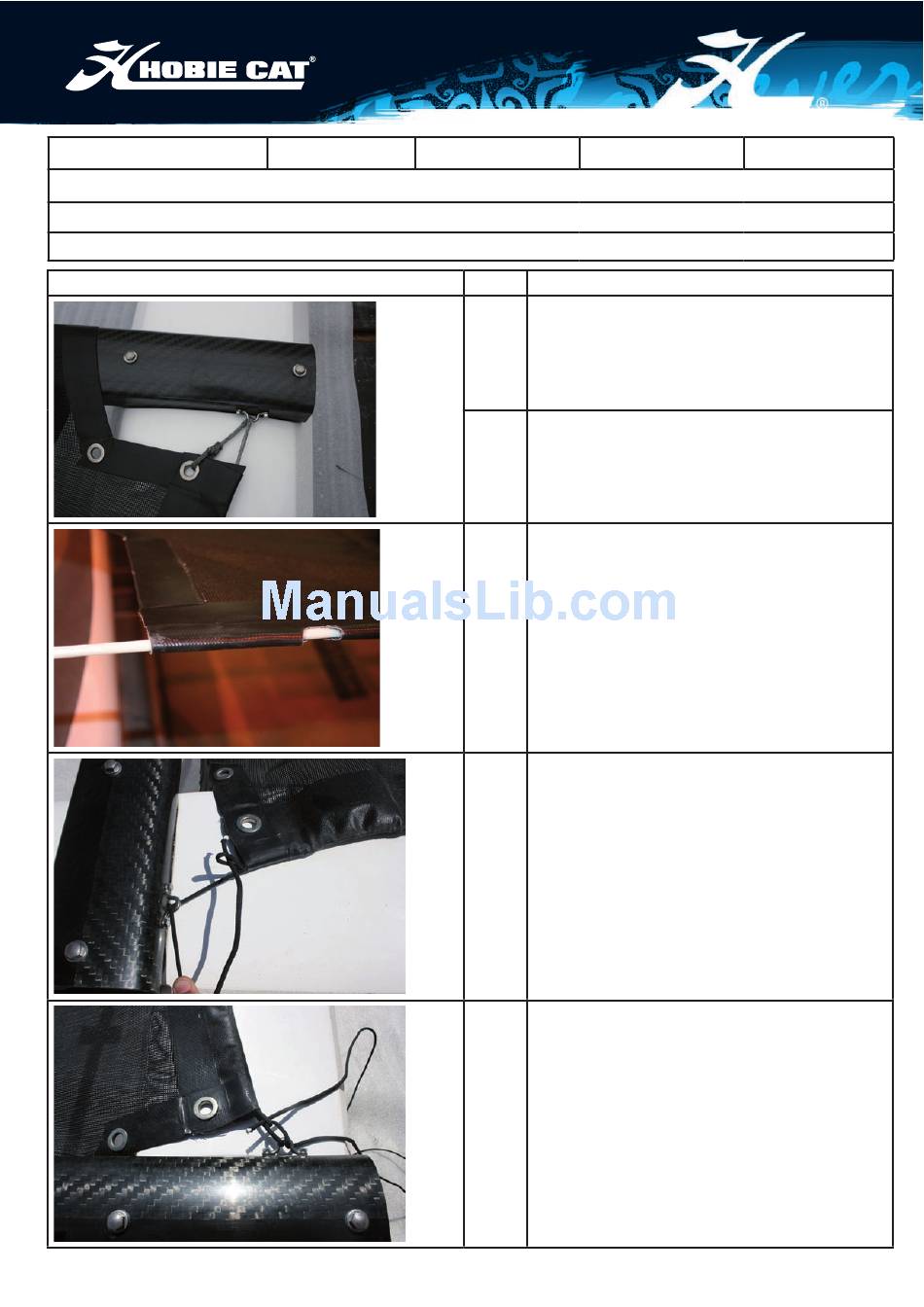

Trampoline assembly
Illustration
Copyright HCE 2010 - www.hobie-cat.net Copyright HCE 2010 - www.hobie-cat.net
Issued by : AR Date : 05/2010 Up-date : 0
Steps Description
Fix the trampoline on the right and left pad-eyes
1 on the front beam as shown on the photograph
opposite.
2 Hold in place on the pad-eye with a bowline knot.
Unroll the trampoline towards the back, making
 sure that the fibreglass rod passes through and is
centred in the band at the back of the trampoline.
To attach the trampoline on the rear crossbar, be-
4 gin on the left side. Pull the line, lead it through the
pad-eye, go back through the buckle.
Then, back through the pad-eye and back through
5
the buckle.
Page : 16/
.../...
