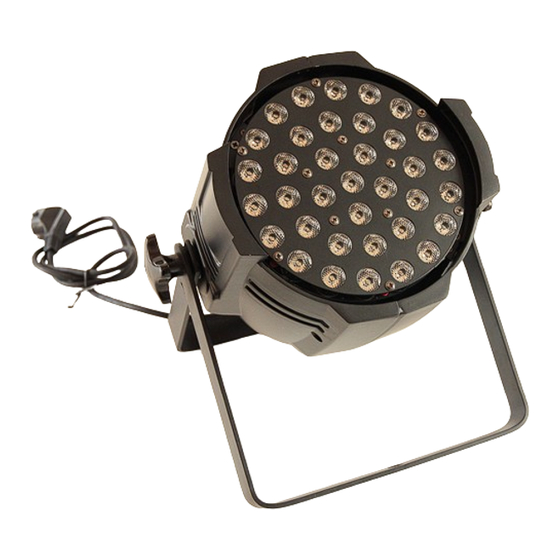

Kameleon series LED PAR 64 RGB - 36X3W
For y our own safety, please read th is us er manual c arefull y be fore your init iall y
st art -up!
Every person involved with the installation, operation and maintenance of this device has to
- be qualified
- follow the instructions of this manual
- consider this manual to be part of the total product
- keep this manual for the entire service life of the product
- pass this manual on to every further owner or user of the product
- include every supplementary update with the original manual
Before your initial start-up, please make sure that there is no damage caused during shipment.
Should there be any, do not use the device and consult your supplier.
SAFETY INSTRUCTIONS
This device has left our premises in absolutely perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
Important: Damages caused by the disregard of this user manual are not subject to warranty. The
dealer will not accept liability for any resulting defects or problems.
Always plug in the power unit least.
Keep away from heaters and other heating sources! Keep away children and amateurs from the
DGM Lighting products
Kee p th is devi ce a way fr om r ai n a nd mo i stur e!
Un pl ug mai ns l ea d b efo re op en in g th e h ousin g!
USER MANUAL
1
Advertisement
Table of Contents
Summary of Contents for DGM Kameleon 36X3W
-
Page 1: Safety Instructions
Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. Always plug in the power unit least. Keep away from heaters and other heating sources! Keep away children and amateurs from the DGM Lighting products... -
Page 2: Operating Determinations
If this device will be operated in any way different to the one described in this manual, it may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock, etc. DGM Lighting products... -
Page 3: Rear Panel
REAR PANEL DGM Lighting products... - Page 4 The minimum distance between the device and illuminated surface is 1 meter. There should not be any flammable materials 10 meters around the device! 2. Connection to mains Connect the device to mains with the enclosed power plug. The occupation of the connection cables is as below: DGM Lighting products...
- Page 5 Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 resistor between Signal (-) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of DGM Lighting products...
-
Page 6: Display Window
Then press the Enter button to save or press the Menu button to exit. If you select -on-, then the menu is complete. If you select -oFF-,then the menu is incomplete. The display will only show the -AXXX- for DMX control mode and -Menu- for Menu extention. DGM Lighting products... -
Page 7: Auto Operation
- FADE: means fade in and fade out effect. - ACCH-: means automatic color changing effect. Press Enter button to enter. Press Up or Down button to select one of them, the device will be operated automatically by the DGM Lighting products... -
Page 8: Music Operation
Press Up/Down button until it shows C1-C3 in the display. C1, C2, C3 means Red, Green and Blue color respectively. Press Enter button. Press Up or Down button to select C1, C2, or C3. Press the Enter button, the last 2 digits in the display will show 00-12. This is the level of the DGM Lighting products... -
Page 9: Dmx Operation
Press the Up/Down button until it shows AXXX in the display. XXX is the address you set last time. Press Enter button. Press Up/Down button to select your desired address, e.g. A001. Press Enter button to save or press Menu button to exit. DGM Lighting products... - Page 10 The control panel allows you to program a rainbow effect up to 16 scenes. In each scene you may set the dimmer level of up to 4 colors. After your setting, all scenes you set can be run continuously by pressing the [tESt] menu. DGM Lighting products...
- Page 11 Rainbow effect operation After your setting of all the 16 scenes of the rainbow effect, the device can work in the Rainbow effect operation. Press the Menu button. Press the Up/Down until it shows [tESt] in the display. DGM Lighting products...
-
Page 12: Factory Default Setting
For Master-slave operation, you need to use one device as the master. The master device can be any one in a DMX (Master-slave) chain. The Master device must be set to Auto, Sound, Rainbow or Manuel operation. The slave devices must be set to work in DMX mode. DGM Lighting products... -
Page 13: Cleaning And Maintenance
