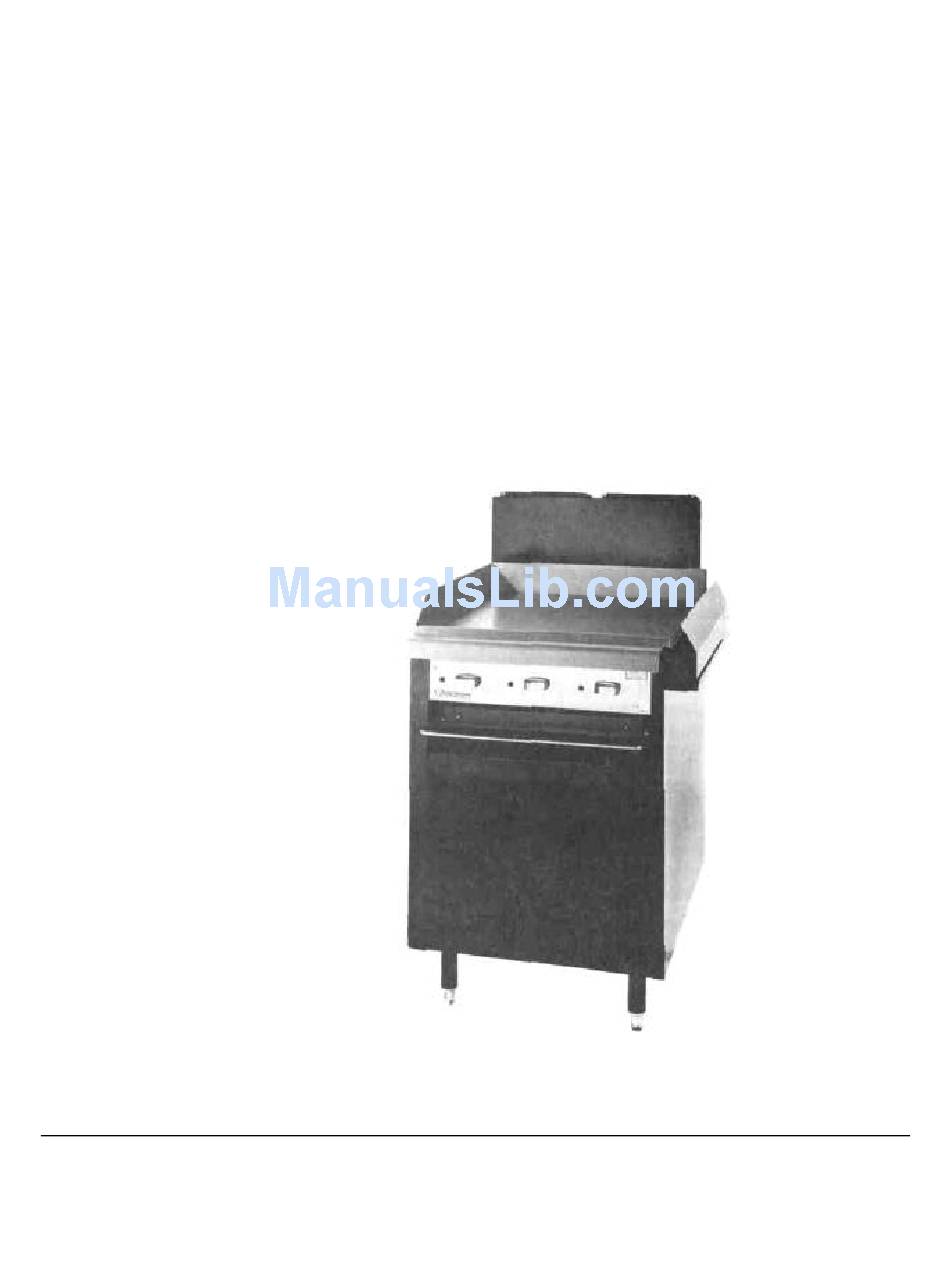

- Page 1 VULCAN OPERATING MANUAL FOR BROILER/GRIDDLE MODEL 100L-77R VULCAN-HART CORPORATION, 3600 NORTH POINT BOULEVARD, BALTIMORE, MARYLAND 21222...
-
Page 2: Shipping Damage Claim Procedure
Qualified service personnel are those who are familiar with Vulcan equipment who have been endorsed by the Vulcan-Hart Corporation. All authorized service personnel are required to be equipped with a complete set of service parts manuals and stock a minimum amount of parts for Vulcan equipment. - Page 3 IMPORTANT NOTES FOR ALL VULCAN APPLIANCES 1. These units are produced with the best possible workmanship and material Proper installation is vital if best performance and appearance are to be achieved Installer must follow the installation instructions carefully. 2. Information on the construction and installation of ventilating hoods may be obtained from the “Standard for the installation of equipment for the removal of smoke and grease laden vapors from commercial cooking equipment,”...
- Page 4 VULCAN 100L-77 BROILER/GRIDDLE OPERATING MANUAL INDEX Your Vulcan broiler griddle is produced with the best possible The manufacturer suggests that you thoroughly read this entire workmanship and material. Proper usage and maintenance will manual and carefully follow all of the instructions provided. result in many years of satisfactory performance.
-
Page 5: Seasonal Shutdown
OPERATING AND CARE GRIDDLE TEMPERATURE ADJUSTMENT: Griddle BROILER OPERATION: To preheat the broiler section, burner knobs regulate gas flow to griddle burners. Griddle turn the three manual gas valves to high. After heat increases by turning the knob(s) counter-clockwise; preheating, turn the valves down to the desired heat decreases by turning the knob(s) clockwise. - Page 6 MANUAL PART NO.: 113997-1 REV. BLOCK REV.# DATE SIG. FOR MODEL: 100L-77R 2-3-83 DML. 3-12-82 DML. DESCRIPTION: BROILER/GRIDDLE OPERATING MANUAL...
