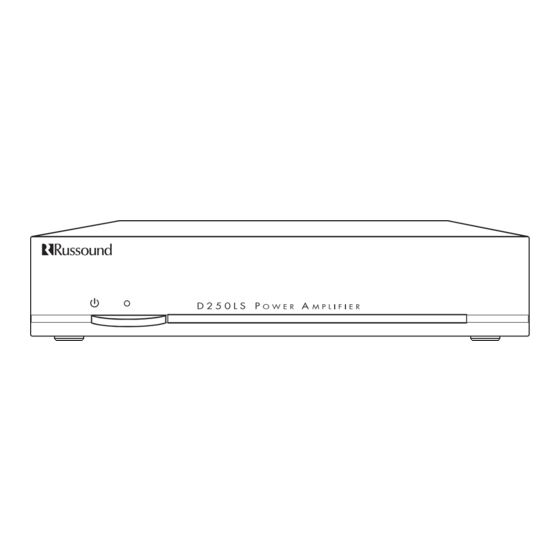

- Page 1 D250LS 2-Channel Power Amplifier with Local Source Switching Installation Manual...
-
Page 2: Safety Instructions
If water or any other liquid enters recommended by the manufacturer. An Cet appareil numérique de la classe B est conforme à la norme NMB-003 the appliance cabinet, take it to qualified service personnel du Canada. for inspection. Russound D250LS Installation Manual Rev. 2... - Page 3 Rev. 2 Russound D250LS Installation Manual...
-
Page 4: Product Overview
This can be accomplished with a variety of input/ trigger options for versatility in many different applications. The D250LS is rated at 50 watts per channel into 8 ohms and 75 watts per channel into 4 ohms. With the Stereo/Bridge Mono switch in the Bridge Mono position, both amplifier channels are combined for a higher powered mono output. -
Page 5: Front And Rear Panel
FRONT AND REAR PANEL D250LS Front Panel Power Switch / LED Default Input Speaker Outputs Line Input 12VDC Trigger in/out Fuse Receptacle Video Input Gain Controls Delay Time Stereo/Bridge Switch Amplified In AC Input D250LS Rear Panel Rev. 2 Russound D250LS Installation Manual... -
Page 6: Front And Back Panel Features
8 ohms, Speaker B only. Video Input Fuse Receptacle The Video Input is a sensing input that activates the D250LS when a video Holds a replaceable fuse for AC power input connection. Fuse rating for North signal is present. -
Page 7: Installation Options
INSTALLATION OPTIONS The D250LS amplifier can be set on a tabletop or wall-mounted with screws or hook and loop tape. Rack-mounting ears are included to install either one D250LS in a 1U space or two units in a 1U space. -
Page 8: Local Source System Configuration
LOCAL SOURCE SYSTEm CONFIGURATION The D250LS can be used as a single-source two-channel zone amplifier, or as a local-source amplifier that automatically switches between a default source (e.g., a whole-house audio distribution system) and a local source (e.g., a television set in the bedroom or a PC in the office). -
Page 9: Bridged Operation
Bridge Mono switch to Bridge Mono, connect the Line In feed from a source to the Left Line In connection only and restore power to the amplifier. RCA Cable from source Left In (-)Negative (+)Positive D250LS Amplifier Speaker Cable 8 Ohm Speaker Connections for bridged mode operation Rev. 2 Russound D250LS Installation Manual... -
Page 10: Dual Unit Setup
DUAL UNIT SETUP The D250LS can be used in a side-by-side configuration using the optional rack mounting kit. This feature makes it easy to add amplification to two controllers or two zones (e.g., on the MCA-C5 controller). The example shown features two D250LS amps connected to an MCA-C5, zones 7 and 8. -
Page 11: Technical Specifications / Warranty
In these cases, repairs will be made on the basis of the retail value of the parts and labor. To return for repairs, the unit must be shipped to Russound at the owner’s expense, along with a note explaining the nature of service required. Be sure to pack the unit in a corrugated container with at least three (3) inches of resilient material to protect the unit from damage in transit. - Page 12 Russound, Inc. All trademarks are the property of their respective owners. 5 Forbes Road, Newmarket, NH 03857 Specifications are subject to change without notice. tel 603.659.5170 • fax 603.659.5388 Russound is not responsible for typographical errors or omissions. email: tech@russound.com www.russound.com 28-1357 Rev. 2...
