- Page 1 DPA-6.12 Instruction Manual 12 Channel Amplifier — O N E H A N N E L M P L I F I E R OWER DPA-6.12...
-
Page 2: Table Of Contents
DPA-6.12 cabinet, take the DPA-6.12 to qualified service personal for inspection. 2. Location of the DPA-6.12 - Do not expose the DPA-6.12 to direct sun light or heating units as the DPA-6.12 internal components tempera- ture may rise and shorten the life of the components. -
Page 3: Introduction
In the mono position the six stereo pairs can be bridged to three stereo pairs for higher output power. The DPA-6.12 power output is 50 watts per channel into 8 ohms, and 75 watts into 4-ohms. Bridged adjacent outputs provide 100 watts of power into 8-ohms and 150 watts of power into 4-ohms. -
Page 4: Front Panel

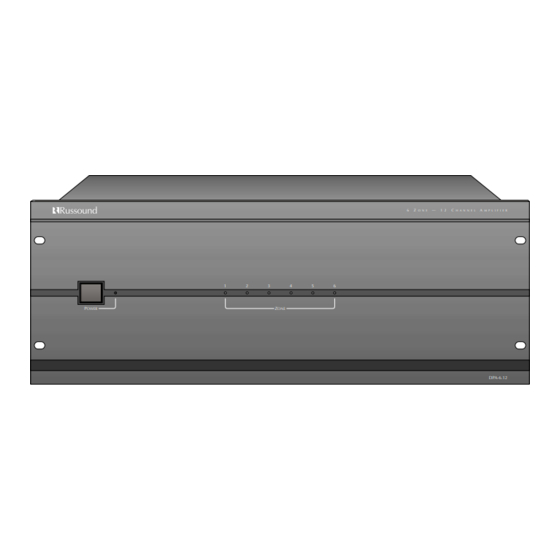

4. FRONT PANEL Rack Mounting: The DPA-6.12 amplifier can be rack mounted. The amplifier will take four rack spaces. Power Switch: Turns on the main power for the amplifier. When the power is on the LED will be illuminated. Zone Indicator LEDs: Zone one to six will be illuminated when the zone is in the active mode. When the zone is mute or inactive the LED will not be illuminated. - Page 5 Power: Two heavy-duty 500va toroidal transformers power the DPA-6.12. Each transformer has three taps to power 3 stereo zones, totaling six taps for the six stereo outputs.
-
Page 6: Specifications
Russound. Damage to or destruction of components due to improper use voids the warranty. In these cases the repair will be made at the owners expense. To return for repairs, the unit must be shipped to Russound at the owners expense, along with a note explaining the nature of the service required. - Page 7 5 Forbes Rd. Newmarket, NH 03857, USA 603.659.5170 • Fax 603.659.5388 e-mail: tech@russound.com Come visit us at:...
