4.5 PD4211 LCD Key Panel (1RU)

1
12
1

Microphone Socket

2

Crosspoint Level Control

3 Shift Pushbutton
4 Microphone Mute Pushbutton
5 Loudspeaker
6 Headset Select Pushbutton
NOTE: Microphone is shown here for illustrative purposes only. Contact Vitec Group Communications
for details of suitable products.
4.5.1 Microphone Socket
Insert the optional microphone into this socket. The detachable microphone is connected via a 3-pin
screw locking DIN connector.
Consult the Vitec Group Communications Installation Guide for fur-
ther details.
Contact Vitec Group Communications for suitable Microphone
options.
Vitec Group Communications can offer three different types type of
microphones - 100mm, 340mm and 490mm goosenecks.
All panels are available with DIN 5 headset connection.
4.5.2 Crosspoint Level Control
Press the pot switch above the Reply Key to activate Cross-point Level Control Mode. The red LED
associated with the controller is illuminated while Level Control Mode is active.
Panel User Guide
Page 68
11
7
8
9
10
11
12

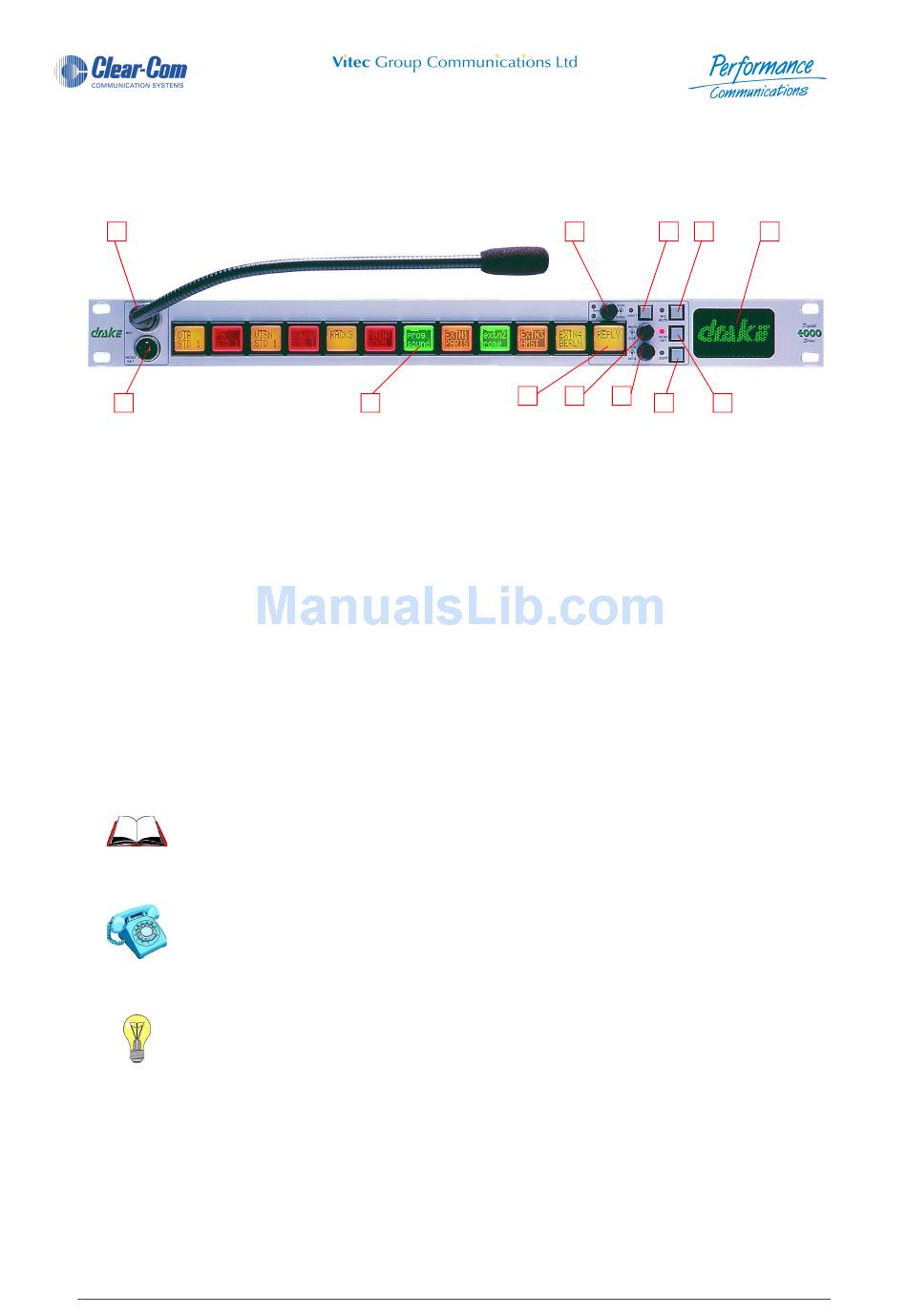

Figure 24 - PD4211 Front View
