4.13.2 Crosspoint Level Control

Each DAK has a corresponding pot switch, located directly above it. Switch operation is described in the
next section.
Turning a pot switch above a DAK, clockwise or counter-clockwise causes the cross-point level to

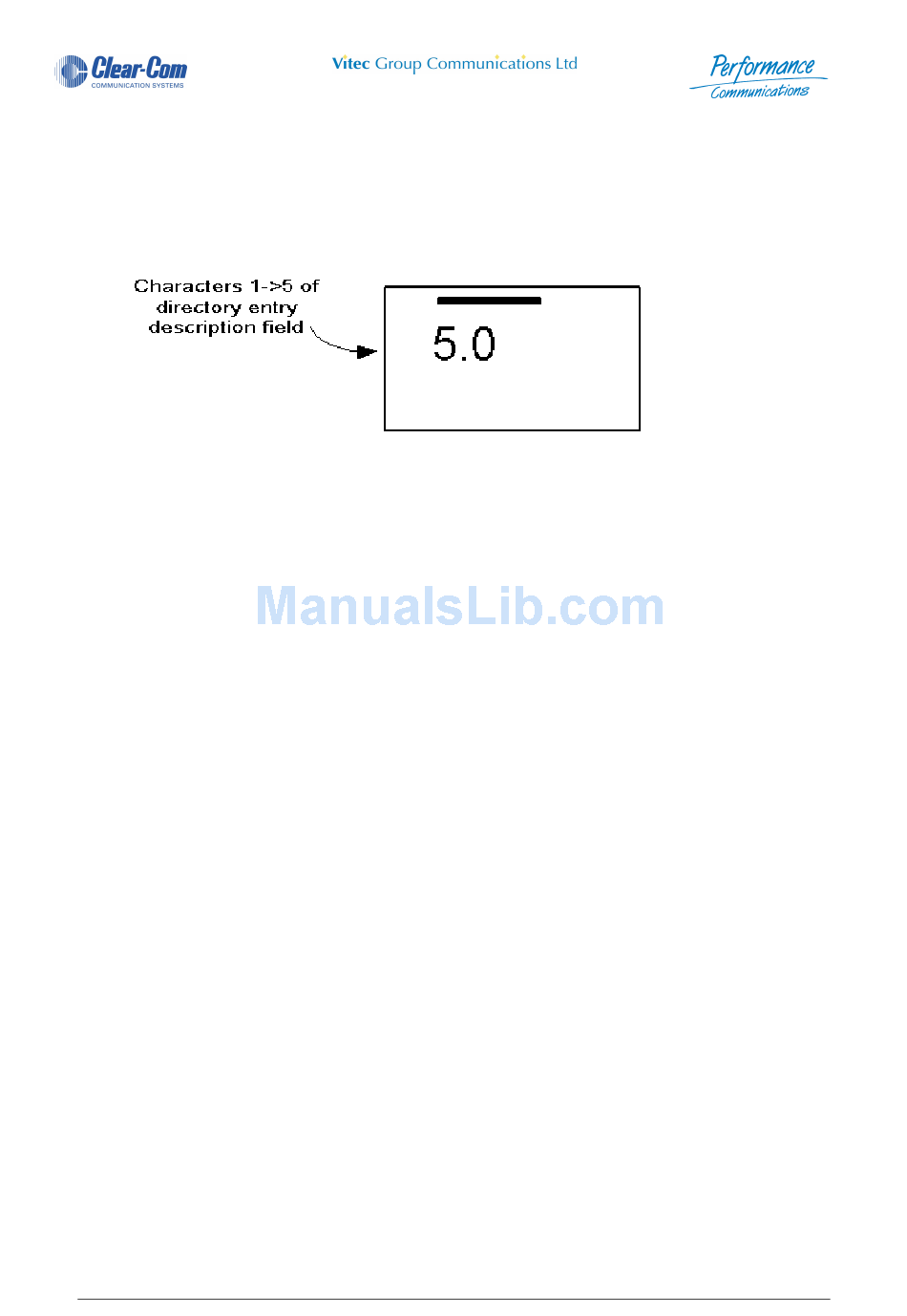

increase or decrease, respectively. The cross-point level indicator changes to indicate the new cross-
point level setting.
The pots also operate in SOFT mode, but there is no cross-point level indicator on the display.

4.13.3 Pot Switch Operation

A pot switch, on the PD4232 panel type, operates on the same port as the corresponding LCD key.
However, pressing a pot switch can only make listen routes.
In this mode, a pot switch configuration is assumed from the corresponding LCD key in accordance with
the following rules:
i) CMAPS configuration data is copied from the LCD key to the pot switch (excluding DCC program-
ming) provided that there is no protection on listen access to the port,
