3.3 PD4215 - 16 Key Control Panel (1RU)

1

Microphone Socket

2

Direct Access Key (DAK)

3 Talk Tally LED
4 Listen Tally LED
5 Designation Strip
6 Microphone Mute Pushbutton
3.3.1 Microphone Socket
Insert the optional microphone into this socket. The detachable microphone is connected via a 3-pin
screw locking DIN connector.
Consult the Vitec Group Communications Installation Guide for fur-
ther details.
Contact Vitec Group Communications for suitable Microphone
options.
Vitec Group Communications can offer three different types type of
microphones - 100mm, 340mm and 490mm goosenecks.
Headsets for this panel are only available with a DIN 5 connection.
3.3.2 Direct Access Key (DAK)
The 4000 Series Panels have Direct Access Key (DAK) pushbuttons. These DAKs are used to make
Listen and/or Talk routes to and from the Control Panel or other audio connections. The DAK can also
be assigned to trigger a control event from either the Control Panel or the matrix.
Panel User Guide
Page 8
7
8
9 Headset Socket
10 Headset Select Pushbutton
11
12 Reply Key

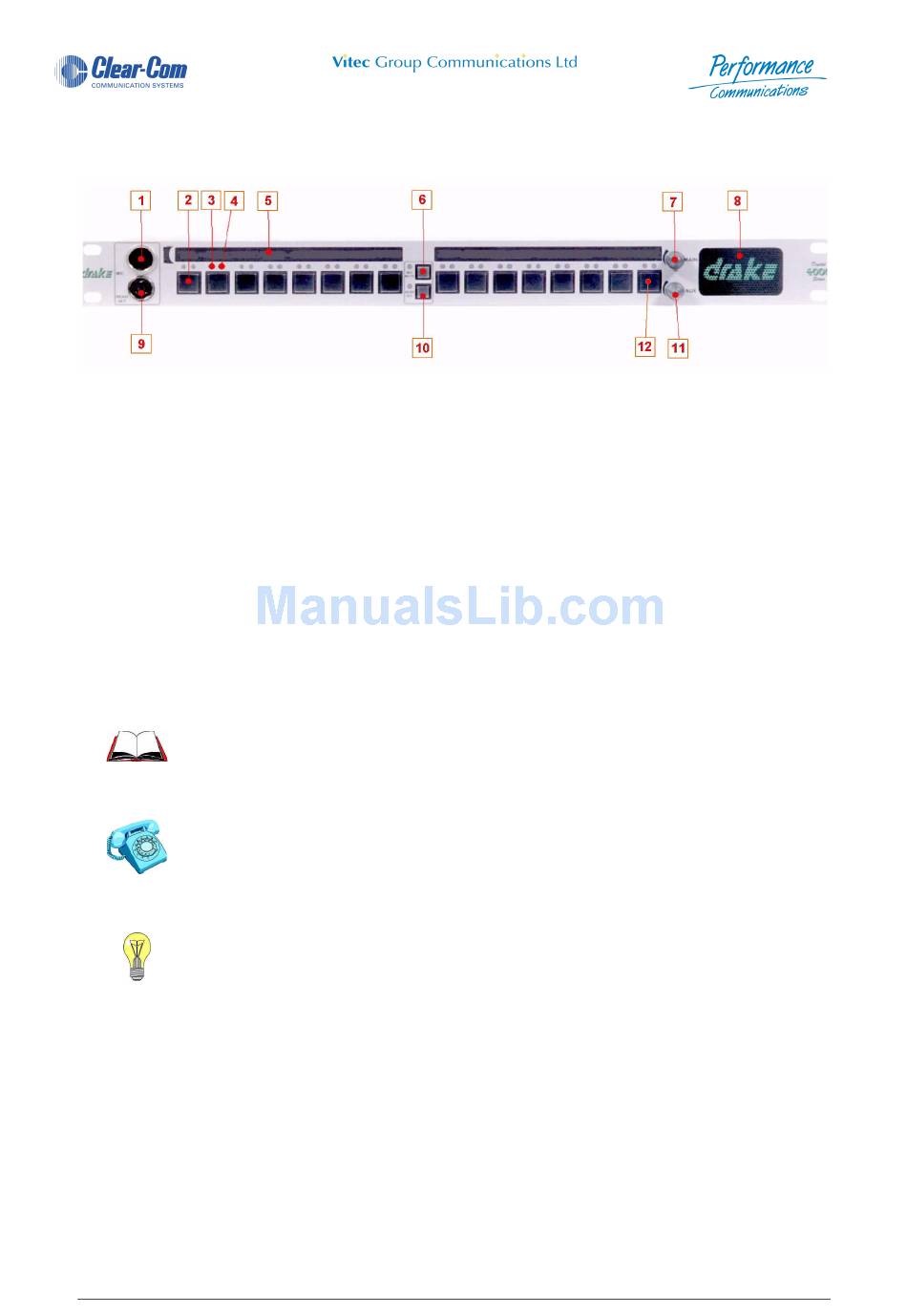

Figure 3 - PD4215 Front View

Issue 1.4
Main Volume Control
Loudspeaker
Auxiliary Volume Control
4000 Digital Series
II
STA0380
