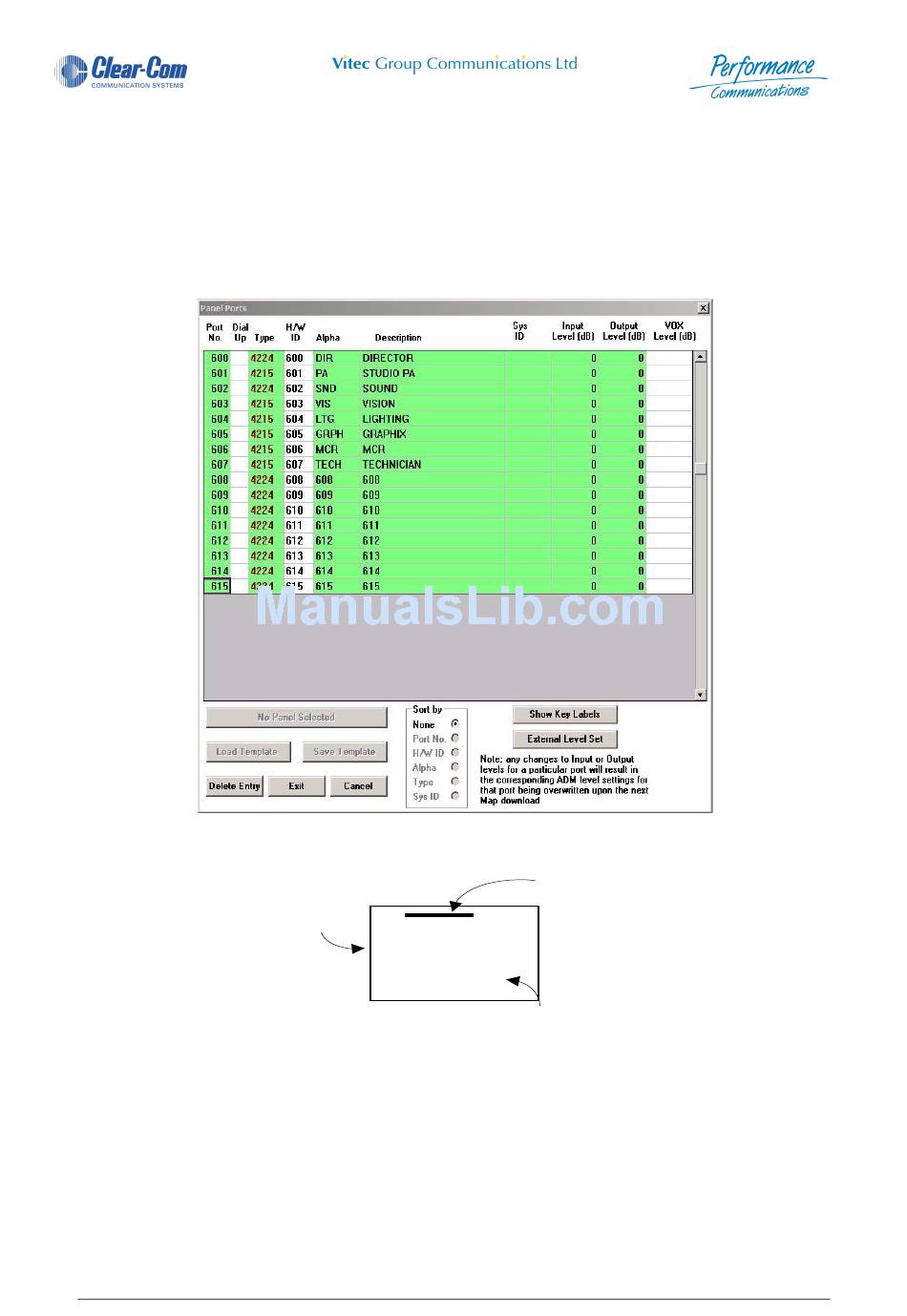

4.6.14.1 Key Layout and Cross-point Level Indicator

The LCD key display of a configured DAK has 3 sections:
i) Scaleable cross-point level indicator,
ii) First 5 characters of the key assignment's directory entry description field,
iii) Second 5 characters of the key assignment's directory entry description field.
C h a r a c te rs 1 - > 5 o f
d ir e c to r y e n try
d e s c rip tio n fie ld
A cross-point level indicator is a line of pixels representing the current cross-point level setting (0.0
10.0). As the setting is increased, the number of pixels in the line increases.
A cross-point level indicator is only displayed for a configured DAK when the panel is operating in normal
intercom mode or cross-point level control mode. The indicator is not displayed in SOFT mode.

4.6.14.2 Key Action and Call Signalling

The following colour schemes apply for LCD key switches:
II
4000 Digital Series
STA0380
C ro s s p o in t le v e l in d ic a to r
D IR E C
T O R
C h a ra c te r s 6 - > 1 0 o f
d ir e c to r y e n try
d e s c rip tio n fie ld
