Summary of Contents for Make Noise modDemix

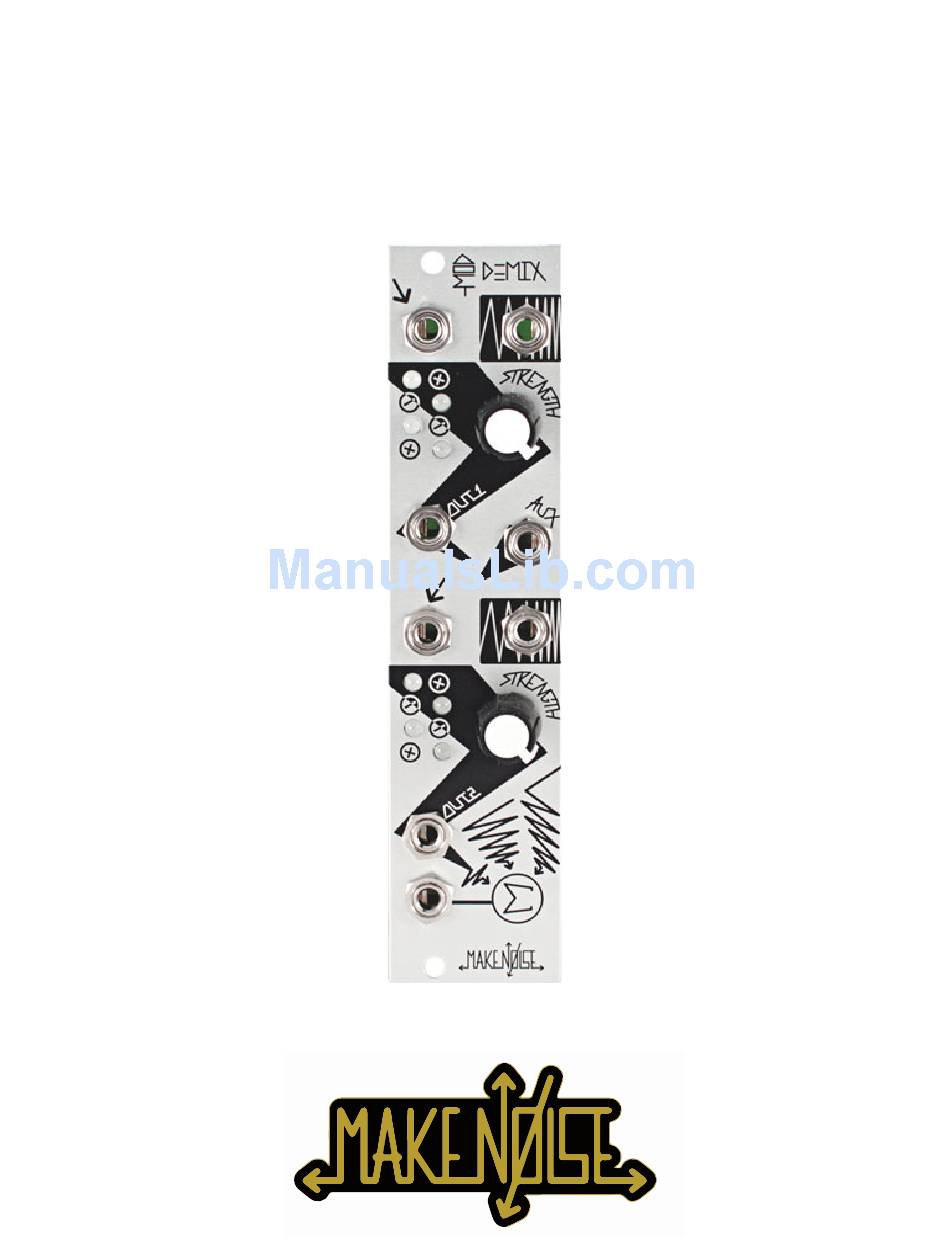

- Page 1 modDemix...
- Page 2 Malfunction resulting from wrong power supply voltages, backwards power cable connection, abuse of the product or any other causes determined by Make Noise to be the fault of the user are not covered by this warranty, and normal service rates will apply.
-
Page 3: Installation
Installation: The Make Noise modDemix is an analog electronic signal processor requiring 28mA of +/-12V regulated power and properly formatted distribution receptacle to operate. It is designed for use within the euro format modular synthesizer system. Visit http://www.doepfer.de/a100_man/a100t_e.htm for the details of this format. - Page 4 Panel Controls Signal 1 IN: signal to be processed. Carrier/ CV 1 IN: determines amplitude & phase of Signal 1 IN. Normalled to Carrier/ CV. Signal 1 OUT. Signal 2 IN: signal to be processed. Normalled to Signal 1 OUT.
- Page 5 Now remove the DC Offset signal patched to the Carrier/ CV IN, and replace with the MATHS SUM OUT. Be sure to set MATHS CH. 2 and 3 to 50% (NULL). Leave the VCO patched to modDemix Signal IN. Initiate the CYCLE behavior on CH.
- Page 6 “Stereo-Quasi- Double-Sideband.” Modulating the filter cutoff will animate the sidebands.
- Page 7 Adjust ANGLE panel control to 12:00, listening for the fullest sound available. Adjust SHAPE panel control full CW (100%) to “glitched triangle”. DPO Final OUT -> ModDemix Ch1 Input DPO Square -> ModDemix Ch1 Carrier/Mod Input ModDemix Ch1 OUTput ->...
- Page 8 For panning, patch identically to the crossfading patch, except instead of two signals, mult the same signal to Ch1 and Ch2 on the ModDemix. Instead of monitoring the SUM Output, send the Ch1 and Ch2 outputs to Left and Right...
