Make Noise RxMx Manual

Electronic music module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
v2.3

Advertisement

Table of Contents
loading

Related Manuals for Make Noise RxMx

Summary of Contents for Make Noise RxMx

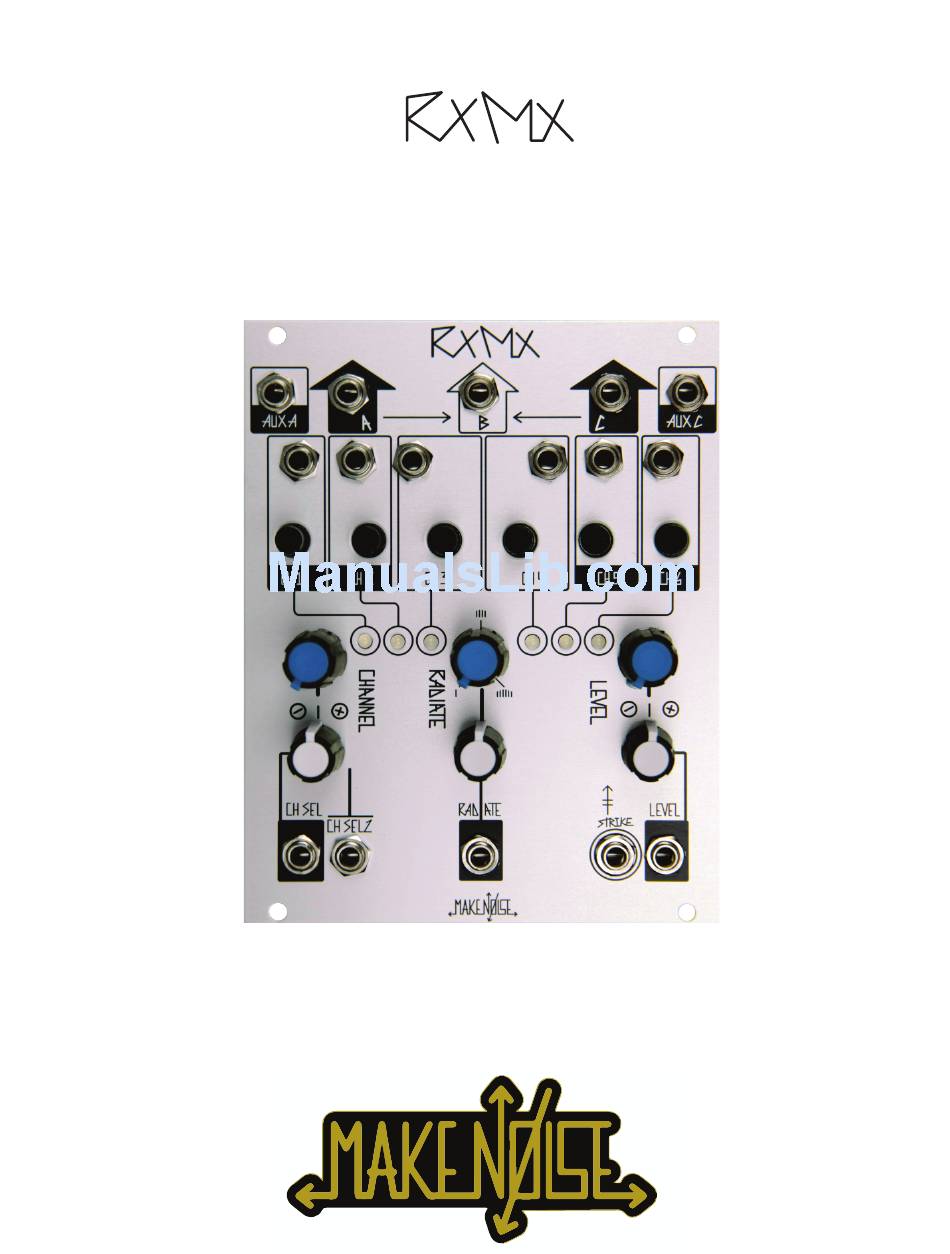

  • Page 1 v2.3...

  • Page 2: Table Of Contents

    RxMx Limited Warranty: -----------------------------------------------------2 Installation: ----------------------------------------------------------------3 Expansion:-----------------------------------------------------------------------4 Overview: ------------------------------------------------------------------5 Perspective: ------------------------------------------------------6 Panel Controls:------------------------------------------------------7 Getting Started:------------------------------------------------------------------9 A Bit More on CHANNEL and RADIATE: ------------------------------10 Patch Ideas -------------------------------------------------------------11...

  • Page 3: Limited Warranty

    Limited WARRANTY: Make Noise warrants this product to be free of defects in materials or construction for a period of one year from the date of purchase (proof of purchase/invoice required). Malfunction resulting from wrong power supply voltages, backwards or reversed eurorack bus board cable connection, abuse of the product or any other causes determined by Make Noise to be the fault of the user are not covered by this warranty, and normal service rates will apply.

  • Page 4: Installation

    Eurorack style bus board, minding the polarity so that the RED stripe on the cable is oriented to the NEGATIVE 12 Volt line on both the module and the bus board. On the Make Noise 6U or 3U Busboard, the negative 12 Volt line is indicated by the white stripe.

  • Page 5: Expansion

    EXPANSION The OUTputs of the Make Noise FXDf can be normalled to the 6 Channels of the RxMxby using the included 10-pin chain connector cable and connected as indicated below. Alternatively, you could connect the DPO’s waveforms to the 6 Channels of the RxMxby using the included 10-pin...

  • Page 6: Overview

    RxMx with a sequencer such as the Pressure Points/ BRAINS or René, modular “mélanger automatique” (automatic re-mixing) can be achieved. Because it uses Low Pass Gates for level control and crossfading, the RxMx excels at smooth dynamic blending and percussive animation of related or unrelated signals.

  • Page 7: Perspective

    VCA and VCF circuits. I would recommend that musicians desiring closely-matched Gain across multiple channels of VCAs look elsewhere! What the RxMx does o er is extremely-low noise with low distortion, in a smooth, natu- ral-sounding circui...

  • Page 8: Panel Controls

    4. Aux A: Direct coupled signal input to the Out A sum circuit. Capable of accepting audio or control signals. Also allows for the chaining of multiple RxMx, Optimix and modDemix units to create larger mixes. Typical input range of 10Vpp.
  • Page 9 RxMx Panel Controls (Cont’d) 9. CHANNEL Panel Control: Uni-polar control for selecting which of the 6 Low Pass Gate circuits is driven by the Level and Strike parameters. Possible selections are 0 (no channel), 1, 2, 3, 4, 5 and 6.

  • Page 10: Getting Started

    LPG to 100% for a moment before closing with a very organic decay. The RxMx is called a macro-lowpass-gate because it has 6 LPG circuits that share a single set of LPG controls.These shared controls are the LEVEL and Strike parameters discussed in the paragraph above.

  • Page 11: A Bit More On Channel And Radiate

    These could be related or unrelated signals. For example, you could patch two di erent sequences using the Pressure Points/ BRAINS and two STO VCOs (or VCO A and B of the DPO)and then patch the di erent waveform outputs to the 6 Inputs of the RxMx.

  • Page 12: Patch Ideas

    PaTCH Id EAs Cadavre Exquis -Patch any six audio sources to the six inputs of the RxMx. Set Level full CW, Radiate full CCW, Channel Full CCW. -Patch Wogglebug Stepped Random to Channel CV Input 1, adjusting input attenuator to allow random selection of all six channels.
  • Page 13 -Patch Pressure Points Common Pressure to RxMx Level CV Input, and Mult to Radiate CV Input. -Apply six audio sources of arbitrary frequencies and timbres to RxMx Signal inputs. Play the prepared piano. If you do not have two Pressure Points, a Prepared Player Piano can be emulatedby substituting a sequencer.
