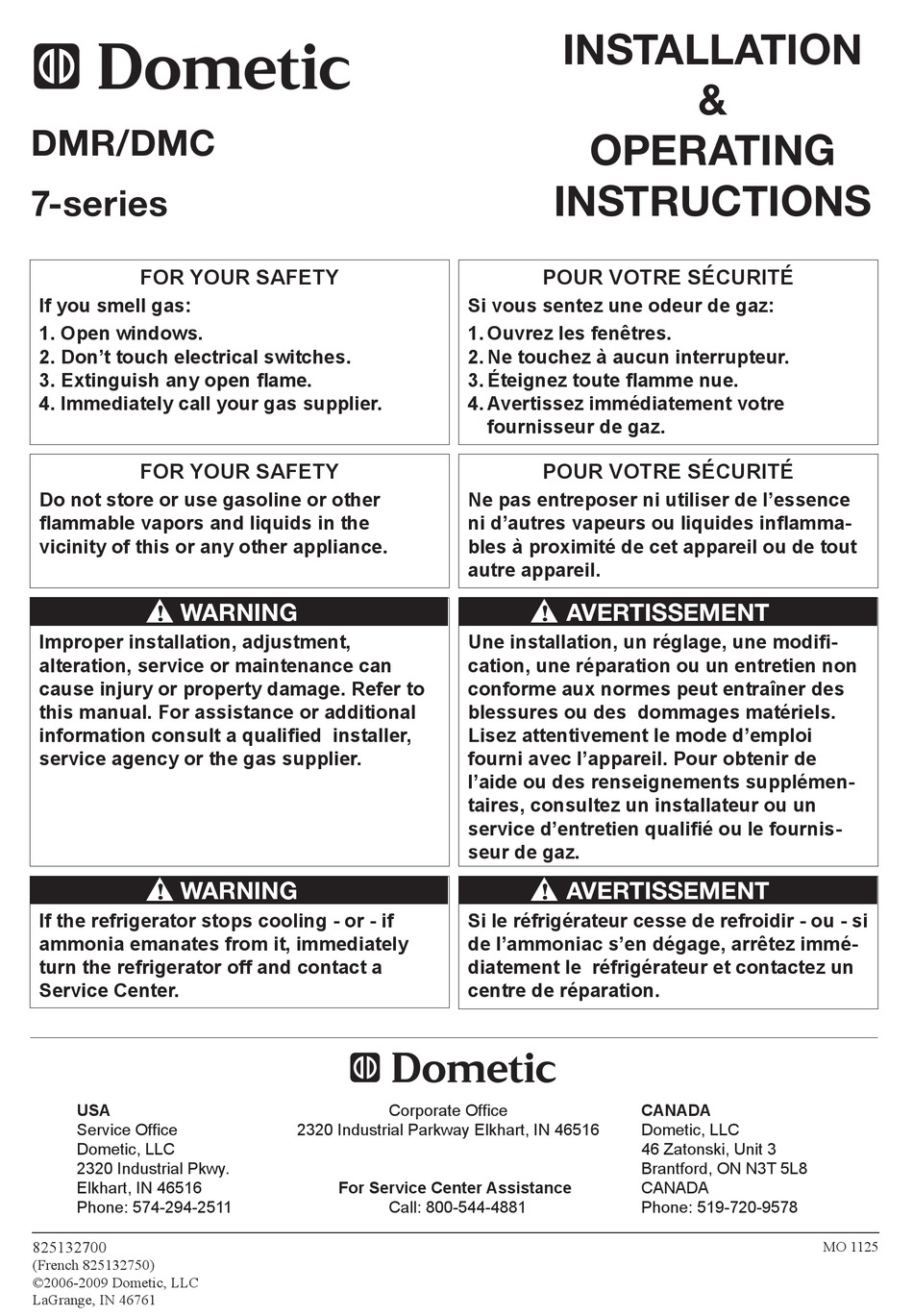

DMr/DMc
7-series
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. Don't touch electrical switches.
3. Extinguish any open flame.
4. Immediately call your gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
6
warning
!
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Refer to
this manual. For assistance or additional
information consult a qualified installer,
service agency or the gas supplier.
6
warning
!
If the refrigerator stops cooling - or - if
ammonia emanates from it, immediately
turn the refrigerator off and contact a
Service Center.
USA
Service Office
Dometic, LLC
2320 Industrial Pkwy.
Elkhart, IN 46516
Phone: 574-294-2511
825132700
(French 825132750)
©2006-2009 Dometic, LLC
LaGrange, IN 46761
Si vous sentez une odeur de gaz:
1. Ouvrez les fenêtres.
2. Ne touchez à aucun interrupteur.
3. Éteignez toute flamme nue.
4. Avertissez immédiatement votre
Ne pas entreposer ni utiliser de l'essence
ni d'autres vapeurs ou liquides inflamma-
bles à proximité de cet appareil ou de tout
autre appareil.
Une installation, un réglage, une modifi-
cation, une réparation ou un entretien non
conforme aux normes peut entraîner des
blessures ou des dommages matériels.
Lisez attentivement le mode d'emploi
fourni avec l'appareil. Pour obtenir de
l'aide ou des renseignements supplémen-
taires, consultez un installateur ou un
service d'entretien qualifié ou le fournis-
seur de gaz.
Si le réfrigérateur cesse de refroidir - ou - si
de l'ammoniac s'en dégage, arrêtez immé-
diatement le réfrigérateur et contactez un
centre de réparation.
Corporate Office
2320 Industrial Parkway Elkhart, IN 46516
For Service Center Assistance
Call: 800-544-4881
installation
operating
instructions
POUR vOTRE SéCURITé
fournisseur de gaz.
POUR vOTRE SéCURITé
6
avertisseMent
!
6
avertisseMent
!
CANADA
Dometic, LLC
46 Zatonski, Unit 3
Brantford, ON N3T 5L8
CANADA
Phone: 519-720-9578
&
MO 1125

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMC 7-Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dometic DMC 7-Series

Summary of Contents for Dometic DMC 7-Series

  • Page 1 Dometic, LLC Dometic, LLC 46 Zatonski, Unit 3 2320 Industrial Pkwy. Brantford, ON N3T 5L8 For Service Center Assistance Elkhart, IN 46516 CANADA Phone: 574-294-2511 Call: 800-544-4881 Phone: 519-720-9578 825132700 MO 1125 (French 825132750) ©2006-2009 Dometic, LLC LaGrange, IN 46761...

  • Page 3: Table Of Contents

    - dometic warranty . . . . . . . . . . . . . . . . . .

  • Page 4: Introduction

    introDuction Thank you for entrusting us to supply your new quality-guaranteed refrigerator. The refrigerator is to be used as a recreational device designed for storage of foods, frozen foods and making ice. Please, when the refrigerator is not in use as a recreational device, turn the system off and open the doors.

  • Page 5: Ventilation Requirements

    ventilation requireMents ventilation heights general inforMation Ventilation is one of the requirements for proper cooling It is essential that all maximum or minimum dimensions are strict- unit operation. The installation should be made in such a man- ly maintained, as the performance of the refrigerator is dependent on adequate flow of air over the rear of the refrigerator.

  • Page 6: Overall And Recess Dimensions

    overall anD recess DiMensions Side view view from above MoDel DMr/DMc Data OveRAll DIMeNSIONS Height (A) 1391 inches 54-3/4 Width (B) inches 25-5/64 Depth (C) inches 26-19/64 ReCeSS DIMeNSIONS Height (H) 1365 inches 53-3/4 Width (W) inches 23-11/16 Depth (D) inches 24-1/4 installation proceDure...

  • Page 7: Drain Water Hose

    installation proceDure connections Secure the refrigerator and the lower front strip with two screws. gas connection Hook up to the gas supply line is accomplished at the manual gas valve, which is furnished with a 3/8” SAE (UNF 5/8” -18) male flare connection.

  • Page 8: Electrical Connection

    installation proceDure electrical connection 120v ac connection The refrigerator is equipped with a grounded three-prong plug for protection against shock hazards. It should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug! The free length of the cord is 2 feet and therefore recommended that the receptacle be located to the left side (opposite side of refrigerator burner assembly) of the refrigerator (viewed from...

  • Page 9: Mounting Instructions

    Mounting instructions installing the Door panels Mounting the Door hanDles The refrigerator is delivered without door panels. Before start- To mount the handles, follow these steps: ing the mounting work, read this instruction thoroughly and Snap on the handle by inserting its tabs in the slot check that the panel dimensions are in compliance with those and slide into place.
  • Page 10 Mounting instructions replacing the Door panels Open the door 90 degrees. Insert the door panel’s edges into the grooves of the To replace a mounted door panel, follow these steps: door frame. Push the panel sideways until the edge of Detach the handle by using a flat blade screwdriver the panel is fitted into the opposite side groove.

  • Page 11: Operating Instructions

    Refrigerator lamp Drip protection Wire shelves with plastic cover Crisper Model shown: DMC 7-Series. The number of shelves and door compartments may vary according to model. control panel ON/OFF button (main power) Press the button to turn the refrigerator on or off.

  • Page 12: When The Refrigerator Is Not In Use

    refrigerator overview CAUTION leD panel inDications status inforMation Do not park your Rv on a slope for a longer period of Display is on Refrigerator on time. Absorption refrigerators use a gravity-flow system. Display is off Refrigerator off Being on an angle of more than a couple of degrees for ex- tended periods of time stops the refrigeration and might The AUTO AUTO mode and...

  • Page 13: Instructions For Use

    refrigerator overview auto MoDe is turneD off (gas MoDe) a fire or an explosion. wARNINg The system operates on LP gas only. The control system FIRe OR eXPlOSION HAZARD. When refueling activates the ignition system and makes one attempt to light the or parked near gasoline pumps, shut off all lP gas burner.

  • Page 14: Storage Compartments

    storage coMpartMents ice cubes wARNINg Ice cubes can be made in the freezer compartment. Place the eXPlOSION HAZARD. Never store explosive trays in direct contact with the bottom of the freezer compart- substances in the refrigerator, such as cigarette ment. Ice will be made more rapidly if the thermostat is set at lighter fuel, gasoline, ether or the like.

  • Page 15: Product Care

    storage coMpartMents airing position Use the Airing Position to keep the doors ajar if the refrigerator will not be in use for an extended period of time or put into storage. Put the door in airing position by: (1) Open the door. (2) Turn the integrated flap in the door handle to it’s end position.

  • Page 16: Maintenance & Service

    LP gas is a flammable gas which has the potential to create a If your refrigerator stops cooling, immediately turn hazard. Do not smoke or create sparks when working on or the refrigerator off and see a Dometic dealer. near the LP gas system. wARNINg In order to keep the refrigerator work- eXPlOSION HAZARD.

  • Page 17: Refrigerator Removal

    Maintenance & service cleaning the flue baffle anD Reinstall and tighten the burner jet. burner Reinstall the burner. Ensure the end of the burner fits into the slot on the burner bracket. Verify that the Inspect the flue baffle. It should be reasonably clean and free of slots are centered under the flue tube).

  • Page 18: Troubleshooting

    The refrigerator has stopped • Immediately turn the refrigerator off and contact a Dometic dealer or Service Center. cooling. NOTE! Do not leave it running for days and never try to solve the problem by repeatedly restarting the refrigerator.

  • Page 19: Error Codes

    troubleshooting warnings For information about warnings, refer to the following table. The messages are displayed flashing (alternating between temperature and the message). warnings inforMation • Gas ignition failed. The gas flame has not been ignited after 45 seconds. Turn refrigerator OFF and then back ON to return to normal operation.
  • Page 20 - 20 -...
  • Page 21 - 21 -...

  • Page 22: Appendix A - Rearview Equipment

    appenDix a - rearview equipMent Heater Thermofuse Flue baffle 385 13 31−01 F4 (5A) F3 (5A) SWITCHED AC HTR AC HTR Protection LAMP NEUT LINE TEST LINE NEUT cover Power module 1 2 V D C 12 volt Terminal block Screw for protection cover Burner jet Drain water hose...

  • Page 23: Appendix B - Wiring Diagram

    appenDix b - wiring DiagraM 3 8 5 1 5 2 1 C I R C U I T B O A R D P O W E R B R O W N P 1 − 1 B L A C K P 1 −...

  • Page 24: Appendix C - Consumer Support

    For service, please contact the Service Center Assistance, see the front page of this manual - or - visit the Dometic website to find the location of the nearest Dometic Service Center.

  • Page 25: Appendix D - Dometic Warranty

    In order to obtain the benefits of this warranty, the original purchaser must return the product which is found defective to the Seller named below or to a Dometic Authorized Service Center during the period that this warranty is in effect. The original pur- chaser is responsible for all charges incurred in delivery of the product to the Seller or Dometic Authorized Service Center, and in pick up after the warranty service has been completed.

  • Page 26: Appendix E - Maintenance Schedule

    appenDix e - Maintenance scheDule refrigerator owner Maintenance yearly recorD Customer Name: Model No.: Date of Purchase: Address: Serial No.: City: State: Zip Code: Phone: FIRST YEAR SECOND YEAR Date: Date: Dealership: Dealership: Address: Address: City: City: State: Zip: State: Zip: Phone: Phone:...
  • Page 27 We truly appreciate that you have chosen to purchase a Dometic product for your recreational vehicle and we want to help you protect this wise investment. We at Dometic back our products with one of the most comprehensive warranties in the industry.
  • Page 28 Owner’s Registration Card Registering your product is an essential step to ensure that you receive all the benefits you are entitled to as a DOMETIC customer. Complete the information below and mail to us or register on-line at www.edometic.com. Be sure to include your email address so that we can communicate with you quickly and efficiently.
