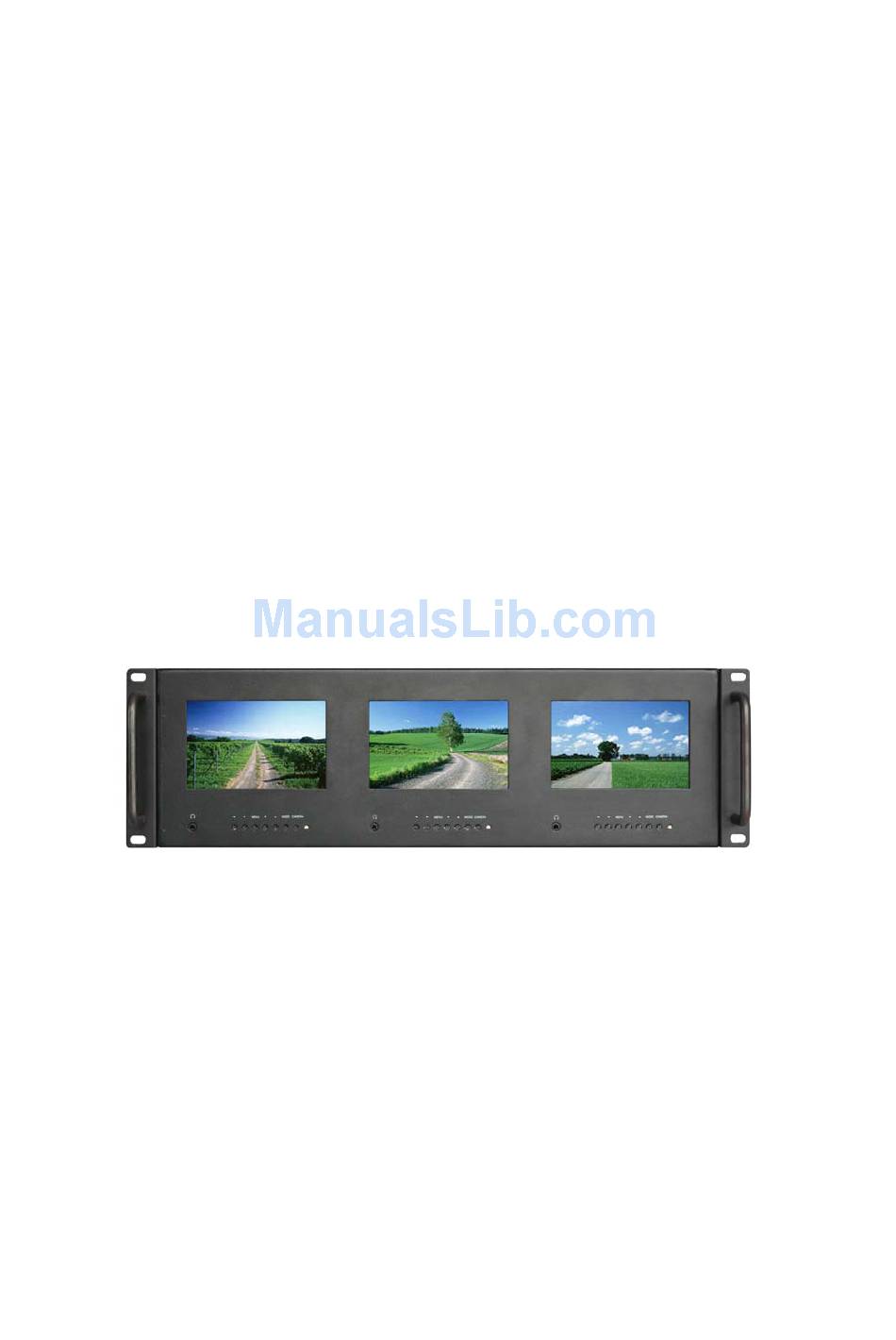

Page 1: Product Specification
5 inch Triple Rack Mount LCD Monitor Product Specification Product Model: FW5D-TRM FW5D-TRM/O... -
Page 2: Table Of Contents
Contents 1.Product description ------------------------------------------1 2.Product feature instruction --------------------------------2 3.Panel function and button operating instruction---3 4.Rear panel and interface instruction -------------------4 5.Power input way -----------------------------------------------4 6.Apperance installation size---------------------------------5 7.OSD operating instruction----------------------------------5 8.Accessories------------------------------------------------------9 1. Product description: 5" Triple rack mount lcd monitor is a Triple LCD screen display provide video monitor &... -
Page 3: Product Feature Instruction
2. Product feature instruction Panel size TFT LCD 5.0inch×3 1152000 Pixels Panel type TFT LCD Resolution 800 x 480 Resolution up to 1920 x 1440 Horizontal frequency range 30～60kHz Vertical frequency range 60Hz ～ 75Hz Dot pitch 0.045(W) x 0.135 (H) Display ratio 16：9 Brightness... -
Page 4: Panel Function And Button Operating Instruction
3. Panel function and button operating instruction 1. Power indicator: Orange light is NO signal state, green light is in working state 2. CAMERA: Canon 5D Mark II Camera Mode(camera mode is recording, full display on monitor, No delay, No deform) 3. -
Page 5: Rear Panel And Interface Instruction
4. Rear panel and interface instruction 1．HDMI-OUT： HDMI HD signal output 2. HDMI-IN： HDMI HD signal input 3. V-IN： Composite video signal input 4. A-IN： Audio signal input 5. 4 pin XLR DC power input interface 6. Power ON/OFF switch 5. -
Page 6: Apperance Installation Size
6. Appreance installation size（mm） 7. OSD operating instruction(same operating with L/R screen) Before setting the menu functions, please make sure the device is connected correctly. Power switch(at the back of the unit) dial to ON position. The monitor enter into working state. Please dial to OFF position ,when need to close the unit. - Page 7 ● （Color） Enter into "Color" OSD, press “◄”or“►”button to confirm, then enter to adjust the color parameters, use ““▲”or“▼”to select adjustment item, then use“◄”or“►”adjust the parameters ※ Brightness: To adjust the image's brightness ※ Contrast: To adjust the brightest and darkest ratio of the image, please note the sense of picture when adjust, proportion too large or small, will make the picture lose the color of showy.
- Page 8 When select "USER", use “▲”or“▼” to select color R、G、B, then use “◄”or“►” to adjust the value of Analog, to make sure the color of picture meets need. ● （OSD） After select "OSD" function, press “◄”or“►” button to confirm, then enter into parameters adjust. Using “▲”or“▼” button to select optional items, then using “◄”or“►”...
- Page 9 ※ H Position：To adjust the OSD position in horizontal. ※ V Position：To adjust the OSD position in vertical. ※ OSD Timeout：To adjust the clock. ※ Transparent：To adjust the level of transparent. ● （Function） After select "function", press “◄”or“►” button to confirm, then enter into parameters adjust.
-
Page 10: Accessories
use“ ”or“ ”adjust specific parameters ※ Volume: To adjust the volume. 8. Accessories...
