CycleOps 100 Pro Assembly & Service Manual page 5

Batteries: The console ships with batteries. In the event the batteries need to be replaced over time, follow these simple steps:

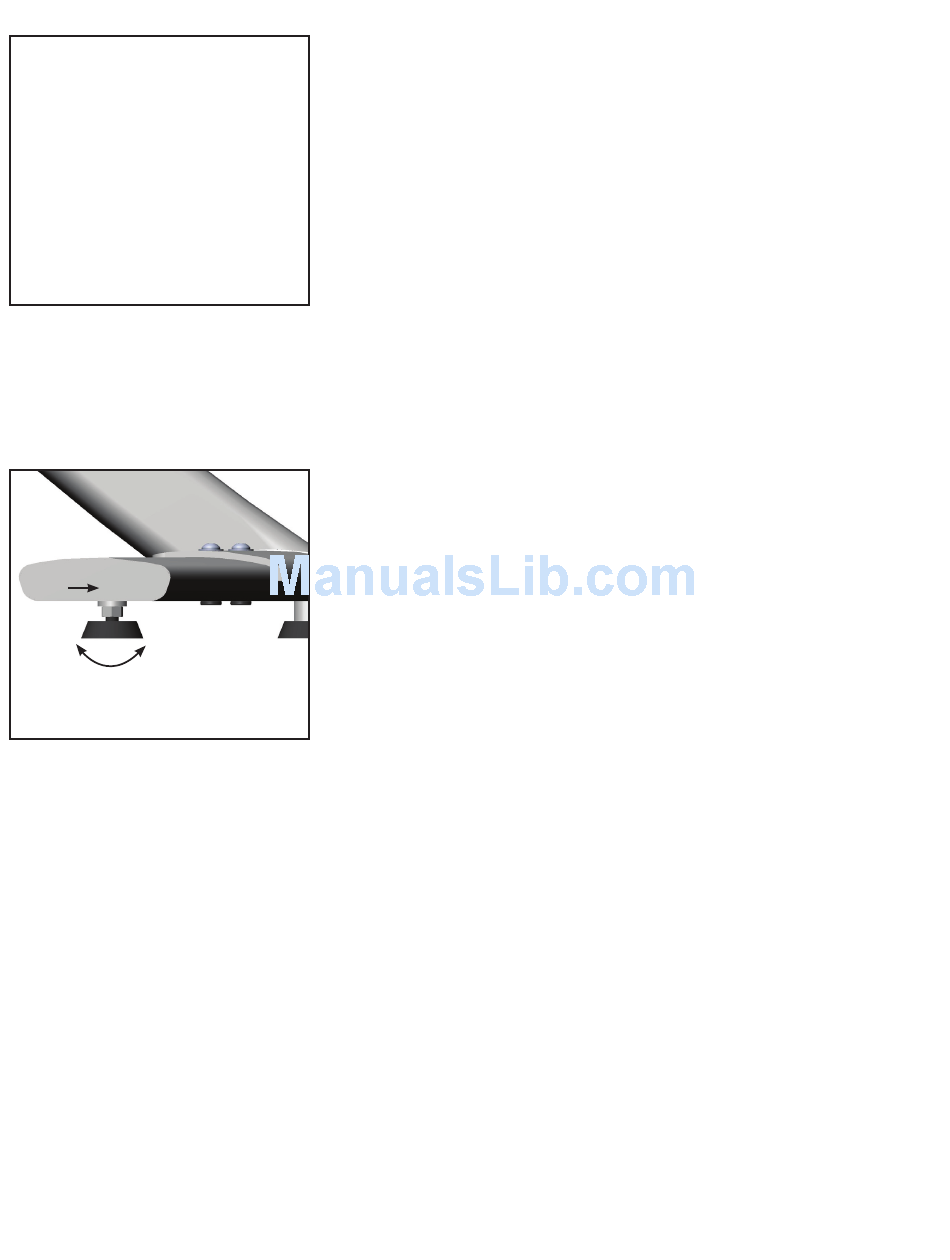

Leveling the bike
Once the above assembly instructions have been followed, move the bike to where it will be used and level it properly. To level the
bike, adjust the leveling feet underneath the stabilizers until there is no rocking or movement of the bike. It is important to level
the bike for long term care.
Leveler Lock
You can secure the feet by tightening the
leveler locks.
IMPORTANT! How To Zero Torque
The torque must be zeroed to ensure that the console displays the most accurate power information. If the
instantaneous power is positive or negative, the torque needs to be zeroed. These operations must be done
with NO tension on the chain and with NO force being placed on the pedals. Also, the transmission icon must
be illuminated.
To zero torque, first ensure the transmission icon is showing. Then press [DOWN ARROW] to move the cursor
to [WATTS]. Press [SELECT] to change to [INCH-LBS]. Then hold down [SELECT] again until "0" is shown (about
10 seconds). Press [SELECT] to return to [WATTS]. The torque value will now read zero.
If the torque does not zero on the first attempt after ~10 seconds, repeat the procedure.
Remove the back cover with a small Phillips-head screwdriver.
Remove batteries.
Replace with fresh AAA batteries, paying attention to properly line up the +/- poles.
Replace battery door and secure with small Phillips-head screwdriver.
4
