CycleOps 100 Pro Assembly & Service Manual page 3

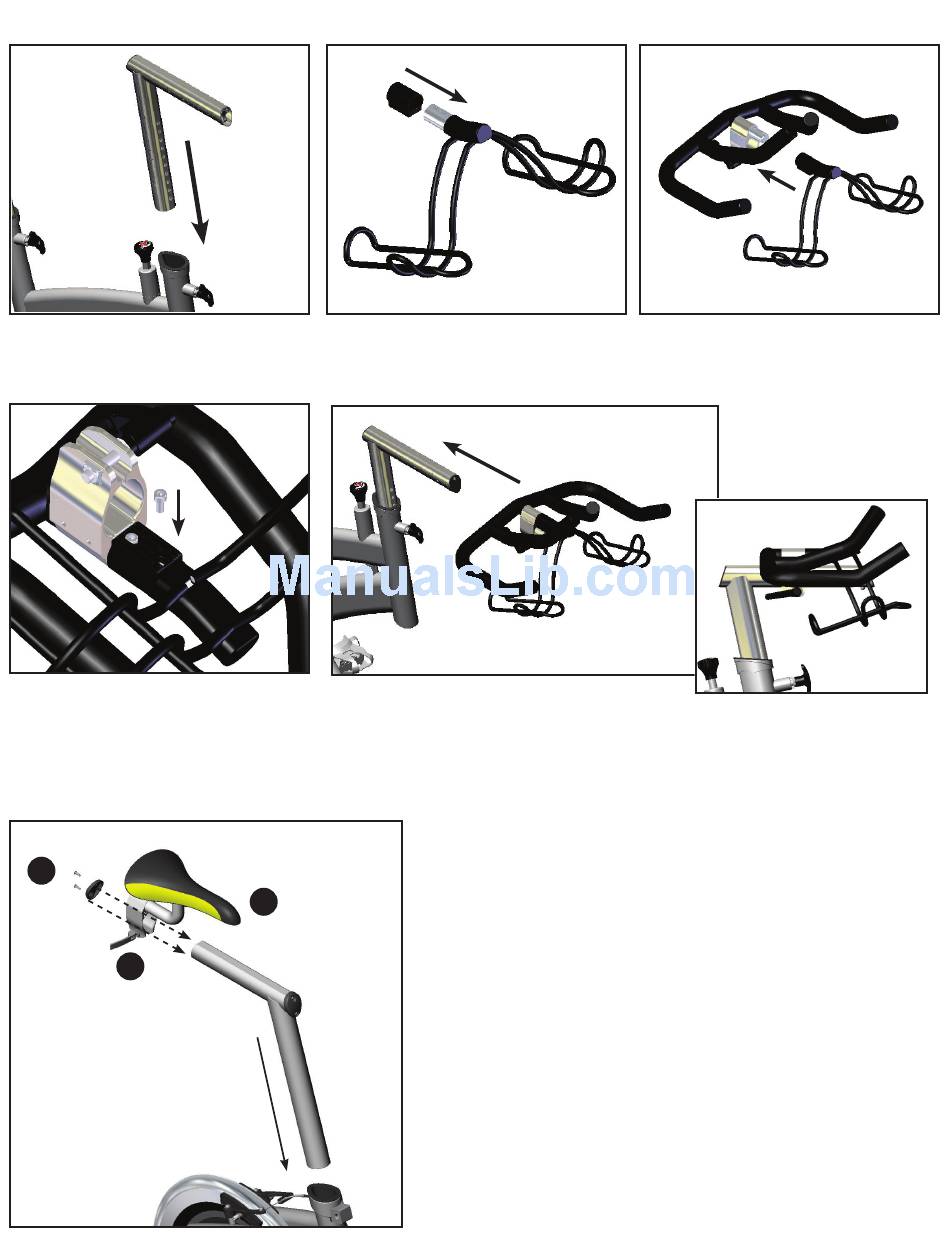

step 2: attach handlebars
Insert the Handlebar post into the head
tube and secure it using the L-handle.
Secure the water bottle holder and spacer
to handlebar assembly using 2- 4mm
allen bolts
step 3: seat assembly
C
A
Slide the plastic shim onto the D-shaped
tube on the water bottle holder.
Carefully slide the handlebar onto the
handlebar post.
A. Loosen the L-handle on seat clamp assembly on the seat tube.
B. Attach the saddle to the seat post clamp, using a 6mm Allen wrench.
B
Make sure both rails of the saddle are properly seated in the clamp
and tighten the 6mm Allen bolt. If desired, any standard bicycle saddle
can be attached to the CycleOps Indoor Cycle. Ensure the saddle is
level and parallel to the floor for optimum comfort. The seat may need
tighening after first few uses.
C. Once the Saddle is level and properly tightened in the clamp, attach
the plastic end cap with two of the included screws.
D. In some instances, a shorter seat post is required for individuals
under five feet tall. You can replace the standard seat clamp mecha-
nism with
Follow the instructions provided with that part for installation.
Slide the water bottle holder and plastic
spacer onto the handlebar assembly.
part # 16616. Contact Saris Cycling Group to order this part.
Once the handlebar is in place,
secure it with the L-shaped
tension handle.
2
