Baumatic BCE1025SS Instruction Manual

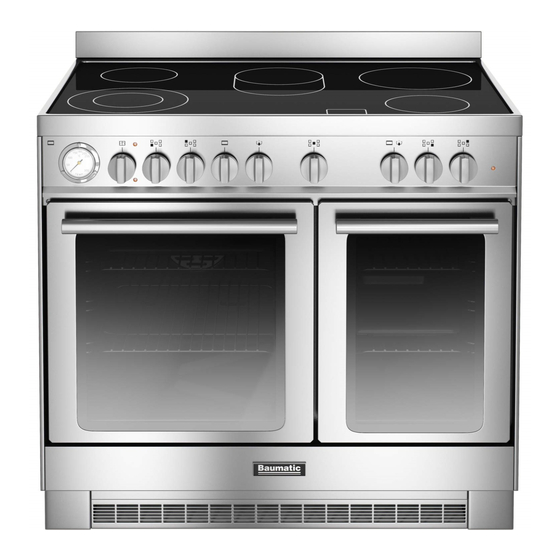

Twin cavity electric slot-in cooker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BCE1025SS 100 cm
BCE925SS 90 cm
Twin cavity
electric slot-in cooker
y
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCE1025SS and is the answer not in the manual?

Questions and answers

Related Manuals for Baumatic BCE1025SS

Summary of Contents for Baumatic BCE1025SS

  • Page 1 BCE1025SS 100 cm BCE925SS 90 cm Twin cavity electric slot-in cooker...
  • Page 2 User Manual for your Baumatic BCE1025SS 100 cm BCE925SS 90 cm Twin cavity electric slot-in cooker with ceramic top NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...

  • Page 3: Table Of Contents

    Removing the inner door glass for cleaning Installation 29 -33 Positioning 29 -30 Securing the back-guard Fitting the safety chain and hook 31 -32 Electrical connection Connecting the main supply cable My appliance isn’t working correctly 34 -36 Baumatic consumables Contact details...

  • Page 4: Environmental Note

    Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.

  • Page 5: Important Safety Information

    Important safety information Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Customer Care epartment.
  • Page 6 This appliance complies with all current European safety legislation. Baumatic do wish to emphasise that this compliance does not remove the fact that the appliance surfaces will become hot during use and retain heat after operation.
  • Page 7 o Do not place heavy objects on the oven door or lean on the oven door when it is open, as this can cause damage to the oven door hinges. Nobody should be allowed to sit or stand on any part of the cooker.
  • Page 8 Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance. o Heat, steam and moisture will be created during use of the appliance, take care to avoid injury and ensure that the room is adequately ventilated.

  • Page 9: Specifications

    Specifications Product dimensions: BCE1025SS BCE925SS Height: 910 - 920 mm Height: 885-940 mm Width: 1000 mm Width: 900 mm Depth: 600 mm Depth: 600 mm Product specifications: 5 zone ceramic hob: o 2 x 1.20 kW hyper-speed zone (Ø 140 mm) o 1 x 2.10 kW hyper-speed zone (Ø...

  • Page 10: Specifications

    Specifications: o Energy efficiency class: A/A o Cooling fan o Oven lights o Thermostatically controlled grill (main oven) o Fixed grill (secondary oven) o Double-glazed removable doors o Removable full inner glasses o Wipe Clean enamelled cavities o Adjustable feet Standard accessories: o WipeClean enamelled baking tray with handle o WipeClean enamelled baking tray...

  • Page 11: Control Panel

    Control Panel Oven function control knob o Use this control knob to select a function for the main oven. Thermostat control knob (main oven) o Use this control knob to control the temperature in the oven. Thermostat control knob (secondary oven) o Rotate this control knob to the grill symbol to select the grill oven function.

  • Page 12: Control Panel

    Hob top cooking zone control knob o Use this control knob to control the power level of the chosen cooking zone. Analogue Thermometer o The control panel has an analogue thermostat which displays approximate internal temperature of the main oven. The oven timer (minute-minder) o To set a cooking time, first wind timer...

  • Page 13: Hob Surface Layout

    Using the hob top Hob surface layout A) 1.20 kW hyper-speed zone (Ø 140 mm) B) 2.10 kW hyper-speed zone (Ø 210 mm) C) 1.00 / 2.20 kW double hyper-speed zone (Ø 140 / 210 mm) D) 0.80 / 2.20 kW oval hyper-speed zone (Ø 170 / 265 mm) Before first use IMPORTANT: You should clean the hob surface (see “Cleaning and maintenance”...

  • Page 14: Selecting A Cooking Function And Temperature

    Selecting a cooking function and temperature Using the main oven You can rotate this dial in either direction to select an oven function for the main oven. The oven temperature control knob should be turned clockwise to select the oven temperature.

  • Page 15: Using The Secondary Oven

    GRILL WITH FAN: This cooking method uses the top element in conjunction with the fan, to help give a fast circulation of heat. Suitable where quick browning is required and “sealing” the juices in, such as with steaks, hamburgers, some vegetables etc.

  • Page 16: Cooking Guidelines

    The oven walls of the two cavities are fitted with various guide bars on which you can place an oven shelf or a drip tray (see image below). Cooking guidelines o Please refer to the information given on food packaging for guidance on cooking temperatures and times.

  • Page 17: Warnings

    Warnings o Keep the oven door closed when using any of the oven functions or the grill cavity. o Do not use aluminium foil to cover the enamelled baking tray or heat items wrapped in aluminium foil under the grill. The high reflectivity of the foil could potentially damage the grill element.

  • Page 18: Hob Guidelines

    o For the double cooking zones, if you continue turning the control dial anticlockwise, just past power level 12, to the dual zone symbol, this will activate the outer section as well. In this position, both dual zones are set to maximum power. o To control the power level of both the inner and outer sections of the double cooking zones, turn the control dial anti-clockwise to the required power level.
  • Page 19 DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED – RISK OF ELECTRIC SHOCK. YOU SHOULD SWITCH OFF THE POWER SUPPLY CONTACT THE BAUMATIC SERVICE DEPARTMENT IMMEDIATELY.

  • Page 20: Cooking Tips

    Cooking tips Cooking table for main oven Traditional oven Combined oven (fan Shelf ventilated) position Temperature Cooking Temperature Cooking Foods Weight from (°C) (°C) (kg) bottom baking Baking time time (mins) (mins) Meat loafs Roasted 200-225 100-120 100-120 veal Roasted 200-225 40-50 40-50...

  • Page 21: Conventional Oven

    The information given in this table is approximate and may vary according to individual needs. Grilling in main oven Traditional oven Combined oven (fan ventilated) Shelf Cooking / Cooking Foods Weight position Baking Baking time (kg) from Temperature time Temperature (mins) bottom (°C)
  • Page 22 Sea bass 20-25 Baked pasta Lasagne 210-225 60-75 Cannelloni 210-225 60-75 Pizza 20-22 Bread 20-25 Patisserie Biscuits in general Shortcrust pastry Victoria sponge 40-45 Cakes / Flans Angel cake / sponge Fruit cake Chocolate cake The information in this table is approximate and may vary according to individual needs.

  • Page 23: Cakes And Bread

    Cooking tips for cakes and bread o Heat the oven for at least 15 minutes before you start cooking bread or cakes. o Do not open the door during baking because the cold air will stop the yeast from rising. o When the cake is cooked turn the oven off and leave it in for about 10 minutes.

  • Page 24: Meat

    Cooking tips for meat o If, when cooking meat, the time needed is more than 40 minutes, turn the oven off 10 minutes before the end of cooking time to exploit the residual heat and save energy. o Your roast will be juicer if cooked in a closed pan. It will be crispier if cooked without a lid.

  • Page 25: Cleaning The Ceramic Hob Top

    Any damage that is caused to the appliance by a cleaning product will not be fixed by Baumatic free of charge, even if the appliance is within the guarantee period. Cleaning the ceramic hob top Any residues that are left on the hob top surface from cleaning agents will damage it.

  • Page 26: Cleaning Table

    Cleaning table Type of deposit Remove Remove What should I immediately? when the use to remove appliance the deposit? has cooled down? Sugar or Ceramic hob food/liquid scraper containing sugar Tin foil or plastic Ceramic hob scraper Fat splashes Ceramic hob cleaner Metallic Ceramic hob...

  • Page 27: Removing The Oven Door For Cleaning

    Round lamps o Turn the glass protection cap (A) anti-clockwise and change the lamp (B). o Refit the cap by screwing it back in a clockwise direction Removing the oven door for cleaning o The oven door can be removed to give easier access to the oven when cleaning.

  • Page 28: Removing The Inner Door Glass For Cleaning

    Removing the inner door glass for cleaning Ensure the top cavity is cold before cleaning. o Simply open the oven door and remove the support securing the glass. The glass will then slide out easily. To replace the glass, follow the first step in reverse. WARNING: This procedure can be carried out with the door fitted on the appliance but pay attention that when the glass is pulled upwards, the force of the hinges can close the door...

  • Page 29: Installation

    Installation The installation must be carried out by a suitably qualified person, in accordance with the current version of the following. o UK Regulations and Safety Standards or their European Norm Replacements. o Building Regulations (issued by the Department of the Environment).
  • Page 30 (including the burners). o Baumatic do not recommend that the cooker is positioned below wall cupboards, as the heat and steam from the appliance and what is being cooked, may damage the cupboard and its contents.

  • Page 31: Securing The Back-Guard

    Securing the back-guard o In order to attach the back-guard (A) to the appliance, you need to loosen the screws (B) positioned on the back of the hob (see image below). o Fix the back-guard into place by screwing the screws back into the hob with the back-guard placed in between.

  • Page 32: Electrical Connection

    Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage.

  • Page 33: Connecting The Main Supply Cable

    Connecting the mains supply cable IMPORTANT The wires in the mains lead are coloured in accordance with the following code: GREEN AND YELLOW EARTH BLUE NEUTRAL BROWN LIVE Neutral Terminal Live Terminal Earth Terminal Cable Clamp Mains Cable o Connect to the mains terminal block as shown in the image above.

  • Page 34: My Appliance Isn't Working Correctly

    My appliance isn’t working correctly o The oven isn’t coming on. * Check that the oven is in manual operation mode. * Check that you have selected a cooking function and a cooking temperature. o There appears to be no power to the oven and grill. * Check that the appliance has been connected to the electrical mains supply correctly.
  • Page 35 o The oven light is not working * Refer the “Replacing the oven bulb” section. o I am getting condensation in my oven * Steam and condensation is a natural by product of cooking any food with high water content, such as frozen food, chicken etc. * You may get condensation in the oven cavity and forming between the oven door glasses.
  • Page 36 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.

  • Page 37: Baumatic Consumables

    BC005 Stainless Steel Cleaner and Protector (250 ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk...

  • Page 38: Contact Details

    United Kingdom Czech Republic Baumatic Ltd Baumatic CR spol s.r.o. Baumatic Buildings, Lìpovà 665 6 Bennet Road, 460 01 Liberec 4 Reading, Berkshire Czech Republic RG2 0QX United Kingdom +420 483 577 200 www.baumatic.cz Sales Telephone (0118) 933 6900 Slovakia Sales Fax Baumatic Slovakia, s.r.o.
