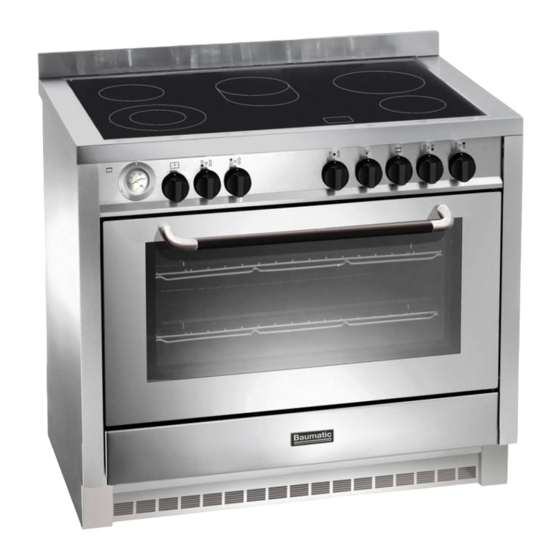

- Page 1 BCE905SS 90 cm Electric Single Cavity Cooker...
- Page 2 User Manual for your Baumatic BCE905SS 90 cm Electric single cavity cooker NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Removing the side racks for cleaning Installation 26 - 37 Positioning 26 - 27 Securing the back-guard Fitting the safety chain and hook Electrical connection Connecting the main supply cable 29 - 30 My appliance isn’t working correctly 30 – 32 Baumatic consumables Contact details... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
Baumatic Ltd. will invalidate any warranty or liability claim. o Your new appliance is guaranteed against electrical or mechanical defects, subject to certain exclusions that are noted in Baumatic’s Conditions Of G uarantee. The foregoing does not affect your statutory rights. - Page 6 This appliance complies with all current European safety legislation. Baumatic do wish to emphasise that this compliance does not remove the fact that the appliance surfaces will become hot during use and retain heat after operation.
- Page 7 o Do not place heavy objects on the oven door or lean on the oven door when it is open, as this can cause damage to the oven door hinges. Nobody should be allowed to sit or stand on any part of the cooker.
- Page 8 Please see the specific section of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 9: Specifications
Specifications Height = 885 - 940 mm (excluding back-guard) Width = 900 mm Depth = 600 mm Product specifications: 5 zone ceramic hob: o 2 x 1.20 kW hyper-speed zone (Ø 140 mm) o 1 x 2.10 kW hyper-speed zone (Ø 210 mm) o 1 x 1.00/2.20 kW double hyper-speed zone (Ø... -
Page 10: Electrical Details
Standard accessories: o Trivet o WipeClean enamelled baking tray with handle o 2 x Safety shelves o Removable side racks o Ceramic hob scraper o Base plinth Optional extras: o BPS2 Pizza Stone Electrical details Rated Voltage: 220 - 240 Vac 50 Hz Supply Connection: 55 A (double pole switched fused outlet with 3mm contact gap) -
Page 11: Control Panel
Control Panel Hob top cooking zone control knob o Use this control knob to control the power level of the chosen cooking zone. Main oven thermostat dial o Turn the dial clockwise to select a main oven temperature (50 °C – 225 °C MAX). -
Page 12: Timer (Minute Minder)
The timer (minute-minder) o To set a cooking time, first wind the timer up by turning it completely once from left to right and then back to the number of minutes you require the timer to be set for. o The timer will sound when the set time has been reached. -
Page 13: Using A Heating Zone
Using the hob top zones o Each zone on the ceramic hob top is controlled by a control knob. o To activate a zone, rotate the control knob anticlockwise to choose a power level between 1 – 12. o You should select a control knob position that is suitable for the particular cooking that you are carrying out. -
Page 14: Hob Guidelines
Hob guidelines o The first few times the hob top is used, it may give off an acrid, burning smell. This smell will disappear completely with repeated use. o The worktop is fitted with cooking areas of different diameter and power. -
Page 15: Using The Oven
DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED – RISK OF ELECTRIC SHOCK. YOU SHOULD SWITCH OFF THE POWER SUPPLY CONTACT THE BAUMATIC SERVICE DEPARTMENT IMMEDIATELY. Using the oven... -
Page 16: Using The Main Oven
Using the main oven You can rotate this dial in either direction to select an oven function for the oven. The oven temperature control knob should be turned clockwise to select the oven temperature. There are eight cooking functions available on your appliance: LIGHT CONTROL: Turn the control knob to this icon to turn the oven light on and off. -
Page 17: Using The Grill
GRILL WITH FAN: This cooking method uses the top element in conjunction with the fan, to help give a fast circulation of heat. Suitable where quick browning is required and “sealing” the juices in, such as with steaks, hamburgers, some vegetables etc. -
Page 18: Cooking Guidelines
Cooking guidelines o Please refer to the information given on food packaging for guidance on cooking temperatures and times. Once familiar with the performance of your appliance, temperatures and times can be varied to suit personal preference. o Make sure that frozen foods are thoroughly thawed before cooking, unless the instructions on the food packaging advise that you can “cook from frozen”. -
Page 19: Cooking Guide For The Main Oven
Cooking guide for the main oven Multifunction oven: Shelf position from bottom Cooking without fan Cooking with fan Weight With 5 With 4 With Temperature Cooking Temperature Cooking Foods (kg) runners runners three (°C) time in (°C) time runners mins mins Meat Roast veal... -
Page 20: Cooking Tips For Cakes And Bread
Grilling: Shelf position from bottom Cooking without fan Cooking with fan Cooking Cooking Foods Weight With 5 With 4 With 3 time in time in (kg) runners runners runners Temperature mins Temperature mins (°C) (°C) side side side side Meat Chop 0.50 225-MAX... -
Page 21: Cooking Tips For Meat
o If the cake is too dark on top next time put the cake on a lower shelf and cook it at a lower temperature for longer. o If the top of the cake is burnt, cut off the burnt layer and cover with sugar or decorate with cream, jam and confectioner’s cream. -
Page 22: Cleaning And Maintenance
Any damage that is caused to the appliance by a cleaning product will not be fixed by Baumatic free of charge, even if the appliance is within the guarantee period. -
Page 23: Cleaning The Ceramic Hob Top
Cleaning the ceramic hob top Any residues that are left on the hob top surface from cleaning agents will damage it. You should remove any residues with water and a little washing up liquid. Abrasive cleaners or sharp objects will damage the hob surface; you should clean it using water and a little washing up liquid. -
Page 24: Replacing The Oven Bulb
Replacing the oven bulb IMPORTANT: The oven must be disconnected from your mains supply before you attempt to either remove or replace the oven bulb. o Draw out the side guide rails in order to provide access to the bulb. o Remove the glass protection cap (C) from the bulb socket by lifting it with a screwdriver placed between the cap... -
Page 25: Removing The Inner Door Glass For Cleaning
Removing the inner door glass for cleaning Ensure the appliance is cold before cleaning. o Simply open the oven door and remove the support securing the glass. The glass will then slide out easily. To replace the glass, follow the first step in reverse. WARNING: This procedure can be carried out with the door fitted on the appliance but pay attention that when the glass is pulled upwards, the force of the hinges can close the door... -
Page 26: Installation
Installation The installation must be carried out by a suitably qualified person, in accordance with the current version of the following. o UK Regulations and Safety Standards or their European Norm Replacements. o Building Regulations (issued Department Environment). o Building Standards (issued Scottish... -
Page 27: Securing The Back-Guard
Any overhanging surface or cooker hood should be at least 700 mm above the highest point on the hob top (including the burners). o Baumatic do not recommend that the cooker is positioned below wall cupboards, as the heat and steam from the appliance and what is being cooked, may damage the cupboard and its contents. -
Page 28: Fitting The Safety Chain And Hook
Fitting the safety chain and hook o To prevent the cooker from tipping forward, two lengths of chain MUST BE fixed to the back of the oven which should be secured to the hook provided at all times. o The hook should be secured to the wall at the back of the cooker. The chains should always be attached to the upper hook when the cooker is in position against the wall. -
Page 29: Electrical Connection
Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. - Page 30 Neutral Terminal Live Terminal Earth Terminal Cable Clamp Mains Cable o Connect to the mains terminal block as shown in the image above. It is accessed by removing the cooker back panel. o The power cable must be laid so that no parts of it ever reach a temperature of 75°C.
-
Page 31: My Appliance Isn't Working Correctly
My appliance isn’t working correctly The oven isn’t coming on. * Check that the oven is in manual operation mode. * Check that you have selected a cooking function and a cooking temperature. There appears to be no power to the oven and grill. * Check that the appliance has been connected to the electrical mains supply correctly. - Page 32 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
-
Page 33: Baumatic Consumables
BC005 Stainless Steel Cleaner and Protector (250 ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk... -
Page 34: Contact Details
United Kingdom Czech Republic Baumatic Ltd., Baumatic CR spol s.r.o. Baumatic Buildings, Lípovà 665 6 Bennet Road, 460 01 Liberec 4 Reading, Berkshire Czech Republic RG2 0QX United Kingdom +420 483 577 200 www.baumatic.cz Sales Telephone (0118) 933 6900 Slovakia Sales Fax Baumatic Slovakia, s.r.o.
