Baumatic BCE512SS/W User Manual

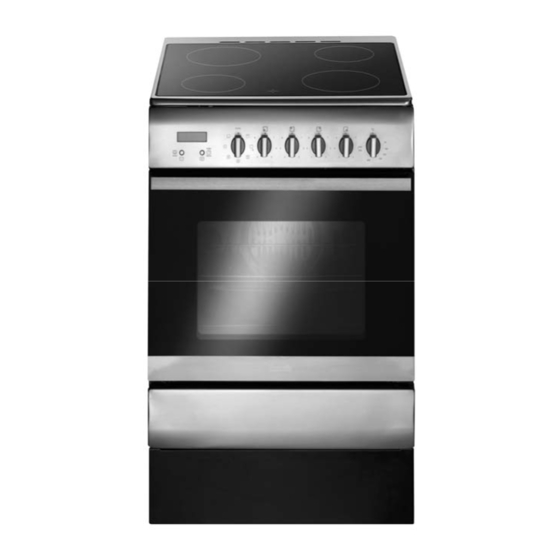

50 cm electric slot-in multifunctional cooker with ceramic top
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BCE512SS/W 50 cm
Electric slot-in
multifunction cooker
y
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCE512SS/W and is the answer not in the manual?

Questions and answers

Related Manuals for Baumatic BCE512SS/W

Summary of Contents for Baumatic BCE512SS/W

  • Page 1 BCE512SS/W 50 cm Electric slot-in multifunction cooker...
  • Page 2 User Manual for your Baumatic BCE512SS/W 50 cm Electric slot-in multifunctional cooker with ceramic top NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...

  • Page 3: Table Of Contents

    Cleaning table Replacing the oven bulb Removing the oven door for cleaning Installation 22 - 27 Positioning Safety chain anchors Securing the safety chains Electrical connection Connecting the main supply cable My appliance isn’t working correctly Baumatic consumables Contact details...

  • Page 4: Environmental Note

    Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.

  • Page 5: Important Safety Information

    Important safety information Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, p lease contact the Baumatic Advice Line.
  • Page 6 Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will become hot. o If it is necessary for younger family members to be in the...
  • Page 7 o Do not store chemicals, food stuffs, pressurised containers in or on the cooker or in cabinets immediately above or next to the cooker. o Do not heat up unopened food containers, as pressure can build up which may cause the container to burst. o Do not place flammable or plastic items on or near the hob burners, these types of materials should also not be placed in the oven or the compartment below the oven.
  • Page 8 Please see the specific section of this booklet that refers to installation. Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.

  • Page 9: Specifications

    pecification Product dimensions: Height: 850 mm Width: 500 mm Depth: 600 mm Product specifications: o 4 zone ceramic hob: o 2 x 1.20 kW radiant zone (diameter 145 mm) o 2 x 1.80 kW ra diant zone (diameter 180 mm) 4 Individual re sidual heat indicators o 7 Functions...

  • Page 10: Electrical Details

    Optional extras o BPS2 Pizza Stone Electrical details Rated Voltage: 220 - 240 Vac 50 Hz Supply Connection: 40 A (do uble pole switched fused outlet with 3mm contact gap) Max Rated Inputs 9.05 kW ains Supply Lead: 3 core x 6 mm² (not supplied) ven Light Bulb: E14 15 W/300°C screw type pygmy For future reference please record the following information which can...

  • Page 11: Control Panel

    Control Panel Oven function selection kn b Use this control knob to select the oven function you require. o The indicator light on the control panel will turn on when an oven function is in use. Thermostat control knob o Use this control knob to control the temperature in the oven.

  • Page 12: Oven Timer

    ven timer ) Alarm stop icon (press minus button to stop alarm). ) Timer minus button. 3) Timer plus button. ) Time-setting mode indicator (press plus and minus uttons together to enter this mode). Setting and using the oven programmer/timer Setting the time of day Before using the oven for the first time you should set the time of day.

  • Page 13: Before First Use

    Before first use o To remove any residue from the oven that may have been left from manufacturing proces should select conventional or fan oven function and turn the thermostat dial to its maximum temperature setting. o It is perfectly normal for a smell to be produced during this process.

  • Page 14: Selecting A Cooking Function And Temperature

    o Important: The oven will continue to heat once the alarm has been silenced. If you have finished cooking, then you should t the oven function selector and thermostat control knob to 0. Selecting a cook ing function and temperature After your appliance is connected to your mains supply for the first time, the numbers on the timer display will flash.

  • Page 15: Cooking Guidelines

    IMPORTANT: When fitting the handle to the enamelled baking tray, hook the handle over the edge of the tray and through the wire rack at a central point, a long the tray edge. Lower the andle fully down to secure it. You should not place food inside the ca vity, until the correct ooking temperature has been reached.

  • Page 16: Warnings

    arnings o Do not use aluminium foil to cover the enamelled baking tray or heat items wrapped in aluminium foil under the grill. The high reflectivity of the foil could potentially damage the grill element. o You should never line the base of your oven with aluminium foil. o During cooking, never place pans or cookware directly onto the bottom of t he oven.

  • Page 17: Residual Heat Indicator

    o To activate a zone, position the control knob between 1 – 6. o You sh ould select a control knob position that suitable particular cooking that carrying out. highest temperature setting and 0 is off. o When you have finished cooking on a particular zone, it is important to make sure that the control knob is turned back to 0 (the off position).

  • Page 18: Cleaning And Maintenance

    DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOU LD CONTACT THE BAUMATIC SERVICE DEPARTMENT IMM EDIATELY. Cleaning and maintenance Cleaning operations must only be carried out when the oven is cool.

  • Page 19: Cleaning The Ceramic Hob Top

    Any damage that is cause d to the appliance by a cleaning roduct will not be fixed by Baumatic free of charge, even if the appliance is within the guarantee period. Cleaning the ceramic hob top Any residues that are left on the hob top surface from clean gents will damage it.

  • Page 20: After Each Use

    After each use o Wipe the a ppliance over with a damp cloth and a little washing up liquid. o Dry the applian ce by rubbing he surface wit h a c lean cloth. leaning table Type of deposit Remo ve w What should I use imme...

  • Page 21: Removing The Oven Door For Cleaning

    Screw the bulb cover back into its original position. ving the oven door for cleaning To facilitate the cleaning of the inside of the cooker and the outer frame of the oven, the door can be remove d as follows:- o The hinges (A) have two movable bolts on them (B).

  • Page 22: Installation

    Install tion The installation must be carried out by a suitably qualified person, in accordance with the current version of the following. UK Regulation s and Safety Standards or their European Norm Replacements. Building Reg ulations (issued by the Department of the Environment).
  • Page 23 (including the burners). o Baumatic does not recommend that the cooker is positioned below wall cupboards, as the heat and steam from the appliance and what is being cooked, may damage the cupboard and its contents.

  • Page 24: Safety Chain Anchors

    o The cooker is fitted with four feet that can be adjusted to match height your kitchen cabinets. o If the cooker is not level or is unstable due to an uneven floor surface, use the adjustable feet to alter each corner until the cooker is level.

  • Page 25: Securing The Safety Chains

    Securing the safety chains o Before securing the safety chains, check that you have completed the installation process and that all connections have been made successfully and that the cooker is in its final operating position. o To fix the security chains to their anchor brackets: Loosen the hex nut at the unattached end of the safety chain, until it is flush with the screw end.

  • Page 26: Electrical Connection

    Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage.

  • Page 27: Connecting The Main Supply Cable

    Connecting the mains supply cable IMPORTANT The wires in the mains lead are coloured in accordance with the following code: GREEN AND YELLOW EARTH BLUE NEUTRAL BROWN LIVE o Release the cover plate by removing the cover screw. o Loosen the cable clamp. o Feed the mains connection cable through the grommet in the back panel and cable clamp.

  • Page 28: My Appliance Isn't Working Correctly

    My appliance isn’t working correctly o The oven isn’t coming on. * Check that the oven is in manual operation mode. * Check that you have selected a cooking function and a cooking temperature. o There appears to be no power to the oven and grill. * Check that the appliance has been connected to the electrical mains supply correctly.
  • Page 29 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.

  • Page 30: Baumatic Consumables

    BC005 Stainless Steel Cleaner and Protector (250ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk...

  • Page 31: Contact Details

    Czech Republic Baumatic CR spol s.r.o. Lípovà 665 United Kingdom 460 01 Liberec 4 Baumatic Ltd., Czech Republic Baumatic Buildings, 6 Bennet Road, +420 483 577 200 Reading, Berkshire www.baumatic.cz RG2 0QX United Kingdom Slovakia Baumatic Slovakia, s.r.o. Sales Telephone Panenská...
