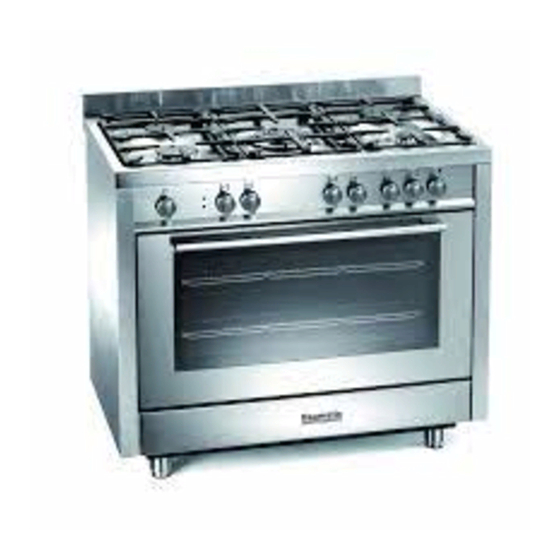

Baumatic BCG900SS Instruction Manual

90 cm single cavity gas cooker
Hide thumbs Also See for BCG900SS:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
BCG900SS
90 cm Single cavity
gas cooker
y
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCG900SS and is the answer not in the manual?

Questions and answers

Related Manuals for Baumatic BCG900SS

Summary of Contents for Baumatic BCG900SS

  • Page 1 BCG900SS 90 cm Single cavity gas cooker...
  • Page 2 User Manual for your Baumatic BCG900SS 90 cm Single cavity gas cooker NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...

  • Page 3: Table Of Contents

    Contents Environmental note Important safety information 5 – 9 Specifications 9 – 11 Dimensions Specifications 9 - 10 Electrical details Gas details Control panel Using the hob top 12 - 15 Hob surface layout Before first use Lighting a burner 12 - 13 Optimum use of the burners Hob guidelines...

  • Page 4: Environmental Note

    Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.

  • Page 5: Important Safety Information

    Baumatic’s Conditions Of Guarantee. The foregoing does not affect your statutory rights. o Repairs may only be carried out by Baumatic service engineers or their authorised service agents.
  • Page 6 Warning and safety instructions o This appliance complies with all current European safety legislation. Baumatic do wish to emphasise that this compliance does not remove the fact that the appliance surfaces will become hot during use and retain heat after operation.
  • Page 7 o Do not place heavy objects on the oven door or lean on the oven door when it is open, as this can cause damage to the oven door hinges. Nobody should be allowed to sit or stand on any part of the cooker.
  • Page 8 Please see the specific section of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.

  • Page 9: Specifications

    o The above directives comply with 93/68/EEC regarding CE marking. o The manufacturer declares that the oven is built using certified materials requires appliance installed accordance with the standards currently in force. This appliance must be used by a trained person for domestic purposes only. Specifications h= 760 mm H = 920 - 980 mm...

  • Page 10: Electrical Details

    o Separate light button o Double-glazed removable “cool touch” door o Removable full inner glass o Wipe Clean enamelled cavity o Adjustable feet Gas oven with electric grill o 2 functions o Net oven capacity: 89 litres o Gross oven capacity: 112 Litres Standard accessories: o Trivet o WipeClean enamelled baking tray with handle...

  • Page 11: Control Panel

    Control Panel Cooking zone dial o Turn the relevant dial anticlockwise to select a power level for a chosen burner. 0 = Burner OFF position – Low temperature – High temperature Gas oven and grill knob o Turn dial anti-clockwise select the fixed grill function.

  • Page 12: Using The Hob Top

    Using the hob top Hob surface layout 2) 3.00 kW rapid burner 3) 1.80 kW semi-rapid burners 4) 1.00 kW auxiliary burner 6) 3.80 kW triple crown (wok) burner Before first use IMPORTANT: You should clean the hob surface (see “Cleaning and maintenance”...

  • Page 13: Optimum Use Of The Burners

    o Matches can also be used to light the burner during a power cut. Simply follow the previous step but place a lit match to the burner as you press the dial. Once lit, keep the dial pressed for about ten seconds. WARNING: Extra care should be taken when lighting a burner with matches.

  • Page 14: Hob Guidelines

    Hob guidelines o The first few times the hob top is used, it may give off an acrid, burning smell. This smell will disappear completely with repeated use. o The worktop is fitted with cooking areas of different diameter and power. o The positions where the heat will radiate from are clearly marked on the hob top.

  • Page 15: Using The Oven

    Especially if pointed or hard objects are allowed to fall on it with some force. o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC SERVICE DEPARTMENT IMMEDIATELY. Using the oven...

  • Page 16: Using The Main Oven

    Using the main oven o You rotate this dial anti- clockwise to select the fixed gas grill function. o You can also turn the dial clockwise to switch on the gas oven and then proceed oven temperature. REMEMBER: When using the grill function, it is important to place a drip pan at the base of the oven cavity to collect any juices which may drip down (see image below).

  • Page 17: Cooking Guidelines

    Cooking guidelines o Please refer to the information given on food packaging for guidance on cooking temperatures and times. Once familiar with the performance of your appliance, temperatures and times can be varied to suit personal preference. o Make sure that frozen foods are thoroughly thawed before cooking, unless the instructions on the food packaging advise that you can “cook from frozen”.

  • Page 18: Cooking Guide

    Cooking guide Multifunction oven: Shelf position from bottom Cooking without fan Cooking with fan Weight With 5 With 4 With Temperature Cooking Temperature Cooking Foods (kg) runners runners three (°C) time in (°C) time runners mins mins Meat Roast veal 200-225 100-120 100-120...

  • Page 19: Cooking Tips For Cakes And Bread

    Grilling: Shelf position from bottom Cooking without fan Cooking with fan Cooking Cooking Foods Weight With 5 With 4 With 3 time in time in (kg) runners runners runners Temperature mins Temperature mins (°C) (°C) side side side side Meat Chop 0.50 225-MAX...

  • Page 20: Cooking Tips For Meat

    o If the cake is too dark on top next time put the cake on a lower shelf and cook it at a lower temperature for longer. o If the top of the cake is burnt, cut off the burnt layer and cover with sugar or decorate with cream, jam and confectioner’s cream.

  • Page 21: Cleaning And Maintenance

    Any damage that is caused to the appliance by a cleaning product will not be fixed by Baumatic free of charge, even if the appliance is within the guarantee period.

  • Page 22: Cleaning The Gas Hob Top

    Cleaning the gas hob top o Remove the dirty pan supports from the hob and place in warm soapy water for some time. Then wash and dry before replacing. After each use o Wipe the appliance over with a damp cloth and a little washing up liquid.

  • Page 23: Replacing The Oven Bulb

    Replacing the oven bulb IMPORTANT: The oven must be disconnected from your mains supply before you attempt to either remove or replace the oven bulb. o Draw out the side guide rails in order to provide access to the bulb. o Remove the glass protection cap (C) from the bulb socket by lifting it with a screwdriver placed between the cap and the oven wall.

  • Page 24: Removing The Inner Door Glass For Cleaning

    o Partially close the door, forcing it upwards at the same time to free the stop tooth and hinge sector. o Once the hinge is free, pull the door forwards tilting it slightly upwards to free the sector. o To reassemble, proceed in the reverse order, paying attention to the correct position of the sectors.

  • Page 25: Removing The Side Guide Rails For Cleaning

    Removing the side guide rails for cleaning o For an effective cleaning of the oven side guide rails, these can be extracted by unscrewing the knurled nuts. o To fit the rails back in their place, first insert rear pins in the holes and then secure them with the knurled nuts.
  • Page 26 (including the burners). o Baumatic do not recommend that the cooker is positioned below wall cupboards, as the heat and steam from the appliance and what is being cooked, may damage the cupboard and its contents.

  • Page 27: Ventilation

    o The cooker is fitted with four legs that can be adjusted to match the height of your kitchen cabinets. o If the cooker is not level or is unstable due to an uneven floor surface, use the adjustable feet to alter each corner until the cooker is level.

  • Page 28: Securing The Back-Guard

    o Indirect ventilation is also allowed by taking air from adjacent rooms to the one to be ventilated and must comply with current standards. o If it is impossible to use a cooker hood, a fan should be installed in a window or an external wall. The fan should be switched on each time the appliance is used and must comply with all relevant standards regarding ventilation.

  • Page 29: Electrical Connection

    Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage.

  • Page 30: Connecting The Main Supply Cable

    o Cable type: H05 RRF 3 core x 1.5 mm² Connecting the mains supply cable IMPORTANT The wires in the mains lead are coloured in accordance with the following code: GREEN AND YELLOW EARTH BLUE NEUTRAL BROWN LIVE o Release the cover plate by removing the cover screw. o Loosen the cable clamp.

  • Page 31: Gas Connection

    Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Technical Department. o The cooker must be installed by a qualified person, in...
  • Page 32 Gas connection ALL INSTALLATION AND SERVICE WORK MUST BE CARRIED OUT BY A GASSAFE REGISTERED ENGINEER. o Prior to installation, ensure that the gas supply conditions (nature of the gas and gas pressure) and the adjustment conditions are compatible. The adjustment conditions for this appliance are stated on the rating plate which can be found on the back cover.

  • Page 33: Gas Conversion To Lpg

    o This cooker can be connected to the supply both on the right and left hand side at the rear of the cooker. To reverse the position, remove the blanking plug and refit it to the opposite side to where the hose is being connected. Gas adjustment (Conversion to LPG for the hob top) All work must be carried out by a GASSAFE registered engineer.
  • Page 34 LPG - 1800 Propane Natural 98-Z 1800 LPG - 28-30 1000 Butane Auxiliary LPG - 1000 Propane Natural 75-X 1000 LPG - 28-30 1600 3800 Butane Ultra-rapid LPG - 1600 3800 Propane Natural 135-K 1600 3800 LPG- 28-30 1000 3900 Butane Oven LPG -...
  • Page 35 o IMPORTANT: On completion carry out a gas tightness test. Gas adjustment (Conversion to LPG for the oven and grill) All work must be carried out by a GASSAFE registered engineer. IMPORTANT: Always isolate the cooker from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners.
  • Page 36 Switch on the oven burner by turning the relative knob to the maximum position then wait for about 10 minutes. Slowly turn the knob back to the minimum position and, using a small screwdriver, turn the screw to the right to lower the flame or to the left to increase it.
  • Page 37 o Pull out the knobs. o Unscrew the six fixing screws (B) which lock the side profiles and remove it. o Remove the hob by unscrewing the rear fixing screws (B) which lock the hob at the supports (C). o Unscrew the nuts (E) of the gas aluminium pipes and pull out the thermocouple quick connectors (F).

  • Page 38: My Appliance Isn't Working Correctly

    My appliance isn’t working correctly o The oven isn’t coming on. * Check that the oven is in manual operation mode. * Check that you have selected a cooking function and a cooking temperature. o There appears to be no power to the oven and grill. * Check that the appliance has been connected to the electrical mains supply correctly.
  • Page 39 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...

  • Page 40: Contact Details

    Czech Republic Baumatic CR spol s.r.o. United Kingdom Průmyslová zóna Sever 696 Baumatic Ltd., 460 11 Liberec 11 Baumatic Buildings, Czech Republic 6 Bennet Road, Reading, Berkshire +420 483 577 200 RG2 0QX United Kingdom www.baumatic.cz Sales Telephone Slovakia (0118) 933 6900 Baumatic Slovakia, s.r.o.
